BlackBox LPD504A
PoE PD media converter: 10/100BaseTX 100BaseFX/LC multimode
|
195,84 EUR |
|||||||||||
|
( 233,05 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 157686 | ||||||||||
| Mfg Part No: | LPD504A | ||||||||||
| UPC/EAN: | 00822088110156 | ||||||||||
| Weight: | 0.37 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BlackBox LPD504A:

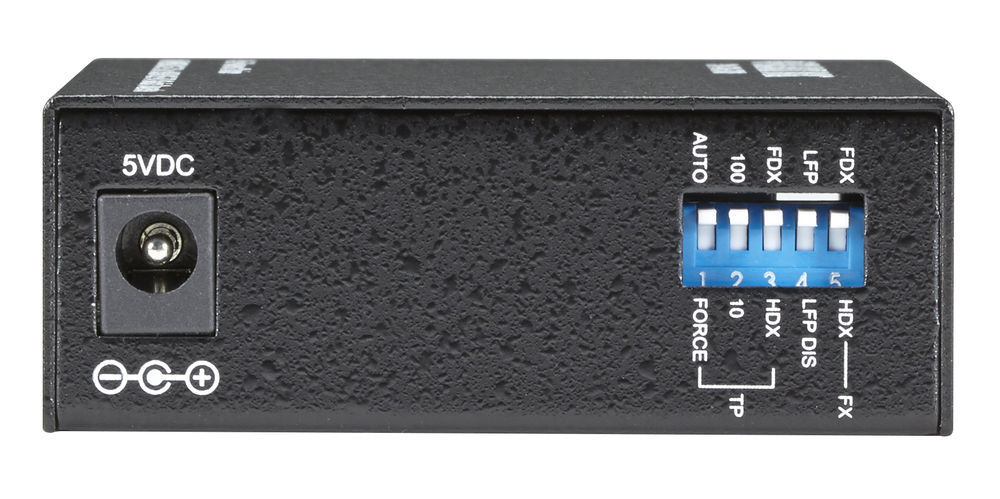

The compact MiC PoE PD 10-100 media converter enables easy conversion of 10/100M copper signals to 100M fiber connections, powered directly over Ethernet. Ideal for use in areas without AC power, this converter draws its power via an Ethernet cable connected to a PoE-capable device, such as a PoE switch or mid-span hub, in compliance with the 802.3af standard.
With Link Fault Propagation (LFP), the MiC PoE PD 10-100 ensures connection integrity by immediately detecting faults and preventing data transmission over faulty links. Configuration is straightforward using DIP switches, while the media converter operates in full-duplex mode with 802.3x flow control or half-duplex with backpressure. This makes the converter an excellent choice for bridging long-distance Fast Ethernet fiber optic segments in networks.
Key Features:
- Converts 10/100M copper connections to 100M fiber connections
- Compatible with PoE switches, mid-span hubs, and other 802.3af PSE devices
- Link Fault Propagation (LFP) for enhanced connection integrity
- Fault detection to prevent data transmission over faulty links
- Warranty: 1 year Double Diamond™ Technical Specifications:
- 100 Mbps: 148,800 pps
- 10 Mbps: 14,880 pps
Forwarding Rate:
Connectors:
- Copper side: (1) RJ-45
- Fiber side: (1) pair of ST or LC
Maximum Transmission Distances:
- Copper: up to 100 m
- Multimode fiber: up to 2 km
Indicator LEDs:
- (1) Power
- (1) PoE
- (1) TP Link/Act
- (1) FX Link/Act
- (1) FDX/COL
Power Requirements:
- Requires 1 A at +5 VDC (via AC/DC adapter) or 60 mA at -48 VDC from 802.3af PSE or PoE
Dimensions:
- Each: 2.5 H x 6.9 W x 9.4 D cm
Operating Temperature:
- 0 to 50 °C
Humidity:
- 5% to 90% non-condensing
