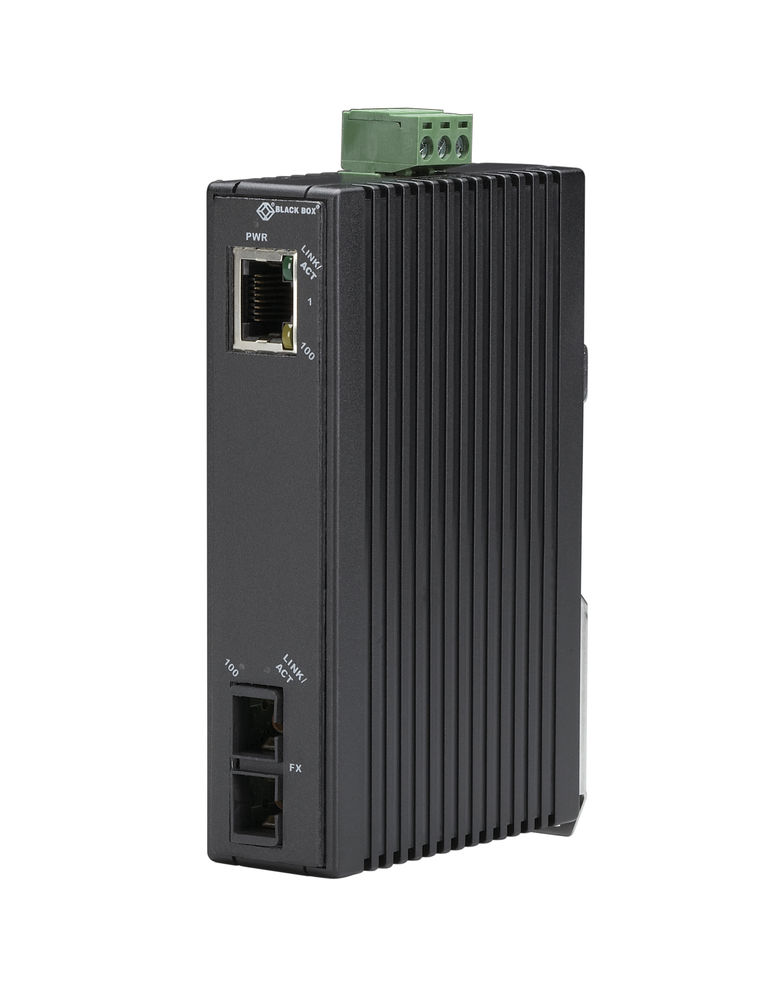

BlackBox LMC270A-MM-SC 10BASE-TX to 100BASE FX MM SC Mini Industrial Media Converter, DIN rail mounting
|
227,52 EUR |
|||||||||||
|
( 270,75 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: 2 pieces | |||||||||||
| Lieske Part No.: | 663889 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | LMC270A-MM-SC | ||||||||||
| UPC/EAN: | 00822088109174 | ||||||||||
| Weight: | 0.34 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BlackBox LMC270A-MM-SC:
Durable DIN rail-mountable media converter to extend your network up to 20 km over fiber.
Direct DC power input: 12 to 48 VDC.
Extended operating temperature range: -10 to +60° C.
Supports distances up to 20 kilometers.
Plug & Play operation.
Suitable for DIN rail mounting.
Warranty: 1 Year Double Diamond™ (Standard)
These affordable, unmanaged Layer 2 media converters allow simple network expansion of your 10- or 100-Mbps network over 100-Mbps fiber cable, with distances reaching up to 40 kilometers.
The converter features an industrial-strength plastic enclosure and meets IEC 61000-Part 6-2 standards for electromagnetic compatibility (EMC) in industrial settings. It offers full wire-speed forwarding across the network, and the auto MDI/MDI-X copper port automatically negotiates 10/100Mbps speeds and detects full- or half-duplex mode.
The converter is easy to install on a DIN rail, with the mounting kit included.
Enclosure: Industrial-strength plastic, IP30 rated
Filtering/Forwarding Rate:
Ethernet: 14,880 pps;
Fast Ethernet: 148,800 pps
MAC Addresses: 2K
Distance:
LMC270A-MM-SC/LMC270A-MM-ST: 2 km
Fiber Type:
LMC270A-MM-SC: 1310 nm multimode SC
LMC270A-MM-ST: 1310 nm multimode ST
Operating Temperature: -10 to +60° C
Packet Buffer Size: 384 KB
Switching Processing Type: Store-and-forward with half-duplex backpressure and IEEE 802.3x full-duplex flow control
Connectors:
All models: Ethernet/Fast Ethernet: (1) RJ-45;
Fiber Optic:
LMC270A-MM-SC/LMC270A-SM-20K-SC: (1) pair of SC
LMC270A-MM-ST: (1) pair of ST
Power:
Input: 12–48 VDC (terminal block);
Output: As per optional DC or AC power supply ordered
Dimensions: 10.9 H x 2.5 W x 7.1 D cm
Weight: 0.2 kg
Alternative Products: Available upon request
Questions & answers
What is the delivery time of BlackBox LMC270A-MM-SC 10BASE-TX to 100BASE FX MM SC Mini Industrial Media Converter, DIN rail mounting?
The article BlackBox LMC270A-MM-SC 10BASE-TX to 100BASE FX MM SC Mini Industrial Media Converter, DIN rail mounting is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BlackBox LMC270A-MM-SC to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you BlackBox LMC270A-MM-SC 10BASE-TX to 100BASE FX MM SC Mini Industrial Media Converter, DIN rail mounting always at the best possible price. We can give you a discount of 2% on BlackBox LMC270A-MM-SC 10BASE-TX to 100BASE FX MM SC Mini Industrial Media Converter, DIN rail mounting if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of BlackBox LMC270A-MM-SC 10BASE-TX to 100BASE FX MM SC Mini Industrial Media Converter, DIN rail mounting we can offer you a price of 220,69 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
