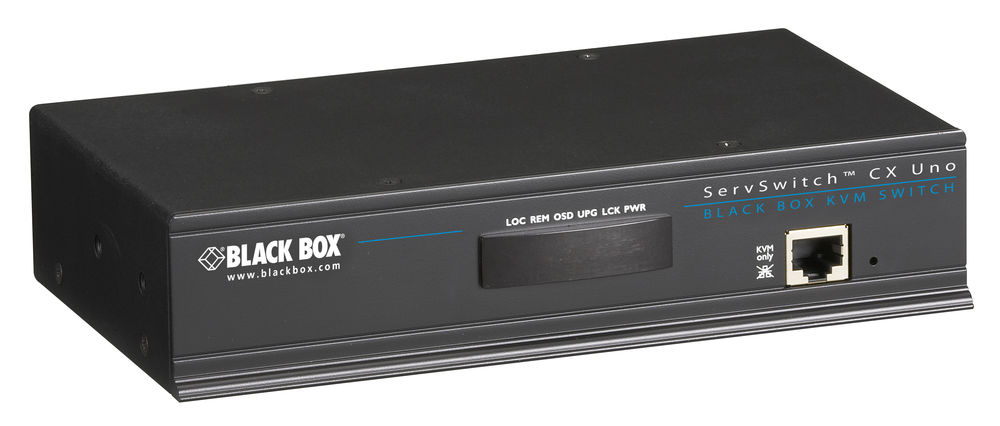

BlackBox KV0081A ServSwitch CX Uno, 8-Port

The ServSwitch CX UNO stands for a high level of quality and compatibility with almost any server hardware and software platform. The switch is in on. 8 - or 16-port version available DEPENDING on your CPU type, select Server Access to the module with a PS / 2, USB, or Sun interface. With the resources available for all platforms stereo audio transmission so speakers can be connected to your System. The servers are up to 10m distance connected via inexpensive CATx cable to the switch. More over, the switch impresses with its compact size, Which make up less than half of a Conventional 19-unit. install two CX UNO in just 1U of rack and check cascaded one or two separate switching system with up to 31 computers. Or hide the switch inconspicuously on or behind your desk. In connection with a subject like the ServView DVI KVM (see box on the right solution), it is the ideal solution for dense server rack environments


.

With the help of Catmix KVM Extender (see box right solution) Receives a remote user full access to all connected servers at distances up to 300 feet over a single inexpensive CATx cable. KVMA The transmitter is integrated in the switch, so you not only save the cost of a full extender, so you save more space in the rack. CX UN can be controlled remotely via commands RS232/V.24. For multi-head video applications, multiple devices can be connected simultaneously. The ideal multi-platform KVM switch The ServSwitch CX UNO is based on the proven Matrix ServSwitch CX series, for there is a high degree of quality and compatibility with almost any server hardware and software platform. 8 - and 16-port versions with audio transmission CX The UN is in on . 8 - or 16-port version available DEPENDING on your CPU execution time, keep it simple, the Server Access Modules (SAMs) with a PS / 2, USB, or Sun interface. With the resources available for all platforms speakers stereo audio transmission can therefore be connected to your System. The servers are up to 10m distance connected via inexpensive CATx cable to the switch. DDC EDID for easy boat operations , the use of modern graphics cards for analog video requires the availability of correct DDC (Display Data Channel ) information. Without this information, the DDC monitors REMAIN Often black or it will only output a very low resolution, without the Possibility to increase enlarge this. The ServSwitch CX UNO reads the DDC information from the connected monitor and Secures you in non-volatile memory all connected SAMs. THUS, the problems with missing DDC be Prevented. Small Form Factor With its compact size, Which make up less than half of a Conventional 19-unit, Provides the powerful CX UNO cascaded switching between up to 31 CPUs in a single rack unit. In Conjunction with a KVM compartment as the ServView DVI (see box above solution), it is the ideal solution for dense server rack environments. remote access option CATx KVM Extender Using the Catmix (see box above solution) for PS / 2 Receives a USB or remote users full access to all connected servers so at distances up to 300 meters. The connection is via a single inexpensive CATx cable. remote control option Like all CX series switches can therefore be controlled from a distance of CX UNO on RS232 / V.24 commands. For multi-head video applications, multiple devices can be connected simultaneously.

Specifications:

Resolution - Up to 1920 x 1200 at 60Hz

Connections -
(8) or (16) RJ45 to the servers,
(1) RJ45 F to the remote console,
(1) St RS232/V.24 for upgrades and control
(2) USB Type AF for keyboard / mouse
(1) HD15 F for VGA
(1) 3.5mm audio jack
Power supply - 100 to 240 VAC / 5 VDC 2.5A autosensing (PS649-R2) Dimensions - 4.4H x 20B x 12T cm Weight - 0.7 kg

Scope of delivery:

(1) CX UNO,
(1) Power Supply,
(1) IEC 320 power cord,
(1) Manual on CD
