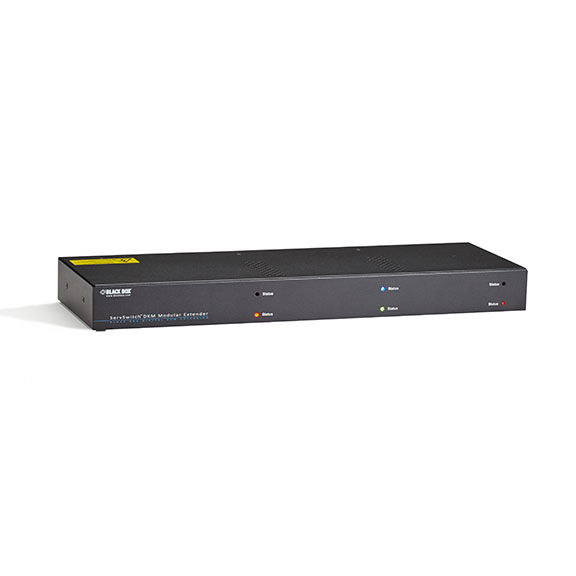

BlackBox ACXMODH6R-R2
DKM modular housing 6-slot with power supply and redundancy option

Modular KVM Extender Chassis - Power Supply, Redundancy Option:

Equip your KVM Extender with interfaces according to your needs.

• Combine various interfaces and extend KVM signals according to your needs.
• Use a chassis with transmitter cards at the computer and a chassis with receiver cards at the console.
• Modular chassis are available with 2, 4, 6, or 21 slots.
• Choose a cable medium according to the required distance: CATx up to 140m, multimode up to 1,000m, or singlemode up to 10km.
• For 4K/60 DisplayPort signals, the maximum transmission distance is 1km over multimode or 5km over singlemode cables.
• Pixel-perfect resolutions up to 2048 x 1152 (Single Link DVI) up to 2560 x 1600/2x2K (Dual Link DVI), HDMI up to 1080p or DisplayPort up to 4K over the full distance.
• 24-bit color depth.
• Choose between DVI, Display Port, HDMI, SDI, VGA inputs, and many other analog video formats.
• Support for multiple video channels in demanding graphic applications.
• Options for analog and digital audio, serial RS-232 or RS-422 data, embedded USB 2.0 with 36 Mbps, and transparent USB 2.0 with 480 Mbps.
• Various power supply options: AC or DC, internal and external power supplies, with or without redundancy, front or rear connection.
• Local monitoring with the optional splitter cable (ACXSPL12).
• Various mounting options: desktop, under the table, wall-mounted, in a 48,3 cm ( 19 inch ) rack, or on a DIN rail.
• Use these extenders for point-to-point KVM extensions or in the DKM FX and DKM FXC series KVM matrix switching systems.
• Warranty: 2 years Double Diamond™ (standard).

Chassis:

Dimensions —

• ACXMODH2-R2/ACXMODH2R-R2: 14.5W x 14.6D x 4.4H cm
• ACXMODH2R-P-R2/ACXMODH2R-P12/24/48: 22.1W x 14.6D x 4.4H cm
• ACXMODH4-R2/ACXMODH4R-R2: 29.2W x 15.6D x 4.3H cm
• ACXMODH6R-R2: 44.4W x 14.9D x 4.3H cm
• ACXMODH6BPAC-R2/ACXMODH6FPAC-R2: 44.5W x 26.9D x 4.3H cm
• ACXMODH21R: (4U) 44.4W x 40D x 17.2H cm

Power Supply —

• ACXMOD2-R2, ACXMODH2R-R2: external power supply, 90-240 VAC, 50/60Hz, output: 5VDC / 3A, external redundancy option;
• ACXMODH2R-P-R2: internal power supply, 90-240 VAC, 50/60Hz, output: 5VDC / 3A, external redundancy option;
• ACXMODH2R-P12: internal power supply, 12VDC / 1.3 A, output: 5VDC / 3 A, external redundancy option;
• ACXMODH2R-P24: internal power supply, 24VDC / 0.7 A, output: 5VDC / 3 A, external redundancy option;
• ACXMODH2R-P48: internal power supply, 48VDC / 0.35 A, output: 5VDC / 3 A, external redundancy option;
• ACXMOD4-all: external power supply, 90-240 VAC, 50/60Hz, output: 5VDC / 5A;
• ACXMODH6R-R2: internal power supply, 100-240 VAC, 50/60Hz, output 5VDC /8A;
• ACXMODH6R-P12: internal power supply, 12VDC / 2.2 A, output: 5VDC / 5 A, external redundancy option;
• ACXMODH6R-P24: internal power supply, 24VDC / 1.2 A, output: 5VDC / 5 A, external redundancy option;
• ACXMODH6BPAC-R2/ACXMODH6FPAC-R2: internal power supply, 100-240 VAC / 1.3 A, 50/60Hz, output: 5VDC / 10A;
• ACXMODH21R: internal power supply, 90-240 VAC / 5.3 A, 50/60Hz, output 5VDC / 10A

Temperature —

• Operating temperature: 5 to 45°C (41 to 113°F)
• Storage temperature: -25 to 60°C (-13 to 140°F)

Weight —

• ACXMOD2-all: 0.3 kg without modules
• ACXMOD4-all: 0.45 kg without modules
• ACXMODH6-all: 0.85 kg without modules
• ACXMODH21R: 4 kg without modules

TAA-compliant — Yes
