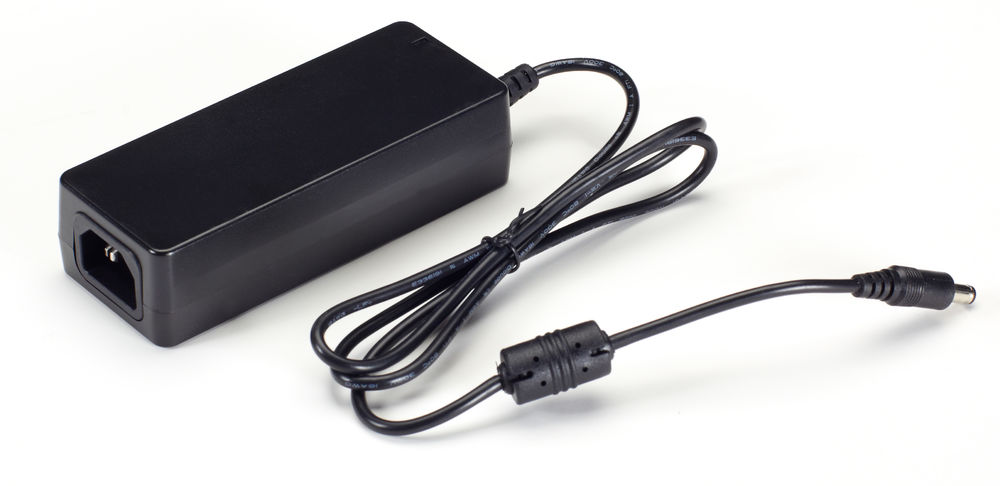

BlackBox ACXMODH6-PS DKM 5VDC/4A power supply for ACXMODH6

Modular KVM Extender Chassis - Power Supply, Redundancy Option:

Equip your KVM Extender with interfaces tailored to your needs.

• Combine various interfaces and extend the KVM signals to fit your requirements.
• Use a chassis with transmitter cards on the computer and a chassis with receiver cards at the console.
• Modular chassis are available with 2, 4, 6, or 21 slots.
• Choose a cable medium depending on the required distance: CATx up to 140 m, multimode up to 1,000 m, or singlemode up to 10 km.
• For 4K/60 DisplayPort signals, the maximum transmission distance is 1 km over multimode or 5 km over singlemode cable.
• Pixel-perfect resolutions from 2048 x 1152 (Single Link DVI) to 2560 x 1600/2x2K (Dual Link DVI), HDMI up to 1080p, or DisplayPort up to 4K over the full distance.
• 24-bit color depth.
• Choose between DVI, DisplayPort, HDMI, SDI, VGA input, and many other analog video formats.
• Support for multiple video channels in demanding graphic applications.
• Options for analog and digital audio, serial RS-232 or RS-422 data, embedded USB 2.0 with 36 Mbps, and transparent USB 2.0 with 480 Mbps.
• Various power supply options: AC or DC, internal and external power supplies, with or without redundancy, front or rear connection.
• Local monitoring with the optional splitter cable (ACXSPL12).
• Various mounting options: desktop, under the table, on the wall, in a 19” rack, and DIN rail.
• Use these extenders for point-to-point KVM extensions or in the DKM FX and DKM FXC matrix switching systems.
• Warranty: 2 years Double Diamond™ (Standard)

Technical Data:

Chassis:

• ACXMODH2-R2/ACXMODH2R-R2: 14.5W x 14.6D x 4.4H cm
• ACXMODH2R-P-R2/ACXMODH2R-P12/24/48: 22.1W x 14.6D x 4.4H cm
• ACXMODH4-R2/ACXMODH4R-R2: 29.2W x 15.6D x 4.3H cm
• ACXMODH6R-R2: 44.4W x 14.9D x 4.3H cm
• ACXMODH6BPAC-R2/ACXMODH6FPAC-R2: 44.5W x 26.9D x 4.3H cm
• ACXMODH21R: (4U) 44.4W x 40D x 17.2H cm

Power Supply:

• ACXMOD2-R2, ACXMODH2R-R2: External power supply, 90-240 VAC, 50/60Hz, Output: 5VDC / 3A, External redundancy option
• ACXMODH2R-P-R2: Internal power supply, 90-240 VAC, 50/60Hz, Output: 5VDC / 3A, External redundancy option
• ACXMODH2R-P12: Internal power supply, 12VDC / 1.3A, Output: 5VDC / 3A, External redundancy option
• ACXMODH4-all: External power supply, 90-240 VAC, 50/60Hz, Output: 5VDC / 5A
• ACXMODH6R-R2: Internal power supply, 100-240 VAC, 50/60Hz, Output 5VDC / 8A

Temperature:

• Operating temperature: 5 to 45 °C (41 to 113 °F)
• Storage temperature: -25 to 60 °C (-13 to 140 °F)

Weight:

• ACXMOD2-all: 0.3 kg without modules
• ACXMOD4-all: 0.45 kg without modules
• ACXMODH6-all: 0.85 kg without modules
• ACXMODH21R: 4 kg without modules

Certification:

• TAA-compliant: YES
