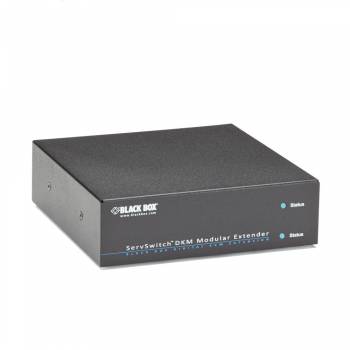

BlackBox ACXMODH2R-R2
DKM modular housing 2-slot with power supply and redundancy option

Modular KVM Extender Enclosure - Power Supply, Redundancy Option:

Equip your KVM extender with interfaces tailored to your specific needs.

• Combine various interfaces and extend KVM signals according to your requirements.
• Use an enclosure with transmitter cards for the computer and one with receiver cards for the console.
• Modular enclosures are available with 2, 4, 6, or 21 slots.
• Choose a cable medium based on the required distance: CATx up to 140 m, multimode fiber up to 1,000 m, or single-mode fiber up to 10 km.
• For 4K/60 DisplayPort signals, the maximum transmission distance is 1 km via multimode or 5 km via single-mode cables.
• Pixel-perfect resolutions up to 2048 x 1152 (Single Link DVI), up to 2560 x 1600/2x2K (Dual Link DVI), HDMI up to 1080p, or DisplayPort up to 4K over the full distance.
• 24-bit color depth.
• Choose from DVI, DisplayPort, HDMI, SDI, VGA inputs, and many other analog video formats.
• Support for multiple video channels in demanding graphic applications.
• Options for analog and digital audio, serial RS-232 or RS-422 data, embedded USB 2.0 at 36 Mbps, and transparent USB 2.0 at 480 Mbps.
• Various power supply options: AC or DC, internal and external power supplies, with or without redundancy, front or rear connection.
• Local monitoring with the optional splitter cable (ACXSPL12).
• Various mounting options: desktop, under-table, wall-mounted, 19” rack, or DIN rail.
• Use these extenders for point-to-point KVM extensions or in the DKM FX and DKM FXC matrix switching systems.
• Warranty: 2 years Double Diamond™ (standard).

The modular DKM KVM extenders offer the largest selection of combinations for video and peripheral signals, ensuring you find the right KVM extender for your specific applications.

Technical Data:

Dimensions:

• ACXMODH2-R2/ACXMODH2R-R2: 14.5W x 14.6D x 4.4H cm
• ACXMODH2R-P-R2/ACXMODH2R-P12/24/48: 22.1W x 14.6D x 4.4H cm
• ACXMODH4-R2/ACXMODH4R-R2: 29.2W x 15.6D x 4.3H cm
• ACXMODH6R-R2: 44.4W x 14.9D x 4.3H cm
• ACXMODH6BPAC-R2/ACXMODH6FPAC-R2: 44.5W x 26.9D x 4.3H cm
• ACXMODH21R: (4U) 44.4W x 40D x 17.2H cm

Power Supply:

• ACXMOD2-R2, ACXMODH2R-R2: external power supply, 90-240 VAC, 50/60Hz, output: 5VDC / 3A, external redundancy option
• ACXMODH2R-P-R2: internal power supply, 90-240 VAC, 50/60Hz, output: 5VDC / 3A, external redundancy option
• ACXMODH2R-P12: internal power supply, 12VDC / 1.3 A, output: 5VDC / 3 A, external redundancy option
• ACXMODH2R-P24: internal power supply, 24VDC / 0.7 A, output: 5VDC / 3 A, external redundancy option
• ACXMODH2R-P48: internal power supply, 48VDC / 0.35 A, output: 5VDC / 3 A, external redundancy option
• ACXMOD4-all: external power supply, 90-240 VAC, 50/60Hz, output: 5VDC / 5A
• ACXMODH6R-R2: internal power supply, 100-240 VAC, 50/60Hz, output 5VDC /8A
• ACXMODH6R-P12: internal power supply, 12VDC / 2.2 A, output: 5VDC / 5 A, external redundancy option
• ACXMODH6R-P24: internal power supply, 24VDC / 1.2 A, output: 5VDC / 5 A, external redundancy option
• ACXMODH6R-P12: internal power supply, 48VDC / 0.6 A, output: 5VDC / 5 A, external redundancy option
• ACXMODH6BPAC-R2/ACXMODH6FPAC-R2: internal power supply, 100-240 VAC / 1.3 A, 50/60Hz, output: 5VDC / 10A
• ACXMODH21R: internal power supply, 90-240 VAC / 5.3 A, 50/60Hz, output 5VDC / 10A

Temperature:

• Operating temperature: 5 to 45 °C (41 to 113 °F)
• Storage temperature: -25 to 60 °C (-13 to 140 °F)

Weight:

• ACXMOD2-all: 0.3 kg without modules
• ACXMOD4-all: 0.45 kg without modules
• ACXMODH6-all: 0.85 kg without modules
• ACXMODH21R: 4 kg without modules

TAA-compliant: YES
Included:

• (1) 2-Port DKM Modular Card Chassis
• (1) Locking Power Cord
• (1) Removal Tool for Cards
• (1) Information/Documentation
