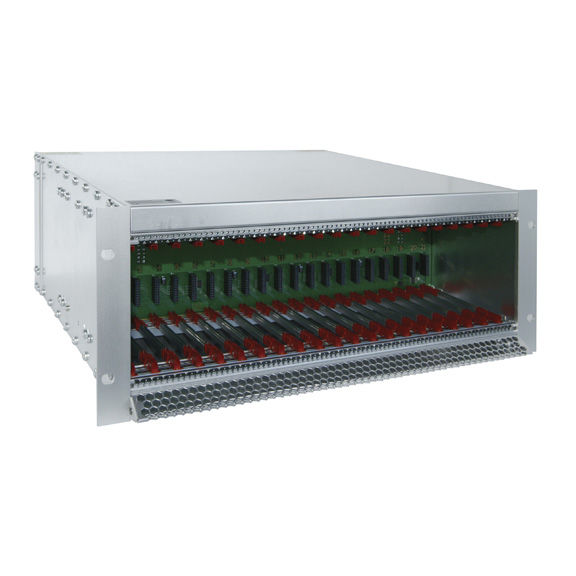

BlackBox ACXMODH21R DKM Modular Housing 21-Slot with Power Supply and Redundancy Option

Modular KVM Extender Enclosure - Power Supply, Redundancy Option:

Equip your KVM extender with interfaces tailored to your specific needs.

• Combine various interfaces and extend KVM signals according to your requirements.
• Use a housing with transmitter cards on the computer and a housing with receiver cards at the console.
• Modular enclosures are available with 2, 4, 6, or 21 slots.
• Choose a cable medium based on the required distance: CATx up to 140m, multimode fiber up to 1,000m, or single-mode fiber up to 10km.
• For 4K/60 DisplayPort signals, the maximum transmission distance is 1km via multimode or 5km via single-mode cables.
• Pixel-perfect resolutions up to 2048 x 1152 (Single Link DVI), up to 2560 x 1600/2x2K (Dual Link DVI), HDMI up to 1080p, or DisplayPort up to 4K over the full distance.
• 24-bit color depth.
• Choose between DVI, DisplayPort, HDMI, SDI, VGA, and many other analog video formats.
• Support for multiple video channels in demanding graphic applications.
• Options for analog and digital audio, serial RS-232 or RS-422 data, embedded USB 2.0 at 36 Mbps, and transparent USB 2.0 at 480 Mbps.
• Various power supply options: AC or DC, internal and external power supplies, with or without redundancy, front or rear connection.
• Local monitoring with the optional splitter cable (ACXSPL12).
• Various mounting options: desktop, under-table, wall-mounted, 48,3 cm ( 19 inch ) rack, and DIN rail.
• Use these extenders for point-to-point KVM extensions or in the DKM FX and DKM FXC matrix switching systems.
• Warranty: 2 years Double Diamond™ (standard).

The modular DKM KVM extenders offer the largest selection of combinations for video and peripheral signals, ensuring that you can find the perfect KVM extender for very specific applications.

Enclosures for Modular DKM Extenders
The enclosures on this page are available as desktop versions with two, four, or six slots, as well as a 48,3 cm ( 19 inch ) version with 21 slots. For critical applications, use enclosures with dual power supplies for redundant operation. Choose between internal or external power supplies, AC power, or DC power with 12V, 24V, or 48VDC in industrial settings.

The popular 6-port enclosures offer even more choices. In addition to the standard enclosure, there are two backplane versions, where modules can be easily swapped by pulling out or sliding in. Choose between power supply output on the rear or front of the enclosure.

Each enclosure must be equipped with a base card in slot 1, which provides the connections to the remote end or KVM switch. Additional cards can be added as needed. Use a housing with transmitter cards for the computer and one with receiver cards for the console.

Technical Data:

Dimensions:

• ACXMODH2-R2/ACXMODH2R-R2: 14.5W x 14.6D x 4.4H cm
• ACXMODH2R-P-R2/ACXMODH2R-P12/24/48: 22.1W x 14.6D x 4.4H cm
• ACXMODH4-R2/ACXMODH4R-R2: 29.2W x 15.6D x 4.3H cm
• ACXMODH6R-R2: 44.4W x 14.9D x 4.3H cm
• ACXMODH6BPAC-R2/ACXMODH6FPAC-R2: 44.5W x 26.9D x 4.3H cm
• ACXMODH21R: (4 RU) 44.4W x 40D x 17.2H cm

Power Supply:

• ACXMOD2-R2, ACXMODH2R-R2: external power supply, 90-240 VAC, 50/60Hz, output: 5VDC / 3A, external redundancy option
• ACXMODH2R-P-R2: internal power supply, 90-240 VAC, 50/60Hz, output: 5VDC / 3A, external redundancy option
• ACXMODH2R-P12: internal power supply, 12VDC / 1.3 A, output: 5VDC / 3 A, external redundancy option
• ACXMODH2R-P24: internal power supply, 24VDC / 0.7 A, output: 5VDC / 3 A, external redundancy option
• ACXMODH2R-P48: internal power supply, 48VDC / 0.35 A, output: 5VDC / 3 A, external redundancy option
• ACXMOD4-all: external power supply, 90-240 VAC, 50/60Hz, output: 5VDC / 5A
• ACXMODH6R-R2: internal power supply, 100-240 VAC, 50/60Hz, output: 5VDC /8A
• ACXMODH6R-P12: internal power supply, 12VDC / 2.2 A, output: 5VDC / 5 A, external redundancy option
• ACXMODH6R-P24: internal power supply, 24VDC / 1.2 A, output: 5VDC / 5 A, external redundancy option
• ACXMODH6R-P12: internal power supply, 48VDC / 0.6 A, output: 5VDC / 5 A, external redundancy option
• ACXMODH6BPAC-R2/ACXMODH6FPAC-R2: internal power supply, 100-240 VAC / 1.3 A, 50/60Hz, output: 5VDC / 10A
• ACXMODH21R: internal power supply, 90-240 VAC / 5.3 A, 50/60Hz, output: 5VDC / 10A

Temperature:

• Operating temperature: 5 to 45 °C (41 to 113 °F)
• Storage temperature: -25 to 60 °C (-13 to 140 °F)

Weight:

• ACXMOD2-all: 0.3 kg without modules
• ACXMOD4-all: 0.45 kg without modules
• ACXMODH6-all: 0.85 kg without modules
• ACXMODH21R: 4 kg without modules

TAA-compliant: YES
