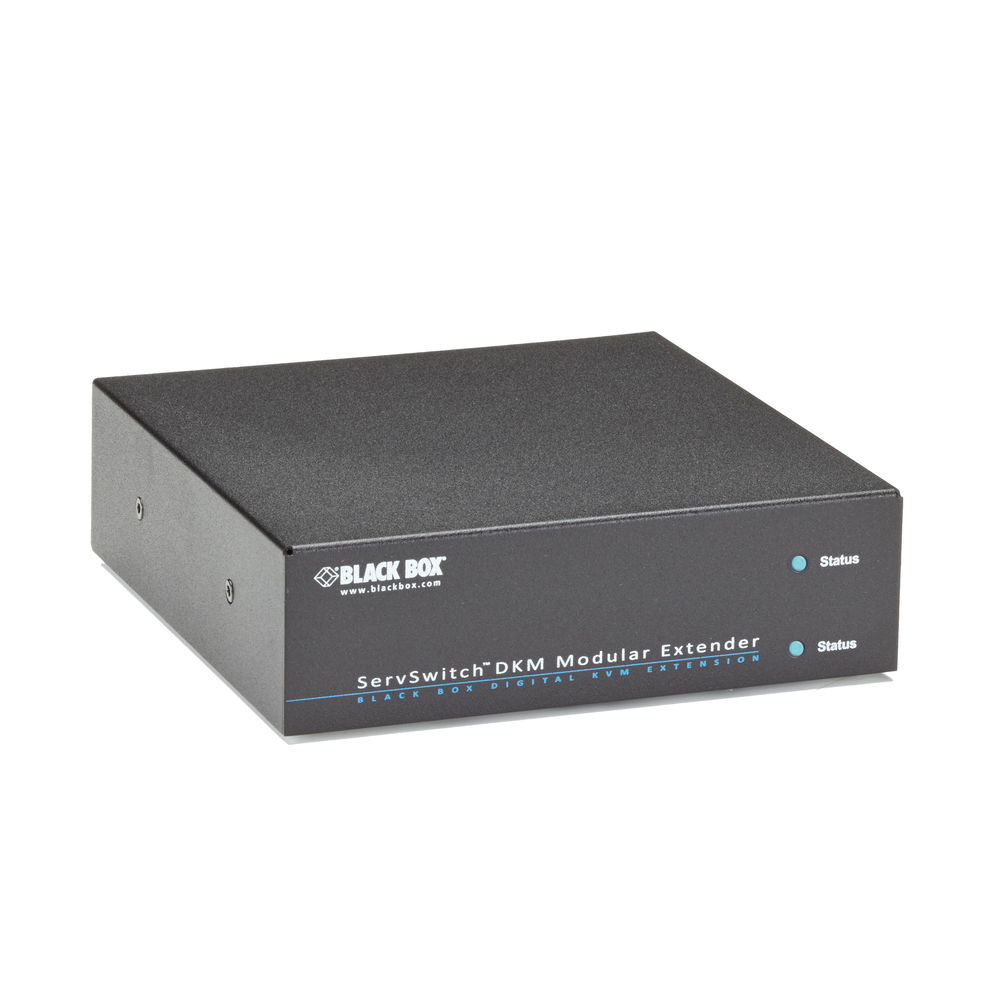

BlackBox ACXMODH2-R2
DKM modular housing 2-slot with power supply

Modular KVM Extender Enclosure - Power Supply, Redundancy Option:

Equip your KVM extender with interfaces tailored to your specific needs.

• Combine various interfaces and extend KVM signals according to your requirements.
• Use a housing with transmitter cards on the computer and a housing with receiver cards at the console.
• Modular enclosures are available with 2, 4, 6, or 21 slots.
• Choose a cable medium based on the required distance: CATx up to 140m, multimode fiber up to 1,000m, or single-mode fiber up to 10km.
• For 4K/60 DisplayPort signals, the maximum transmission distance is 1km via multimode or 5km via single-mode cables.
• Pixel-perfect resolutions up to 2048 x 1152 (Single Link DVI), up to 2560 x 1600/2x2K (Dual Link DVI), HDMI up to 1080p, or DisplayPort up to 4K over the full distance.
• 24-bit color depth.
• Choose between DVI, DisplayPort, HDMI, SDI, VGA inputs, and many other analog video formats.
• Support for multiple video channels in demanding graphic applications.
• Options for analog and digital audio, serial RS-232 or RS-422 data, embedded USB 2.0 at 36 Mbps, and transparent USB 2.0 at 480 Mbps.
• Various power supply options: AC or DC, internal and external power supplies, with or without redundancy, front or rear connection.
• Local monitoring with the optional splitter cable (ACXSPL12).
• Various mounting options: desktop, under-table, wall-mounted, 48,3 cm ( 19 inch ) rack, and DIN rail.
• Use these extenders for point-to-point KVM extensions or in the DKM FX and DKM FXC matrix switching systems.
• Warranty: 2 years Double Diamond™ (standard).

The modular DKM KVM extenders offer the largest selection of combinations for video and peripheral signals, ensuring that you can find the perfect KVM extender for very specific applications.

The modular DKM KVM extenders consist of enclosures with 2, 4, 6, or 21 slots, base modules with video and USB HID interfaces, and upgrade modules for peripheral connections. Special converter modules offer analog-to-digital conversion, allowing various analog video sources to be used with the system. For space-saving installations, an 8-port switching module is also available, providing the same functionality as the DKM FXC switches.

<h2>Technical Data:</h2>

Dimensions:

• ACXMODH2-R2/ACXMODH2R-R2: 14.5W x 14.6D x 4.4H cm
• ACXMODH2R-P-R2/ACXMODH2R-P12/24/48: 22.1W x 14.6D x 4.4H cm
• ACXMODH4-R2/ACXMODH4R-R2: 29.2W x 15.6D x 4.3H cm
• ACXMODH6R-R2: 44.4W x 14.9D x 4.3H cm
• ACXMODH6BPAC-R2/ACXMODH6FPAC-R2: 44.5W x 26.9D x 4.3H cm
• ACXMODH21R: (4 RU) 44.4W x 40D x 17.2H cm

Power Supply:

• ACXMOD2-R2, ACXMODH2R-R2: external power supply, 90-240 VAC, 50/60Hz, output: 5VDC / 3A, external redundancy option
• ACXMODH2R-P-R2: internal power supply, 90-240 VAC, 50/60Hz, output: 5VDC / 3A, external redundancy option
• ACXMODH2R-P12: internal power supply, 12VDC / 1.3 A, output: 5VDC / 3 A, external redundancy option
• ACXMODH2R-P24: internal power supply, 24VDC / 0.7 A, output: 5VDC / 3 A, external redundancy option
• ACXMODH2R-P48: internal power supply, 48VDC / 0.35 A, output: 5VDC / 3 A, external redundancy option
• ACXMOD4-all: external power supply, 90-240 VAC, 50/60Hz, output: 5VDC / 5A
• ACXMODH6R-R2: internal power supply, 100-240 VAC, 50/60Hz, output: 5VDC /8A
• ACXMODH6R-P12: internal power supply, 12VDC / 2.2 A, output: 5VDC / 5 A, external redundancy option
• ACXMODH6R-P24: internal power supply, 24VDC / 1.2 A, output: 5VDC / 5 A, external redundancy option
• ACXMODH6R-P12: internal power supply, 48VDC / 0.6 A, output: 5VDC / 5 A, external redundancy option
• ACXMODH6BPAC-R2/ACXMODH6FPAC-R2: internal power supply, 100-240 VAC / 1.3 A, 50/60Hz, output: 5VDC / 10A
• ACXMODH21R: internal power supply, 90-240 VAC / 5.3 A, 50/60Hz, output: 5VDC / 10A

Temperature:

• Operating temperature: 5 to 45 °C (41 to 113 °F)
• Storage temperature: -25 to 60 °C (-13 to 140 °F)

Weight:

• ACXMOD2-all: 0.3 kg without modules
• ACXMOD4-all: 0.45 kg without modules
• ACXMODH6-all: 0.85 kg without modules
• ACXMODH21R: 4 kg without modules

TAA-compliant: YES
