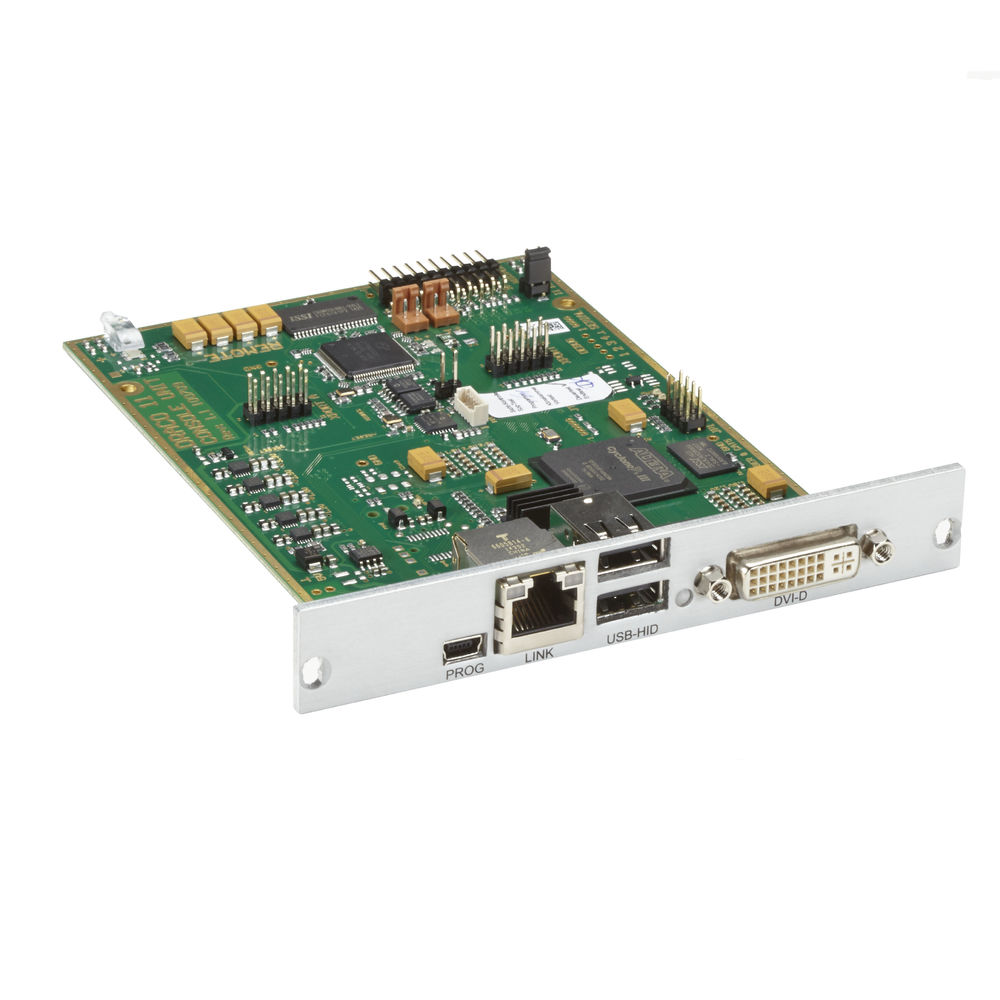

BlackBox ACX1MR-DHID-C DKM CATx Receiver card, DVI-D plus USB HID for modular housing

Modular DKM Extender Base Modules

Equip your KVM extender with interfaces tailored to your needs.

Base modules with DVI-D, DVI-I, HDMI, or DisplayPort video and (2) USB keyboard/mouse ports.
Peripheral option with (4) transparent High-Speed USB 2.0 ports (480 Mbps).
Choose between CATx and fiber links (fiber supports multimode and singlemode).
Distances up to 140m (CATx), 1000m (MM), or 10km (SM).
Pixel-perfect resolutions up to 2048 x 1152 (Single Link DVI), up to 2560 x 1600/2x2K (Dual Link DVI), HDMI up to 1080p, or DisplayPort up to 4K across the full distance.
High-speed video options with 2.5 Gbps bandwidth for demanding graphic applications.
Supports multiple video channels for advanced graphic applications.
Use the modules in modular DKM extender chassis.
Combine various interfaces and extend KVM signals according to your needs.
Configure one chassis with transmitter cards at the computer and one with receiver cards at the console.
Use these extenders for point-to-point KVM extensions or in the KVM matrix switching systems of the DKM FX and DKM FXC series.
Warranty: 2 years Double Diamond™ (Standard)

The modular DKM KVM extenders offer the broadest selection of combinations for video and peripheral signals, ensuring you can find the right KVM extender for even the most specific application.

Base Modules:

These modules provide one or two video ports and two USB HID ports for keyboard and mouse. They also feature CATx or LC fiber connections for remote endpoints or, in a switched environment, for the central KVM switch. Each DKM chassis must be equipped with at least one base module.

Connections:

Choose between CATx cables, fiber with 1 Gbps, or high-speed fiber with 2.5 Gbps, depending on the required distance and video bandwidth. CATx connections support distances up to 140m, while fiber supports multimode up to 1 km and singlemode up to 10 km. High-speed modules with 2.5 Gbps are ideal for demanding graphics applications, offering double the normal bandwidth.

Video Formats:

• Single Link DVI-D
• DVI-I with VGA input and DVI-D output
• Dual Head DVI-D
• HDMI
• DisplayPort – all with two USB HID ports for keyboard and mouse.

Resolutions:

Thanks to the digital transmission of the video signal without quality loss, images are as sharp as if directly connected to the workstation. Advanced video compression algorithms support 24-bit color depth for smooth gradients.

• Single Link DVI: resolutions up to 2048 x 1152
• Dual Link DVI: up to 2560 x 1600/2x2K
• HDMI: up to 1080p
• DisplayPort: up to 4K across the full distance.

Chassis:

• Desktop chassis with two, four, or six slots.
• 48,3 cm ( 19 inch ) rackmount chassis with 21 slots.
• Available with redundant power supplies, internal or external power supplies, AC or DC power (12V, 24V, 48V).

Transmitter Module Connections:

• All: (1) USB Type B, (1) Mini USB Type B (Upgrade)
• ACX1M1T-DHID-C: (1) DVI-D, (1) RJ-45
• ACX1M1T-DHID-SM/ACX1MT-DHS-SM: (1) DVI-D, (2) LC
• ACX1M1T-DHID-2C: (1) DVI-D, (2) RJ-45
• ACX2MT-DLH-C: (1) DVI-D, (1) RJ-45 with Dual Link cable kit
• ACX1MT-HDMI-C: (1) HDMI, (1) RJ-45

Receiver Module Connections:

• All: (2) USB Type A, (1) Mini USB Type B (Upgrade)
• ACX1MR-HDMI-C: (1) HDMI, (1)
