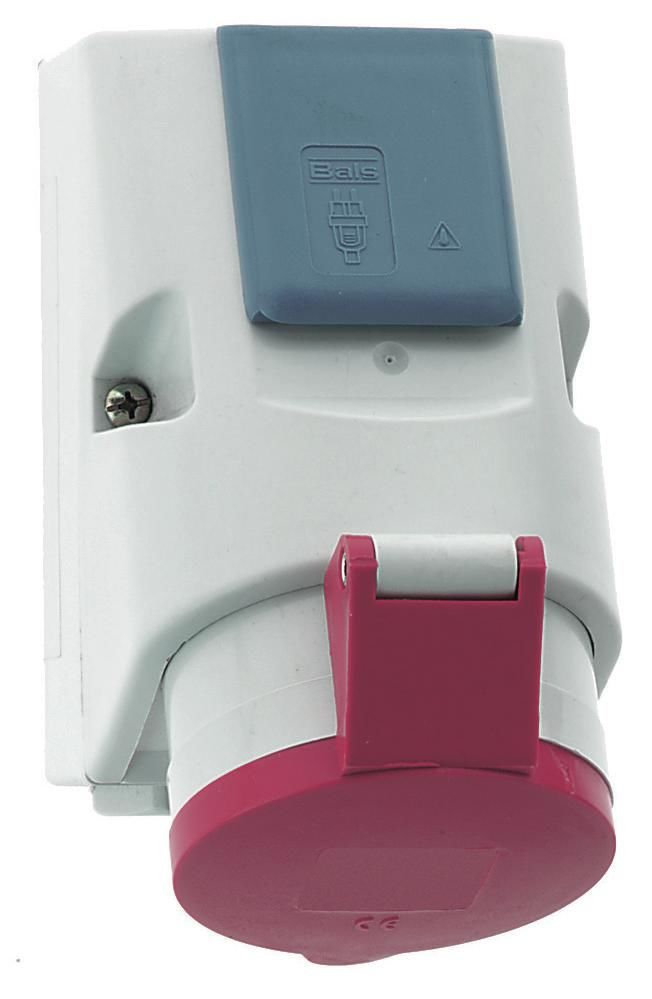

Bals Combination wall socket IP44 1010, 16A 5p 6h 200/346 to 240/415V 50/60Hz
|
87,12 EUR |
|||||||||||
|
( 103,67 EUR incl. VAT ) ≈ £74.66 | ≈ $98.97 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Lieske Part No.: | 716086 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 1010 | ||||||||||
| UPC/EAN: | 4024941010108 | ||||||||||
| Weight: | 4.806 kg | ||||||||||
| Type: | 1010 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further CEE form connectors / combinations from BalsFurther products in category CEE form connectors / combinations
All products of Bals
Product information for Bals 1010:
Combined wall socket
16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification color: red RAL 3000
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: plastic
Connection technology: with screw terminal
Cable entry: 1xM25 top, 2xM25 bottom
Device color: housing base gray RAL 7035, housing top gray RAL 7035, collar gray RAL 7035
Device height: 154 mm, device width: 83 mm, device depth: 130 mm
Other technical properties: The cable entry is open once at the top and closed twice at the bottom, with integrated protective contact socket 16A 250V AC German system, There are 4 mounting holes in the housing base for breaking out, With terminals 3x6 mm² and wired ready for connection
16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification color: red RAL 3000
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: plastic
Connection technology: with screw terminal
Cable entry: 1xM25 top, 2xM25 bottom
Device color: housing base gray RAL 7035, housing top gray RAL 7035, collar gray RAL 7035
Device height: 154 mm, device width: 83 mm, device depth: 130 mm
Other technical properties: The cable entry is open once at the top and closed twice at the bottom, with integrated protective contact socket 16A 250V AC German system, There are 4 mounting holes in the housing base for breaking out, With terminals 3x6 mm² and wired ready for connection
Questions & answers
What is the delivery time of Bals Combination wall socket IP44 1010, 16A 5p 6h 200/346 to 240/415V 50/60Hz?
The article Bals Combination wall socket IP44 1010, 16A 5p 6h 200/346 to 240/415V 50/60Hz is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 1010 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals Combination wall socket IP44 1010, 16A 5p 6h 200/346 to 240/415V 50/60Hz always at the best possible price. We can give you a discount of 2% on Bals Combination wall socket IP44 1010, 16A 5p 6h 200/346 to 240/415V 50/60Hz if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Bals Combination wall socket IP44 1010, 16A 5p 6h 200/346 to 240/415V 50/60Hz we can offer you a price of 75,36 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
