Bals 200 plugs INNOLINQ QC 16A 5p 400V 6h IP54 red blank
|
26,03 EUR |
|||||||||||
|
( 30,98 EUR incl. VAT ) ≈ £22.31 | ≈ $29.57 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Lieske Part No.: | 1989574 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 200 | ||||||||||
| UPC/EAN: | 4024941345934 | ||||||||||
| Weight: | 0.158 kg | ||||||||||
| Type: | 200 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further CEE form connectors / combinations from BalsFurther products in category CEE form connectors / combinations
All products of Bals
Product information for Bals 200:

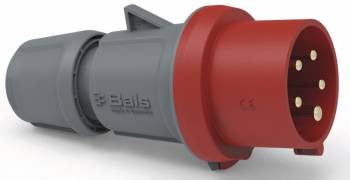

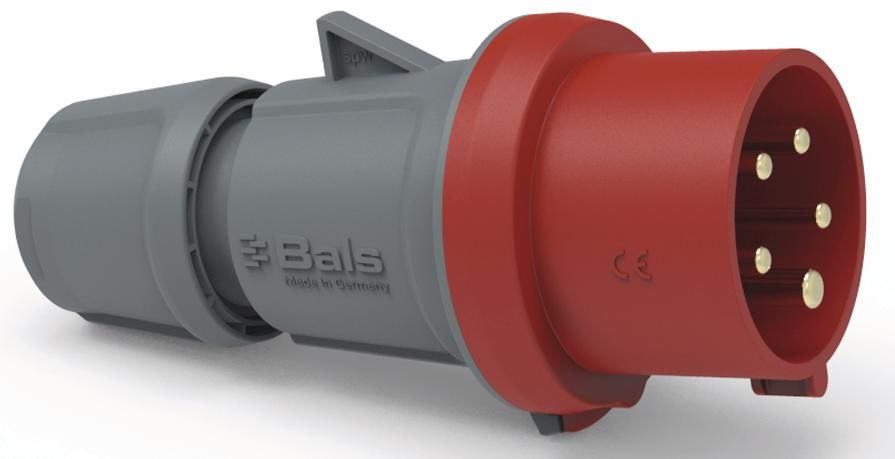

Plug INNOLINQ QC
16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP54
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contacts are bare brass, the contact carrier is made of highly heat-resistant material
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with KONTEX-ULTRA contact
Cable entry: with cable screw connection
Device colour: collar red RAL 3000, cable screw connection dark grey RAL 7012, housing cover dark grey RAL 7012
Device height: 160 mm, device width: 71 mm, device depth: 78 mm
Halogen-free: yes
Other technical properties: this product does not contain any lead, with MULTI-GRIP cable screw connection and integrated strain relief, The connection of the housing parts is screwless and is locked by a snap lock. Opening with a screwdriver is possible. For cables with a minimum diameter of 10mm to a maximum diameter of 21mm.
16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP54
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contacts are bare brass, the contact carrier is made of highly heat-resistant material
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with KONTEX-ULTRA contact
Cable entry: with cable screw connection
Device colour: collar red RAL 3000, cable screw connection dark grey RAL 7012, housing cover dark grey RAL 7012
Device height: 160 mm, device width: 71 mm, device depth: 78 mm
Halogen-free: yes
Other technical properties: this product does not contain any lead, with MULTI-GRIP cable screw connection and integrated strain relief, The connection of the housing parts is screwless and is locked by a snap lock. Opening with a screwdriver is possible. For cables with a minimum diameter of 10mm to a maximum diameter of 21mm.
Questions & answers
What is the delivery time of Bals 200 plugs INNOLINQ QC 16A 5p 400V 6h IP54 red blank?
The article Bals 200 plugs INNOLINQ QC 16A 5p 400V 6h IP54 red blank is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 200 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 200 plugs INNOLINQ QC 16A 5p 400V 6h IP54 red blank always at the best possible price. We can give you a discount of 2% on Bals 200 plugs INNOLINQ QC 16A 5p 400V 6h IP54 red blank if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Bals 200 plugs INNOLINQ QC 16A 5p 400V 6h IP54 red blank we can offer you a price of 22,32 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
