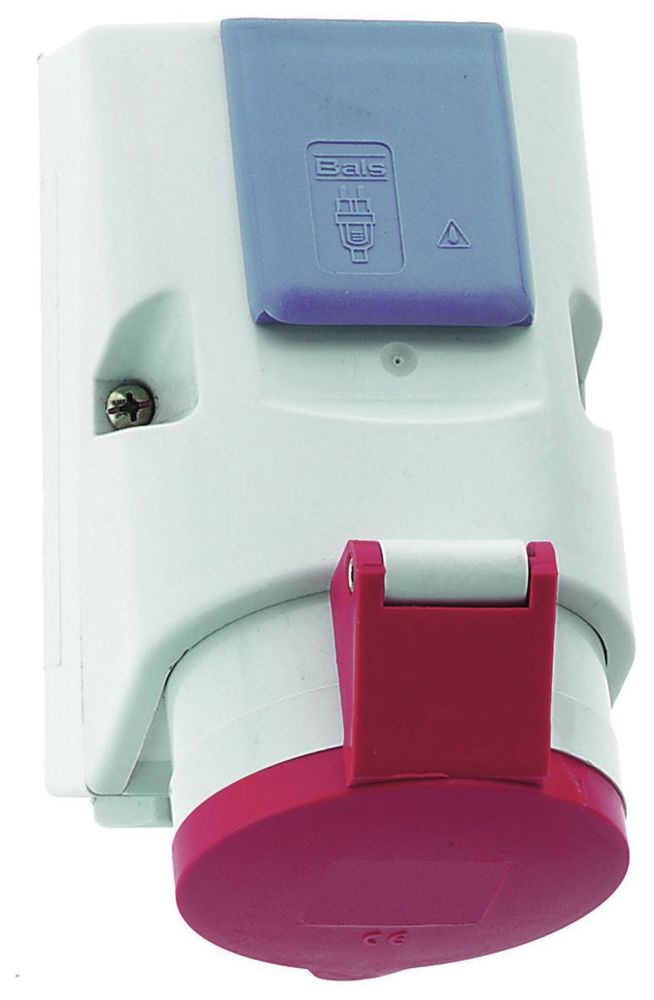

Bals CEE Combination wall socket IP44 109, 16A 5p 6h 200/346V-240/415V 50/60Hz red

Your rating:
Average rating
Rating for Bals CEE Combination wall socket IP44 109, 16A 5p 6h 200/346V-240/415V 50/60Hz red
( 4.3 / 5 ) 32 ratings
BALS 109
This image may differ from the desired article.
147,91 EUR
( 176,01 EUR incl. VAT )
2025-10-09Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >5 pieces
1x Bals CEE Combination wall socket IP44 109, 16A 5p 6h 200/346V-240/415V 50/60Hz red
Lieske Part No.:593369
Mfg Part No: 109
UPC/EAN: 4024941001090
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
10134,60 EUR
25121,29 EUR
50107,97 EUR
7594,66 EUR

Product information for BALS 109:

Combined wall socket
16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification color: red RAL 3000
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: plastic
Connection technology: with screw terminal
Cable entry: 1xM25 top, 2xM25 bottom
Device color: housing base gray RAL 7035, housing top gray RAL 7035, collar gray RAL 7035
Device height: 154 mm, device width: 83 mm, device depth: 130 mm
Other technical properties: The cable entry is open once at the top and closed twice at the bottom, with integrated protective contact socket 16A 250V AC German system, There are 4 mounting holes in the housing base for breaking out, With fuse insert 6.3 A, With fuse base 5x20 mm DIN 41671, type 1862, With terminals 3x6 mm² and wired ready for connection


Questions & answers

What is the delivery time of Bals CEE Combination wall socket IP44 109, 16A 5p 6h 200/346V-240/415V 50/60Hz red?

The article Bals CEE Combination wall socket IP44 109, 16A 5p 6h 200/346V-240/415V 50/60Hz red is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 109 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals CEE Combination wall socket IP44 109, 16A 5p 6h 200/346V-240/415V 50/60Hz red always at the best possible price. We can give you a discount of 2% on Bals CEE Combination wall socket IP44 109, 16A 5p 6h 200/346V-240/415V 50/60Hz red if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Bals CEE Combination wall socket IP44 109, 16A 5p 6h 200/346V-240/415V 50/60Hz red we can offer you a price of 134,60 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Bals CEE Combination wall socket IP44 109, 16A 5p 6h 200/346V-240/415V 50/60Hz red via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
