ATEN VE882 HDMI Extender Fibre Optic 600m content_copy

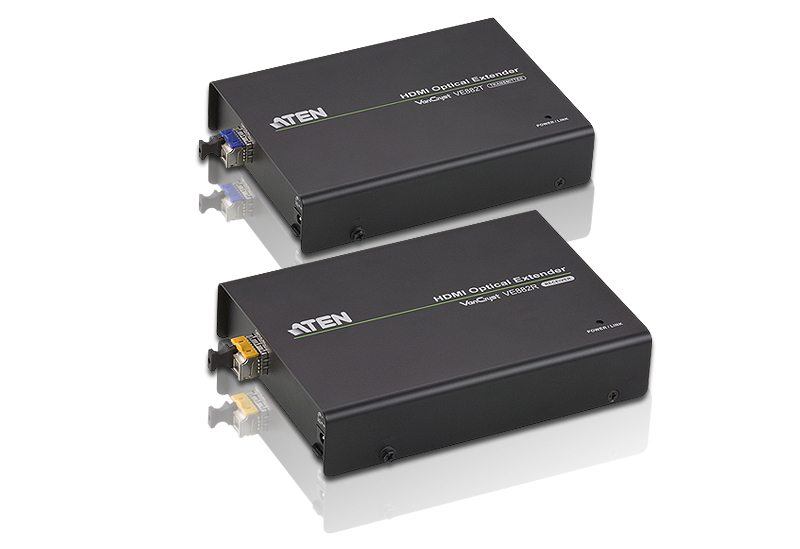

The VE882 is an Optical HDMI Extender that overcomes the length restriction of standard HDMI cables by using optical fiber to send high definition audio and video signals over large distances.
The VE882 accepts an audio-video stream from a local source and serializes the data to pass it over a single 3.125 Gbps optical link (for resolutions up to 1080p@60Hz at 24-bits).

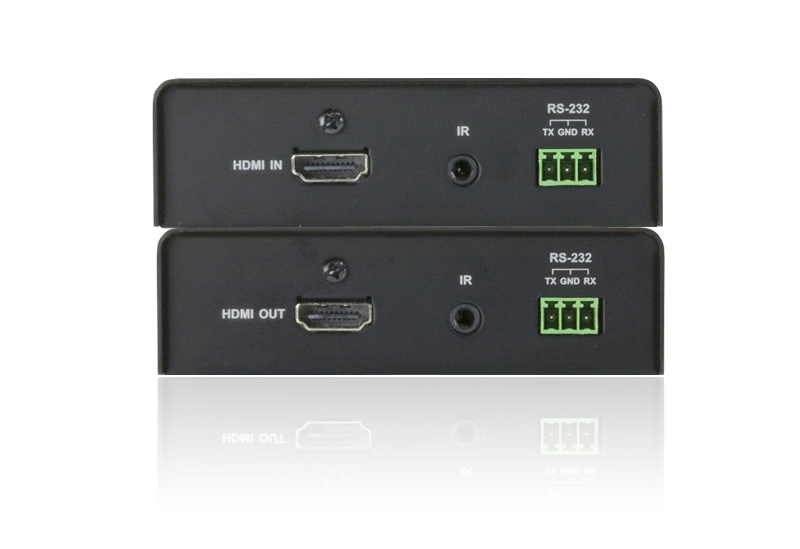

The VE882 can also extend the IR remote control and transfer RS-232 (up to 115kbps) in both directions, allows you to connect serial devices such as touch screens and barcode scanners.Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
Very long distance transmission – up to 600m
HDMI (3D, Deep Color), HDCP compatible – signaling rates up to 3.125 Gbits
Superior video quality – up to 1080p@60Hz
Supports full frequency IR signal from 30KHz to 60KHz
(The IR receiver cable included with the package only supports 30 KHz to 56 KHz)
Uses one fiber optic cable to connect the local and remote units
Supports wide screen formats
Built-in 8KV/15KV ESD protection
Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc.
Supports bi-directional IR signal transmission, one way at a time
Rack-mountable
Hot-pluggable
Package Contents1x VE882T
1x VE882R
1x IR Transmitter
1x IR Receiver
1x Mounting Kit
2x Power Adapters
1x User Instructions
FunctionVE882RVE882T
Video Input
InterfacesN/A1 x HDMI Type A Female (Black)
ImpedanceN/A100 O
Max. DistanceN/A3 m
Video Output
Interfaces1 x HDMI Type A Female (Black)N/A
Impedance100 ON/A
Max. Distance3 mN/A
Video
Max. Data Rate6.75 Gbps (2.25 Gbps Per Lane)6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock225 MHz225 MHz
ComplianceHDMI (3D, Deep Color)
HDCP 1.4 CompatibleHDMI (3D, Deep Color)
HDCP 1.4 Compatible
Max. ResolutionUp to 1080pUp to 1080p
Max. Distance1 x SFP Module (*Note)
600m @ Single mode (SM) fiber
300m @ OM3 Multi mode (MM) filber1 x SFP Module (*Note)
600m @ Single mode (SM) fiber
300m @ OM3 Multi mode (MM) filber
Audio
InputN/A1 x HDMI Type A Female (Black)
Output1 x HDMI Type A Female (Black)N/A
Connectors

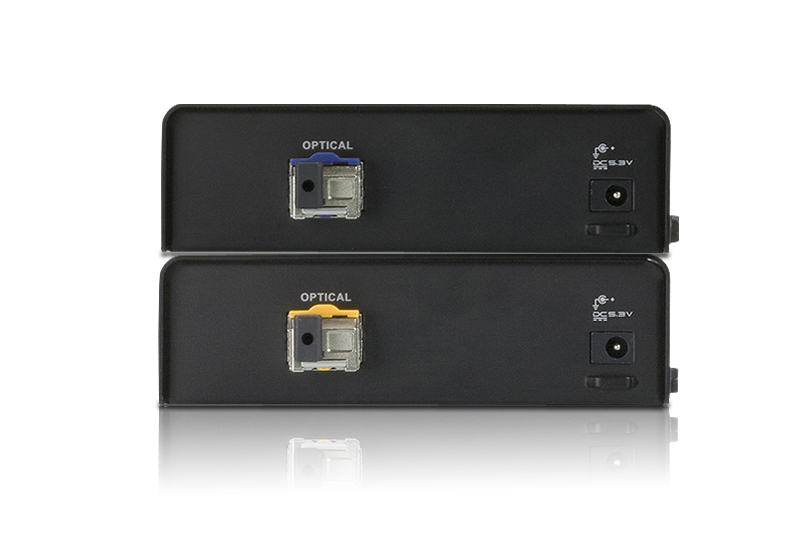

Unit To Unit1 x bi-directional SFP (LC)1 x bi-directional SFP (LC)
Power1 x DC Jack1 x DC Jack
Control
IR Channel1 x Mini Stereo Jack Female (Black);
30~56 KHz full range transmission1 x Mini Stereo Jack Female (Black);
30~56 KHz full range transmission
RS-232 Channel1 x Terminal Block, 3 pole (Green)1 x Terminal Block, 3 pole (Green)
Power ConsumptionDC5.3V:4.69W:22BTU/h
Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.DC5.3V:5.80W:27BTU/h
Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0-40°C0-40°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingMetalMetal
Weight0.44 kg ( 0.97 lb )0.44 kg ( 0.97 lb )
Dimensions (L x W x H)14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)
Carton Lot5 pcs5 pcs
Note1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fi ber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
2. It is recommended that you use a Single Mode optical fi ber cable that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifi cations.
3. The VE882 supports OM3 optical fiber which can extend the transmission distance up to 300 meters1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fi ber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
2. It is recommended that you use a Single Mode optical fi ber cable that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifi cations.
3. The VE882 supports OM3 optical fiber which can extend the transmission distance up to 300 meters

Features
Type	AV transmitter & receiver
Maximum resolution	1920 x 1080 pixels
Maximum transfer distance	600 m
Maximum refresh rate	60 Hz
Fiber mode structure	Multi-mode, Single-mode
Supported video modes	1080p
Bandwidth	6.75 Gbit/s
Material	Metal
Impedance	100 Ω
HDCP version	1.4
Product colour	Black
Electrostatic Discharge (ESD) protection
HDCP
3D
Rack mounting
Logistics data
Master (outer) case width	292 mm
Master (outer) case length	517 mm
Master (outer) case height	194 mm
Master (outer) case gross weight	8.66 kg
Master (outer) case net weight	7.15 kg
Products per master (outer) case	5 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Packaging data
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	1.57 kg
Ports & interfaces
Connectivity technology	Wired
HDMI in	1
Number of HDMI outputs	1
Fiber optic connector	SFP
Remote (IR) input	1
Remote (IR) output	1
DC-in jack
Power
Operating voltage (transmitter)	5.3 V
Operating voltage (receiver)	5.3 V
Power consumption (TX)	5.8 W
Power consumption (RX)	4.69 W
Technical data
Max. distance	600m
Width packaging	0.100m
Interface	HDMI
Weight	1.575kg
Height packaging	0.173m
Length packaging	0.283m
Packaging volume	0.0049m³
Max. resolution	1080p
Article type	Extender bundle
Weight & dimensions
Weight	1.43 kg
Receiver dimensions (WxDxH)	141.7 x 103 x 30 mm
Receiver weight	440 g
Transmitter dimensions (WxDxH)	141.7 x 103 x 30 mm
Transmitter weight	440 g

---
