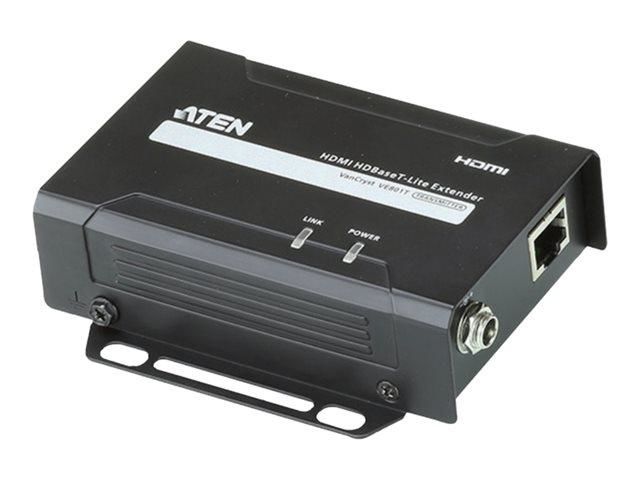

ATEN VE801T HDBaseT-Lite Transmit HDBase T Class B,70m,HDMI content_copy

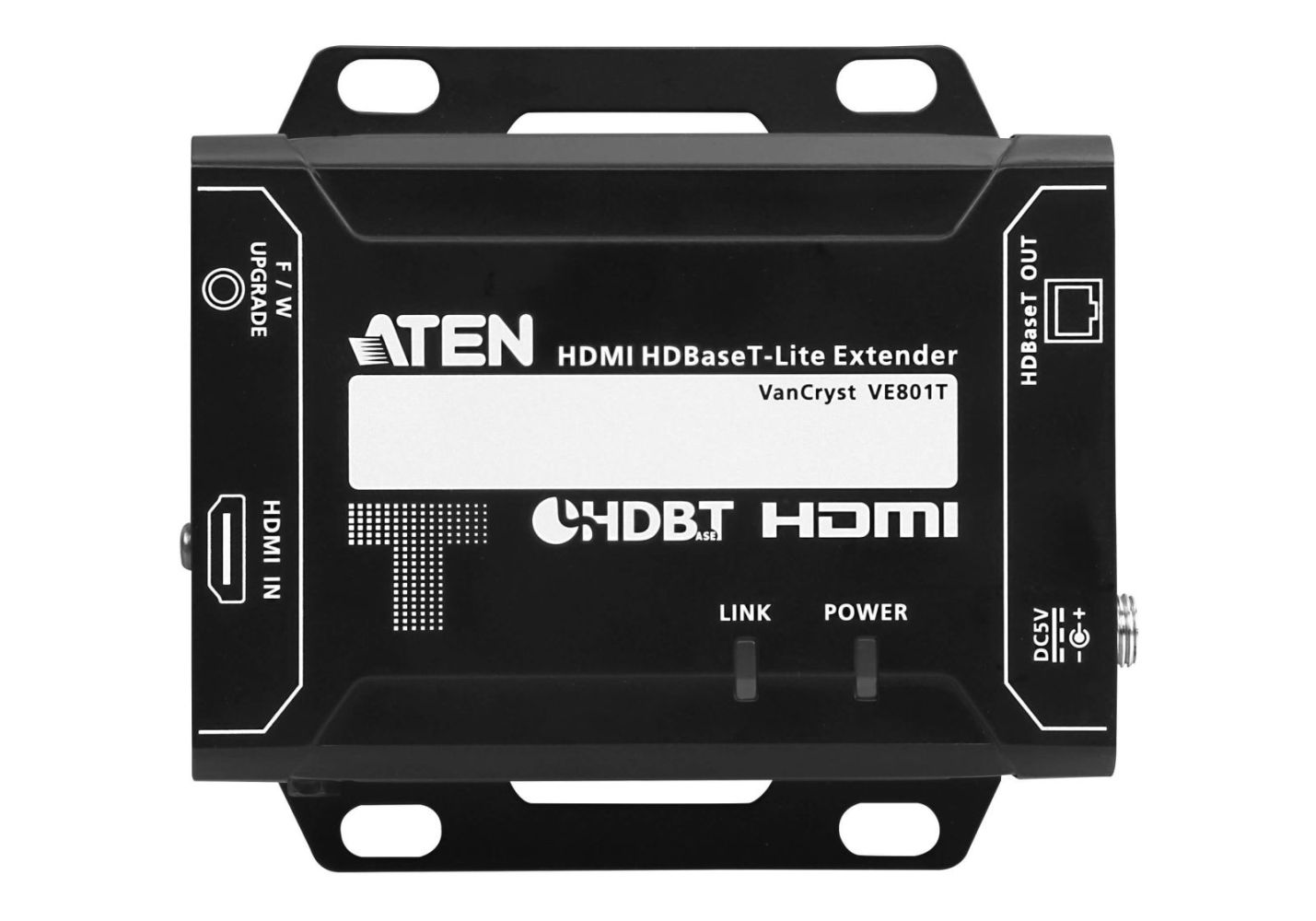

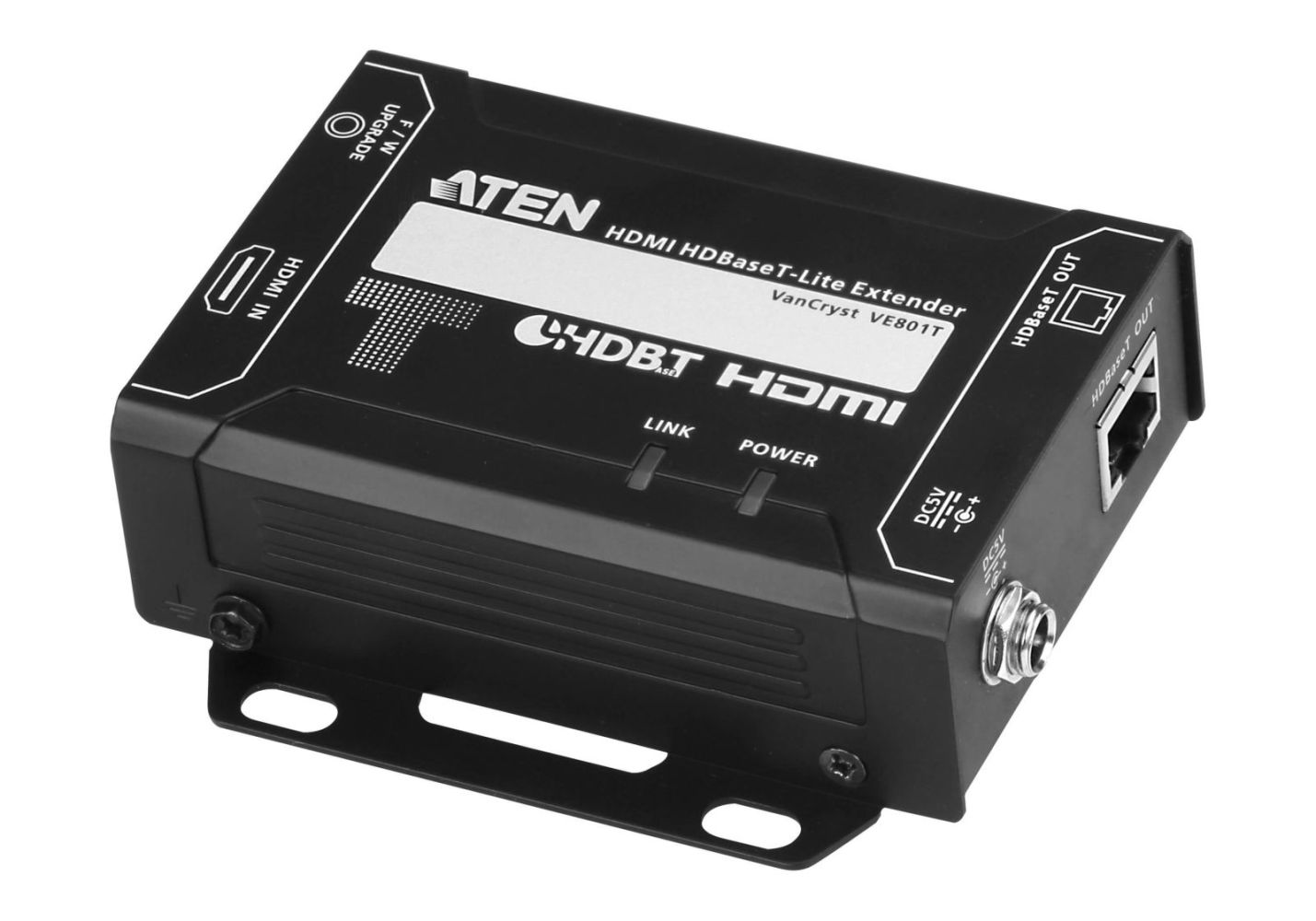

The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended at great distances.Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
Plug-and-play
Rack-mountable
Package Contents1x VE801T HDMI HDBaseT-Lite Extender
1x Power Adapter
1x User Instructions
Video Input

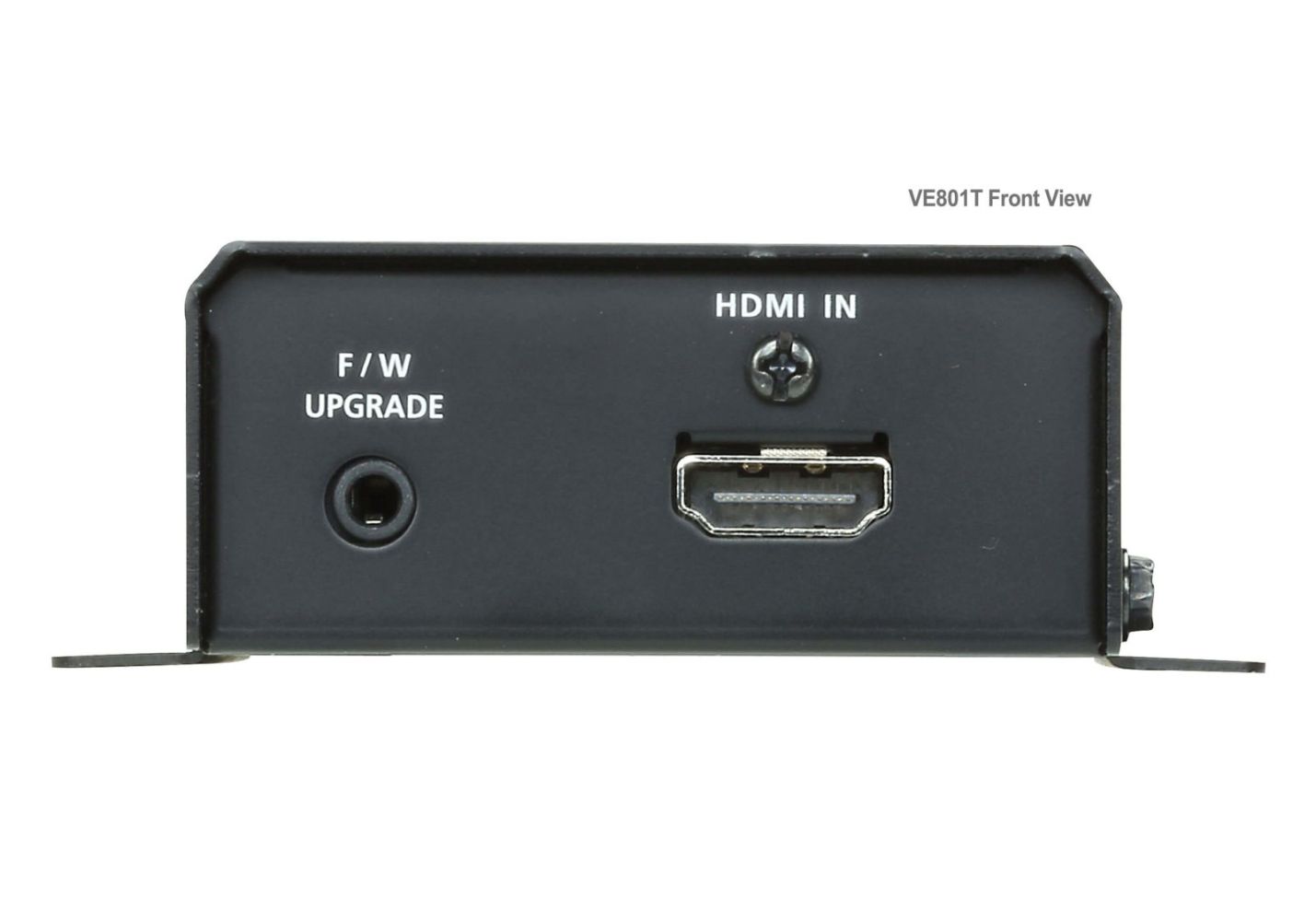

Interfaces1 x HDMI Type A Female (Black)
Impedance100O
Max. Distance3 m
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / DistanceUp to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input1 x HDMI Type A Female (Black)
Connectors

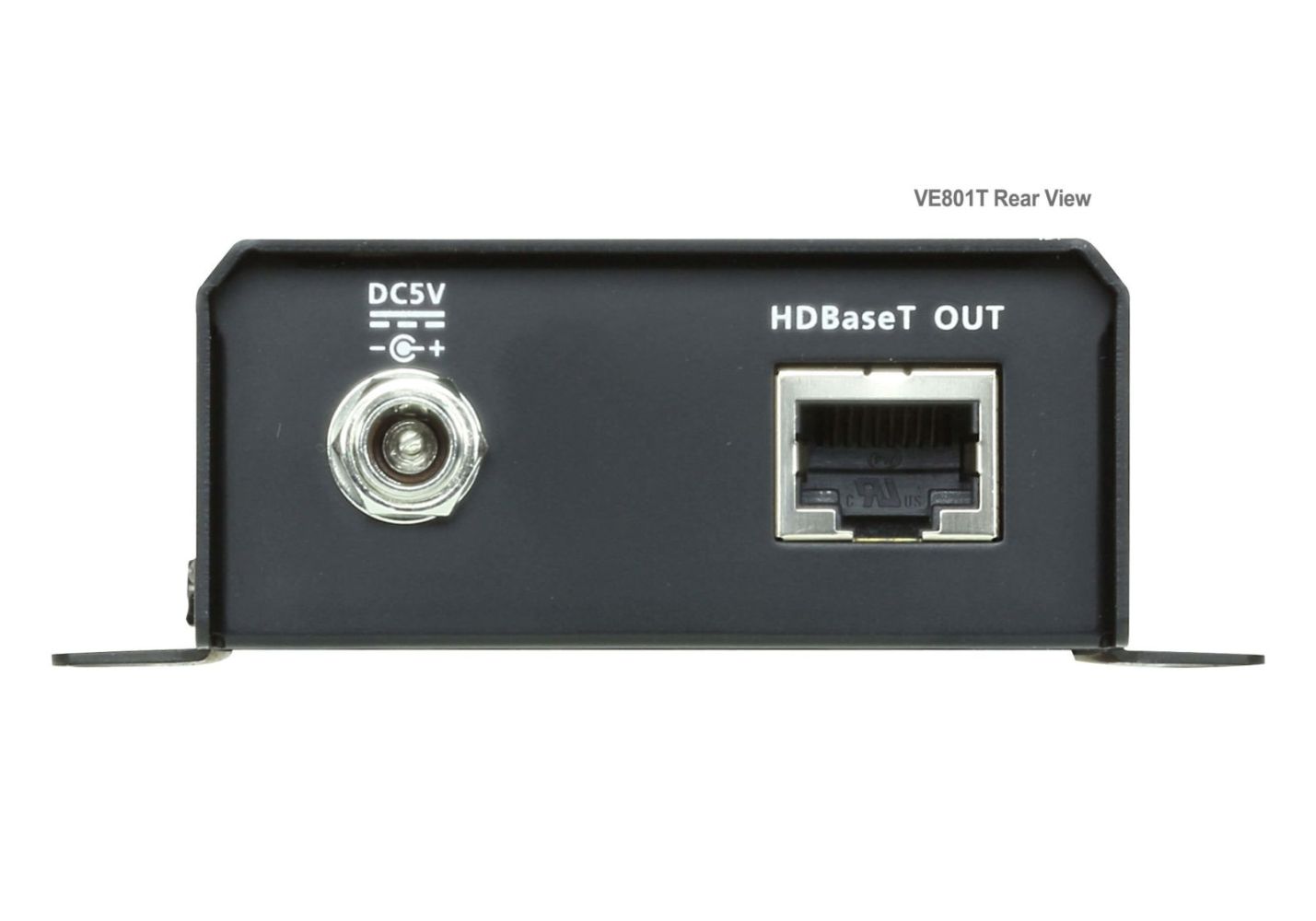

Power1 x DC Jack (Black) with locking
Unit To Unit1 x RJ-45 Female
Power ConsumptionDC5V:1.86W:9BTU/h
Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0 - 50°C
Storage Temperature-20 - 60°C
Humidity0% - 80% RH, Non-condensing
Physical Properties
HousingMetal
Weight0.24 kg ( 0.53 lb )
Dimensions (L x W x H) with bracket9.86 x 8.70 x 3.00 cm
(3.88 x 3.43 x 1.18 in.)
Dimensions (L x W x H) without bracket9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)

Features
Type	AV transmitter
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat5e, Cat6, Cat6a
Maximum transfer distance	70 m
Supported video modes	1080p
Bandwidth	340 MHz
Material	Metal
Product colour	Black
LED indicators
HDCP
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
AC adapter included
Ports & interfaces
RJ-45 output ports	1
HDMI in	1
Ethernet LAN
DC-in jack
Power
Power consumption (typical)	1.85 W
Technical data
Packaging volume	0.0011m³
Max. distance	40m
Article type	Extender transmitter
Height packaging	0.160m
Max. resolution	4K at 40m, 1080p at 70m
Width packaging	0.059m
Weight	0.440kg
Length packaging	0.119m
Class	B
Technical details
Compliance certificates	RoHS
Weight & dimensions
Dimensions (WxDxH)	87 x 103 x 30 mm
Weight	240 g

---
