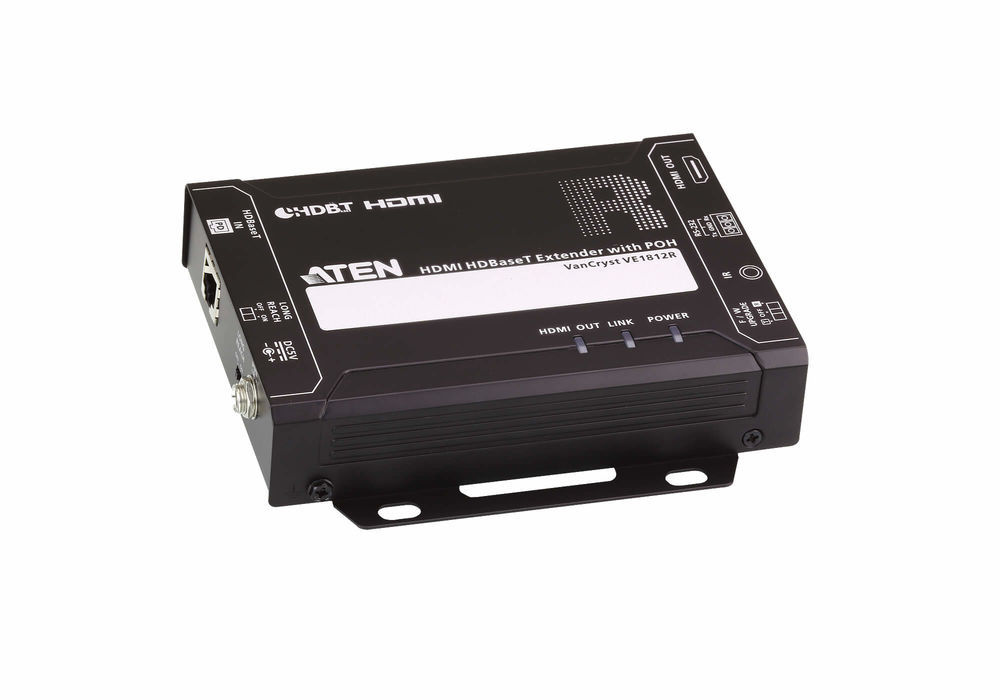

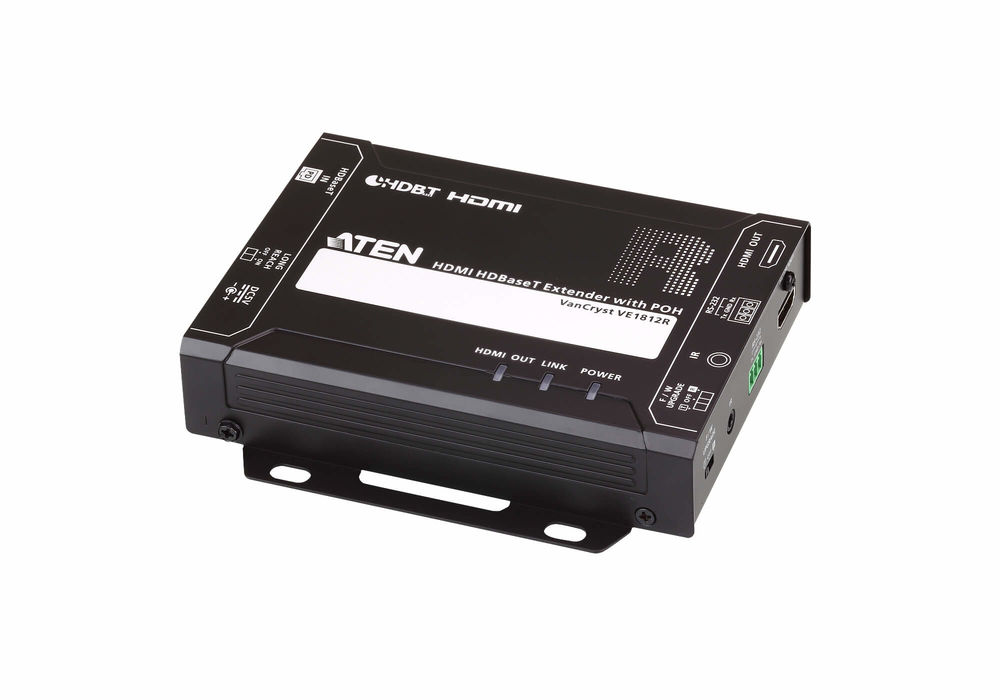

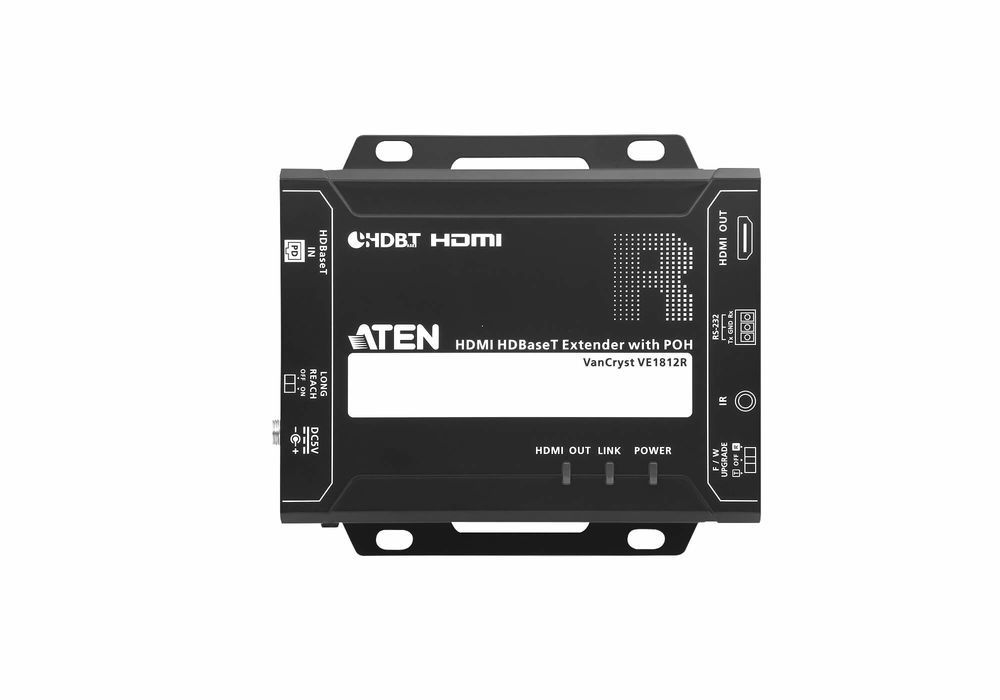

Aten video/audio extender, 70/100m, HDMI, receiver, with POH (4K at 100 m)
|
-42% 199,06 EUR 344,51 EUR |
|
|
( 236,88 EUR incl. VAT ) ≈ £167.61 | ≈ $223.54 plus delivery charges: 53,00 € |
|
| On order · Expected to be available from 22.10.2026info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1367759 |
| Mfg Part No: | VE1812R |
| UPC/EAN: | 4719264645785 |
| Weight: | 1 kg |
Product information for Aten VE1812R:
Made to Order *Up to 4K @ 70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6) 1080p @ 100m (Cat 5e/6/6a) *4K Support: 4096 x 2160 / 3840 x 2160 at 60 Hz (4:2:0) 4096 x 2160 / 3840 x 2160 at 30 Hz (4:4:4

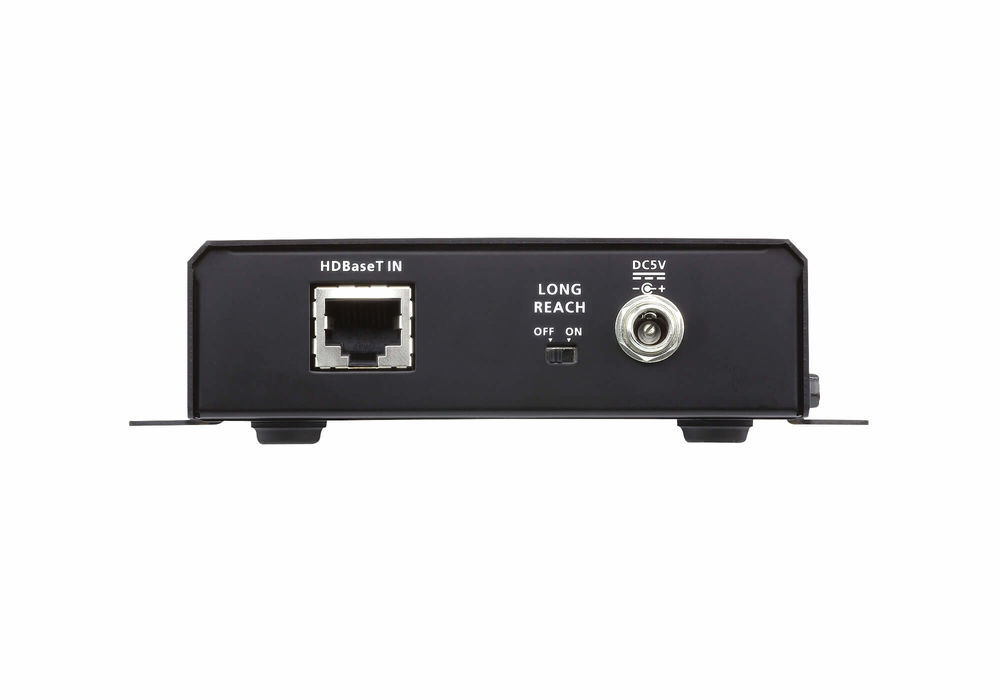

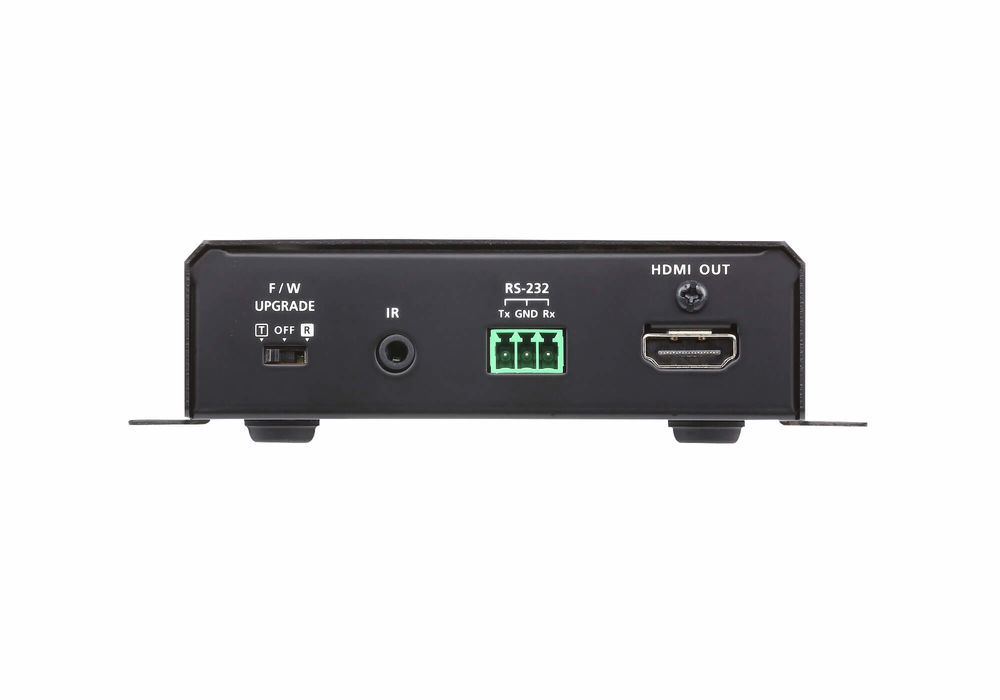

Receiver: HDMI socket, RJ45 socket,
Receiver: HDMI socket, RJ45 socket,
| Features | |
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 m |
| Supported video modes | 1080p, 2160p |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Material | Metal |
| Impedance | 100 Ω |
| Product colour | Black |
| LED indicators | |
| HDCP | |
| 3D | |
| Consumer Electronics Control (CEC) support | |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.48 kg |
| Master (outer) case net weight | 3.25 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| AC adapter included | |
| Quick start guide | |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 750 g |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 1 |
| RS-232 output ports | 1 |
| Video out | 1 |
| Remote (IR) output | 1 |
| HDBaseT port | |
| 3.5 mm (1/8-inch) out | |
| DC-in jack | |
| Power | |
| Operating voltage (receiver) | 5 V |
| Power consumption (receiver) (max) | 6.4 W |
| External power adapter | |
| Technical data | |
| Height packaging | 0.160m |
| Weight | 0.750kg |
| Article type | Extender receiver |
| Max. distance | 100m |
| Length packaging | 0.239m |
| Packaging volume | 0.0023m³ |
| Width packaging | 0.059m |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 650 g |
| Receiver dimensions (WxDxH) | 123 x 140.4 x 30 mm |
| Receiver weight | 450 g |
