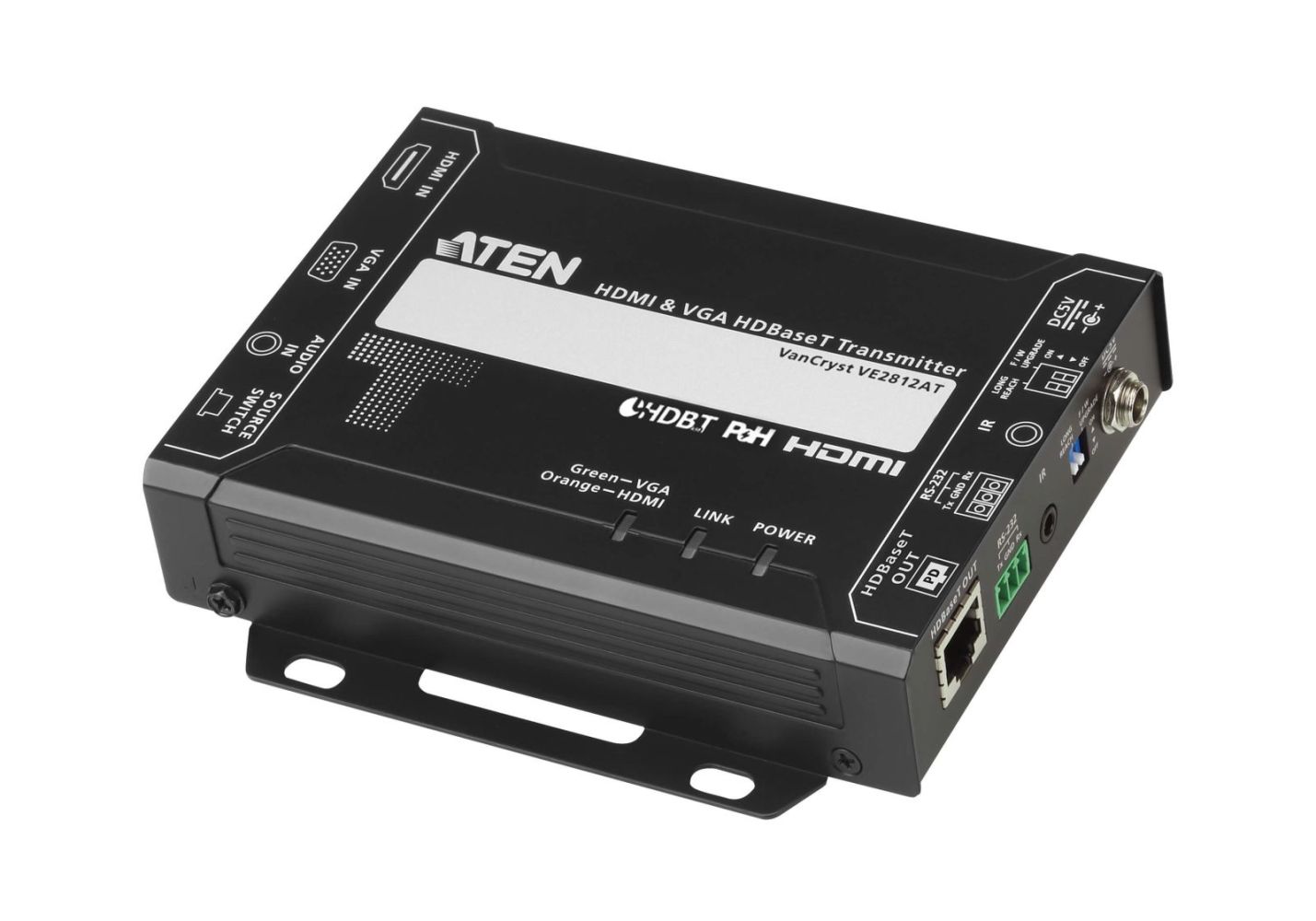

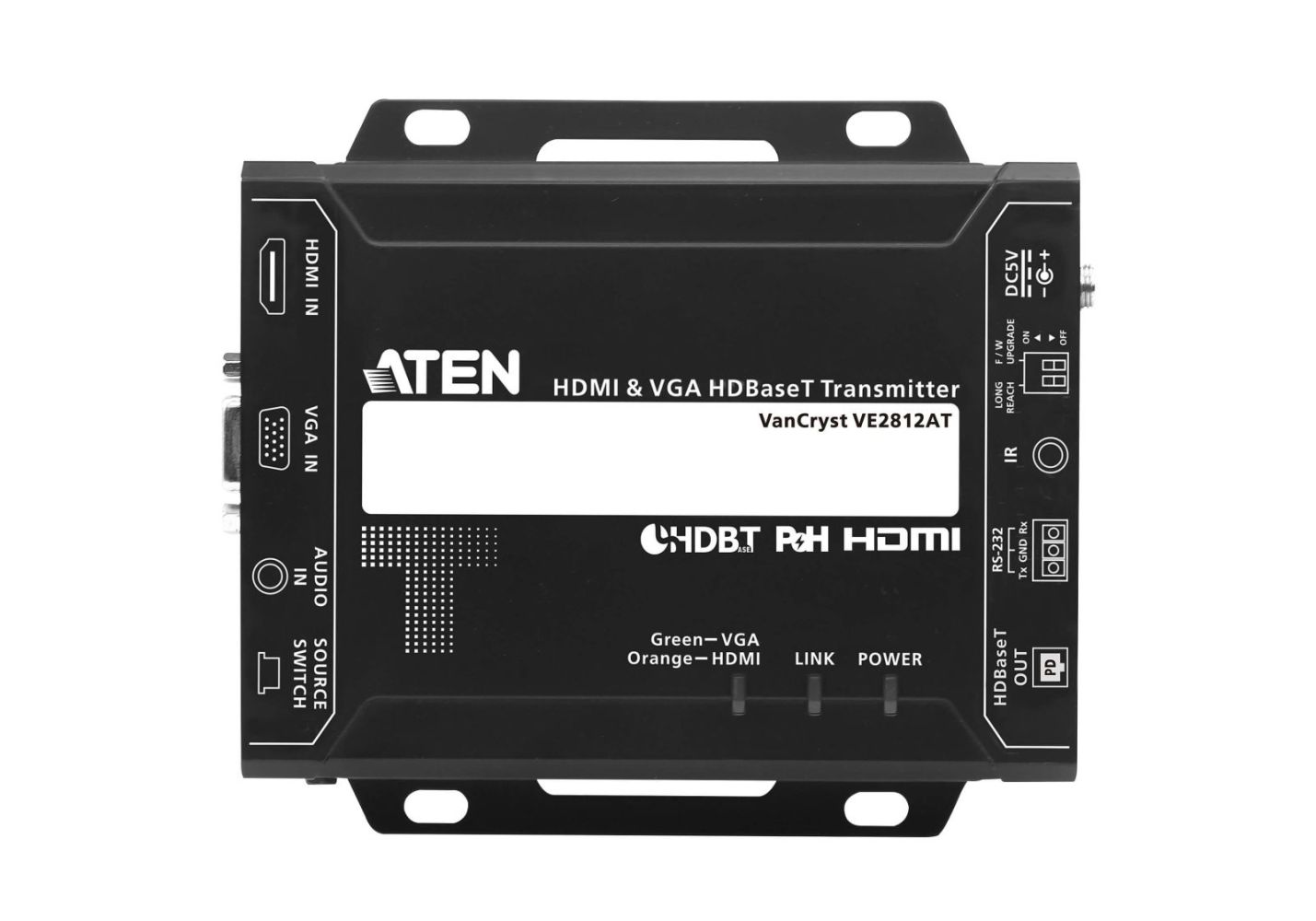

ATEN VE2812AT HDMI & VGA HDBaseT Transmitter with POH content_copy

ATEN VE2812AT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AT receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. The VE2812AT guarantees reliable transmission of HDMI signals, supporting 3D, deep color, and embedded HD lossless audio formats. It also ensures transmission of VGA (with audio) at distance up to 100 m. In addition, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
For utility flexibility, the VE2812AT can serve as a video switch by connecting two sources and distribute them to an identical output. The VE2812AT is recommended to be deployed in paired with the VE2812R. The VE2812R can carry on IR/RS-232 from the VE2812R to the VE2812AT, allowing users to remotely control the VE2812AT unit through RS-232 command mode via input port switching. The solution is ideal for a variety of settings, such as meeting rooms, digital educational environment or wherever high video quality is required.Extends HDMI or VGA signals, providing superior video quality:
HDMI: 4K / 1080p at distance up to 100 m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
HDMI (3D, Deep color, 4K); HDCP compatible
Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
Built-in PoH (Power over HDBaseT) function – the VE2812AT receives power supply from the HDBaseT output port on the connected device
Supports Auto Switch – allows the VE2812AT to automatically switch to a newly plugged-in source
Functions as a switch or a converter:
A Switch: Connects two sources (HDMI or VGA)
A converter: Applies receivers with different interface (DVI, DisplayPort,or HDMI)
RS-232 Channel Transmission – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Compatible Receivers – VE2812R, VE1812R, VE811R, VE814AR, VE801R, VE802R, VE601R, VE901R, or future ATEN HDBaseT Receivers
Plug-and-play with no software installation required
Rack mountable
Built- in 8KV / 15 KV ESD protection
Package Contents1 x VE2812AT Transmitter
1 x RS-232 Terminal Block
4 x Foot Pads
1 x Power Adapter
1 x User Instructions
Video Input

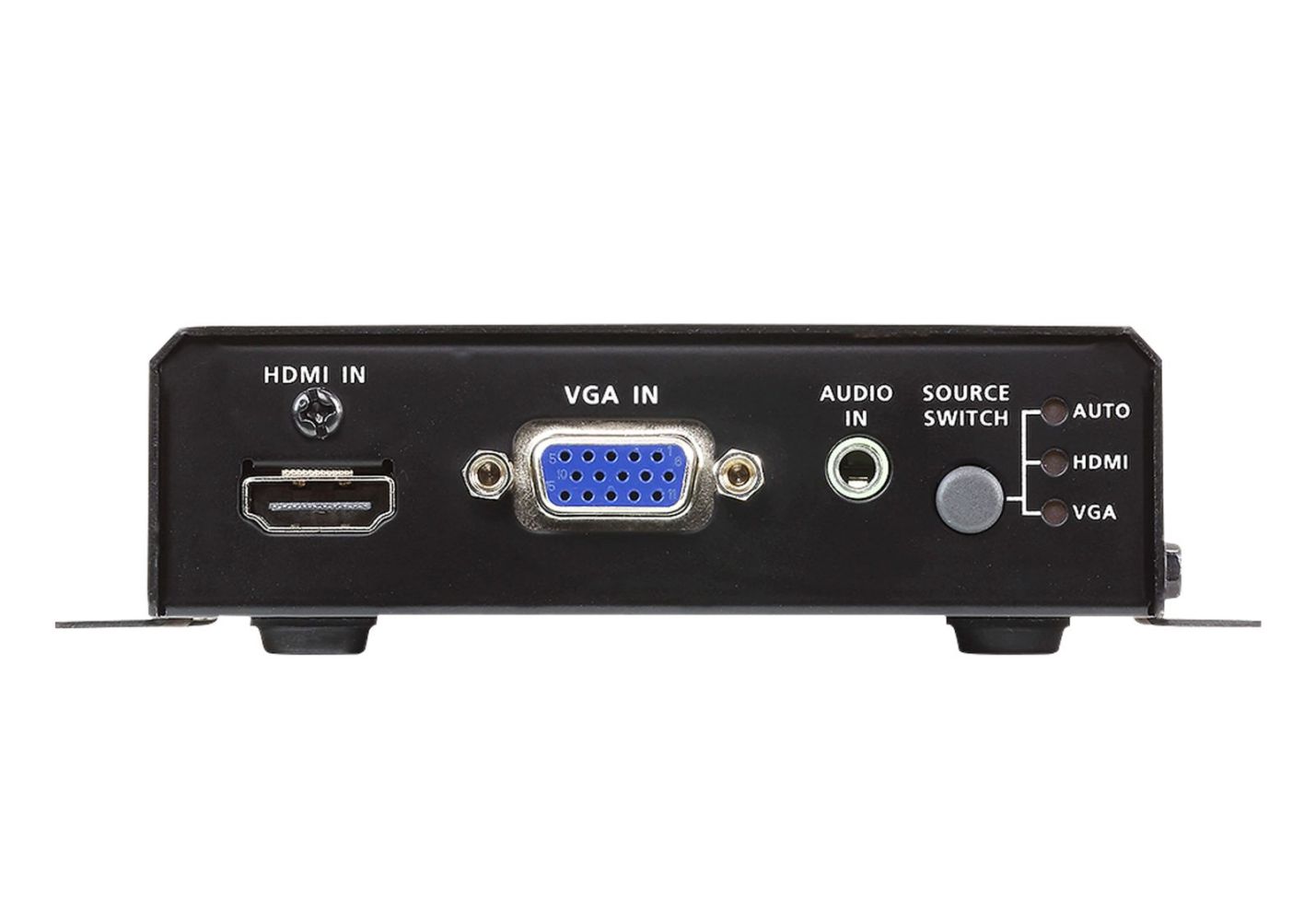

Interfaces1 x HDMI Type A Female (Black)
1 x HDB-15 (VGA) Female (Blue)
ImpedanceHDMI: 100 O
HDB-15 (VGA): 75 O
Max. DistanceHDMI: 3 m
HDB-15(VGA): 10m
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / DistanceHDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
Control

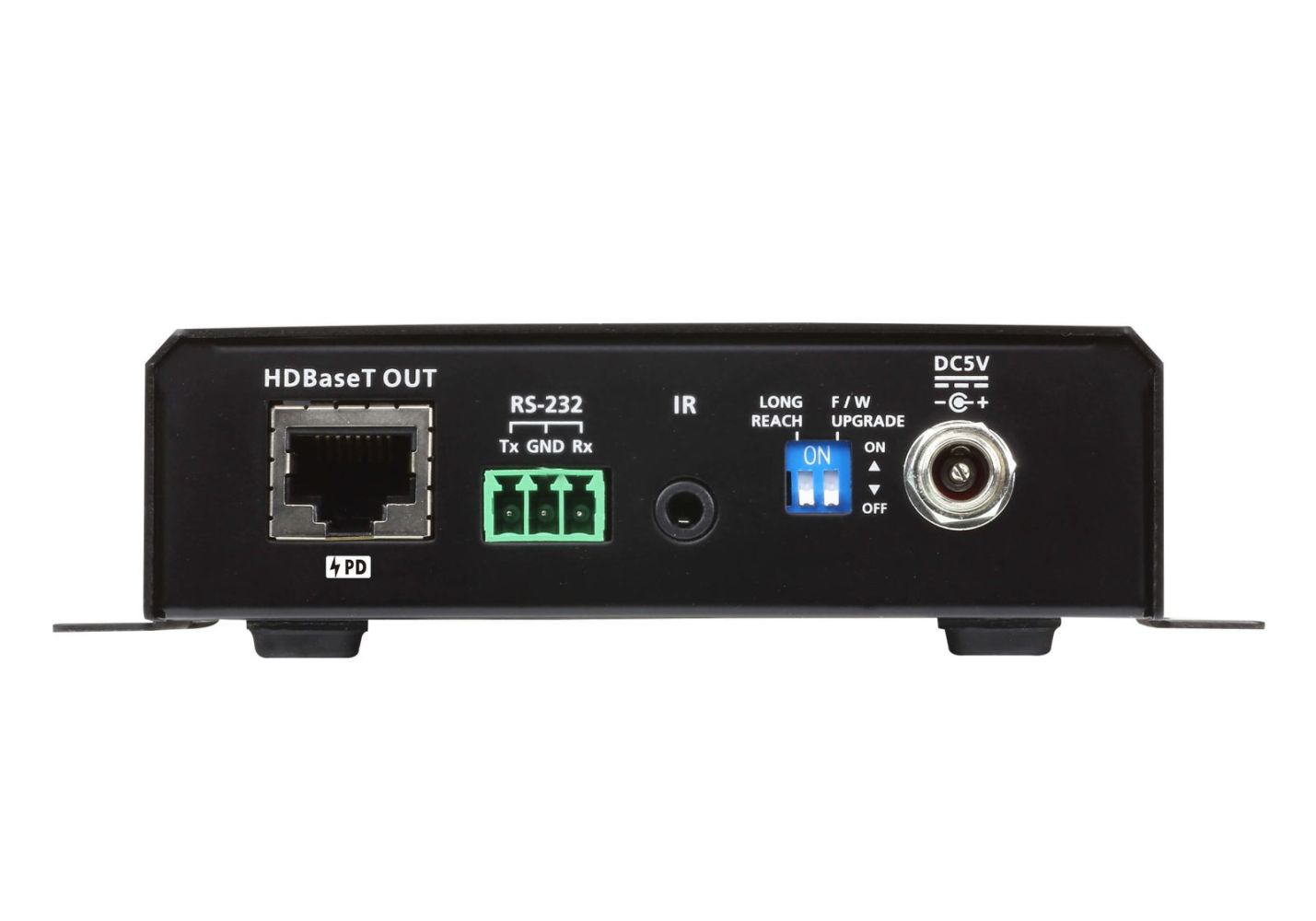

RS-232Connector: 1 x Terminal Block, 3 pole; Type: DTE
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR1 x Mini Stereo Jack Female (Black)
Switches
Video Input Port Selection1 x Push Button - HDMI, VGA and AUTO
Long Reach Mode Switch1 x Slide Switch - ON/OFF
Firmware Upgrade1 x Slide Switch - ON/OFF
Connectors
Unit To Unit1 x RJ-45 Female
Power1 x DC Jack (Black) with locking or
1 x RJ-45 Female (POH)
Power ConsumptionDC5V:3.14W:15BTU/h
POH:3.93W:18BTU/h
Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.47 kg ( 1.04 lb )
Dimensions (L x W x H) with bracket14.32 x 12.30 x 3.00 cm
(5.64 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)

Features
Type	AV transmitter
Maximum resolution	4096 x 2160 pixels
Maximum transfer distance	100 m
Bandwidth	10.2 Gbit/s
Material	Metal
HDCP version	2.2
Product colour	Black
HDCP
3D
Consumer Electronics Control (CEC) support
Logistics data
Master (outer) case width	250 mm
Master (outer) case length	325 mm
Master (outer) case height	175 mm
Master (outer) case gross weight	4.4 kg
Master (outer) case net weight	3.2 kg
Products per master (outer) case	5 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging data
Quantity per pack	1 pc(s)
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	765 g
Ports & interfaces
Connectivity technology	Wired
RJ-45 output ports	1
VGA (D-Sub) input ports	1
HDMI in	1
Audio input	1
Remote (IR) output	1
HDBaseT port
DC-in jack
Technical data
Weight	0.765kg
Width packaging	0.059m
Length packaging	0.239m
Article type	Extender transmitter
Max. distance	100m
Height packaging	0.160m
Packaging volume	0.0023m³
Weight & dimensions
Width	123 mm
Depth	143.2 mm
Height	30 mm
Weight	640 g

---
