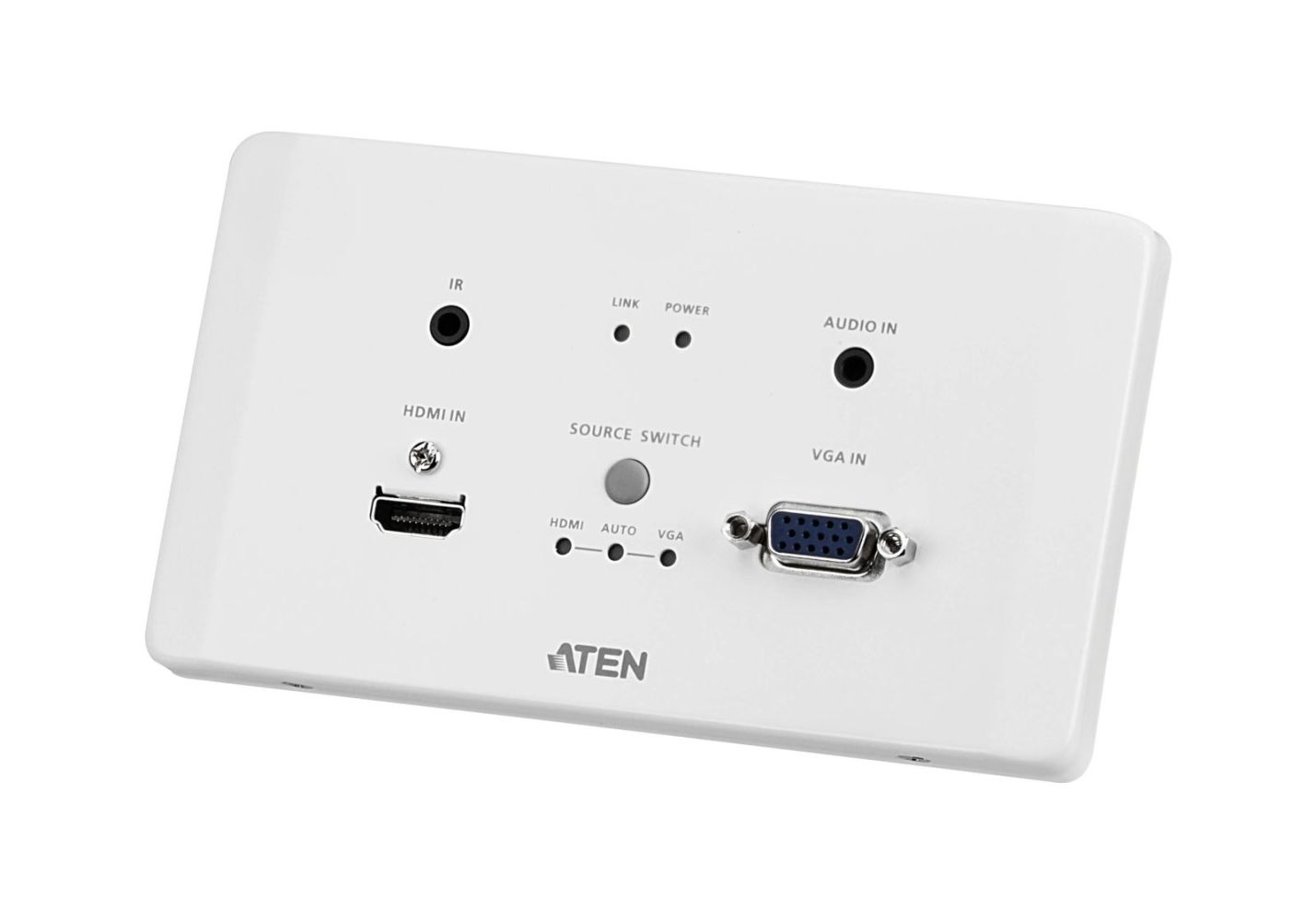

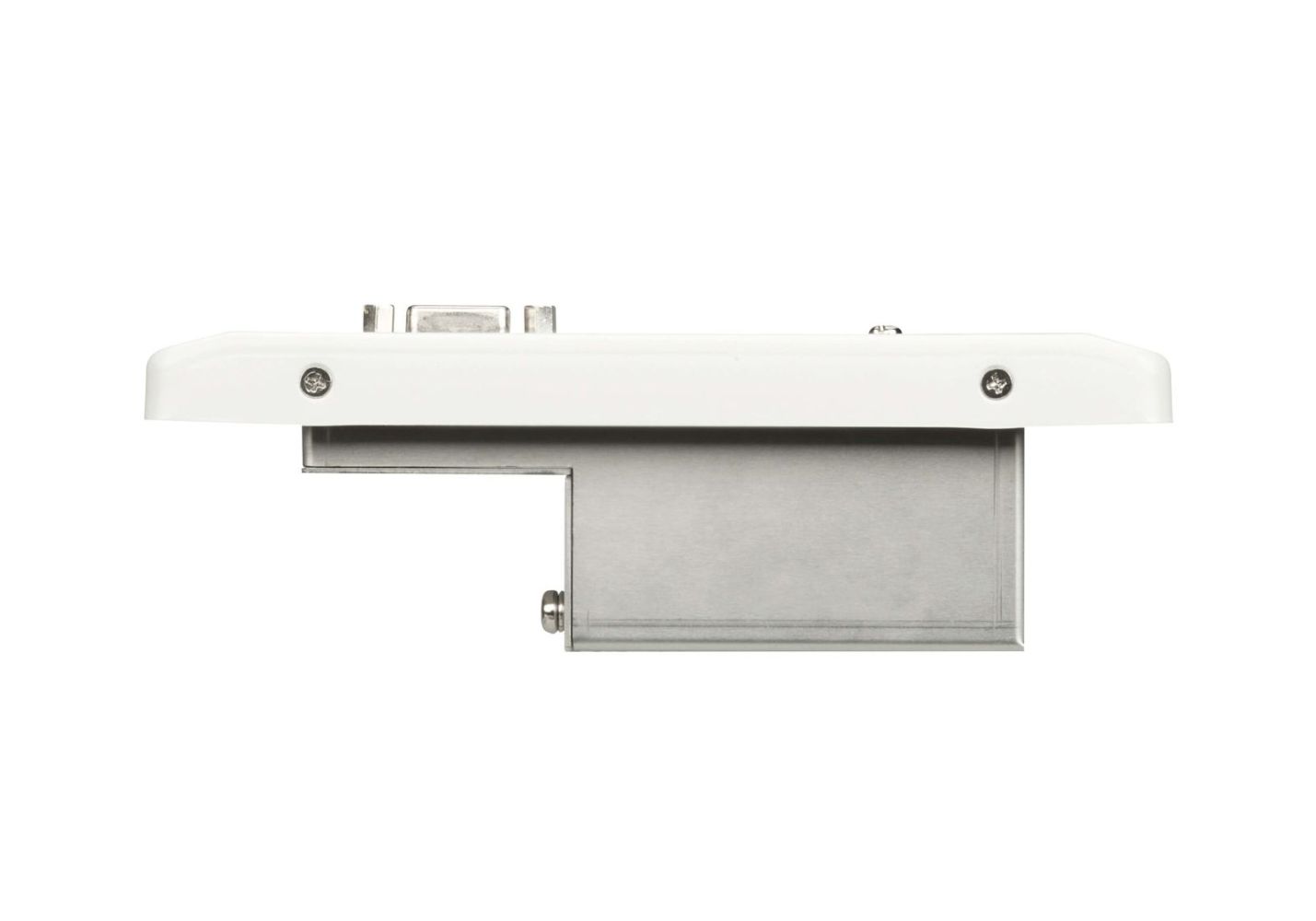

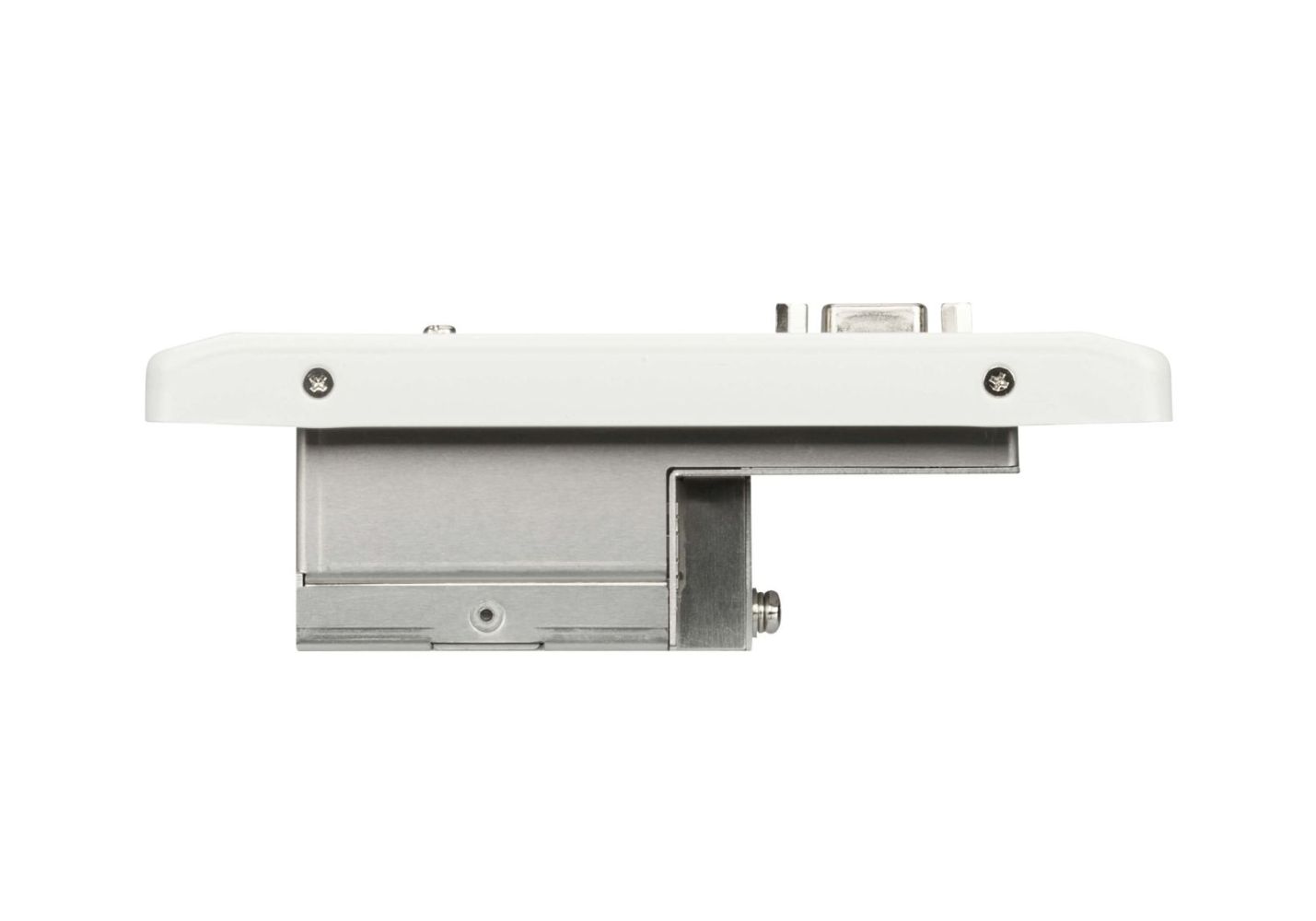

ATEN VE2812AEUT HDMI & VGA HDBaseT Transmitter EU Wall Plate content_copy

ATEN VE2812AEUT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AEUT receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. With EU Wall Plate design, the VE2812AEUT can be conveniently mounted in a two – gang junction box. The VE2812AEUT guarantees reliable transmission of HDMI / VGA signals. For HDMI signal transmission, it supports 3D, Deep Color, and embedded HD lossless audio formats. To pursue longer distance transmission, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
For utility flexibility, the VE2812AEUT can serve as a video switch by connecting two sources and distribute them to an identical output. The compact wall plate design does away with bulky cables, allowing a neat and convenient installation in the wall or the table. Therefore, the VE2812AEUT is specifically designed for use in meeting rooms, digital educational environment or wherever needed to meet application requirements.Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
Superior video quality:HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
HDMI 1.4 (3D, Deep color, 4K); HDCP 2.2 compliant
Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
Designed to mount in a two-gang junction box, compatible with EU & MK type
Built-in PoH (Power over HDBaseT) function – the VE2812AEUT receives power supply from the HDBaseT output port on the connected device
Supports Auto Switch – allows the VE2812AEUT to automatically switch to a newly plugged-in source
Functions as a switch or a converterA Switch: Connects two sources (HDMI or VGA)
A Converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI)
Supports RS-232 channel transmission or command mode for source switch control
Compatible Receivers – VE2812R, VE1812R, VE812R, VE814AR, VE811R, VE801R, VE802R, VE601R, VE901R or future ATEN HDBaseT Receivers
Plug-and-play
LED indication of sources and device status
Package Contents1x VE2812AEUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH
1x 3 Pin RS-232 Terminal Block
1x 2 Pin Power Terminal Block
1x Mounting Kit
1x Power Adapter
1x User Instructions

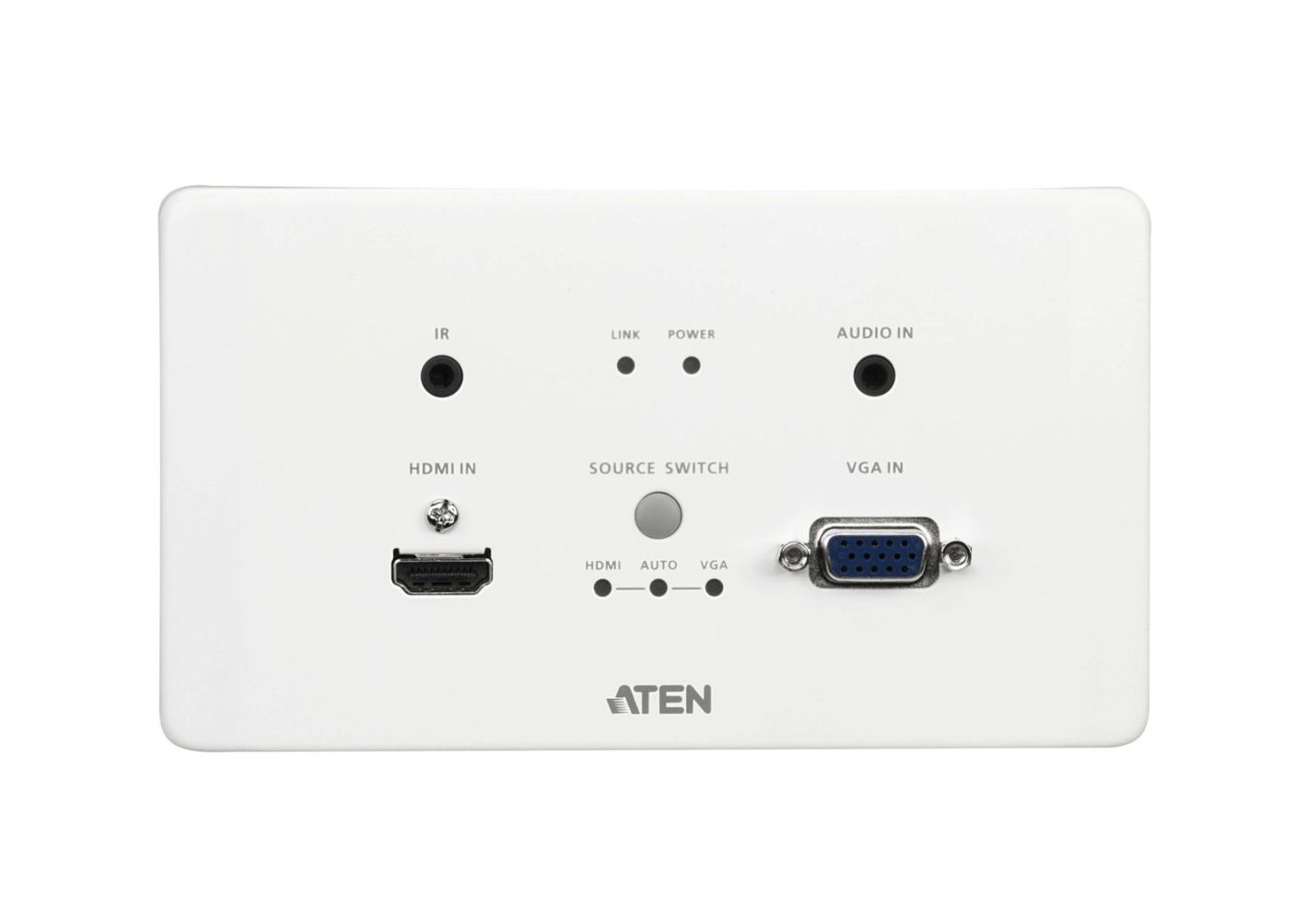

Video Input
Interfaces1 x HDMI Type A Female (Black)
1 x HDB-15 (VGA) Female (Blue)
ImpedanceHDMI: 100 ?
HDB-15 (VGA): 75 ?
Max. DistanceHDMI: 3 m
HDB-15(VGA): 10m
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / DistanceHDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
Control
RS-232Connector: 1 x Terminal Block, 3 pole (Green)
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR1 x Mini Stereo Jack Female (Black)
Switches
Video Input Port Selection1 x Push Button - HDMI, VGA and AUTO

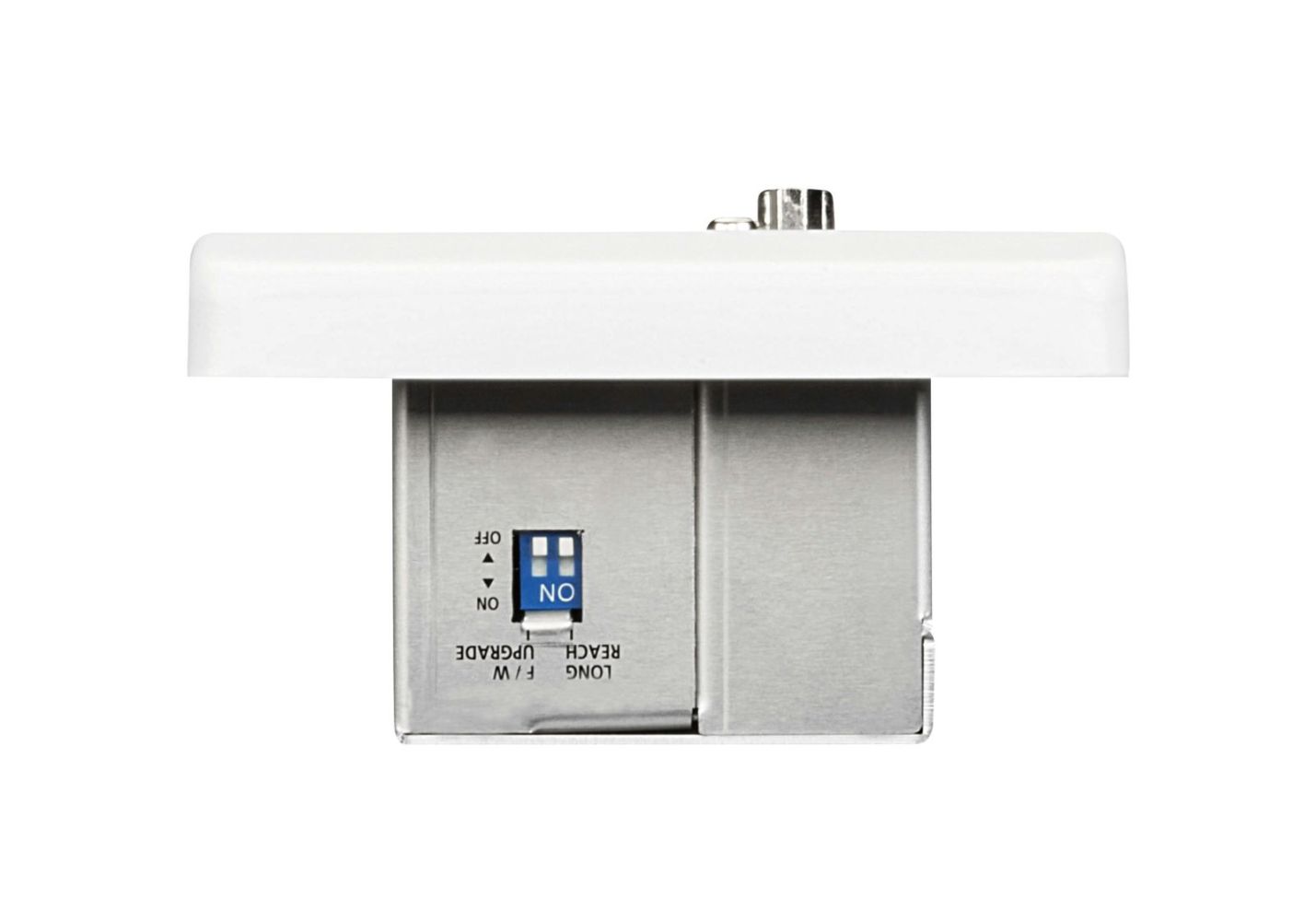

Long Reach Mode Switch1 x Slide Switch - ON/OFF
Firmware Upgrade1 x Slide Switch - ON/OFF

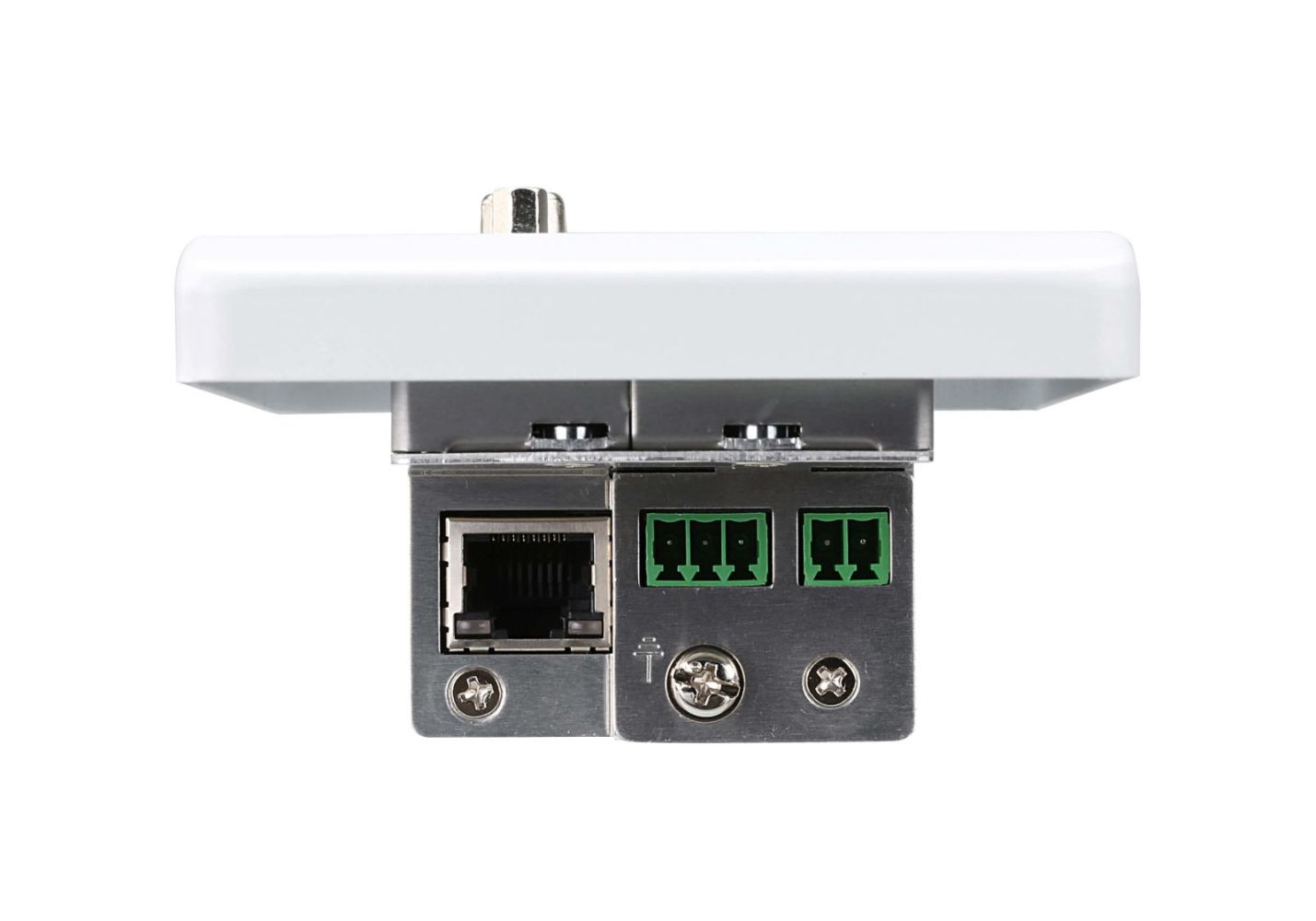

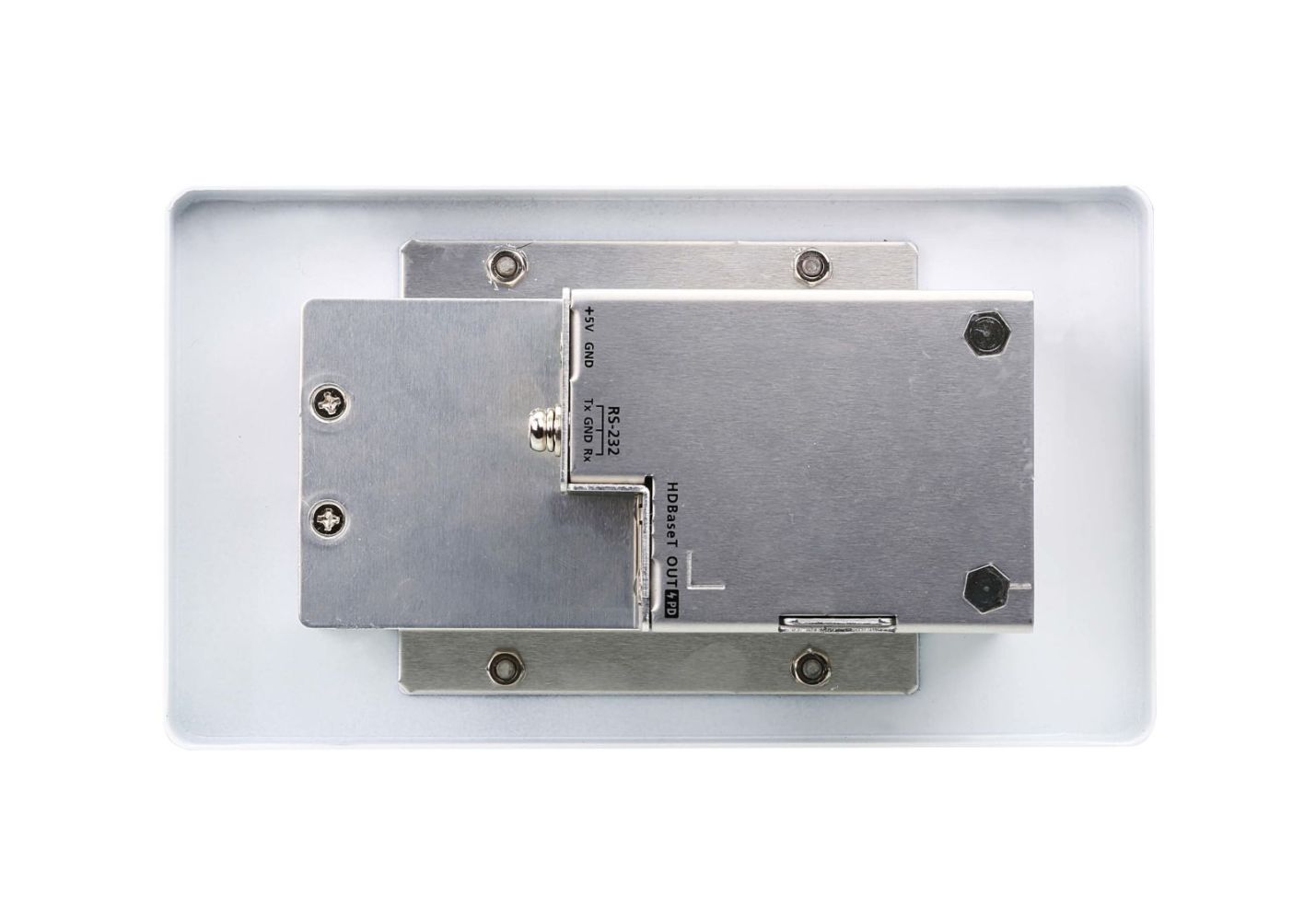

Connectors
Unit To Unit1 x RJ-45 Female
Power1 x Terminal Block, 2 pole (Green) or
1 x RJ-45 Female (POH)
Power ConsumptionDC5V:3.14W:15BTU
POE:3.93W:18BTU
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.30 kg ( 0.66 lb )
Dimensions (L x W x H)5.00 x 10.80 x 5.17 cm
(1.97 x 4.25 x 2.04 in.)
Faceplate Dimensions (L x W x H)8.60 x 15.10 x 1.35 cm
(3.39 x 5.94 x 0.53 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Features
Type	AV transmitter
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat5e, Cat6, Cat6a
Maximum transfer distance	150 m
LED indicators	Link, Power, Status
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
Bandwidth	10.2 Gbit/s
Material	Metal
Control type	Buttons, Slider
Impedance	100 Ω
Product colour	White
Logistics data
Master (outer) case width	300 mm
Master (outer) case length	336 mm
Master (outer) case height	194 mm
Master (outer) case gross weight	3.91 kg
Master (outer) case net weight	2.1 kg
Products per master (outer) case	5 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
AC adapter included
Quick start guide
Mounting kit
Packaging data
Quantity per pack	1 pc(s)
Package width	62 mm
Package depth	283 mm
Package height	173 mm
Package weight	665 g
Ports & interfaces
Connectivity technology	Wired
VGA (D-Sub) input ports	1
HDMI in	1
Audio input	1 x Mini Stereo
Remote (IR) input	1
Power
Power over Ethernet (PoE)
Technical data
Max. resolution	HDMI up to 4K, VGA up to 1920x1200
Weight	0.665kg
Height packaging	0.173m
Max. distance	100m
Interface	HDMI, VGA, Audio
Packaging volume	0.0030m³
Width packaging	0.062m
Length packaging	0.283m
Weight & dimensions
Width	151 mm
Depth	86 mm
Height	51.7 mm
Weight	420 g

---
