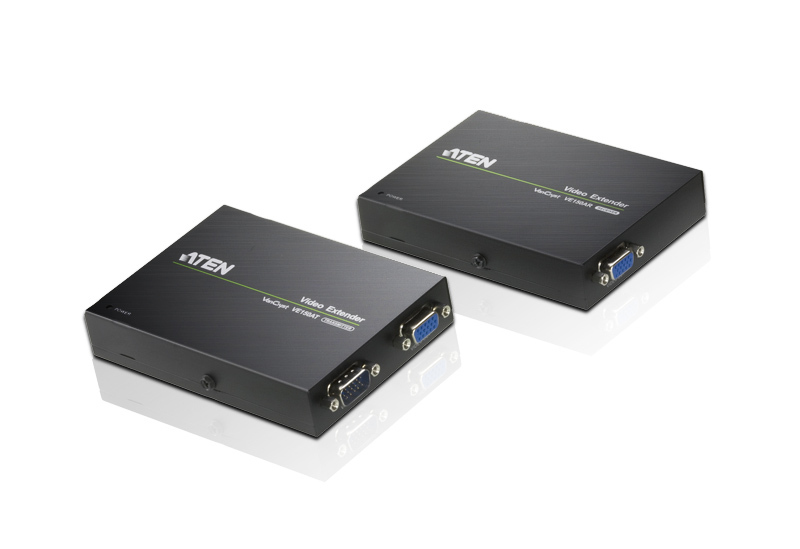

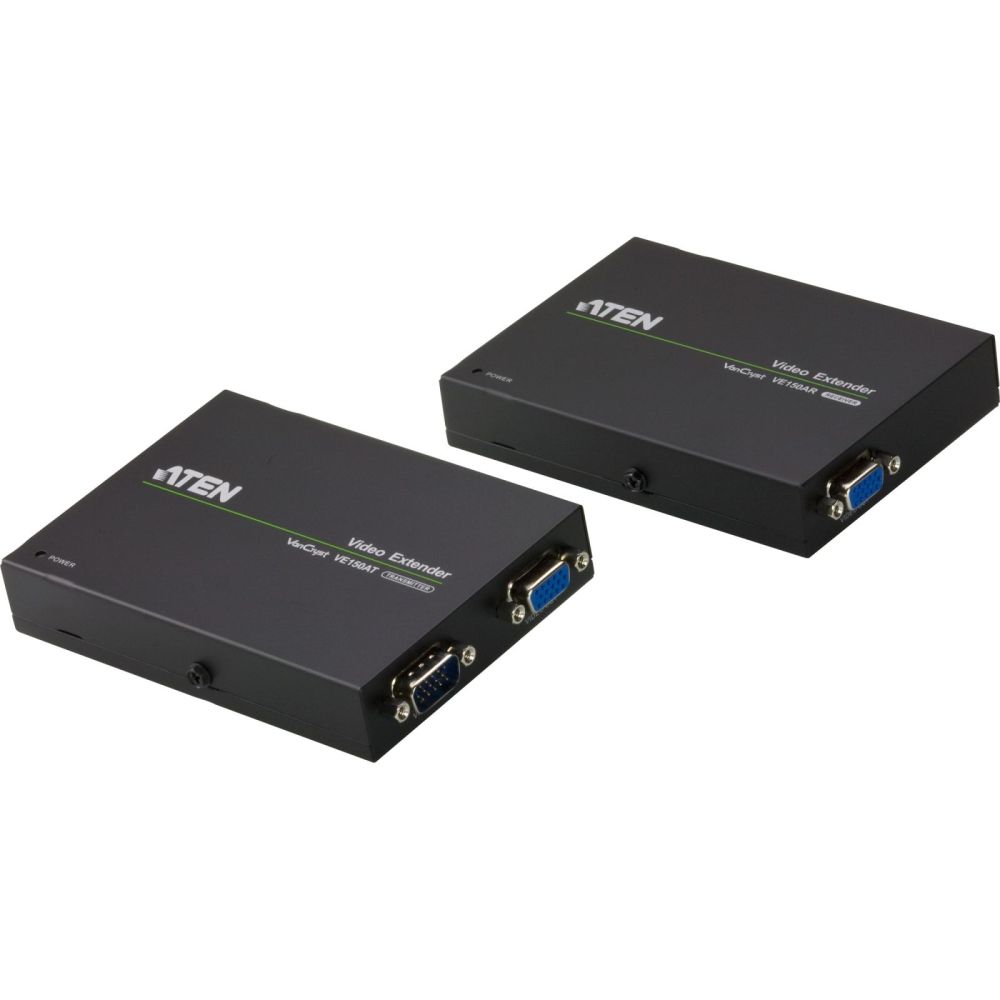

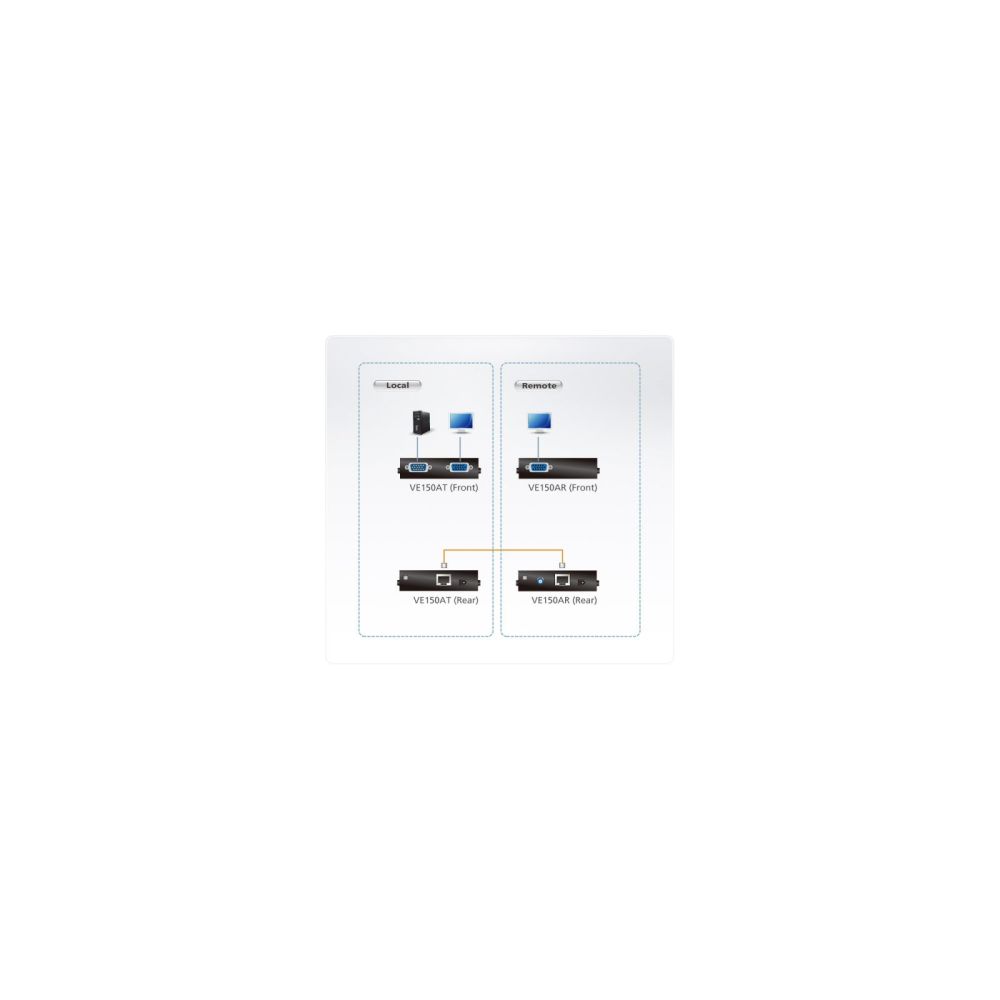

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.Uses Cat 5e cables to connect the local and remote units
Supports one local and one remote display
Long distance transmission – up to 150 m

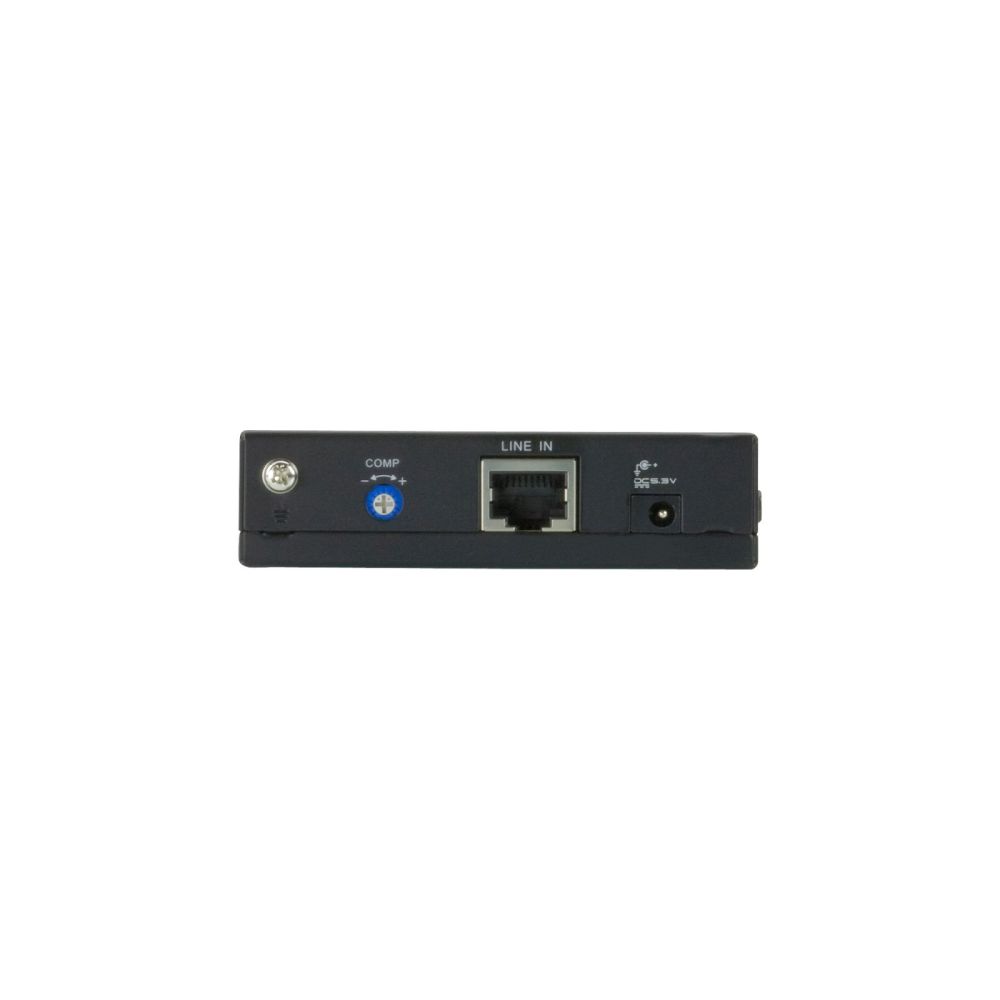

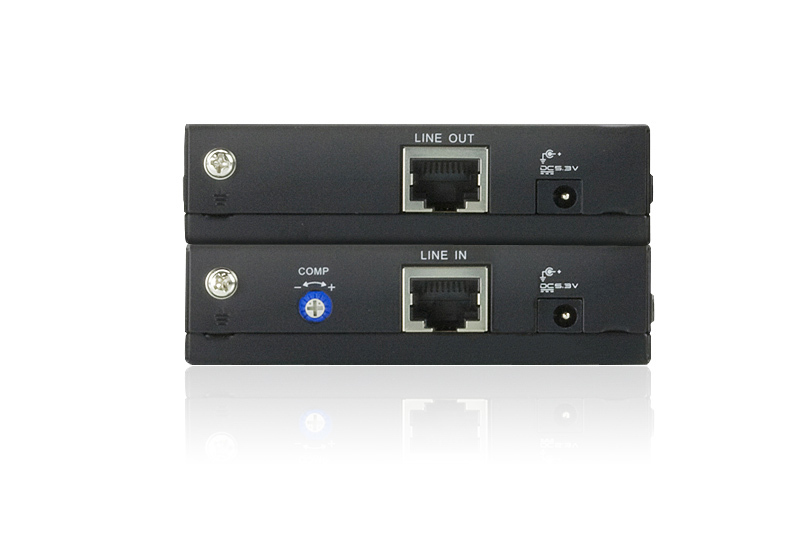

Adjustable gain control – manually adjust signal strength to compensate for distance
Superior video quality – up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
Supports wide screen formats
Supports hot-plugging
Built-in 8KV/15KV ESD protection
Supports DDC for the local monitor
Easy installation
Rack Mountable
Plug-and-play – no software installation required

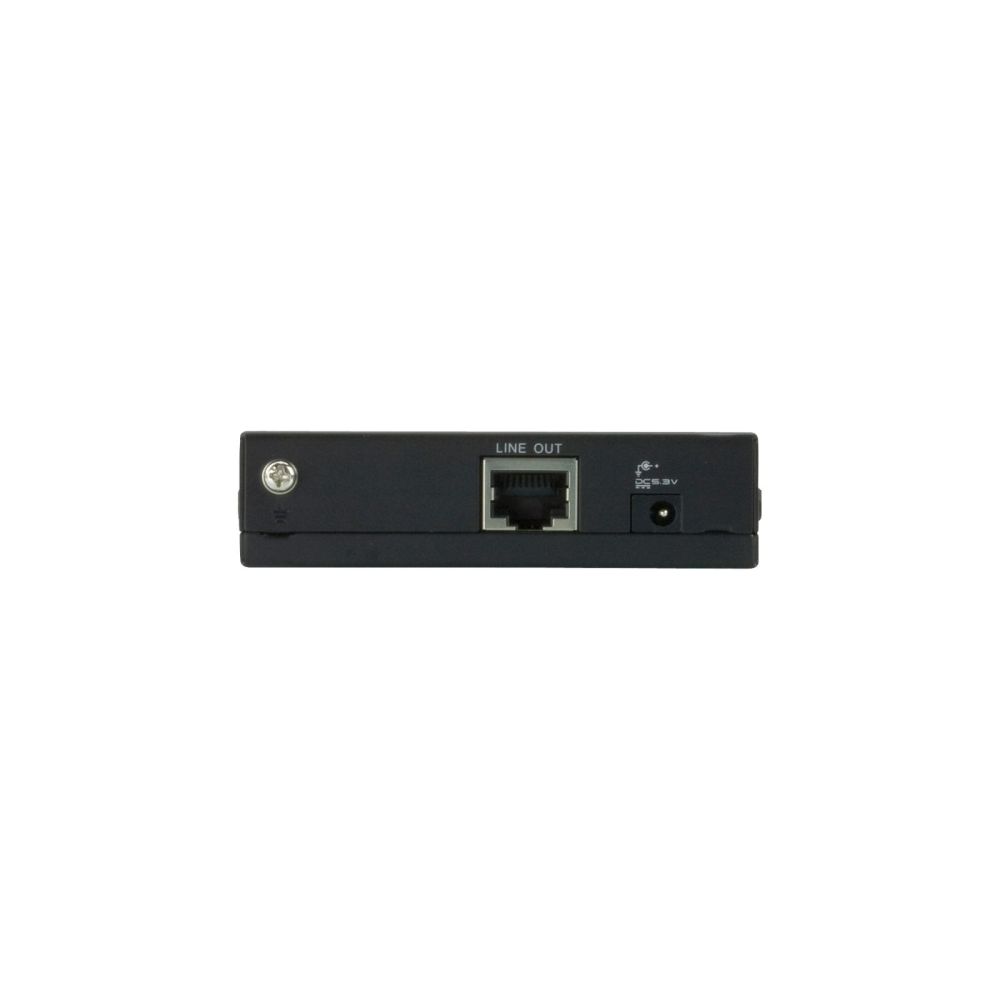

Package Contents1x VE150AT Video Extender (Local unit)
1x VE150AR Video Extender (Remote unit)
2x Power Adapters
1x VGA Cable (1.8m/6ft)1x Mounting Kit
1x User Instructions

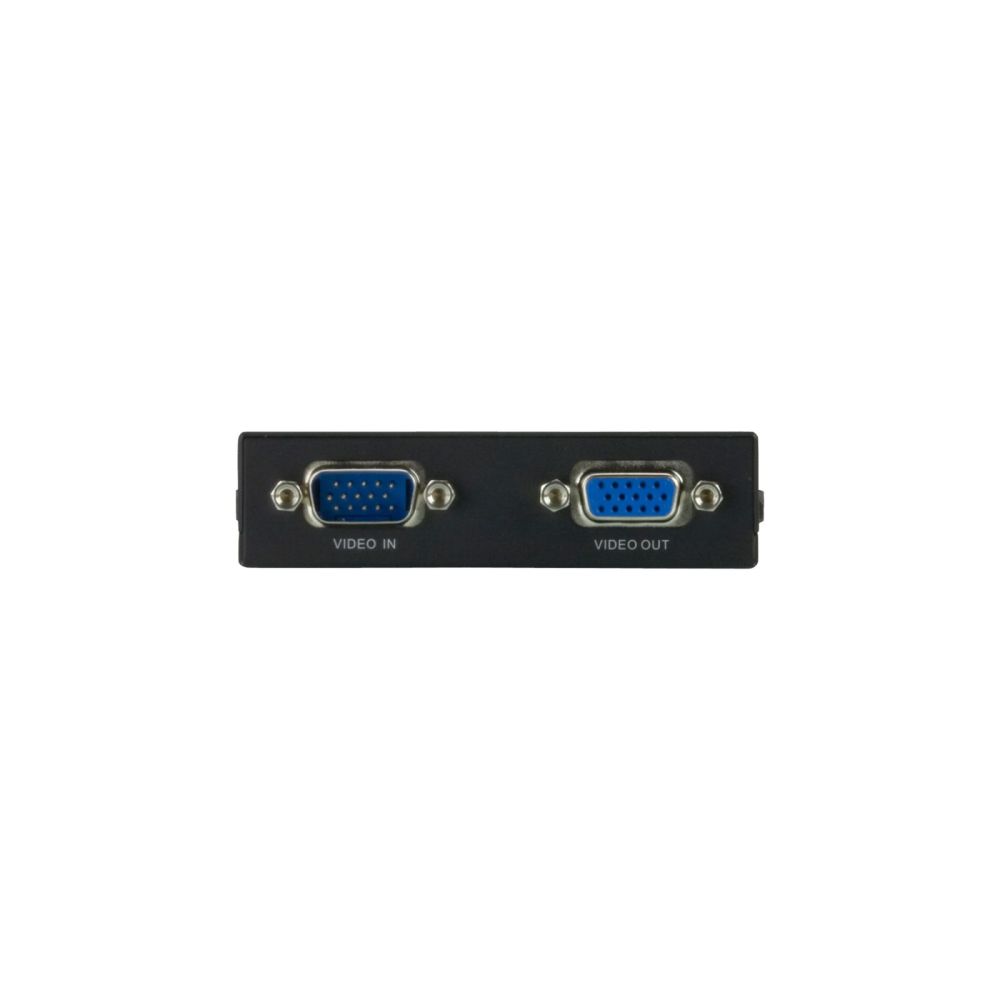

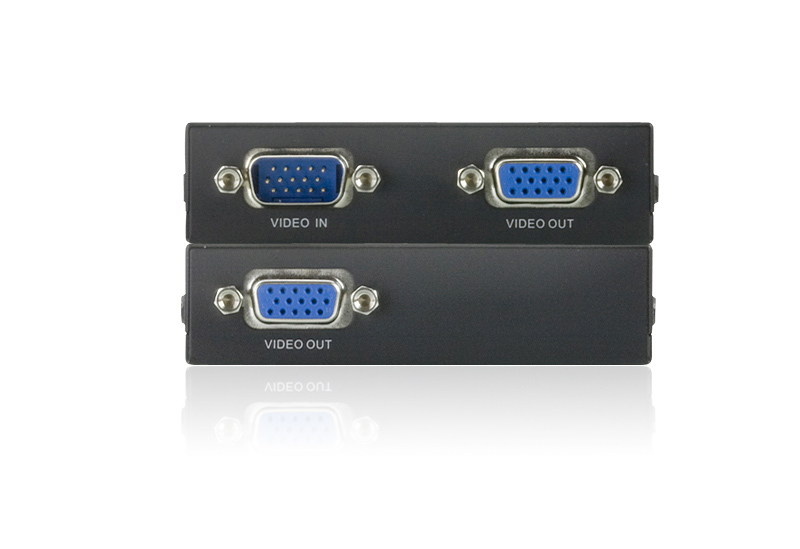

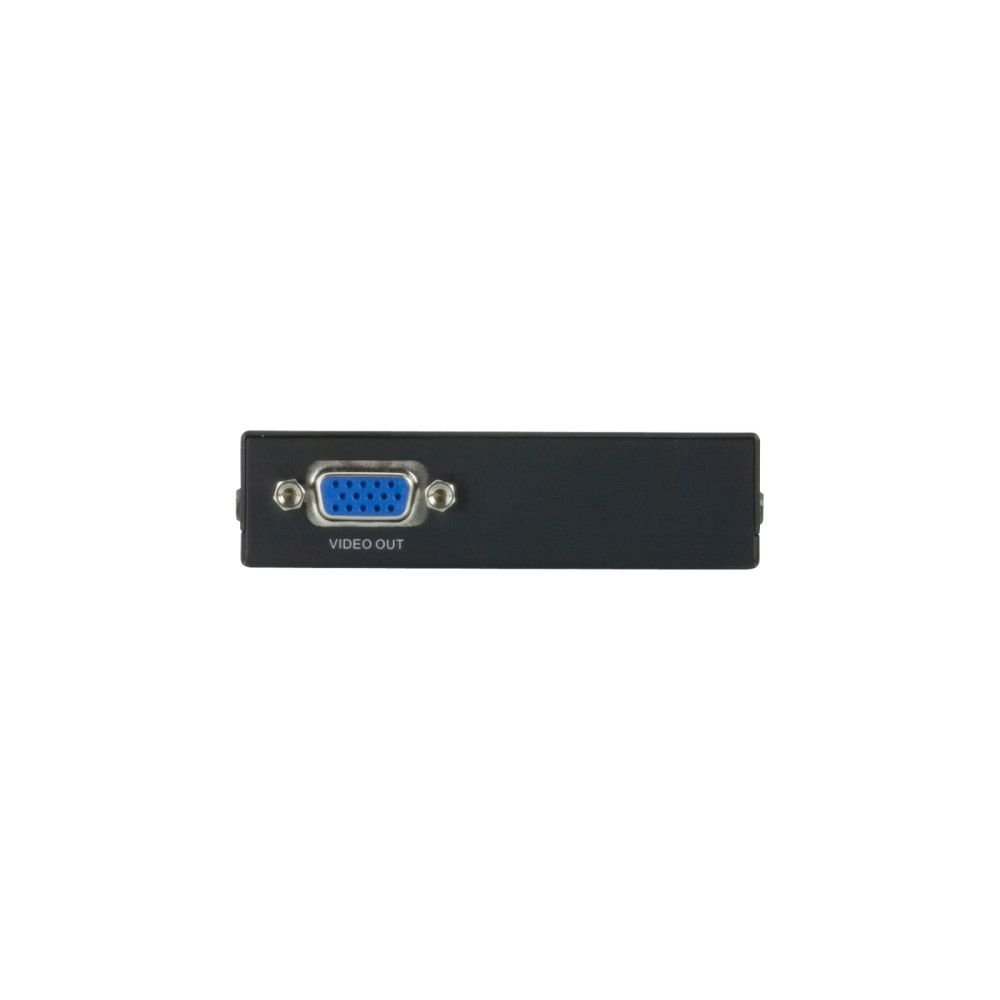

VE150ARVE150AT
Video Input
InterfacesN/A1 x HDB-15 Male (Blue)
ImpedanceN/A75 O
Max. DistanceN/A1.8 m
Video Output
Interfaces1 x HDB-15 Female (Blue)1 x HDB-15 Female (Blue)
Impedance75 O75 O
Video
Max. Bandwidth300 MHz300 MHz
Max. Resolutions / DistanceUp to 1920 x 1200@30m; 1280 x 1024@150mUp to 1920 x 1200@30m; 1280 x 1024@150m
Connectors
Power1 x DC Jack1 x DC Jack
Power ConsumptionDC5.3V:0.87W:8BTU/h
Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.DC5.3V:1.35W:11BTU/h
Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0 - 50°C0 - 50°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
Dimensions (L x W x H)12.77 x 9.04 x 2.26 cm
(5.03 x 3.56 x 0.89 in.)12.77 x 9.04 x 2.26 cm
(5.03 x 3.56 x 0.89 in.)
HousingMetalMetal
Weight0.24 kg ( 0.53 lb )0.24 kg ( 0.53 lb )
Carton Lot5 pcs5 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Features
Type	AV transmitter & receiver
Maximum resolution	1920 x 1200 pixels
Cable types supported	Cat5
Maximum transfer distance	150 m
Supported graphics resolutions	1280 x 1024 (SXGA), 1920 x 1200 (WUXGA)
Material	Metal
Impedance	75 Ω
Product colour	Black
Rack mounting
Plug and Play
Logistics data
Master (outer) case width	300 mm
Master (outer) case length	336 mm
Master (outer) case height	194 mm
Master (outer) case gross weight	5.92 kg
Master (outer) case net weight	4.85 kg
Products per master (outer) case	5 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
Cables included	VGA
AC adapter included
Manual
Mounting kit
Packaging data
Quantity per pack	2 pc(s)
Package width	62 mm
Package depth	283 mm
Package height	173 mm
Package weight	1.11 kg
Ports & interfaces
Connectivity technology	Wired
VGA (D-Sub) input ports	1
Video in	1 x HDB-15
Video out	1 x HDB-15
HDBaseT port
Power
Power consumption (transmitter) (max)	1 W
Power consumption (receiver) (max)	1.2 W
Technical data
Max. distance	150m
Length packaging	0.283m
Packaging volume	0.0030m³
Width packaging	0.062m
Weight	1.080kg
Interface	VGS
Height packaging	0.173m
Weight & dimensions
Weight	970 g
Receiver dimensions (WxDxH)	127.7 x 90.4 x 22.6 mm
Receiver weight	240 g
Transmitter dimensions (WxDxH)	127.7 x 90.4 x 22.6 mm
Transmitter weight	240 g

---
