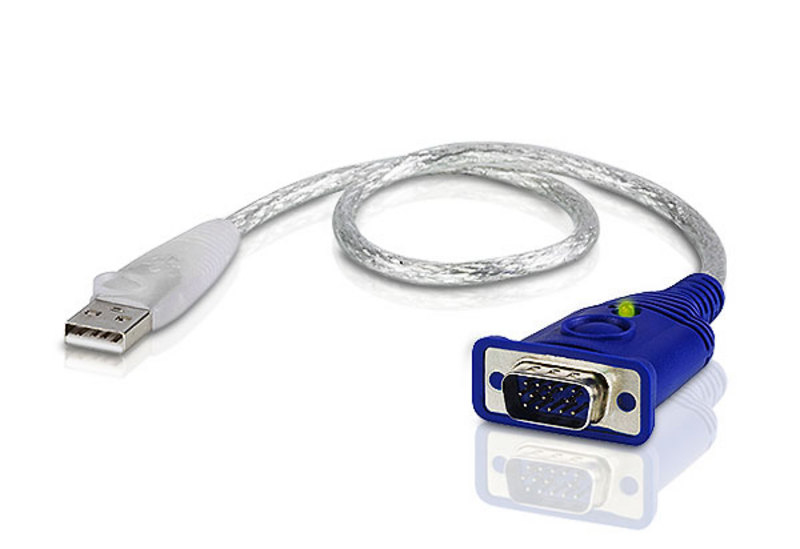

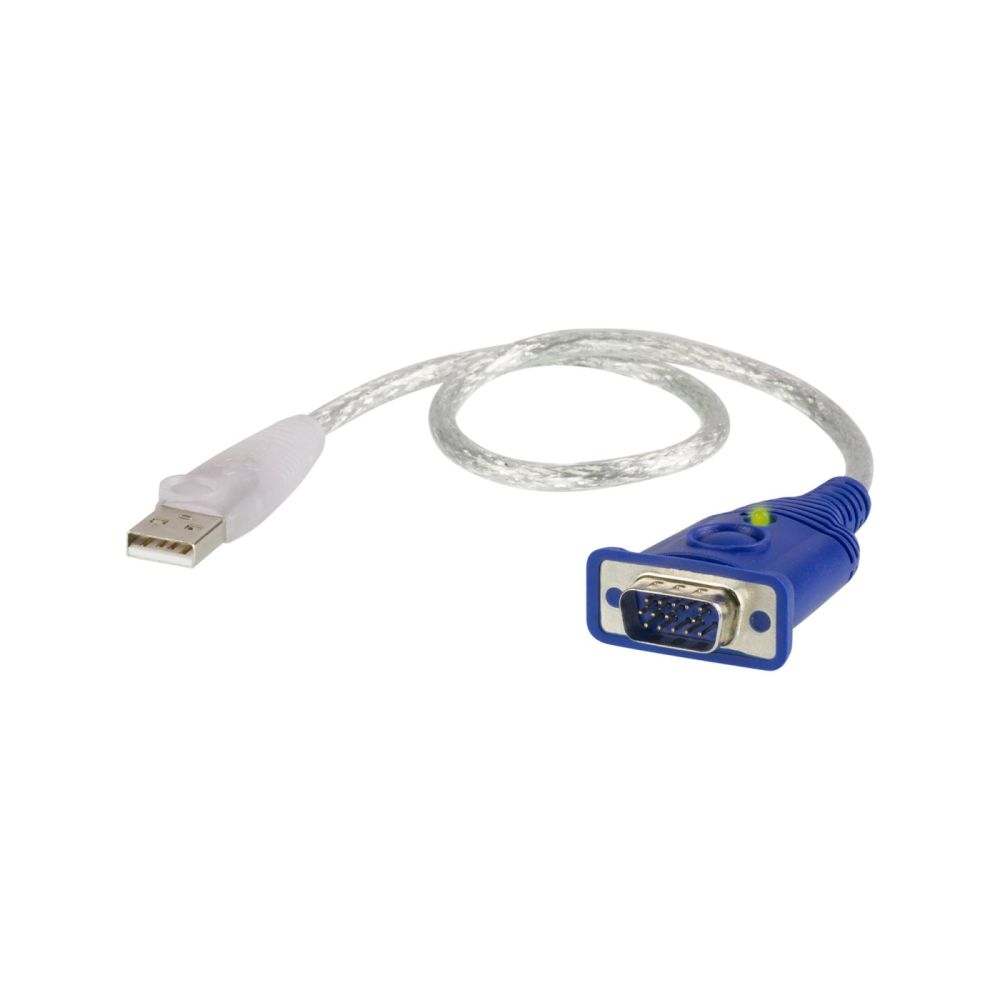

ATEN 2A-130G VGA EDID Emulator content_copy

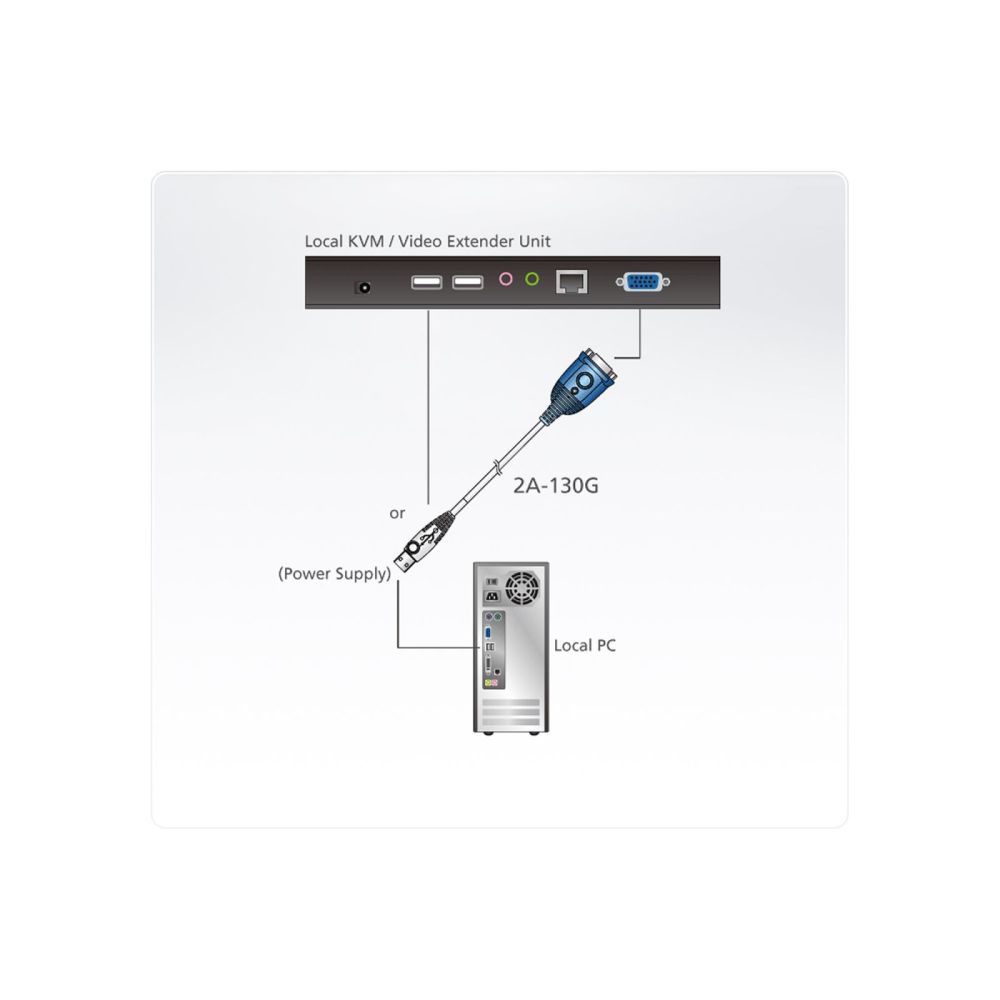

The 2A-130G VGA EDID Emulator is designed for ATEN KVM extender or video extender installations that do not utilize a local monitor at the site where the computer/video source is located. The 2A-130G emulates and stores a default ATEN EDID (Extended Display Identification Information) setting in a non-volatile memory. This means the computer/video source can still see the display, even though it is not directly connected.
The 2A-130G is suitable for any ATEN KVM or video extender installation where a monitor is not required at the local site, providing a simple, cost-saving, and convenient solution for display-related boot-up problems.
Subsitutes as a monitor at the site where the computer/video source is located
EDID built-in - Stores ATEN standard EDID information in device
ATEN standard EDID supports all popular resolutions
Superior video quality - up to 1920 x 1200@60Hz, 1366 x 768@60Hz
USB Powered - No need for an external power adapter
No software required - Eliminates incompatibility and installation issues; no need to confi gure
Compatible Extenders: CE774, CE775, CE700A, CE750, CE770, CE800B, CE350, CE370, CE250A, CE252, VE150A, VE170, VE200, VE300, VE500
Compatible Splitters (Connect to Port 1): VS132A/134A/138A, VS92A/94A/98A, VS82/84/88, VS0116, VS132, VS102, VS1204T, VS1208T, VS1504, VS1508
Supported Resolutions: https://www.aten.com/ext_data/global_en/quick_finder/support/supported_resolutions.htm
Package Contents 1x 2A-130G VGA EDID Emulator
Connectors
Video1 x HDB-15 Male (Blue)
Power1 x USB Type A Male
LEDs
Power1 (Green)
Video1920 x 1200@60Hz
1366 x 768@60Hz
Cable Length0.35 m
Power ConsumptionDC5V, 0.06W
Environmental
Operating Temperature0-50°C
Storage Temperature-20-60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingPlastic
Weight42 g
Dimensions (L x W x H)6.59 x 3.40 x 1.60 cm
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Cable length	0.35 m
Connector 1	USB Type-A
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Male
Maximum resolution	1920 x 1200 pixels
Supported graphics resolutions	1366 x 768, 1920 x 1200 (WUXGA)
Maximum refresh rate	60 Hz
Product colour	Blue, Silver
Logistics data
Master (outer) case net weight	1.6 kg
Harmonized System (HS) code	84733080
Master (outer) case width	212 mm
Master (outer) case length	235 mm
Master (outer) case height	350 mm
Master (outer) case gross weight	2.61 kg
Products per master (outer) case	40 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging data
Package width	205 mm
Package depth	245 mm
Package height	20 mm
Package weight	52 g
Technical data
Supported display resolution	Up to 1920x1200 @ 60 Hz
Humidity	0–80% relative humidity, non-condensing
Side A	USB-A male
Packaging volume	0.0010m³
Length packaging	0.245m
Weight	0.052kg
Side B	15pin HD male
Type	EDID emulator
Housing material	Plastic
Height packaging	0.020m
Width packaging	0.205m
Power supply	Via USB port
Signal	Video
Power consumption	5V, 0.06W
Weight & dimensions
Weight	40 g
Width	34 mm
Depth	65.9 mm
Height	16 mm

---
