ATEN CE750A KVM Extension VGA USB Audio RS232 200m content_copy

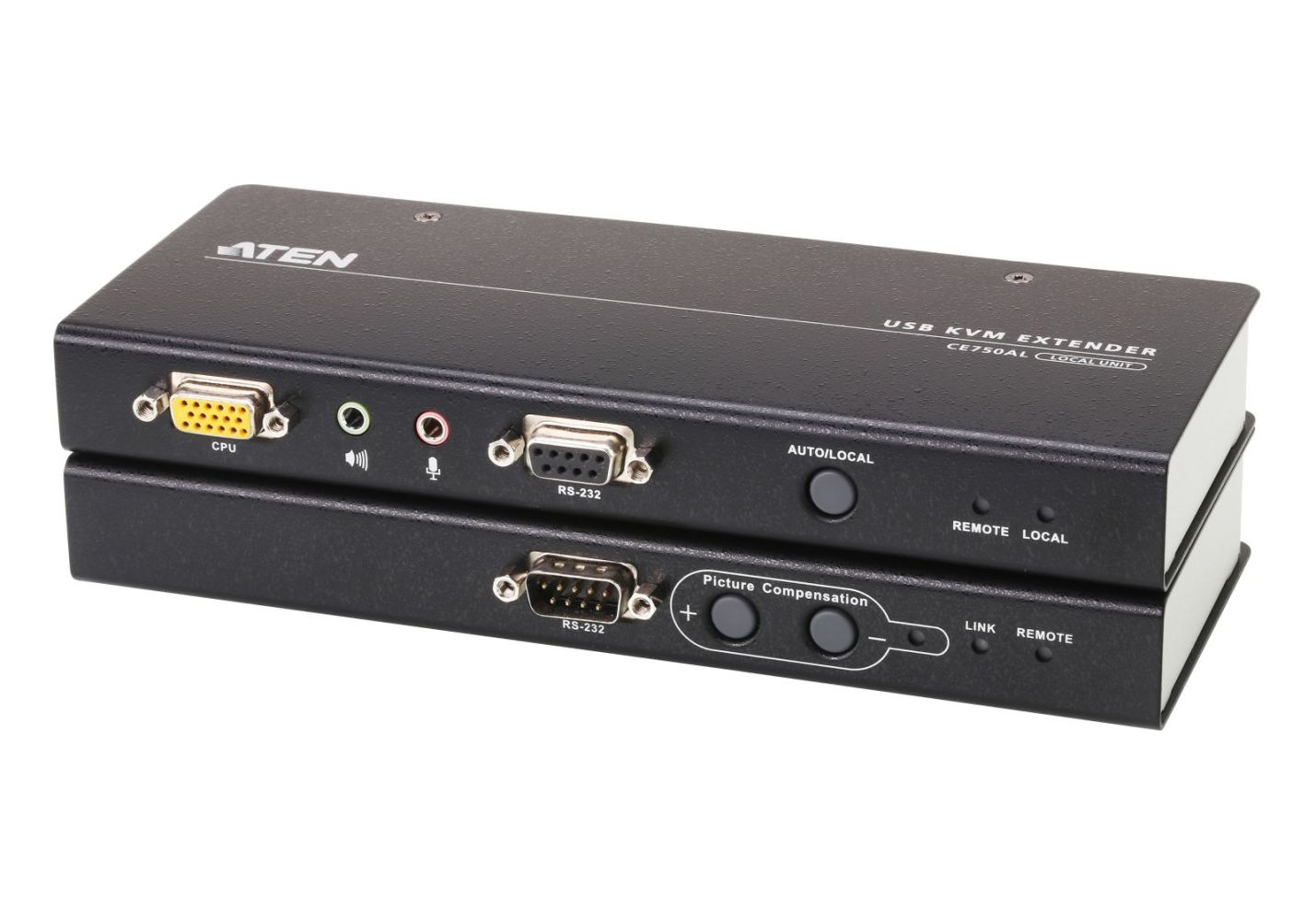

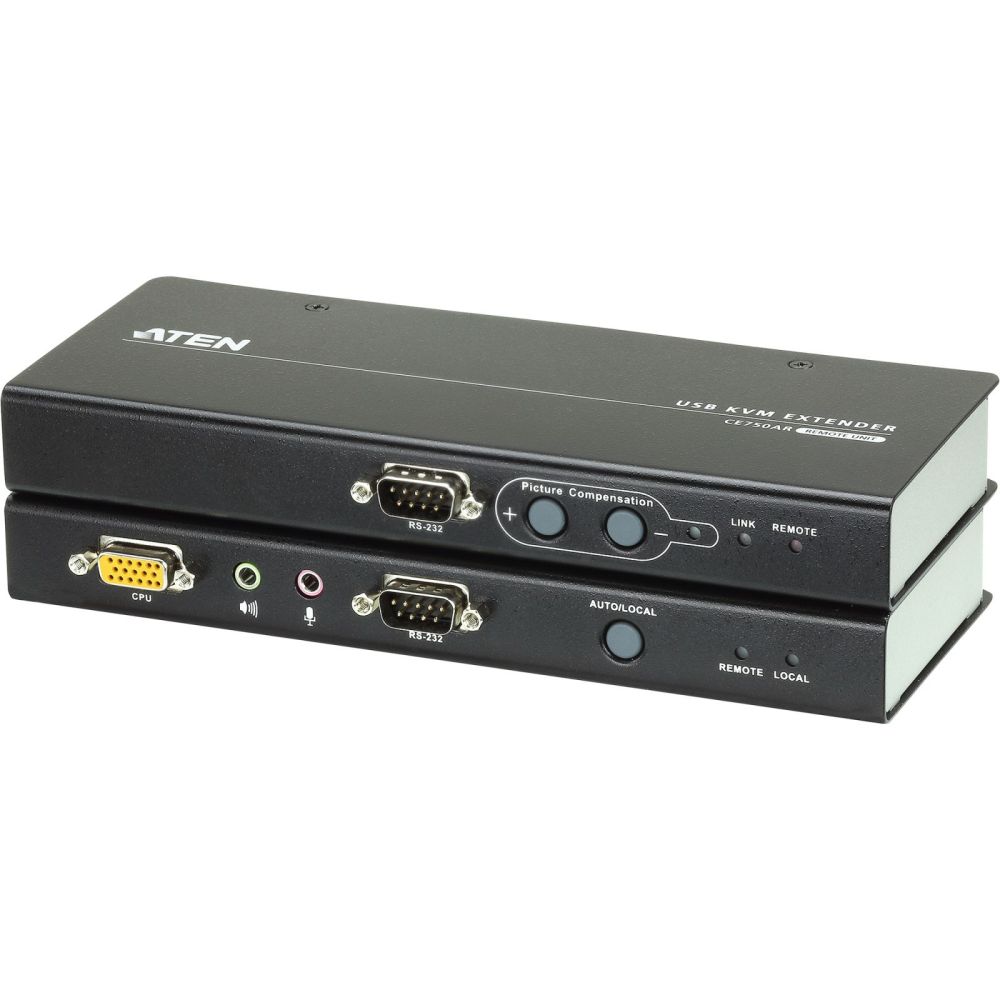

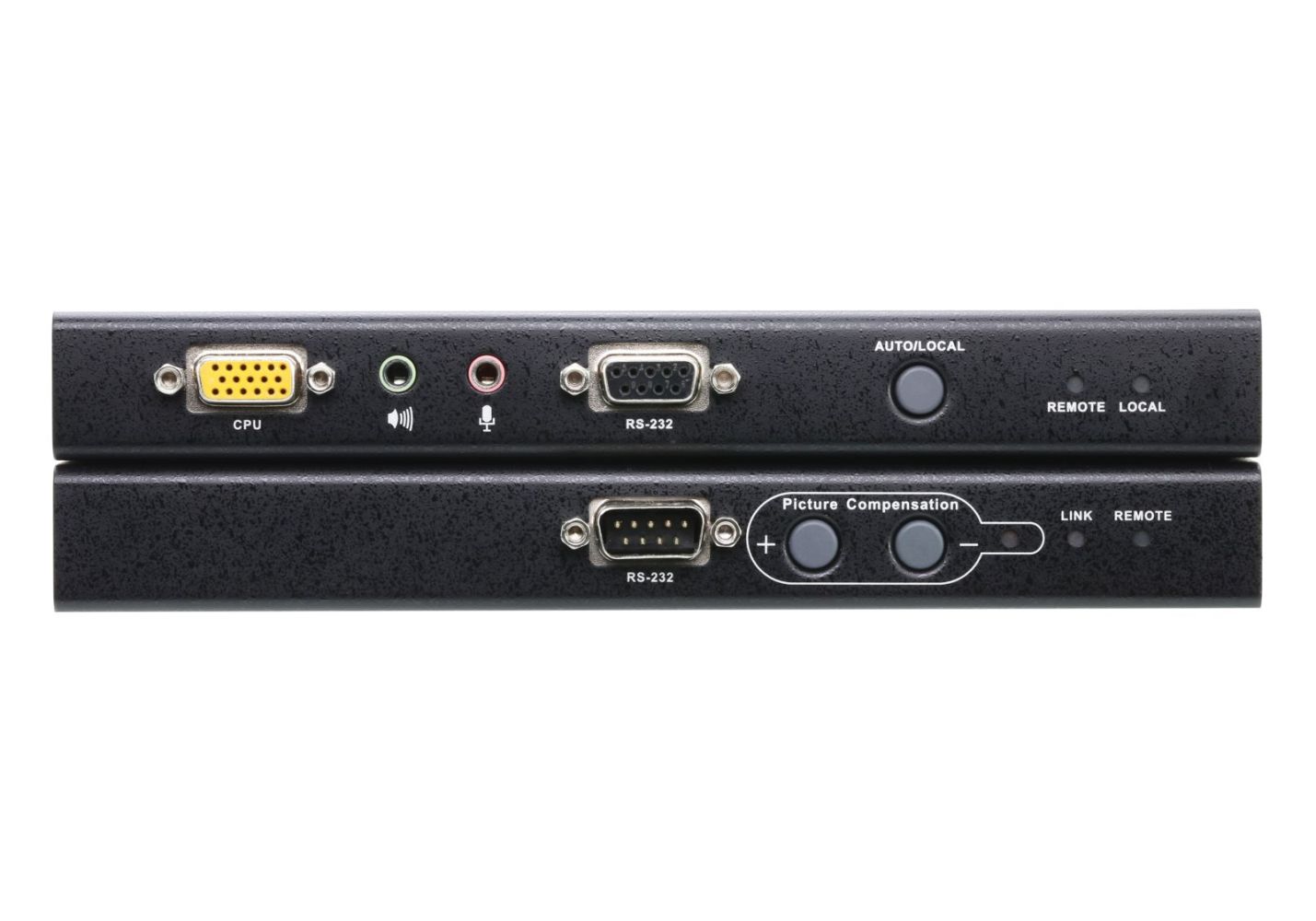

The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse). Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – for example away from the dust and dirt of the factory floor or the harsh environment of a construction site. The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit).Local and Remote units connect at distances up to 200 meters using Cat 5e cable
Dual console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility

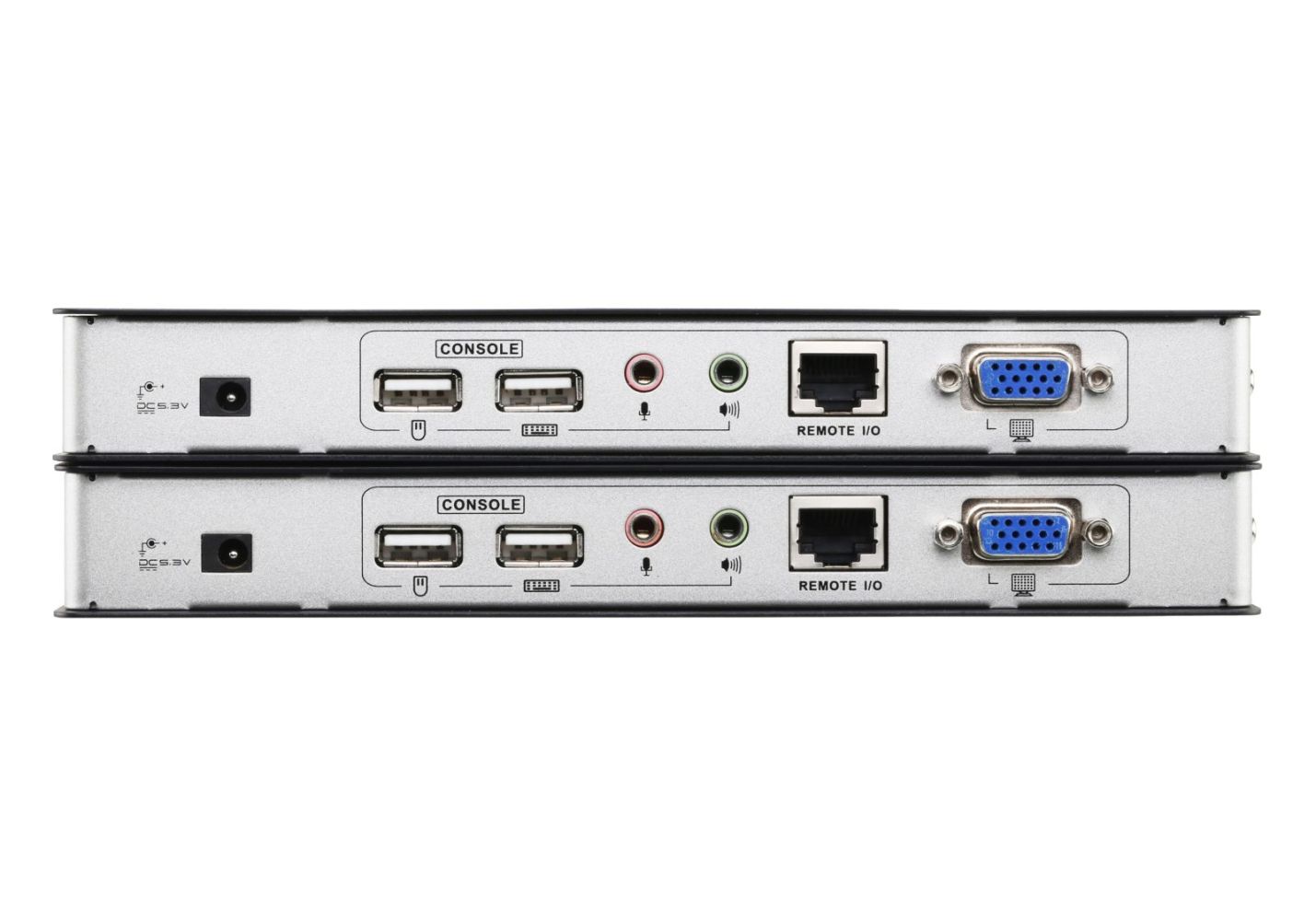

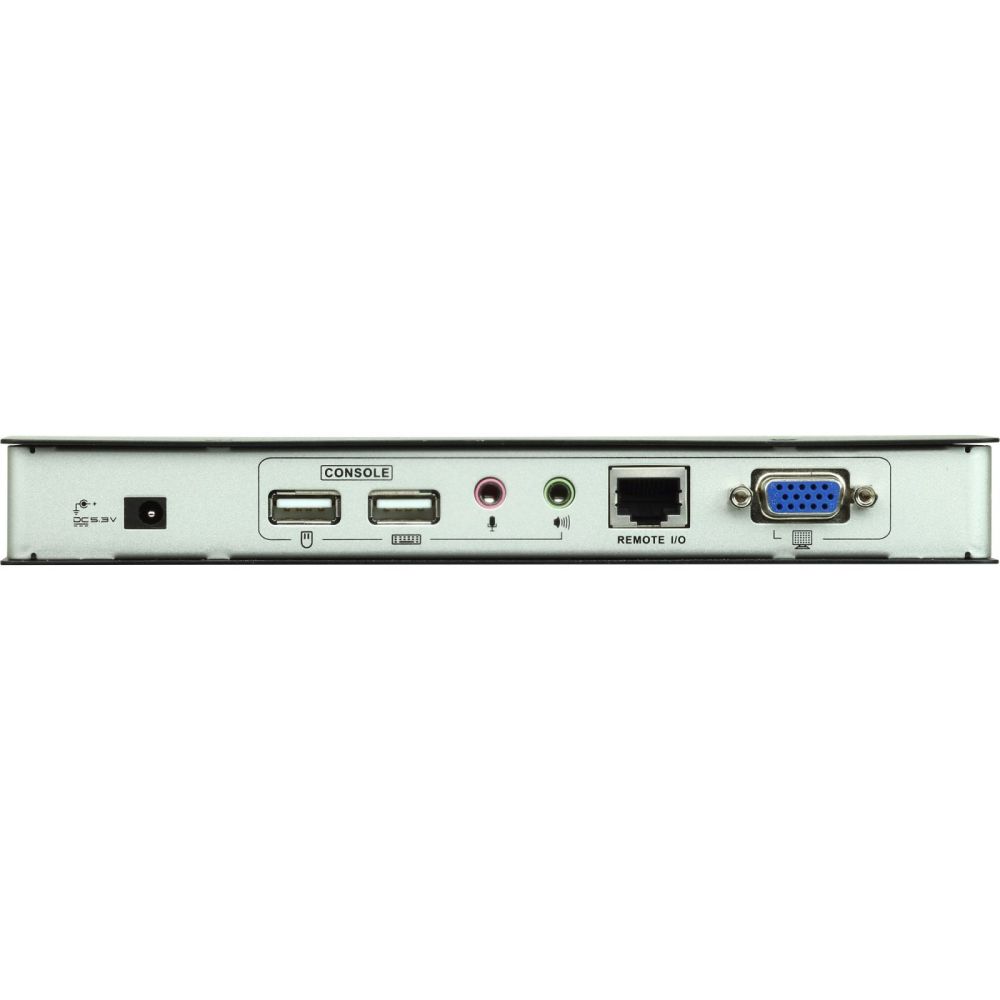

USB keyboard and USB mouse ports

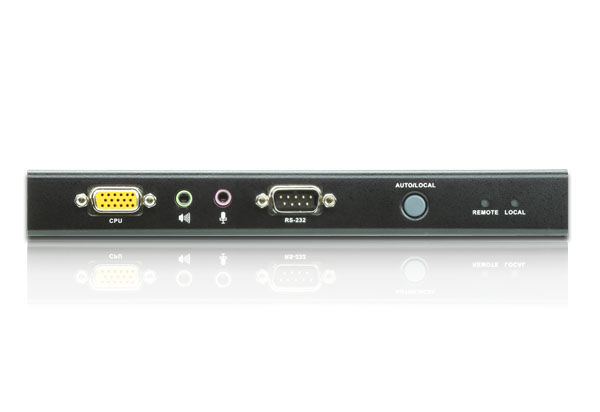

RS-232 serial ports – allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit)
Supports stereo speakers and stereo microphone
USB overcurrent detection and prevention

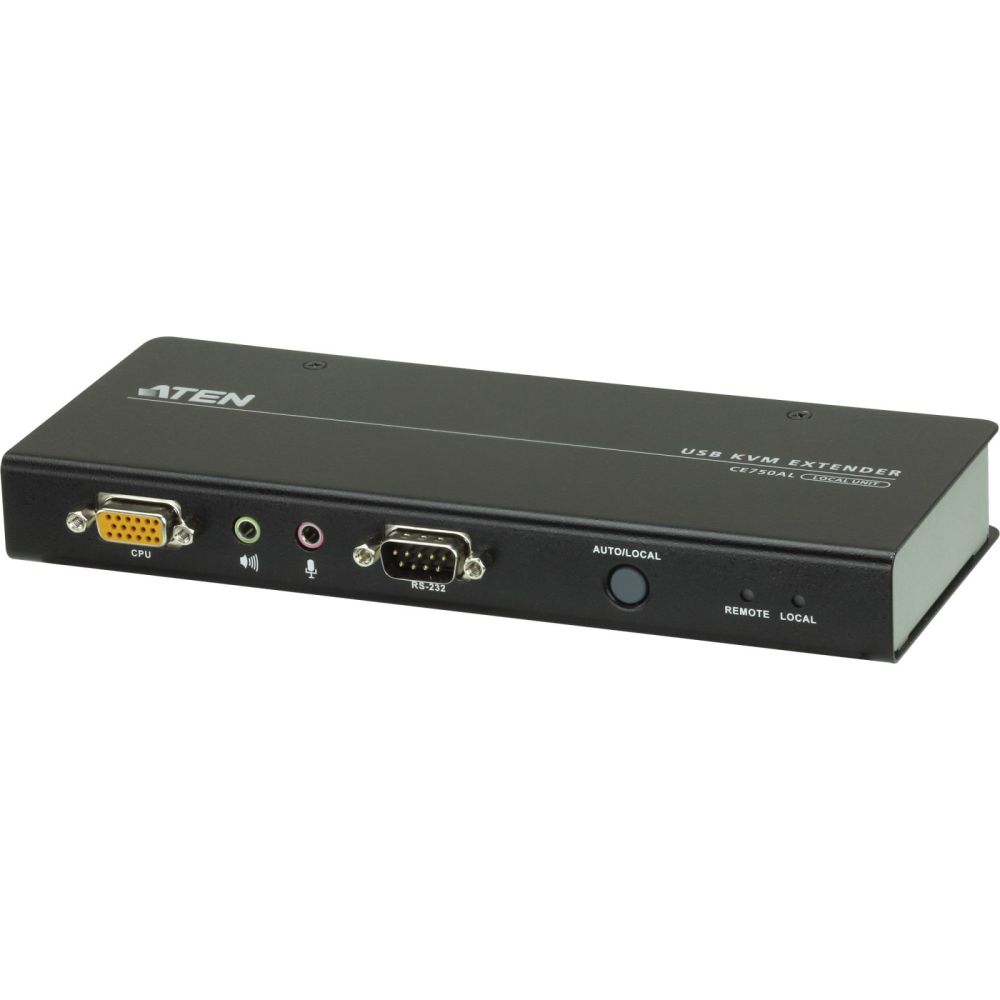

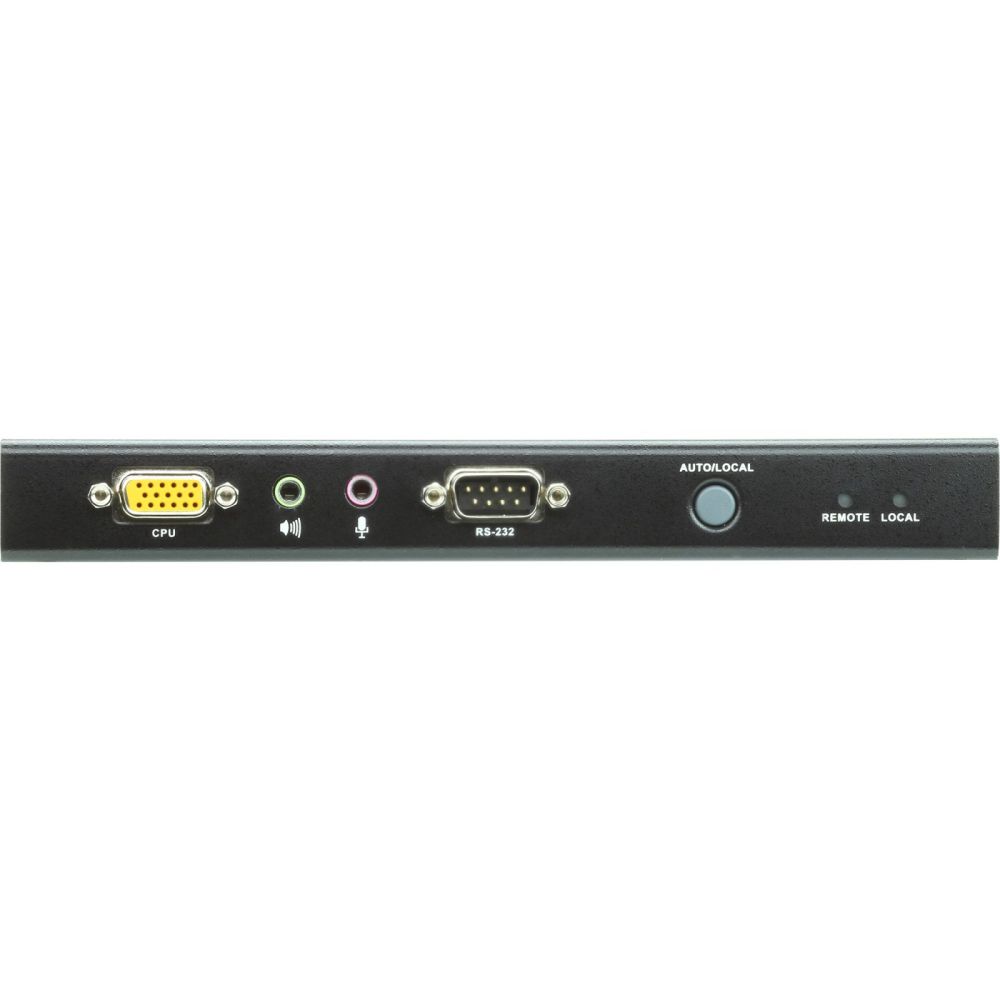

Pushbutton operating mode selection (Local Unit only) – select between Local and Auto operating modes
Built-in 8KV/15KV ESD protection (contact voltage 8KV, air voltage 15KV) and 2KV surge protection

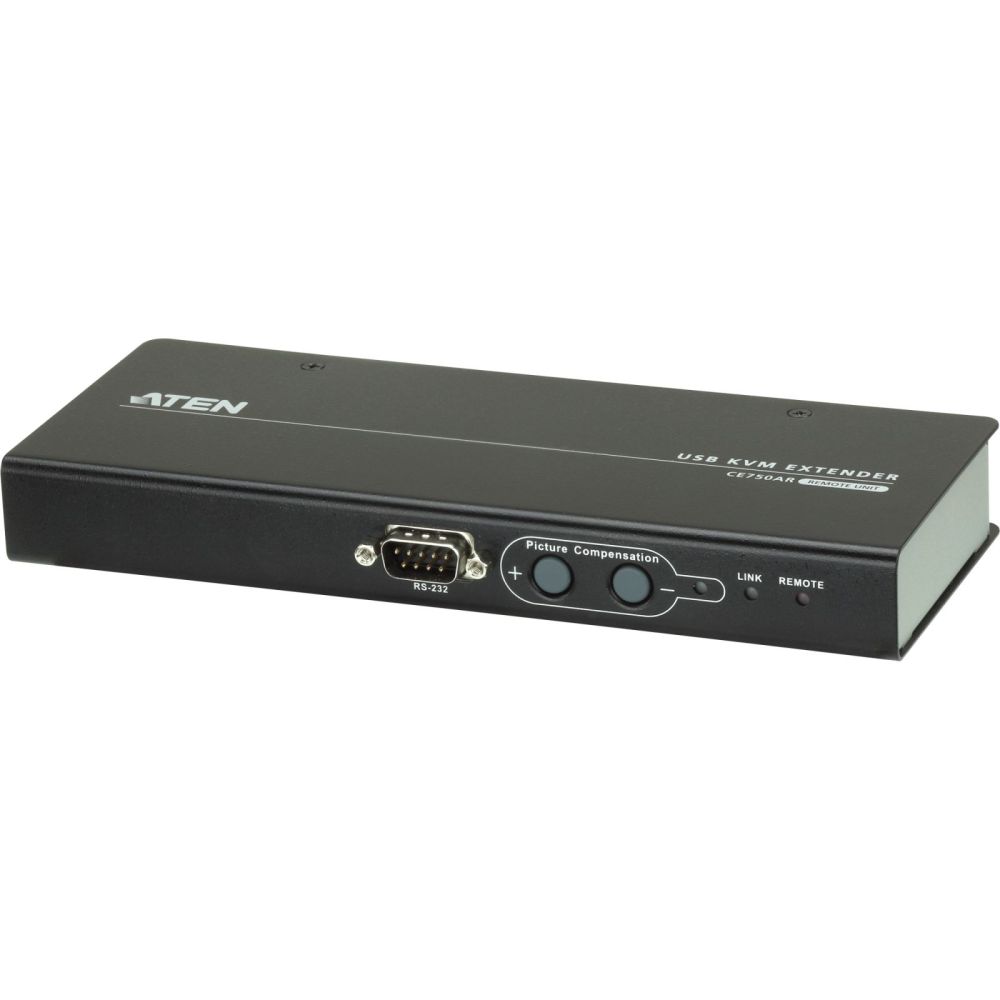

Adjustable gain control – automatically and manually adjusts signal strength to compensate for distance
High resolution video – up to 1920x1200@60Hz at 30m,1600x1200@60Hz at 150m, 1280x1024@60Hz at 200m
Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), and multisync monitors; local monitor supports DDC, DDC2, DDC2B
Hot pluggable
Rack mountable
Easy to install – no software required, simply connect cables to the devices
Supports wide screen formats (The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays, connect the monitor to the local video output port or use an ATEN EDID emulator.)
Package Contents: 1x CE750AL USB KVM Extender (Local Unit), 1x CE750AR USB KVM Extender (Remote Unit), 1x Custom KVM Cable set, 2x Power Adapters, 1x Mounting Kit, 1x User Instructions

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	200 m
Cable types supported	Cat5
Maximum digital resolution	1920 x 1200 pixels
KVM port selection	Push-buttons
Product colour	Black
Material	Metal
Certification	RoHS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Receiver
Receiver local video port type	VGA
Receiver local keyboard/mouse port type	USB
Technical data
Weight	1.844kg
Type 1	KVM Extender
Length packaging	0.325m
Height packaging	0.210m
Width packaging	0.098m
Type 2	VGA Extender Bundle
Max. distance	200m
Packaging volume	0.0067m³
Transmitter
Transmitter local video port type	VGA
Transmitter local keyboard/mouse port type	USB
Weight & dimensions
Transmitter width	8.63 cm
Transmitter depth	20.2 cm
Transmitter height	2.5 cm
Transmitter weight	470 g
Receiver width	8.51 cm
Receiver depth	20.2 cm
Receiver height	2.5 cm
Receiver weight	470 g

---
