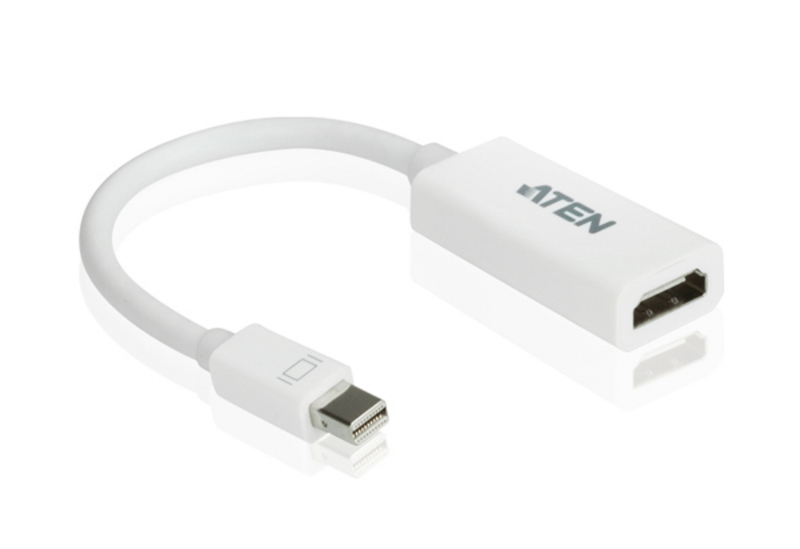

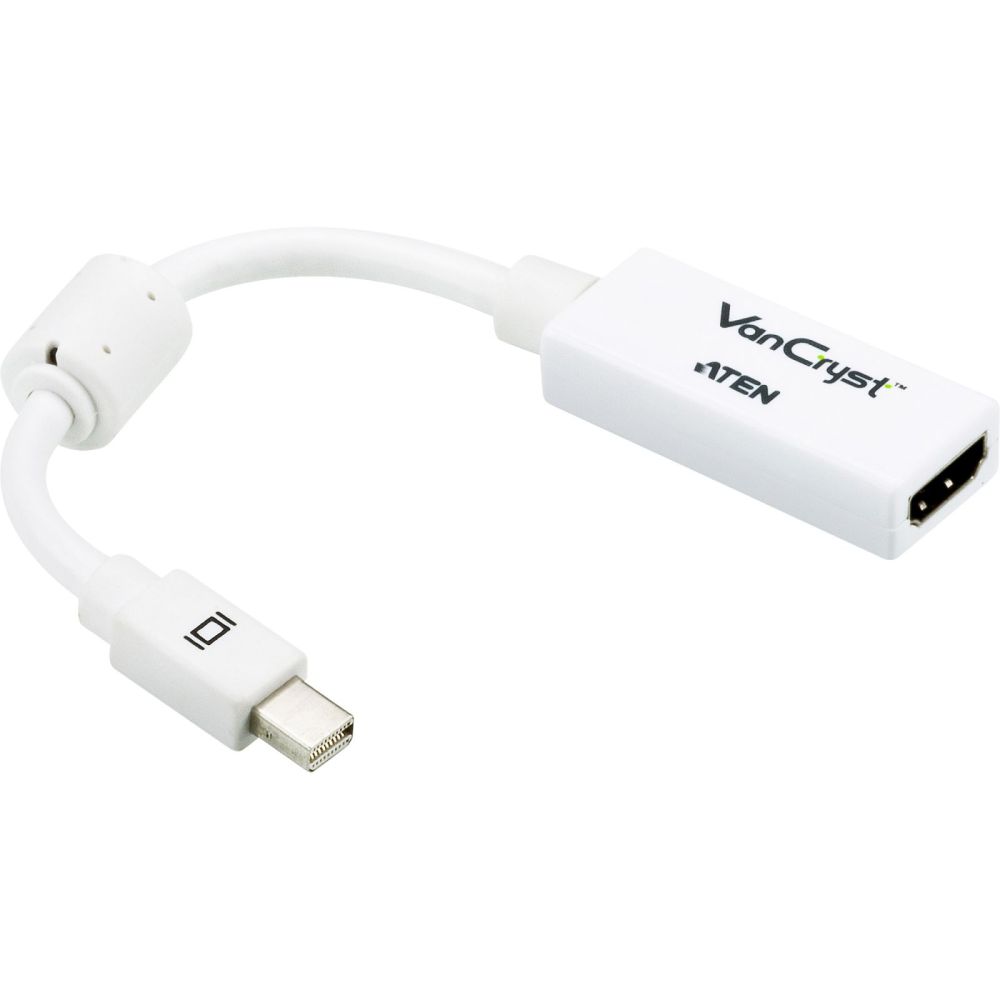

ATEN Mini Displayport (male) to HDMI (female) convertor
|
-48% 5,60 EUR 10,72 EUR |
|
|
( 6,66 EUR incl. VAT ) ≈ £4.67 | ≈ $6.26 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 896648 |
| Mfg Part No: | VC980-AT |
| UPC/EAN: | 4710423775343 |
| Weight: | 0.2 kg |
Product information for Aten VC980-AT:
Cable Type: Video / audio adapter Interface Supported: DisplayPort / HDMI, length: 19 cm, White, Left (r) connection / connections 1 x Apple mini-DisplayPort - male, rights (r) connection / connections: 1 x HDMI Type A, 19-pole - female, marking: RoHS, WEEE
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector 1 | Mini DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Maximum resolution | 1920 x 1200 pixels |
| Bandwidth | 165 MHz |
| Product colour | White |
| Jacket material | Plastic |
| Mac operating systems supported | |
| Logistics data | |
| Master (outer) case net weight | 680 g |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case height | 270 mm |
| Master (outer) case gross weight | 3.82 kg |
| Products per master (outer) case | 40 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 125 mm |
| Package depth | 180 mm |
| Package height | 35 mm |
| Package weight | 77 g |
| Technical data | |
| Supported HDTV resolution | Up to 1080p |
| Width packaging | 0.125m |
| Side A | HDMI A female |
| Height packaging | 0.035m |
| Colour | White |
| Side B | Mini DisplayPort plug |
| Supported display resolution | VGA, SVGA, XGA, SXGA, UXGA, up to 1920x1200, up to 1080p |
| Signal | Video |
| Weight | 0.077kg |
| Supported resolution | VGA, SVGA, XGA, SXGA, UXGA |
| Length packaging | 0.180m |
| Housing material | Plastic |
| Packaging volume | 0.0008m³ |
| Length | 0.18m |
| UL | |
| Gold plated contacts | |
| Audio signals | |
| Weight & dimensions | |
| Weight | 17 g |
| Width | 21 mm |
| Depth | 190 mm |
| Height | 11.1 mm |
Questions & answers
What is the delivery time of ATEN Mini Displayport (male) to HDMI (female) convertor?
The article ATEN Mini Displayport (male) to HDMI (female) convertor is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten VC980-AT to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN Mini Displayport (male) to HDMI (female) convertor always at the best possible price. We can give you a discount of 2% on ATEN Mini Displayport (male) to HDMI (female) convertor if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
