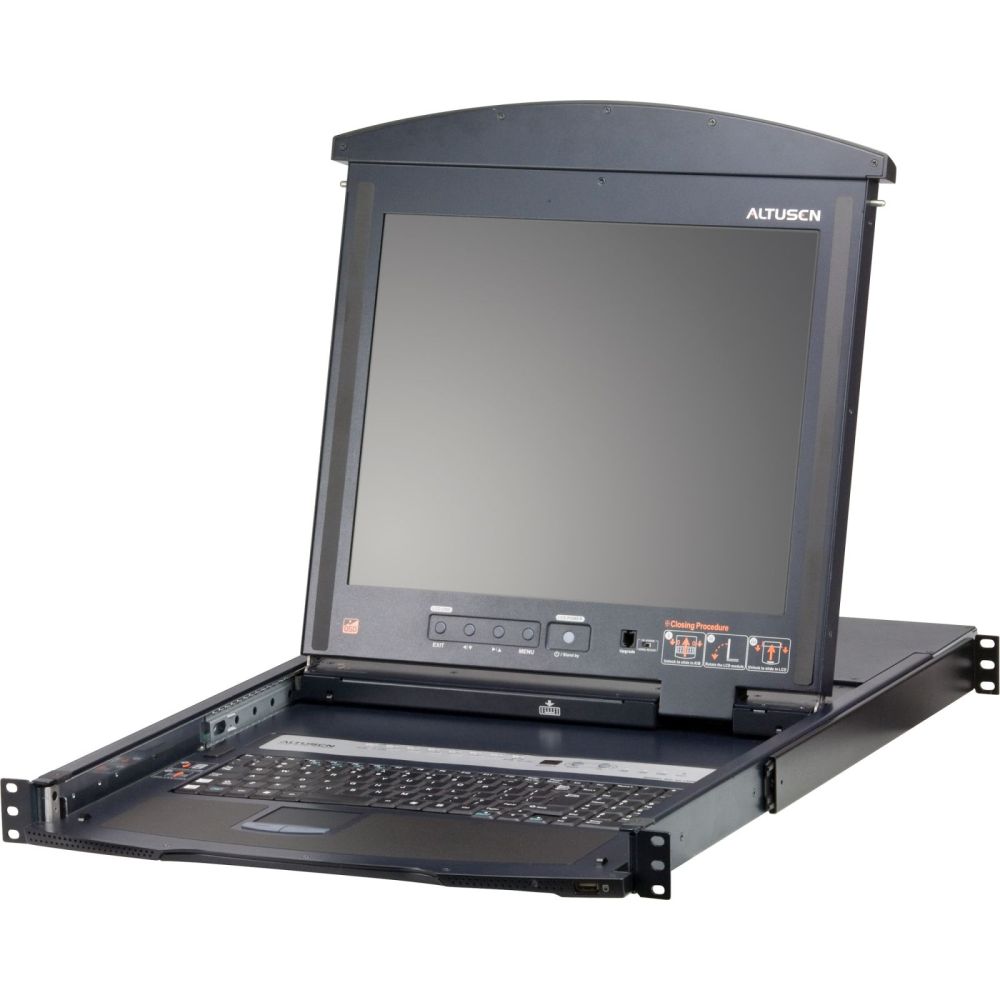

ATEN KL1508A LCD KVM Switch features independently retractable, dual slide 43,2 cm ( 17 inch ) or 48,3 cm ( 19 inch ) LED-backlit LCD monitor and keyboard with built-in touchpad. The KL1508A KVM switches are control units that allow IT administrators to access and control multiple computers from the LCD console and an extra PS/2 or USB KVM console.

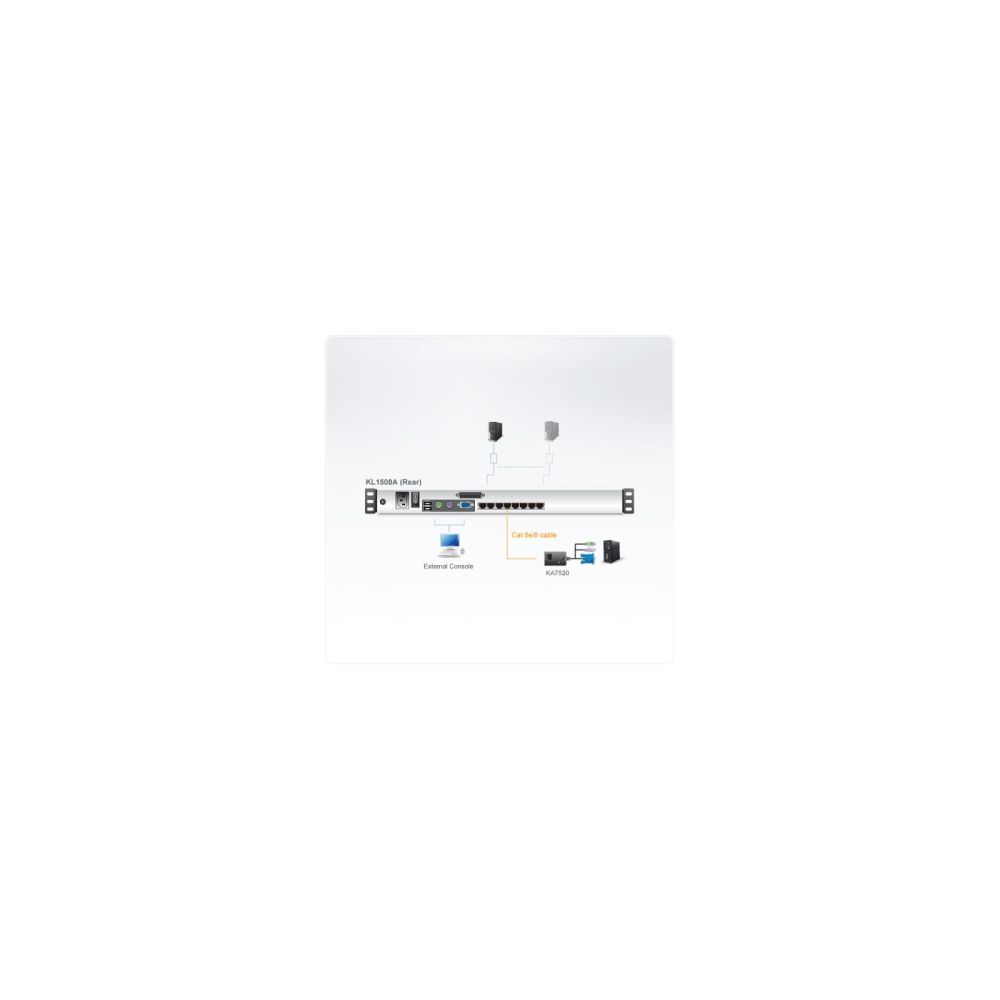

For increased reliability and efficiency, RJ-45 connectors and Cat 5e / 6 cable are used to link to the computers. Utilizing KVM Adapters for the final linkup, the KL1508A permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.
These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.
For example, the advanced Adapter ID feature stores the Adapter's configuration information – such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Other advances found with these switches includes enhanced video quality – extending the distance to the servers to up to 50 m at a resolution of 1280 x 1024.
A KL1508A installation provides one of the best and most economical solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KL1508A KVM switch.
Note:
*Optional rack mount kits are available. For more information, refer to Compatible Accessories below or the link: LCD KVM Optional Rack Mount Kit

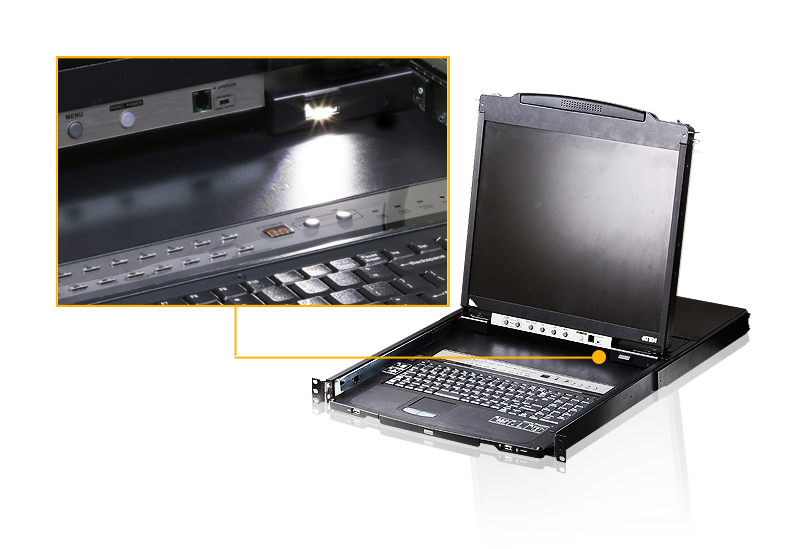

*The KL1508A does not support virtual media even when paired with a virtual media-enabled KVM adapter.Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

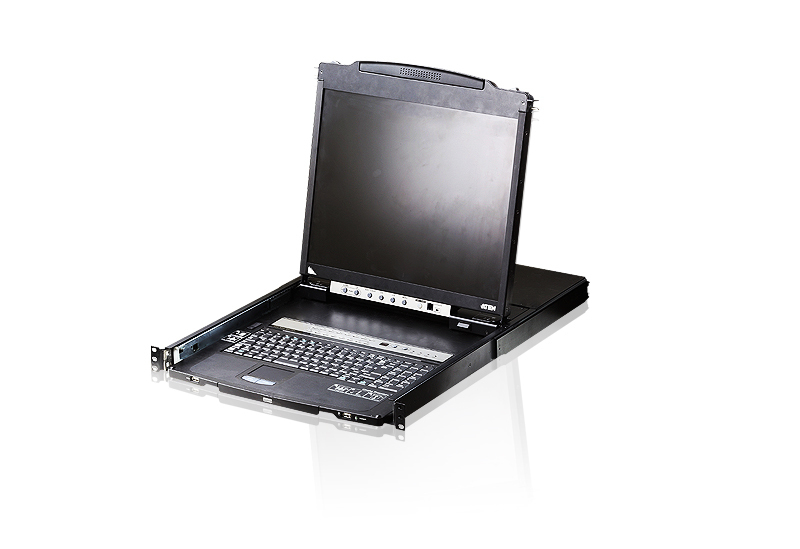

Integrated KVM console with 43,2 cm ( 17 inch ) or 48,3 cm ( 19 inch ) LED-backlit LCD monitor in a Dual Rail housing
A single console controls up to 8 computers
Space-Saving RJ-45 connectors and Cat 5e / 6 cabling
KVM adapters* designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
OSD tree structure makes finding and managing computers easy
Conveniently located station and port selectors with LED displays to quickly switch to target computers
Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in 1U of rack space
Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
Dual Rail - LCD monitor slides independently of the keyboard / touchpad
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console lock - enables the console drawer to remain securely locked away in position when not in use
Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
Daisy chain up to 31 additional KVM switches to control up to 256 computers
Auto Scan mode enables continuous monitoring of user-selected computers
Multiplatform support: PC, Mac, Sun and Serial
Superior Video Quality- supports the video resolutions up to 1280x1024@75 Hz for up to 50 meters
Configure port access rights for users on a port - by - port basis
Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
Multiple User Accounts -supports up to 10 user and 1 administrator accounts
Two-Level Password Security- supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
LCD power button helps save energy and prolong displays' life
Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
Adapter ID
Firmware Upgradeable
Optional rack mount kits available including easy installation options
Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
Package Contents1x KL1508A 8-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit
1x Firmware Upgrade Cable
1x Power Cord
2x L Brackets
1x User Instructions
FunctionKL1508AMKL1508AN
Computer Connections
Direct88
Maximum256 (via Daisy-chain)256 (via Daisy-chain)
Port SelectionOSD, Hotkey, PushbuttonOSD, Hotkey, Pushbutton
Connectors

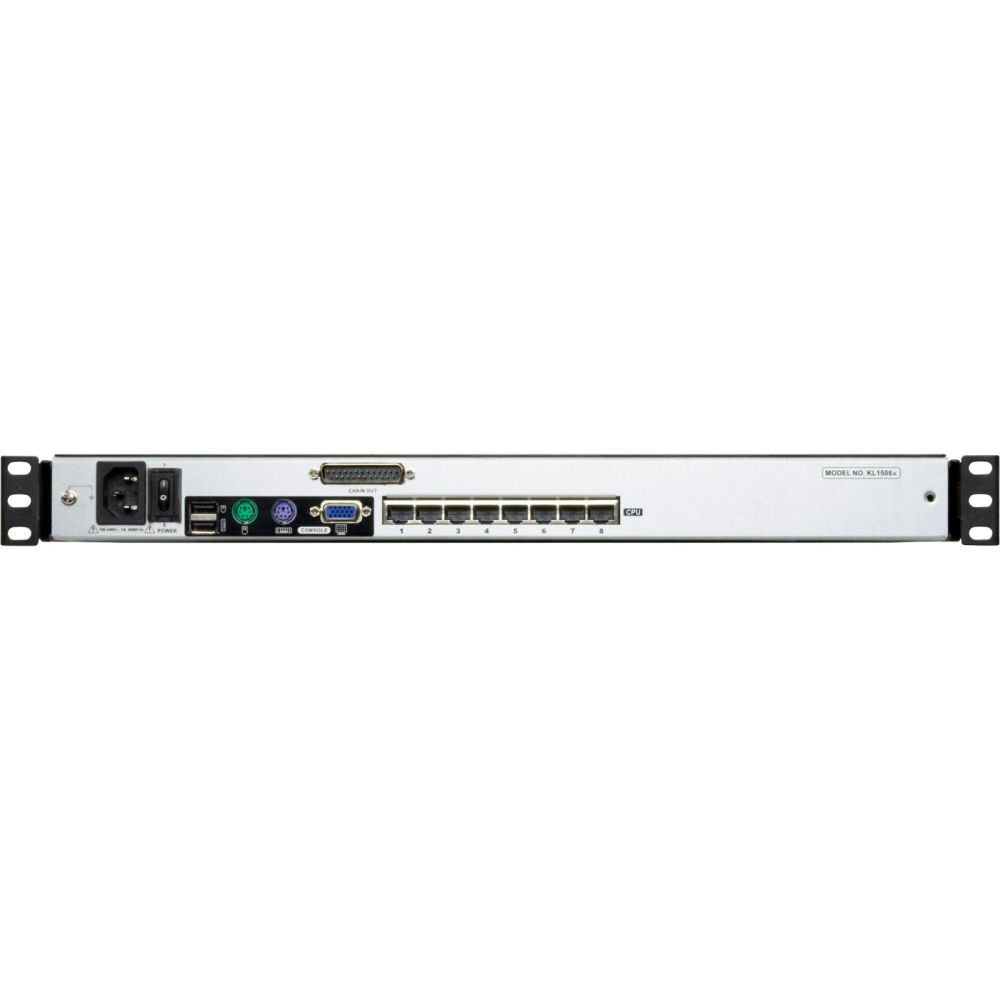

KVM Ports8 x RJ-45 Female8 x RJ-45 Female
Daisy Chain Ports1 x DB-25 Male1 x DB-25 Male
Firmware Upgrade1 x RJ-11 Female1 x RJ-11 Female
Power1 x IEC60320/C14
1 x IEC60320/C14
External Console Ports1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
External Mouse Port1 x USB Type A Female (Front)1 x USB Type A Female (Front)
Switches
Port Selection8 x Pushbutton8 x Pushbutton
Station Selection2 x Pushbutton2 x Pushbutton
Reset1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Slide Switch
1 x Slide Switch
Power1 x Rocker Switch
1 x Rocker Switch
LCD Control4 x Pushbutton4 x Pushbutton
LCD Power1 x LED Pushbutton
1 x LED Pushbutton
LEDs
Online8 (Green)8 (Green)
Selected8 (Orange)8 (Orange)
Power1 (Blue)1 (Blue)
Station ID1 x 2 Digit 7-segment (Orange)1 x 2 Digit 7-segment (Orange)
Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LCD Power1 (Orange)1 (Orange)
LED Illumination Light1 x LED Illumination Light
1 x LED Illumination Light
Panel Spec
LCD Module43,2 cm ( 17 inch ) TFT-LCD48,3 cm ( 19 inch ) TFT-LCD
Resolution1280 x 1024 @ 75 Hz1280 x 1024 @ 75 Hz
Response time5 ms5 ms
Viewing Angle170° (H), 160° (V)170° (H), 160° (V)
Pixel Pitch0.264 mm x 0.264 mm0.294 mm x 0.294 mm
Support Color16.7M colors16.7M colors
Contrast Ratio1000:11000:1
Luminance250 cd/m²250 cd/m²
Video
Input Video Resolution1920 x 1200 @ 60 Hz1920 x 1200 @ 60 Hz
Second console1920 x 1200 @ 60 Hz1920 x 1200 @ 60 Hz
Scan Interval1–255 seconds1–255 seconds
Emulation
Keyboard / MousePS/2, USB, SerialPS/2, USB, Serial
Maximum Input Power Rating100-240V AC; 50-60Hz; 1A100-240V AC; 50-60Hz; 1A
Power ConsumptionAC110V:16.7W:89BTU/h
AC220V:18.9W:99BTU/h
Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.AC110V:19.9W:104BTU/h
AC220V:21.2W:114BTU/h
Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0 - 40°C0 - 40°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
HousingMetalMetal
Rail TypeDual RailDual Rail
Weight15.19 kg ( 33.46 lb )15.35 kg ( 33.81 lb )
Dimensions (L x W x H)48.00 x 70.12 x 4.40 cm
(18.9 x 27.61 x 1.73 in.)48.00 x 70.12 x 4.40 cm
(18.9 x 27.61 x 1.73 in.)

Display
Display diagonal	48.3 cm (19")
Display	LCD
On Screen Display (OSD)
Keyboard
Keyboard language	German
Keyboard layout	QWERTZ
Hot keys
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging content
Cables included	AC, KVM
Quick installation guide
Manual
Rack mount kit
Ports & interfaces
VGA (D-Sub) ports quantity	17
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Power
Power consumption (typical)	27.2 W
Input current	1 A
System requirements
Windows operating systems supported
Mac operating systems supported
Linux operating systems supported
Technical data
Type 1	KVM Display Console
Type 2	8-port multi-interface dual rail
TP Network	Without
Resolution integrated display	1280x1024
Fiber optic network	Without
Peripheral outputs per console	USB mouse for integrated console x1, USB-A female x2, PS/2 for external console x2
Number of CPU	8
Max. resolution	1600x1200 / 60Hz
Keyboard layout	FR (French)
Display diagonal	17"
Video outputs per console	VGA x1
Audio outputs per console	Without
Periphery inputs per CPU	With adapter cable
Screen connectors per console	1
Audio per CPU	Without
Video inputs per CPU	RJ45 x1 (VGA via adapter cable)
Design	Rack-Mount
Number of consoles	1x external + 1x (integrated)
Audio loudspeakers
Audio microphone
USB peripherals
Extension (daisy chain or cascading)
Technical details
Product colour	Black
Operating relative humidity (H-H)	0 - 80%
Maximum resolution	1280 x 1024 pixels
Number of computers controlled	512
Compliance certificates	RoHS
Rack capacity	1U
Plug and Play
Hot-Plug support
Rack mounting
LED indicators
Push button
Weight & dimensions
Width	480 mm
Height	44 mm
Depth	680.4 mm
Weight	14.8 kg

---
