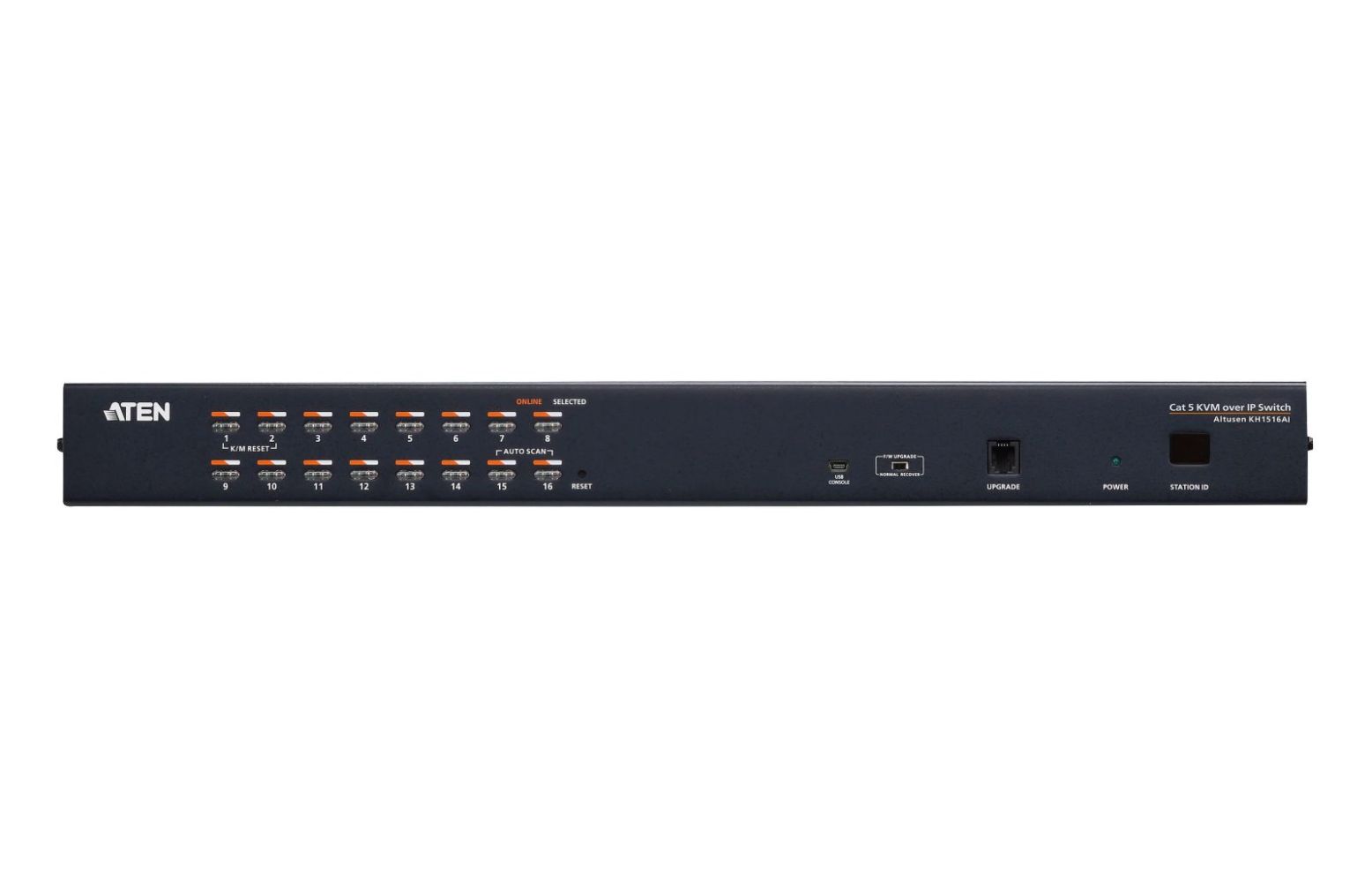

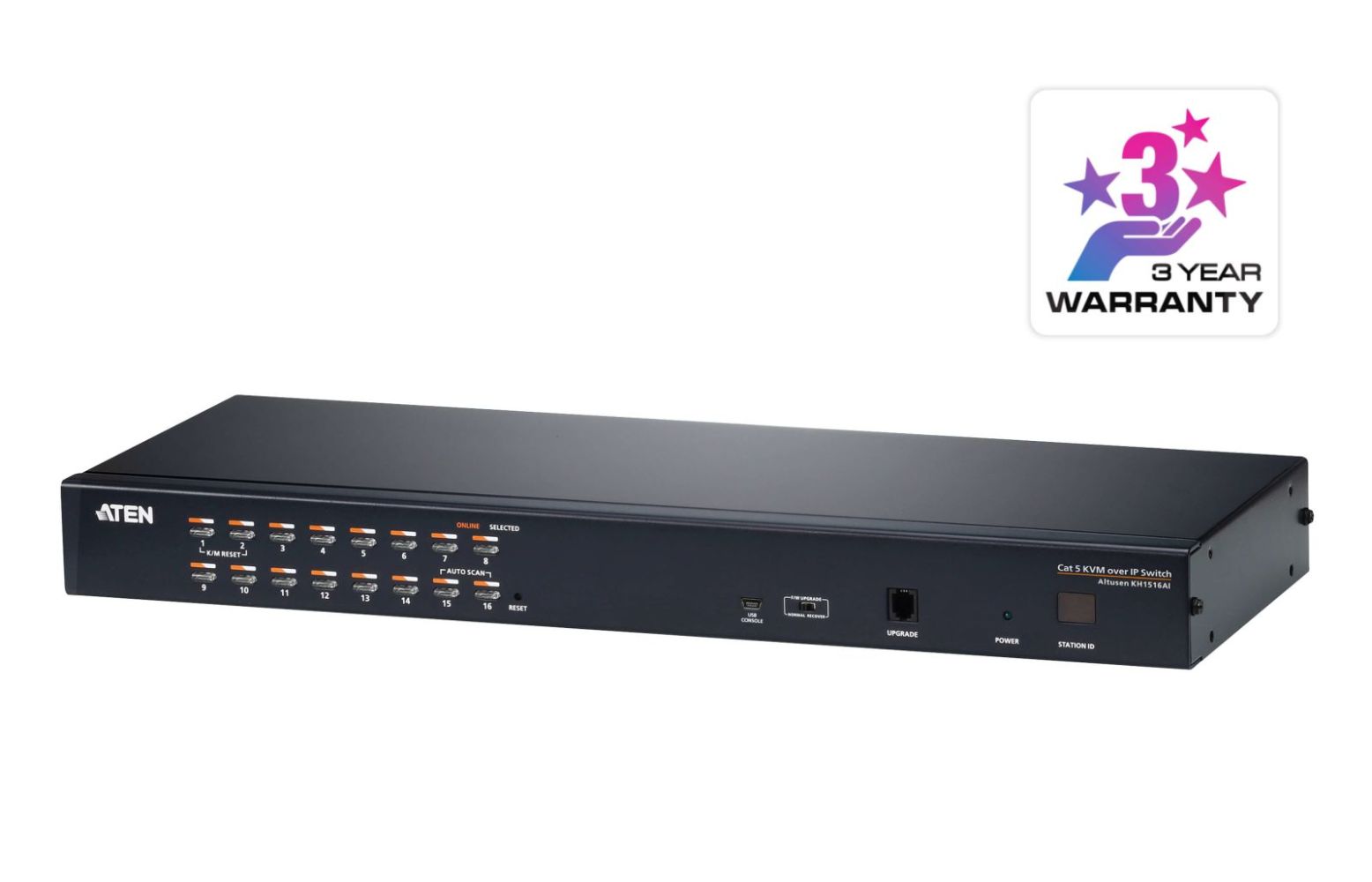

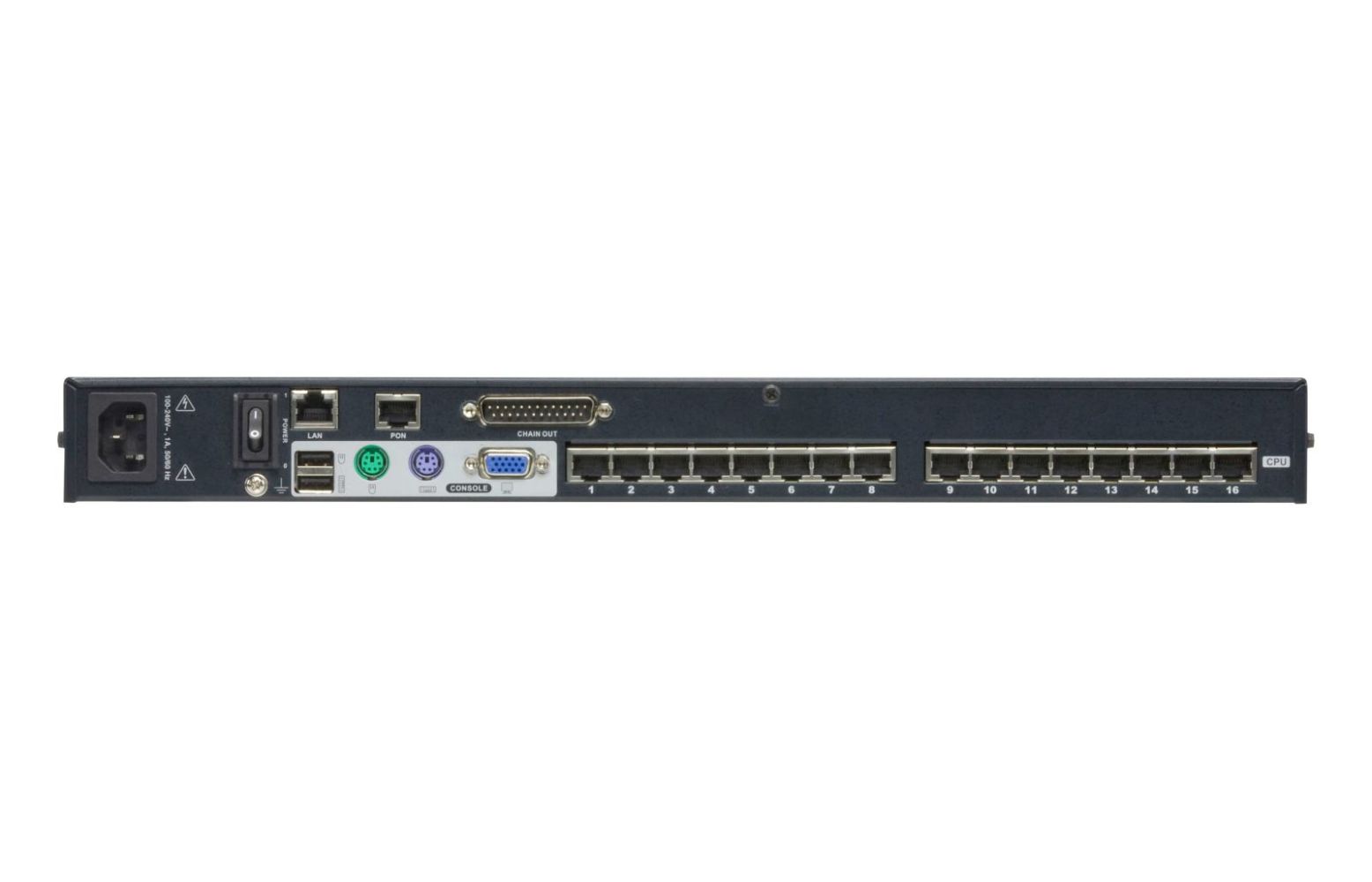

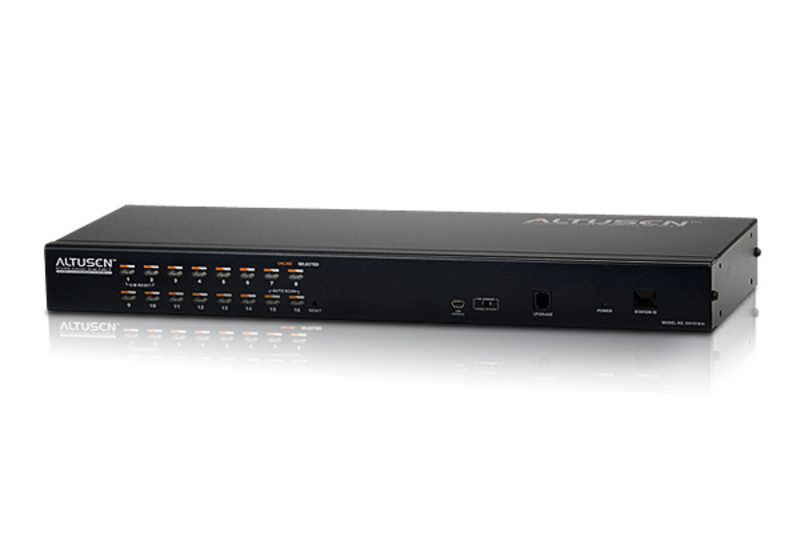

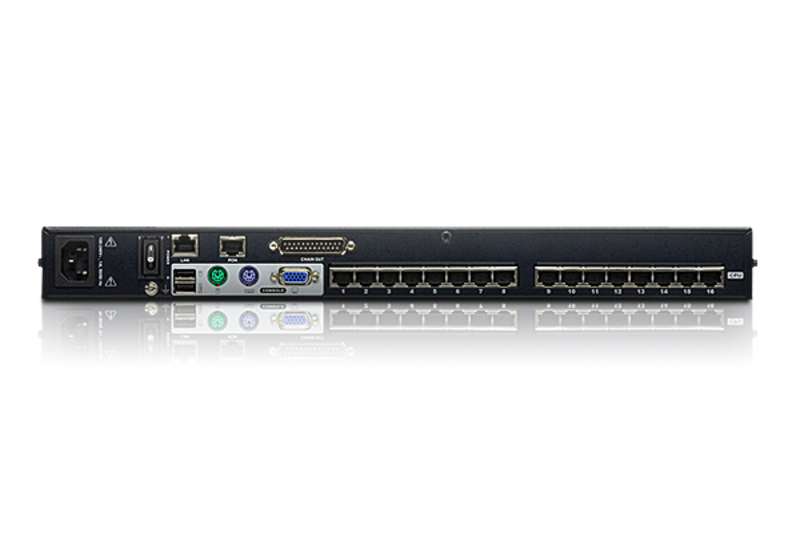

ATEN KH1516Ai KVM Over-IP Switch VGA PS/2-USB over Kat 5 16 Port
|
685,46 EUR |
|
|
( 815,70 EUR incl. VAT ) ≈ £578.53 | ≈ $767.72 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 586140 |
| Mfg Part No: | KH1516AI-AX-G |
| UPC/EAN: | 4710423777446 |
| Weight: | 3.605 kg |
Product information for Aten KH1516AI-AX-G:
Device Type: KVM switch - 16 ports - cascadable, Type: Rack-mountable - 1U, Ports: 16 x KVM port (s), keyboard / mouse interface: PS / 2, USB, Max. Cascading: 512, Maximum resolution: 1600 x 1200 @ 60 Hz, features: - Screen, firmware upgradable, interfaces: keyboard / video / mouse (KVM): 16 x RJ-45 | Keyboard: 1 x generic - mini-DIN ( PS / 2 style), 6-pin | Mouse: 1 x generic - mini-DIN (PS / 2 style), 6-pin | Display / Video: 1 x VGA - HD D-Sub (HD-15) 15-pin | Keyboard: 1 x USB Type A 4-pin | Mouse 1 x USB Type A 4-pin | For cascading: 1 x D-Sub (DB-25), 25-pin | 1 x RJ 11 - Management, Power Device: Power supply - internal, Voltage Required: AC 120/230 V (50/60 Hz) Power Consumption Operational: 12.5 Watt, width: 43.7 cm, depth: 16.1 cm, height: 4.4 cm, Rack Mounting Kit: Included , Standards: RoHS, Service & Support: 3 years warranty, Service & Support: Limited warranty - 3 years Min Operating Temperature: 0 ° C, Max. Operating temperature: 50 ° C, Humidity Range Operating: 0 - 80% (non-condensing), Min. Storage temperature: -20 ° C, Max. Storage temperature: 60 ° C
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | |
| Push button | |
| Hot keys | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 9.42 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 11.6 kg |
| Products per master (outer) case | 3 pc(s) |
| Network | |
| Ethernet LAN (RJ-45) ports | 16 |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package width | 131 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 3.63 kg |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| Ports & interfaces | |
| Number of computers controlled | 16 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console ports | PS/2, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-A |
| PS/2 ports quantity | 2 |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 8.9 W |
| Weight & dimensions | |
| Width | 437.2 mm |
| Depth | 163.6 mm |
| Height | 44 mm |
| Weight | 3.14 kg |
