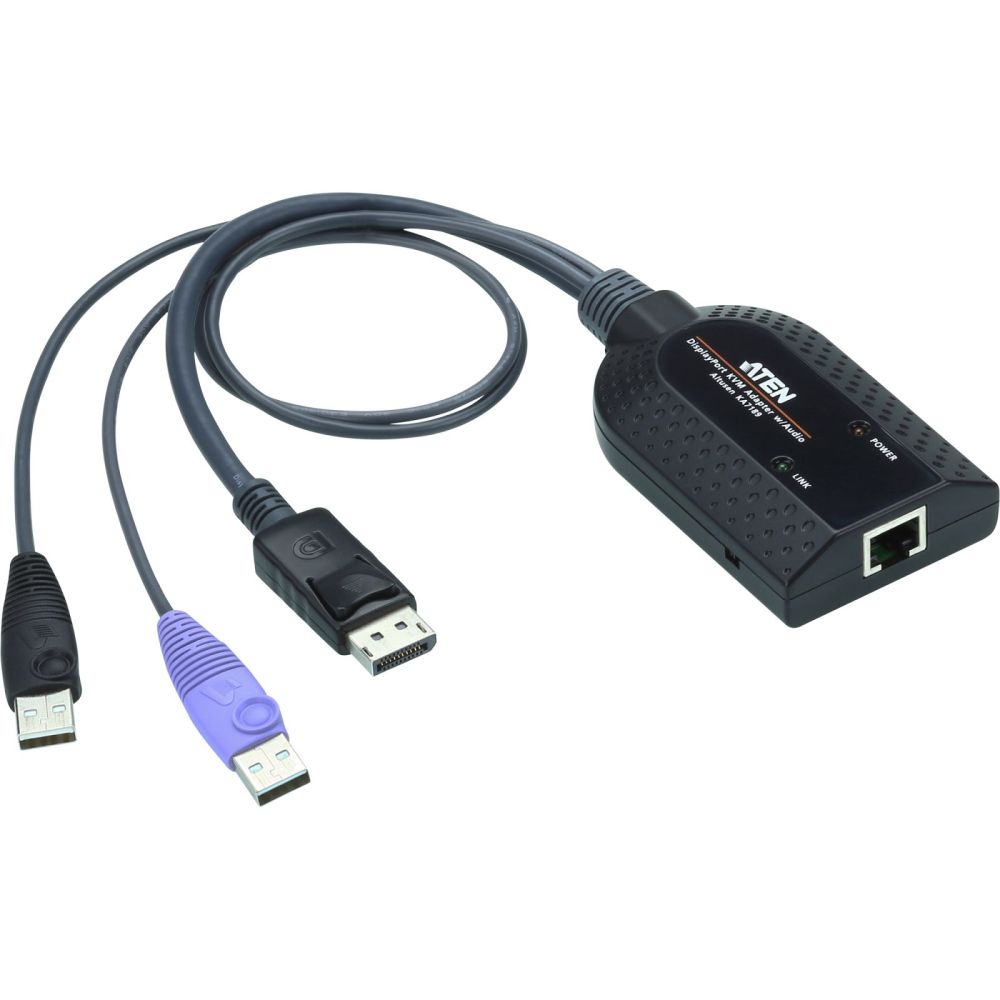

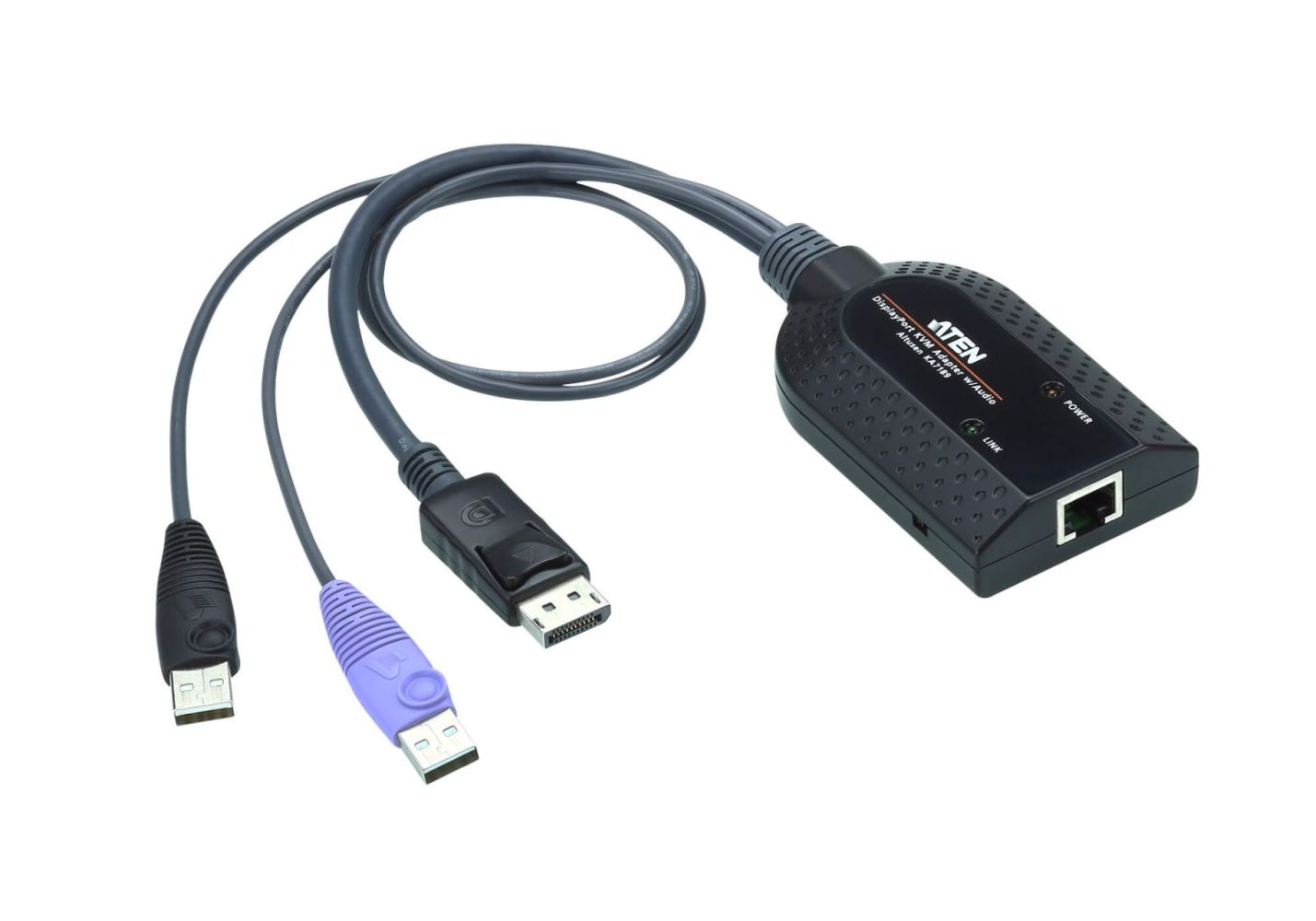

ATEN KA7189 USB DisplayPort VM KVM Adapter Cable content_copy

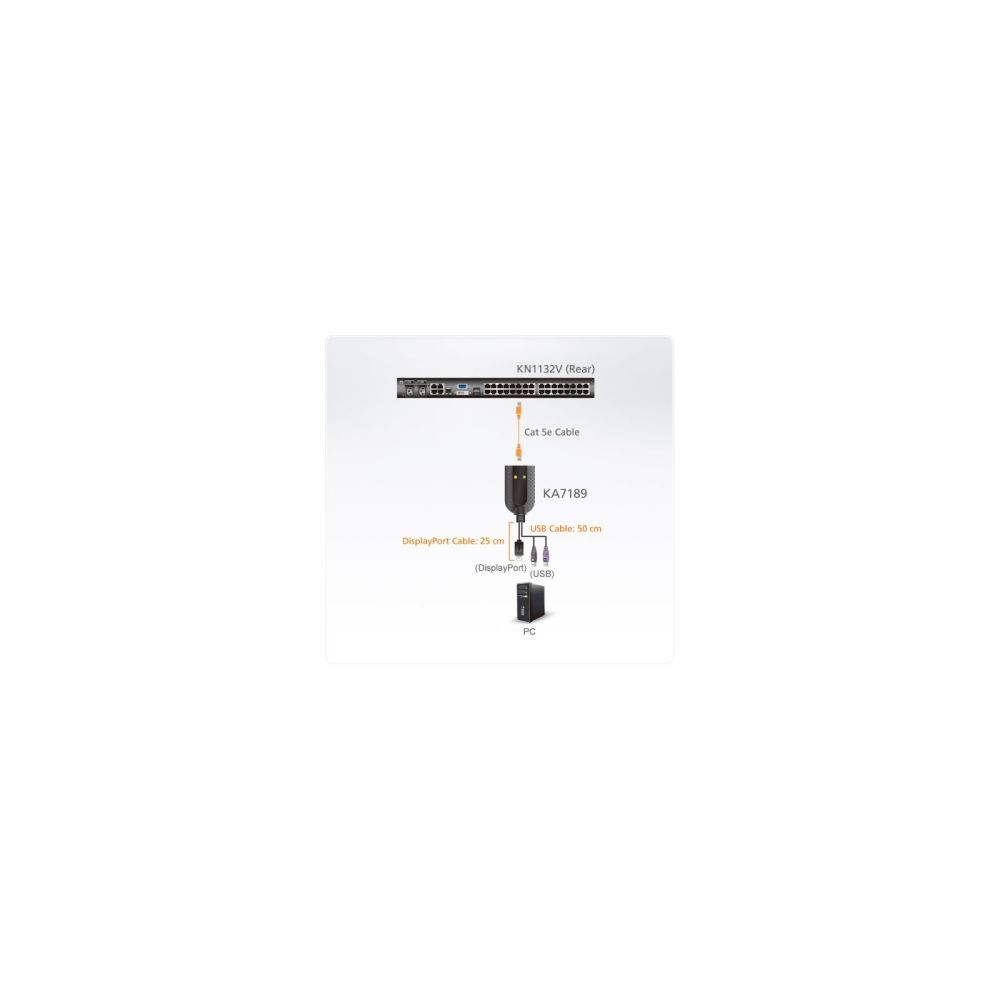

The KA7189 KVM Adapter Cable connects a KVM switch to the DisplayPort video and USB ports of a target computer.* The KA7189 supports DisplayPort output and provides two USB plugs to connect a target computer for keyboard/mouse, Virtual Media, or Smart Card/CAC Reader functions.**
The KA7189 supports Audio De-Embedder, which extracts the audio from a DisplayPort signal. More advanced features of KA7189 include the small size and lightweight design, as well as superior signal compensation and delay skew technologies for greatly enhanced video quality.
*Both USB connectors must be plugged into USB ports on the target computer for the KA7189 to receive sufficient power.
Please refer to the webpage of KVM Adapter Cable Compatibility List (https://www.aten.com/global/en/products/kvmtool/kacablecompatibility/) for information about compatible KVM Switches.Connects a KVM switch to the DisplayPort video and USB ports of a target computer*
Supports Audio De-Embedder
Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
Keyboard and mouse emulation – keeps your server functioning smoothly when it’s disconnected from the switch's KVM port or is relocated to a different KVM port
Virtual Media Support
Smart Card / CAC Reader Support**
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
Built in ASIC for greater reliability and compatibility
Compact size
Firmware upgradeable
Note:
*Both USB connectors must be plugged into USB ports on the target computer for the KA7189 to receive sufficient power.
**Please refer to the webpage of KVM Adapter Cable Compatibility List (https://www.aten.com/global/en/products/kvmtool/kacablecompatibility/) for information about compatible KVM Switches.
*This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches. Both the video and audio signals might interfere while using an unshielded cable, and long-distance transmission can cause more serious interference. Generally, the interference happens when the transmission distance is over 40 meters.
Package Contents1x KA7189 KVM Adapter Cable
Connectors
Link1 x RJ-45 Female
Computer2 x USB Type A Male
1 x DisplayPort Male
LEDs
Link1 (Green)
Power1 (Orange)
Environmental
Operating Temperature0-50°C
Storage Temperature-20–60°C
Physical Properties
HousingPlastic
Weight0.11 kg ( 0.24 lb )
Dimensions (L x W x H)9.10 x 5.60 x 2.14 cm
(3.58 x 2.2 x 0.84 in.)

Certificates
Compliance certificates	RoHS
Logistics data
Master (outer) case net weight	4.8 kg
Harmonized System (HS) code	84733080
Master (outer) case width	270 mm
Master (outer) case length	470 mm
Master (outer) case height	296 mm
Master (outer) case gross weight	7.44 kg
Products per master (outer) case	40 pc(s)
Other features
Dimensions (WxDxH)	56 x 91 x 21.4 mm
Packaging data
Weight	120 g
Package width	42 mm
Package depth	124 mm
Package height	129 mm
Package weight	160 g
Performance
Product colour	Black, Purple
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Console port	RJ-45
Connector 1	1 x RJ-45
Connector 2	2 x USB Type A, 1 x DisplayPort
Connector 1 gender	Female
Connector 2 gender	Male
Maximum video resolution	1920 x 1200 pixels
Material	Plastic
Technical data
Fiber optic network	Without
Packaging volume	0.0007m³
Type 2	KVM CPU module cable DisplayPort
Height packaging	0.129m
Length packaging	0.124m
Design	Cable
TP Network	RJ45 x1
Side B	DisplayPort male x1, USB-A male x2
Weight	0.202kg
Side A	RJ45 female x1
Max. resolution	1920x1200
Width packaging	0.042m
Type 1	KVM CPU module cable

---
