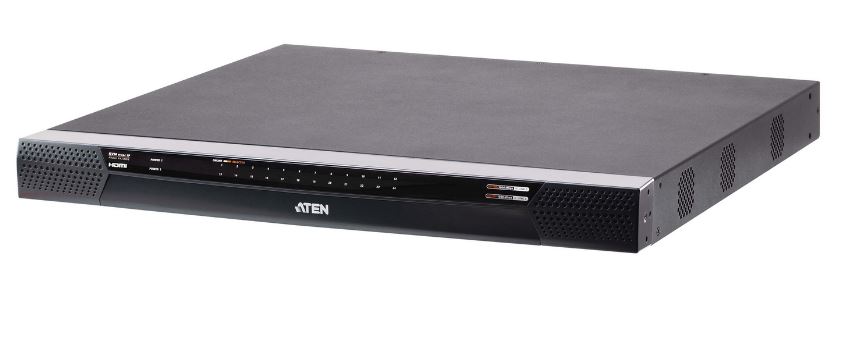

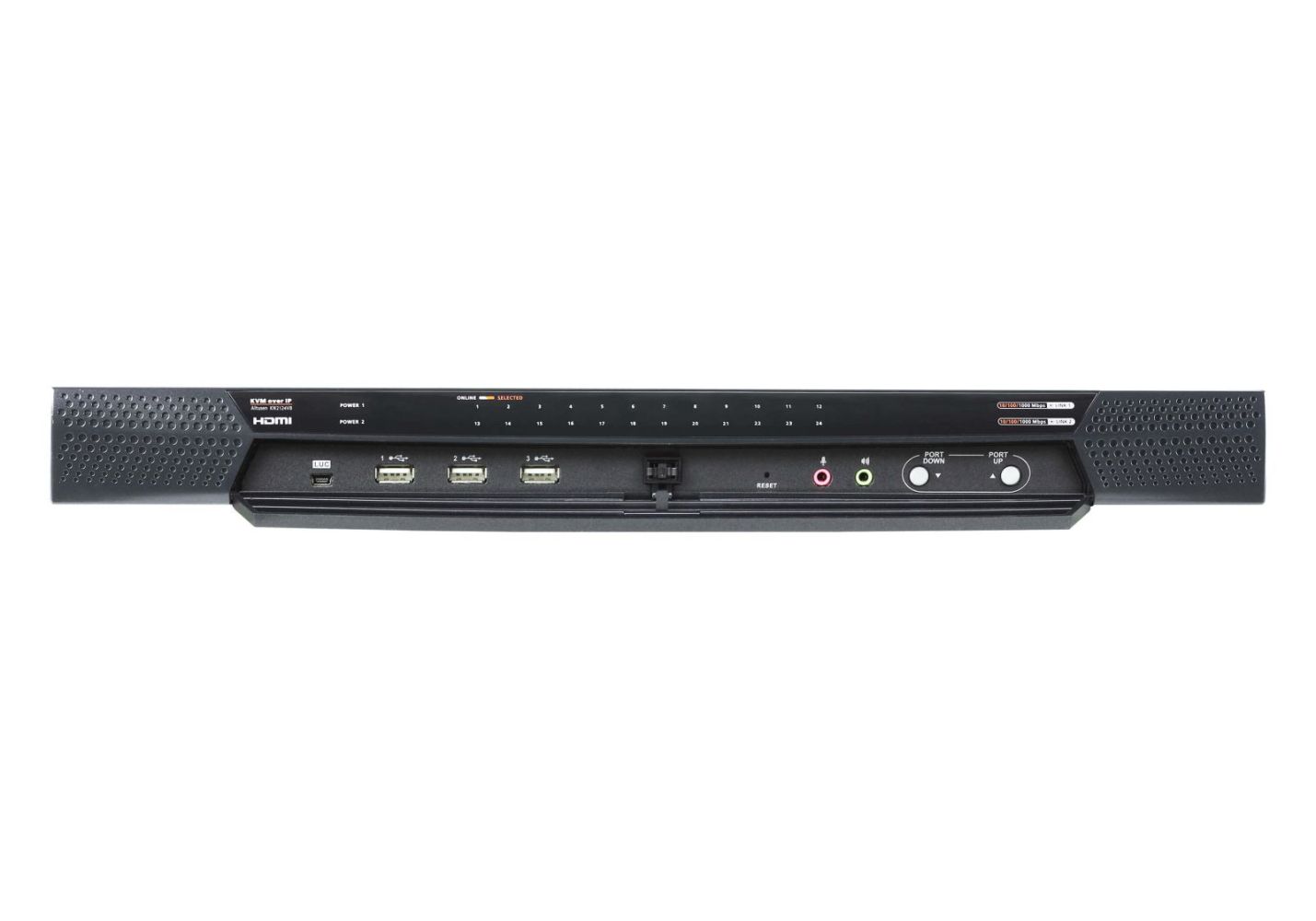

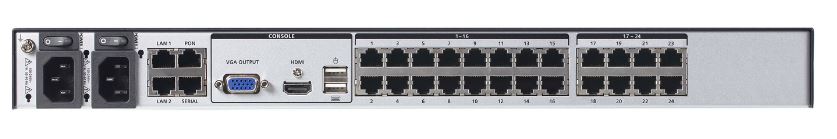

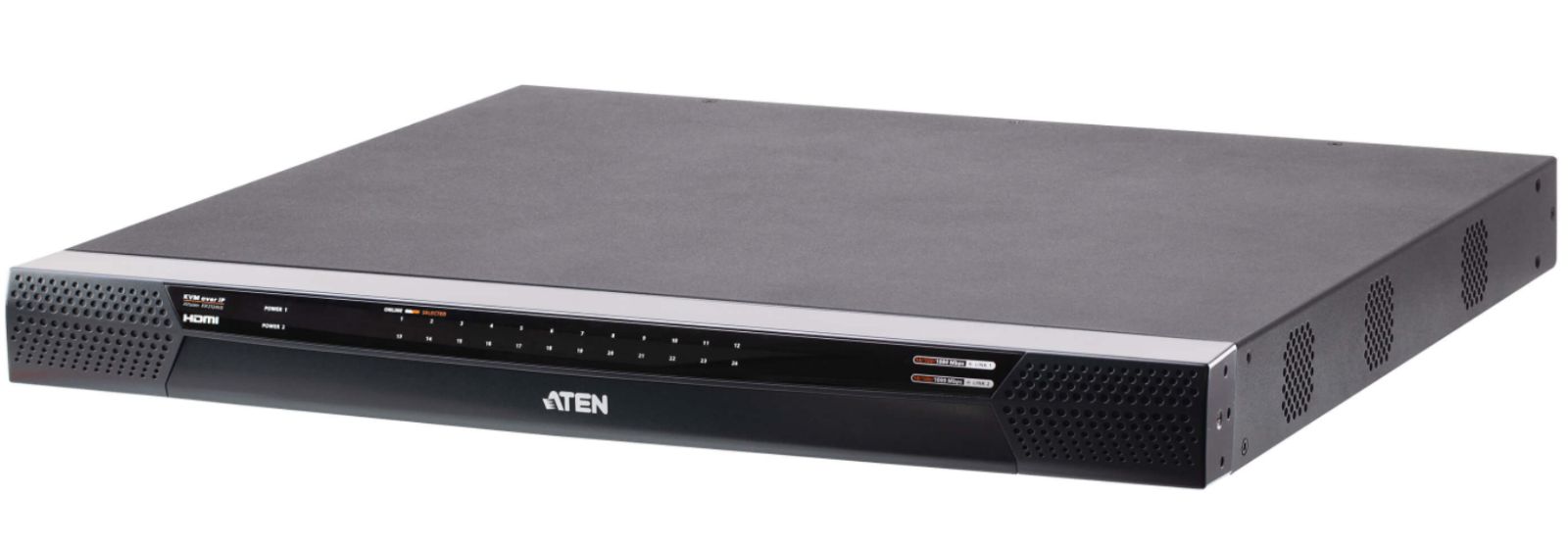

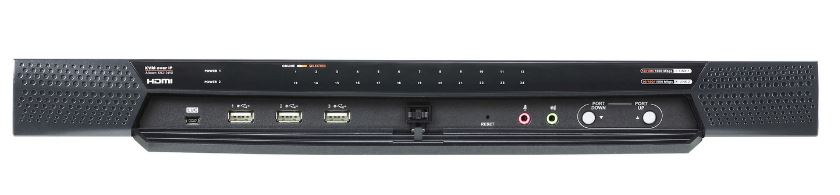

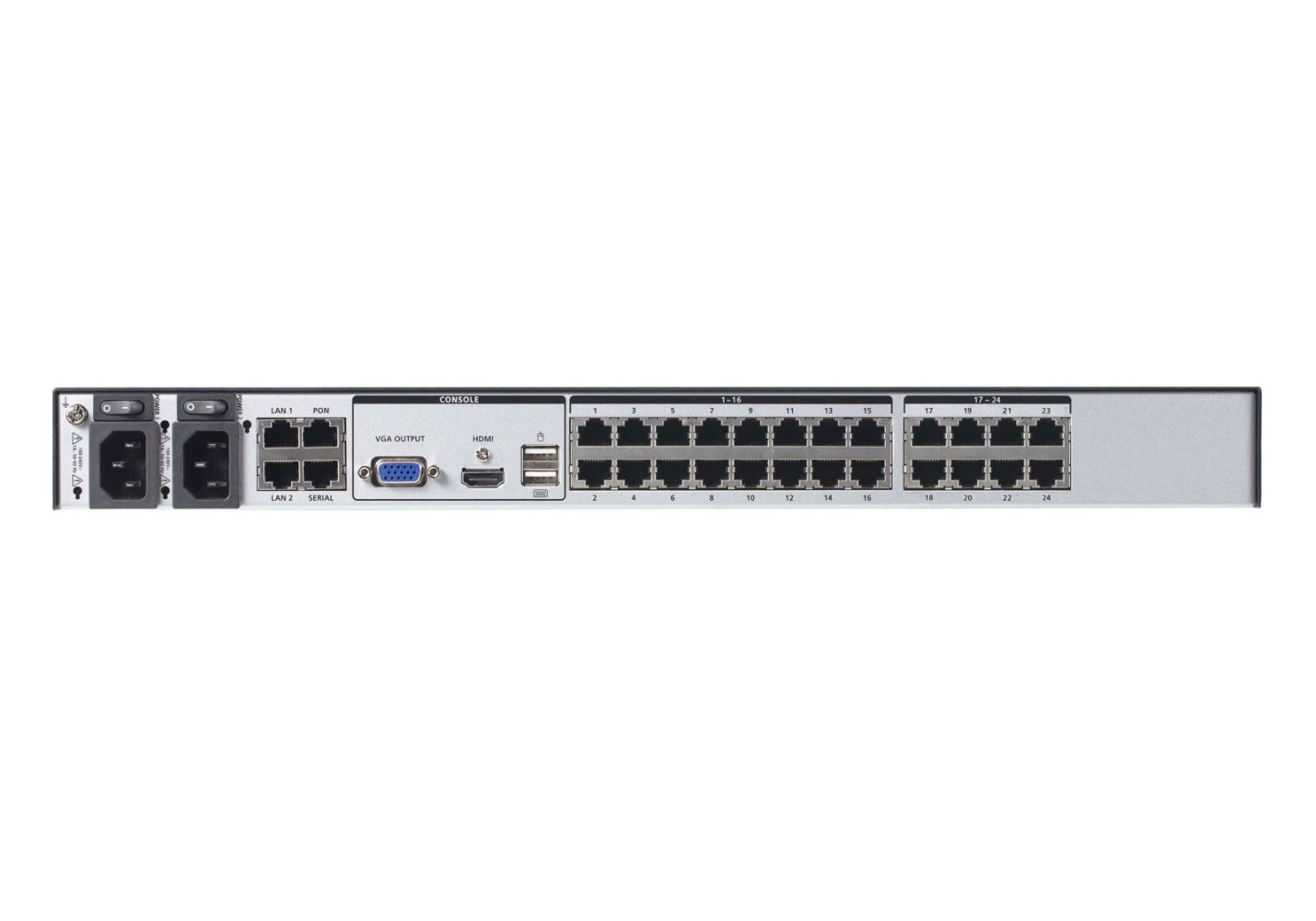

Aten KN2124VB-AX-G 24-Port Cat 5 KVM over IP 1 local and 2 remote
|
-20% 5.639,14 EUR 7.072,46 EUR |
|
|
( 6.710,58 EUR incl. VAT ) ≈ £4,697.40 | ≈ $6,186.14 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2205518 |
| Mfg Part No: | KN2124VB-AX-G |
| UPC/EAN: | 4710469342264 |
| Weight: | 6 kg |
| Type: | SVCS |
Product information for Aten KN2124VB-AX-G:
| Design | |
| Rack capacity | 1U |
| Product colour | Metallic |
| Housing material | Metal |
| LED indicators | Link, Power |
| Rack mounting | |
| Push button | |
| Hot keys | |
| Display | |
| Built-in display | |
| Logistics data | |
| Harmonized System (HS) code | 84718000 |
| Country of origin | Taiwan |
| Network | |
| Ethernet LAN (RJ-45) ports | 2 |
| Cabling technology | 10/100/1000Base-T(X) |
| Security algorithms | FIPS 140-2 |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Performance | |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 255 s |
| Number of users | 3 user(s) |
| Ports & interfaces | |
| Number of computers controlled | 24 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | HDMI/VGA |
| VGA (D-Sub) ports quantity | 1 |
| Console ports | HDMI, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| Console HDMI ports quantity | 1 |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB connector type | Mini-USB, USB Type-A |
| Serial port type | RJ-45 |
| Serial ports quantity | 1 |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| Audio connections | |
| DC-in jack | |
| Power | |
| Input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 33 W |
| Weight & dimensions | |
| Width | 433.6 mm |
| Depth | 412.1 mm |
| Height | 44 mm |
| Weight | 5.2 kg |
