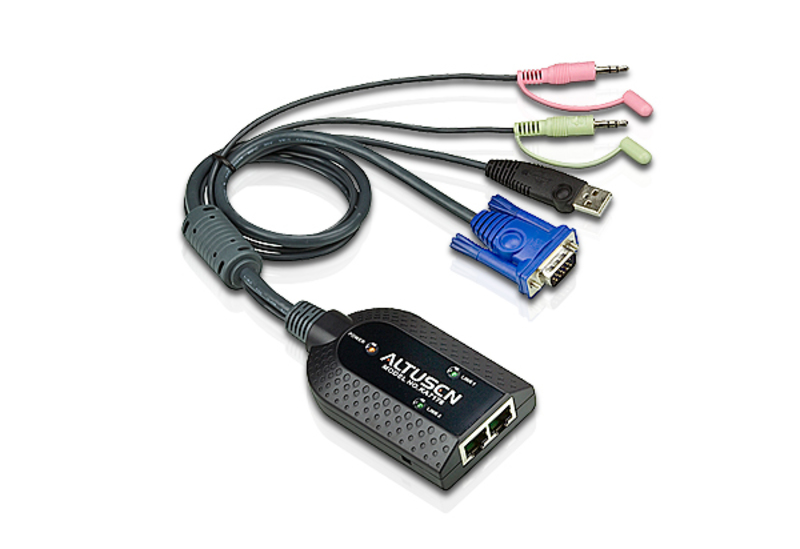

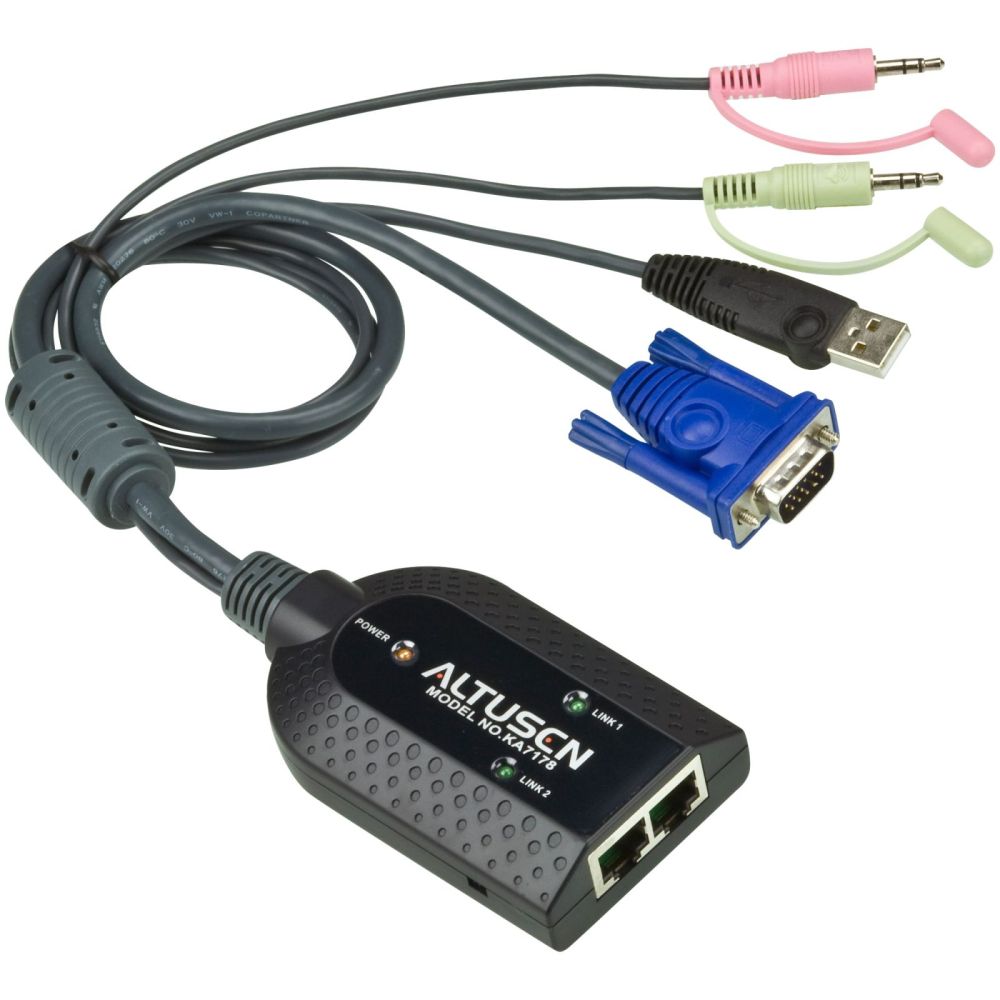

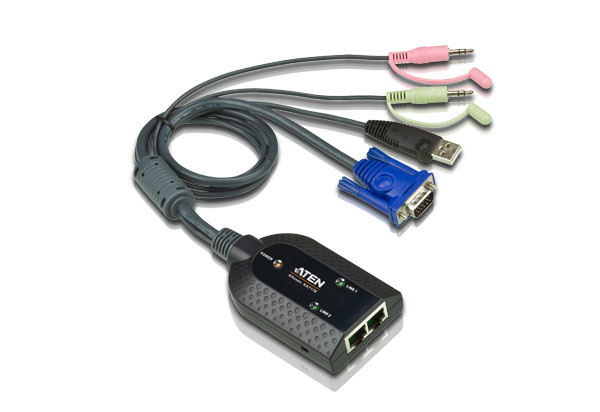

ATEN USB - VGA to Cat5e/6 KVM Adapter Cable content_copy

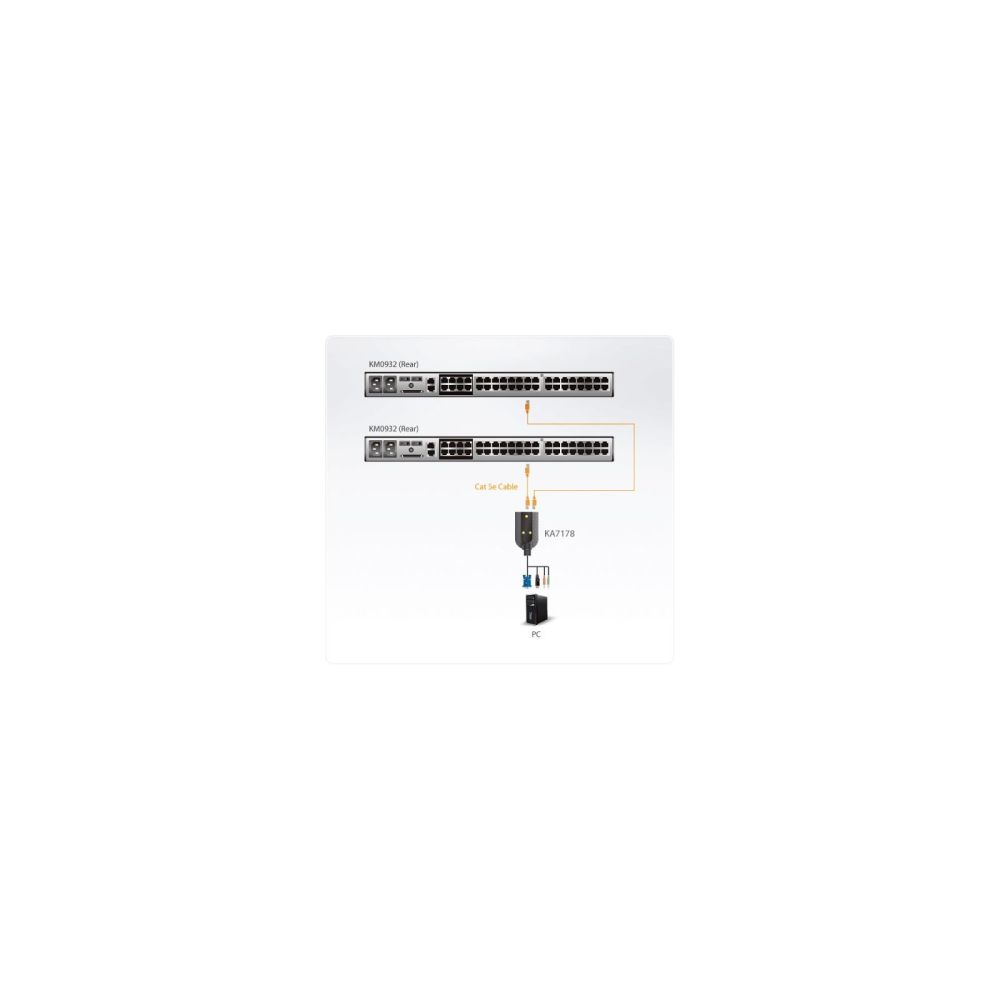

The KA7178 USB KVM Adapter Cable connects your KVM switch to the target computer's video, USB keyboard and mouse, and audio jacks. Not only does it support virtual disks, it also has two Cat. 5e/6 ports that you can use to connect a computer to up to two ALTUSEN KVM matrix switches. This allows the consoles of different switches to access the same computers.
Automatic signal compensation, no distance-dependent configuration via DIP switches required
Two Cat. 5e/ 6-ports
Keyboard and mouse emulation– Your server will continue to run happily even if the switch's KVM port is disconnected or plugged into a different port
Firmware update guaranteed for life
Improved graphics quality– supports resolutions of up to 1280 x 1024 at a distance of up to 300 m
The integrated ASIC chip offers higher reliability and compatibility
The CPU module with automatic signal conversion enables more flexible connections (PS/2 and USB) to support all types of computers (PC , Mac, Sun)
Compact size
Supports virtual media
Sound transmission

• The 1680 x 1050 (reduced image area) and 1920 x 1200 (reduced image area) resolutions are not supported by the KA7xxxx series KVM adapter cables.
connections
Connection2 x RJ-45 jack
Computer1 x USB Type A Male
1 x HDB-15 Male
2 x Mini Stereo Connectors
LEDs
Online1 (Green)
Power1 (Orange)
Physical Properties
HousingPlastic
Weight0.17 kg ( 0.37 lb )
Dimensions (L x W x H)9.10 x 5.60 x 2.12 cm
(3.58 x 2.2 x 0.83 in.)
Scope of delivery
1 KVM adapter cable KA7178



Logistics data
Master (outer) case net weight	6 kg
Harmonized System (HS) code	84733080
Master (outer) case width	270 mm
Master (outer) case length	470 mm
Master (outer) case height	296 mm
Master (outer) case gross weight	8.74 kg
Products per master (outer) case	40 pc(s)
Other features
Depth	91 mm
Height	21.2 mm
Width	56 mm
Packaging data
Weight	150 g
Package width	42 mm
Package depth	124 mm
Package height	129 mm
Package weight	190 g
Performance
Product colour	Multicolour
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
Console port	RJ-45
Connector 1	2 x RJ-45
Connector 2	1 x USB Type A, 1 x HDB-15, 2 x Mini Stereo
Connector 1 gender	Female
Connector 2 gender	Male
Material	Plastic
Technical data
Packaging volume	0.0007m³
TP Network	RJ45 x2
Fiber optic network	Without
Height packaging	0.129m
Side A	RJ45 female x2
Max. resolution	1920x1200
Width packaging	0.042m
Side B	VGA male x1, USB-A male x1, 3.5mm jack male x2
Weight	0.154kg
Type 1	KVM CPU module cable
Max. distance	300m
Type 2	KVM CPU module cable VGA
Design	Cable
Length packaging	0.124m
Audio loudspeakers
Audio microphone

---
