ATEN CN800 USB VGA KVM over IP Mini content_copy

The ATEN CN800 offers excellent video quality with HD resolutions of up to 1920 x 1200 at 60 Hz, making KVM access easier.

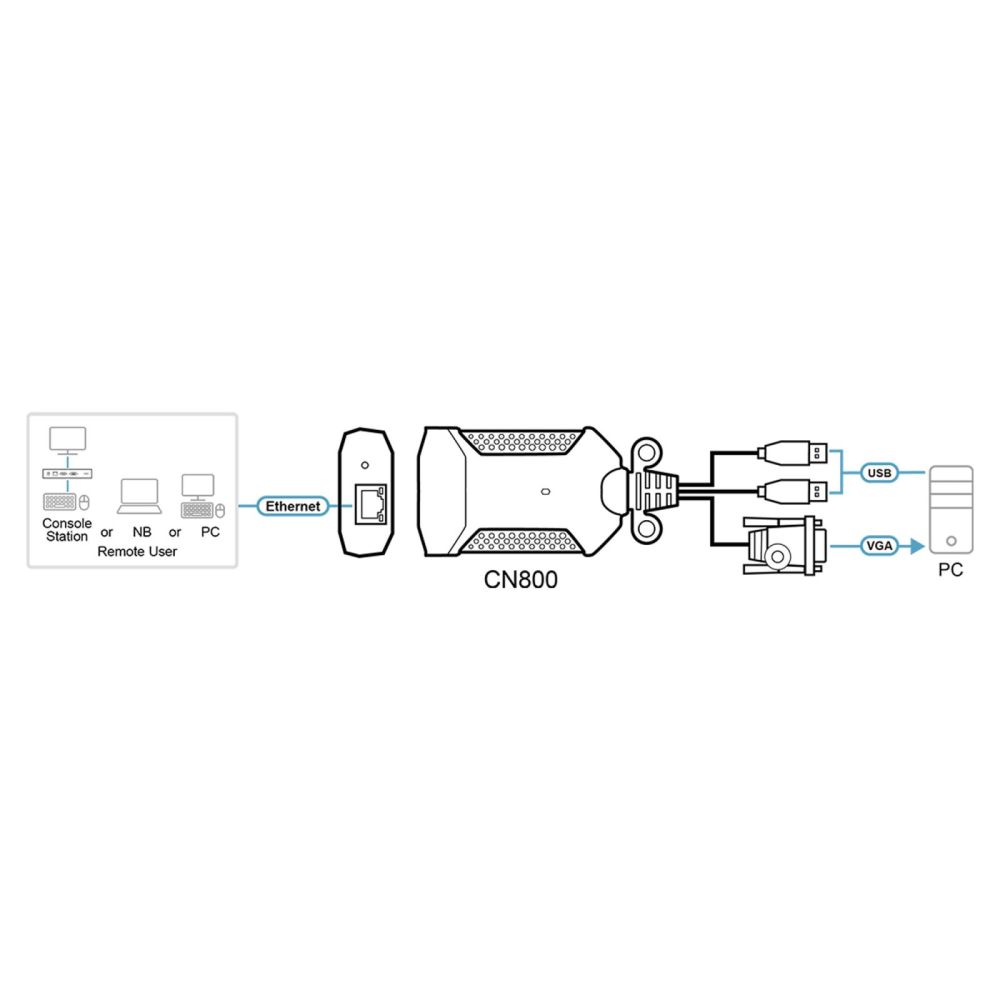

The CN800 USB VGA KVM over IP Mini provides ‘over IP’ access control for traditional KVM switches without built-in over IP functionality. It allows system operators to remotely monitor and access computers via Windows and Java-based application programs. The CN800 connects to an intranet (LAN or WAN) and to a target computer or server via a standard Cat 5e/6 cable. WinClient and JavaClient are available for remote access, enabling IP connection and login from any location via the Internet. The ATEN CN800 uses standard TCP/IP protocols for communication. It allows access to the connected server or computer from any computer via the Internet, regardless of whether that computer is in the same room, in other areas of the country or in branch offices in other parts of the world. The CN800 provides a fast, reliable and cost-effective way to remotely access and manage widely distributed multiple computer installations.
Hardware
Provides over-IP functionality for KVM switches that do not have built-in over-IP functionality
Supports cross-platform server environments: Windows, Mac, Sun, Linux and VT100-based serial devices
Virtual media support
High video resolution – up to 1920 x 1200 at 60 Hz with 24-bit colour depth for remote sessions
Improved FPS throughput rate (frames per second) for crisp, responsive screen display
Bus-powered – no external power supply required
Management
Up to 64 user accounts
Up to 32 simultaneous user logins
Session termination function – administrators can terminate running sessions
Event logging and support for Windows-based log servers
Supports instant notifications of critical system events via email, SNMP trap and syslog
Remote firmware upgradeable
Multi-user mode allows multiple users to access a server simultaneously
Integration with ATEN CC2000 central management software
Integration with ATEN CCVSR software for recording video sessions
DDNS (Dynamic Domain Name System)
Enable/disable browser operation
IPv6-ready
Easy-to-use user interface
Browser-based and AP GUIs provide a unified, multilingual interface to minimise user training time and increase productivity
Support for multiple platforms (Windows, Mac OS X, Linux, Sun)
Multiple browser support (Chrome, Firefox, Safari, Opera)
The browser-based user interface in pure web technology allows administrators to perform management tasks without a pre-installed Java software package
Full-screen or scalable virtual remote desktop
Advanced security
External authentication supported: RADIUS, LDAP, LDAPS and MS Active Directory
TLS 1.2 encryption to protect the password when users log in
Flexible design allows users to choose any combination of encryption algorithms (e.g. 256bit AES) or a random selection generated by the system for independent encryption of keyboard/mouse, video and virtual media data
Supports IP/MAC filtering
Supports password protection
Private CA
Virtual media
Virtual media enables file applications, operating system patches, software installations and diagnostic tests
Works with USB-enabled servers at the operating system and BIOS level
Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
Convenient use without cables for virtual media
Virtual remote desktop
Video quality and video tolerance can be adjusted to optimise data transfer speed; monochrome colour depth, threshold and noise settings for data bandwidth compression at low bandwidths
Full-screen video display or scalable video display
Message board for communication between remote users
On-screen keyboard with support for multiple languages
Mouse Dynasync
Support for exit macros
BIOS-level access
Content of delivery
1x CN800 USB VGA KVM over IP Mini
1x User manual

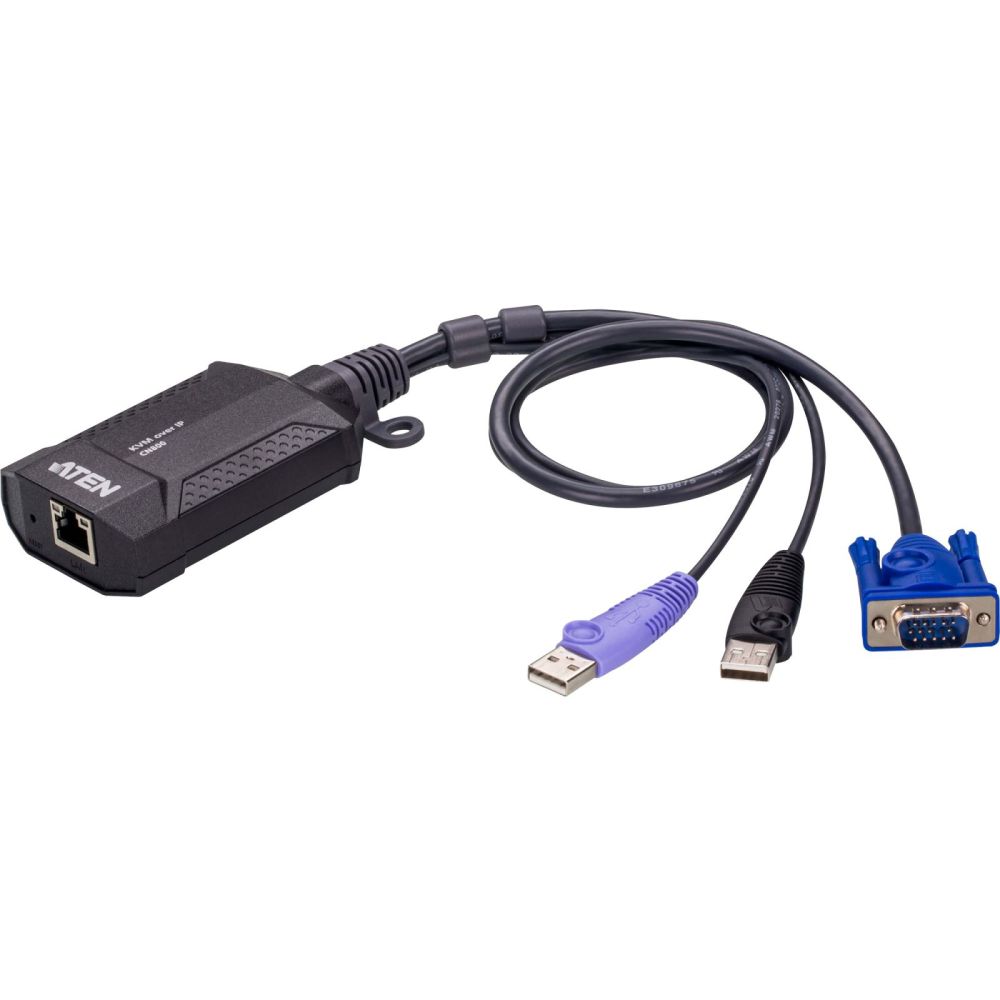

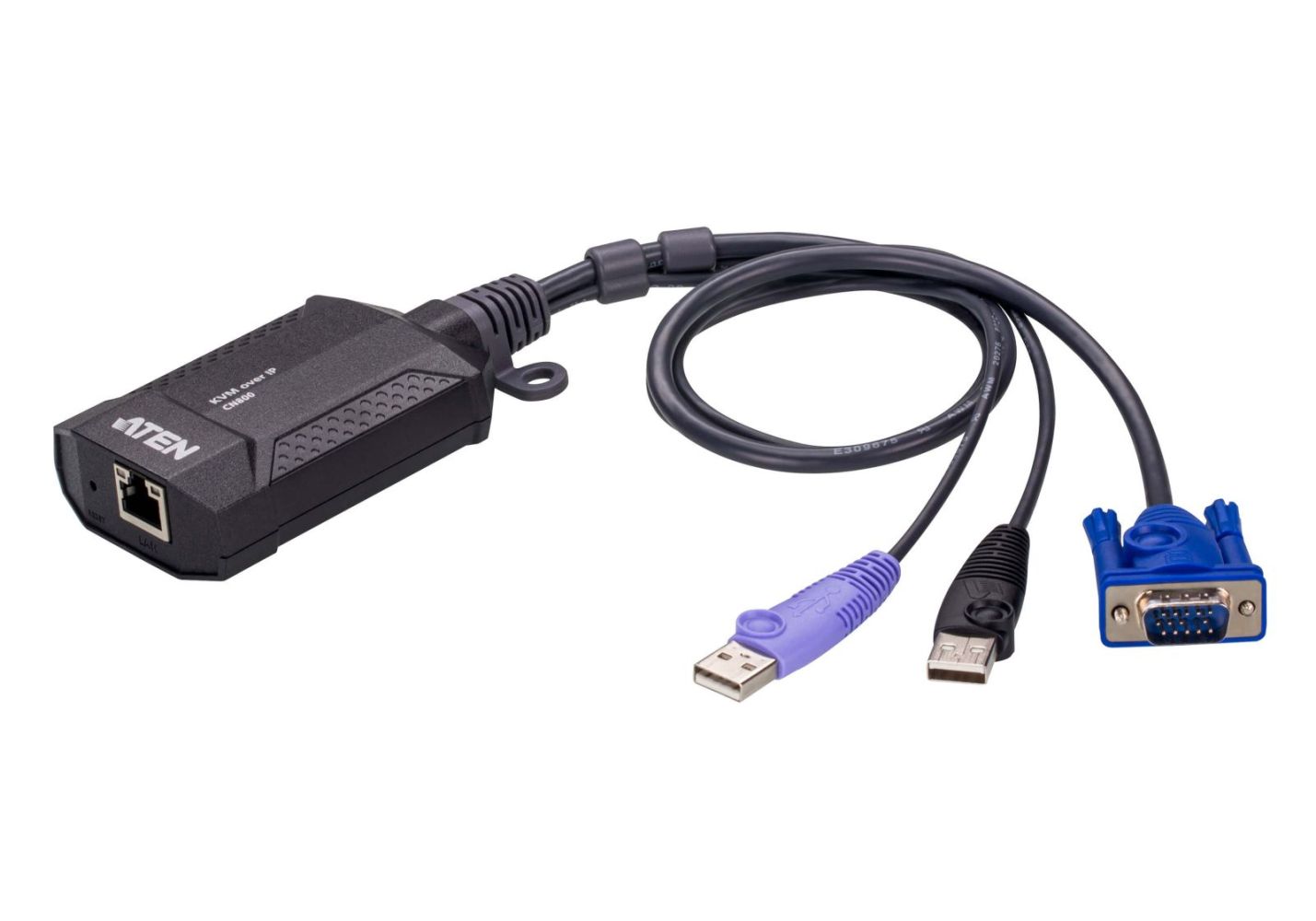

Connections
KVM (computer) Ports1 x USB Type A plug (purple)
1 x USB Type A plug (black)
1 x VGA plug (blue)

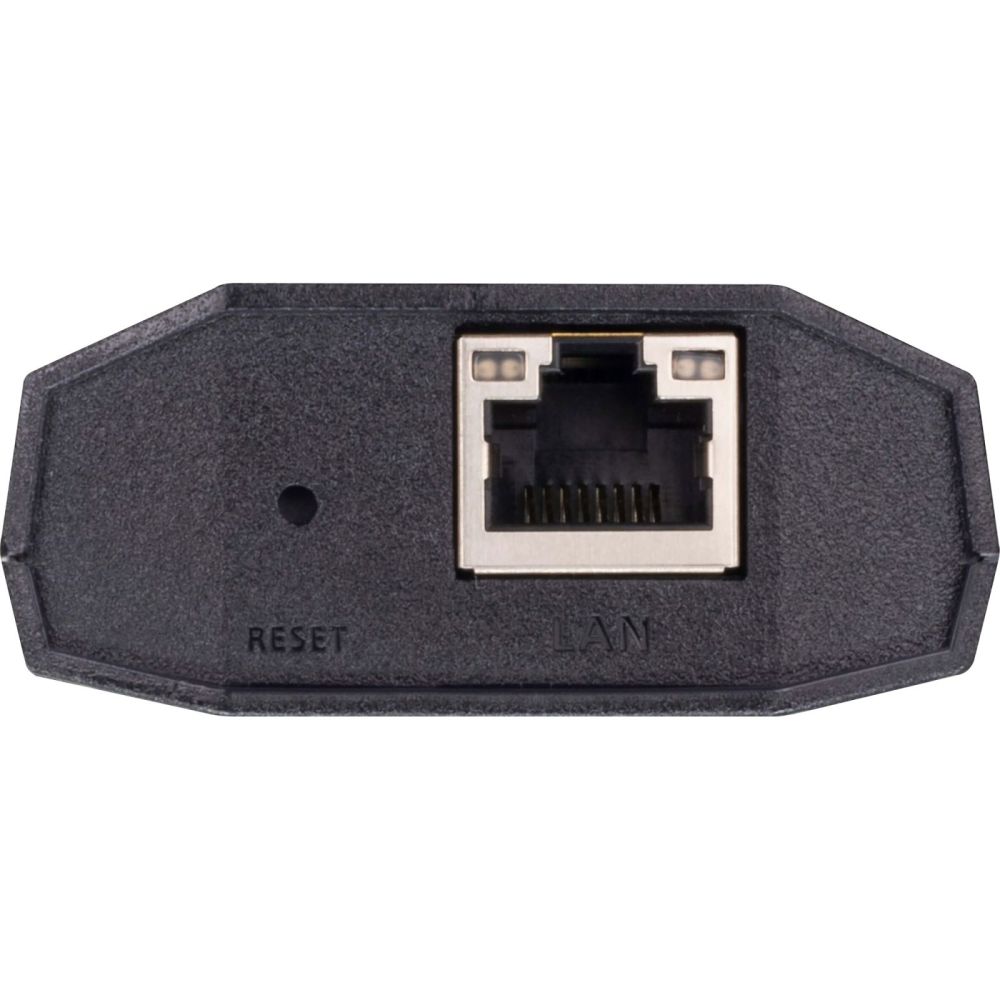

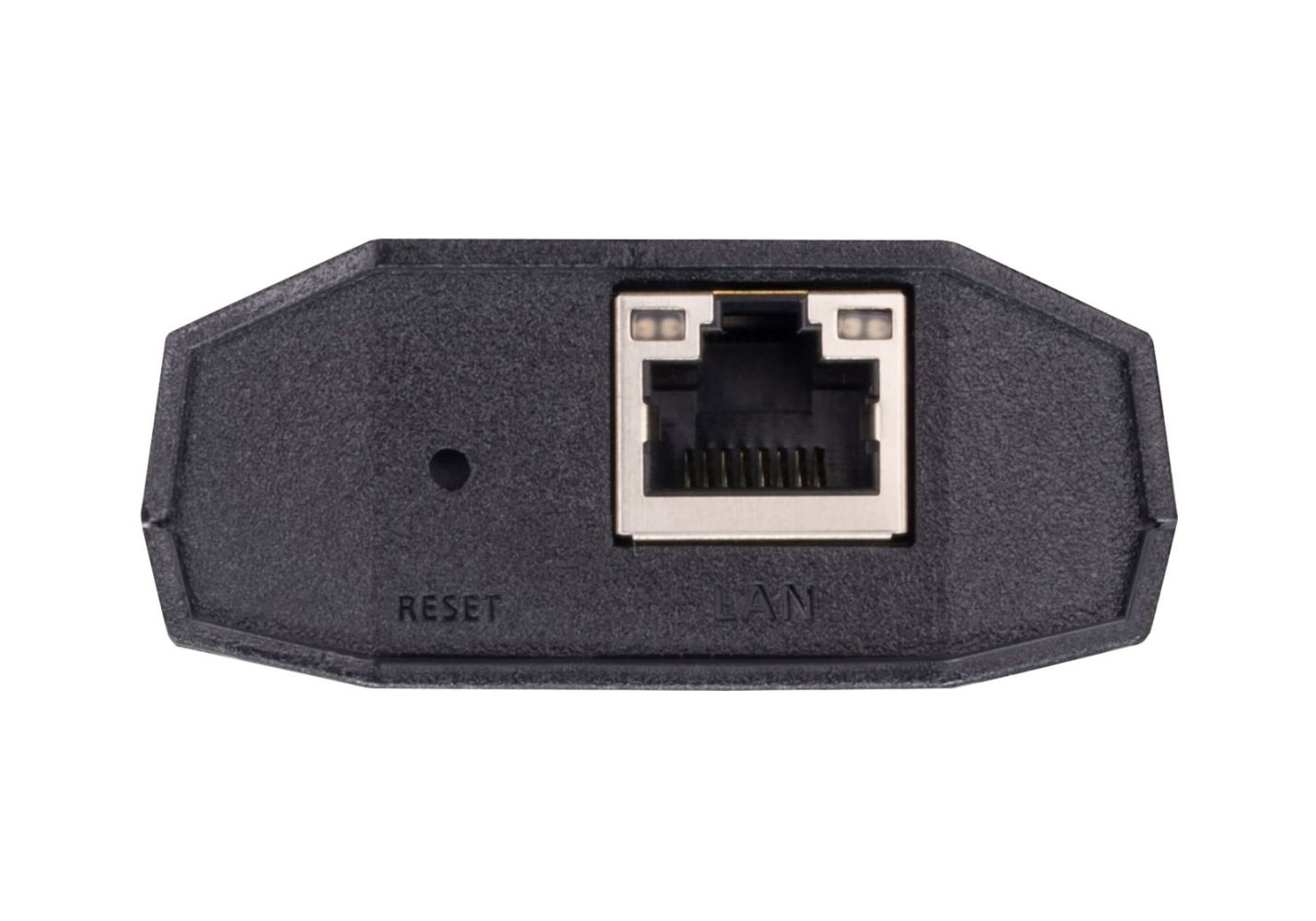

LAN Ports1 x RJ-45 female
Switches
Reset1 x semi-recessed push button
LEDs
Power supply1 (green)
Connection1 x connection (orange/green)
1 x active (green)
Emulation
Keyboard / mouseUSB
Video1920 x 1200
Power consumptionDC5V:3.47W:16BTU/h
Note:
The measurement in watts indicates the typical power consumption of the device without external load.
The measurement in BTU/h indicates the power consumption of the device when it is under full load.
Environment
Operating temperature0 - 50°C
Storage temperature-20 - 60°C
Humidity0–80% relative humidity, non-condensing
Physical characteristics
HousingPlastic
Weight0.17 kg ( 0.37 lb )
Dimensions (L x W x H)9.32 x 5.66 x 2.44 cm
(3.67 x 2.23 x 0.96 in.)

Design
Product colour	Black, Purple
Housing material	Plastic
LED indicators
Display
Built-in display
Logistics data
Harmonized System (HS) code	84718000
Country of origin	Taiwan
Network
Ethernet LAN (RJ-45) ports	1
Ethernet LAN
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Performance
Maximum resolution	1920 x 1200 pixels
Ports & interfaces
Keyboard port type	USB
Mouse port type	USB
Power
Power source	DC
Power consumption (typical)	3.47 W
Technical data
Type 2	VGA KVM
Max. resolution	1920x1200 / 60Hz
Type 1	KVM over IP
Weight & dimensions
Width	56.6 mm
Depth	93.2 mm
Height	24.4 mm
Weight	170 g

---
