ATEN CL5708iN LCD KVM Switch over IP USB-PS/2 VGA 8-port CH layout content_copy

The CL5708I Slideaway LCD KVM Switch is a control device that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video and mouse) console. A single CL5708I can control up to 8 computers. Up to 15 additional KVM switches can be daisy-chained to the CL5708I, allowing up to 128 computers to be controlled from a single KVM console.

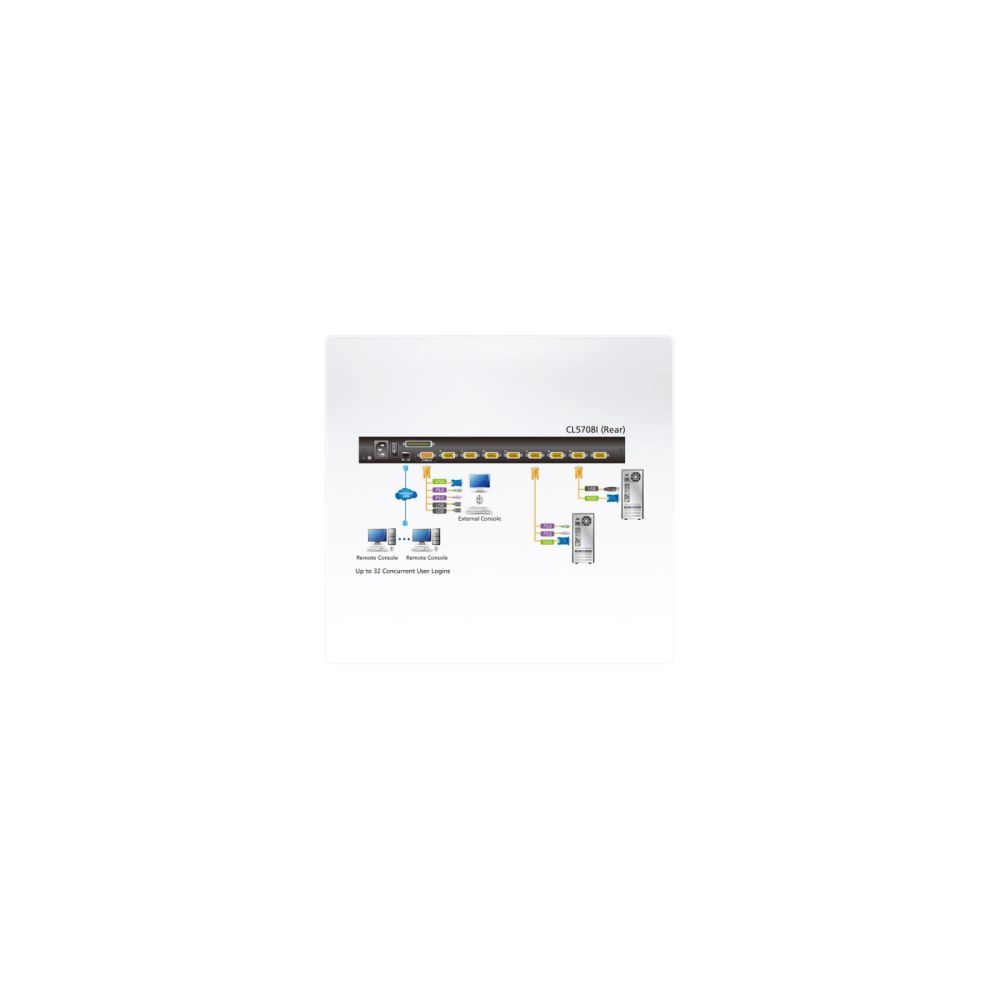

The CL5708I LCD KVM Switch is an IP-based KVM -Control unit that allows both local and remote users to monitor and access multiple computers. Remote users access the switch over the Internet using a web browser over TCP/IP. The CL5708I supports up to 32 simultaneous user logins for single bus computer access. An integrated function similar to an Internet chat program ? the message board? lets them communicate with each other. The ability to share information in real-time allows them to collaboratively manage the installation in a smooth and efficient manner.

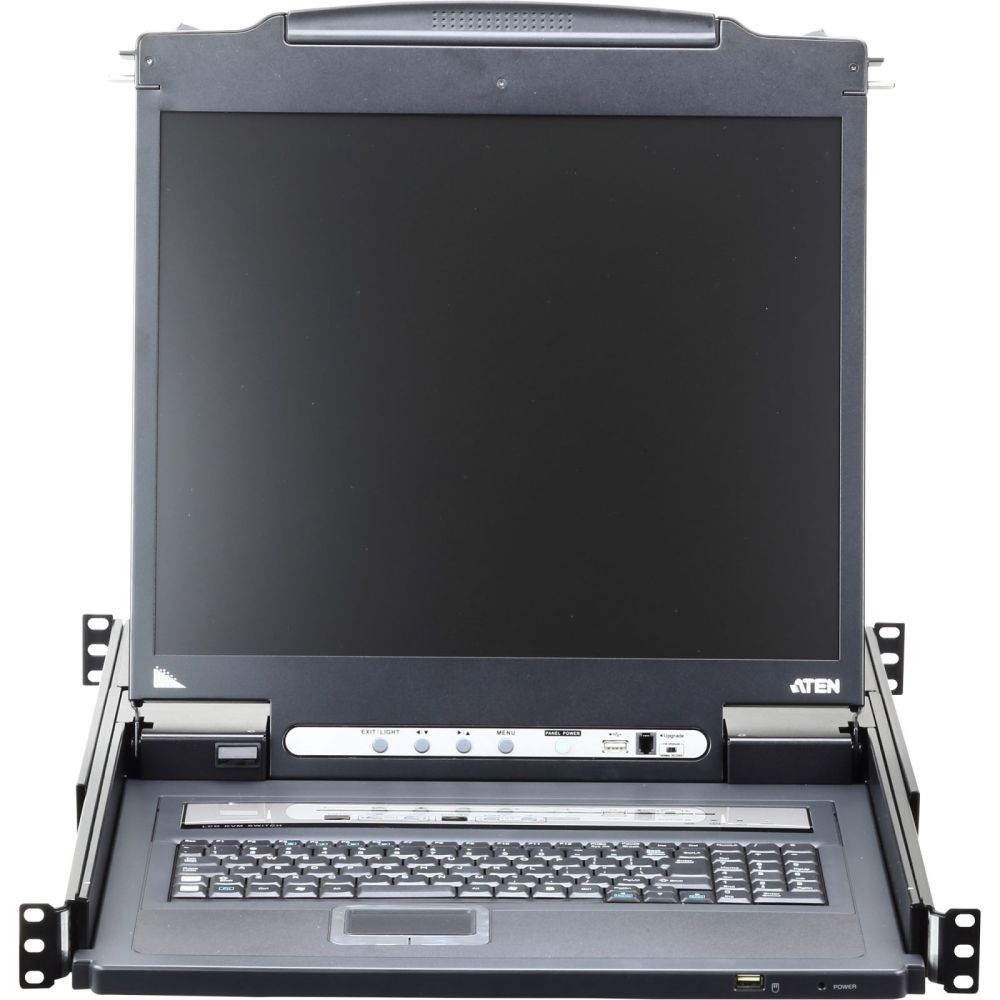

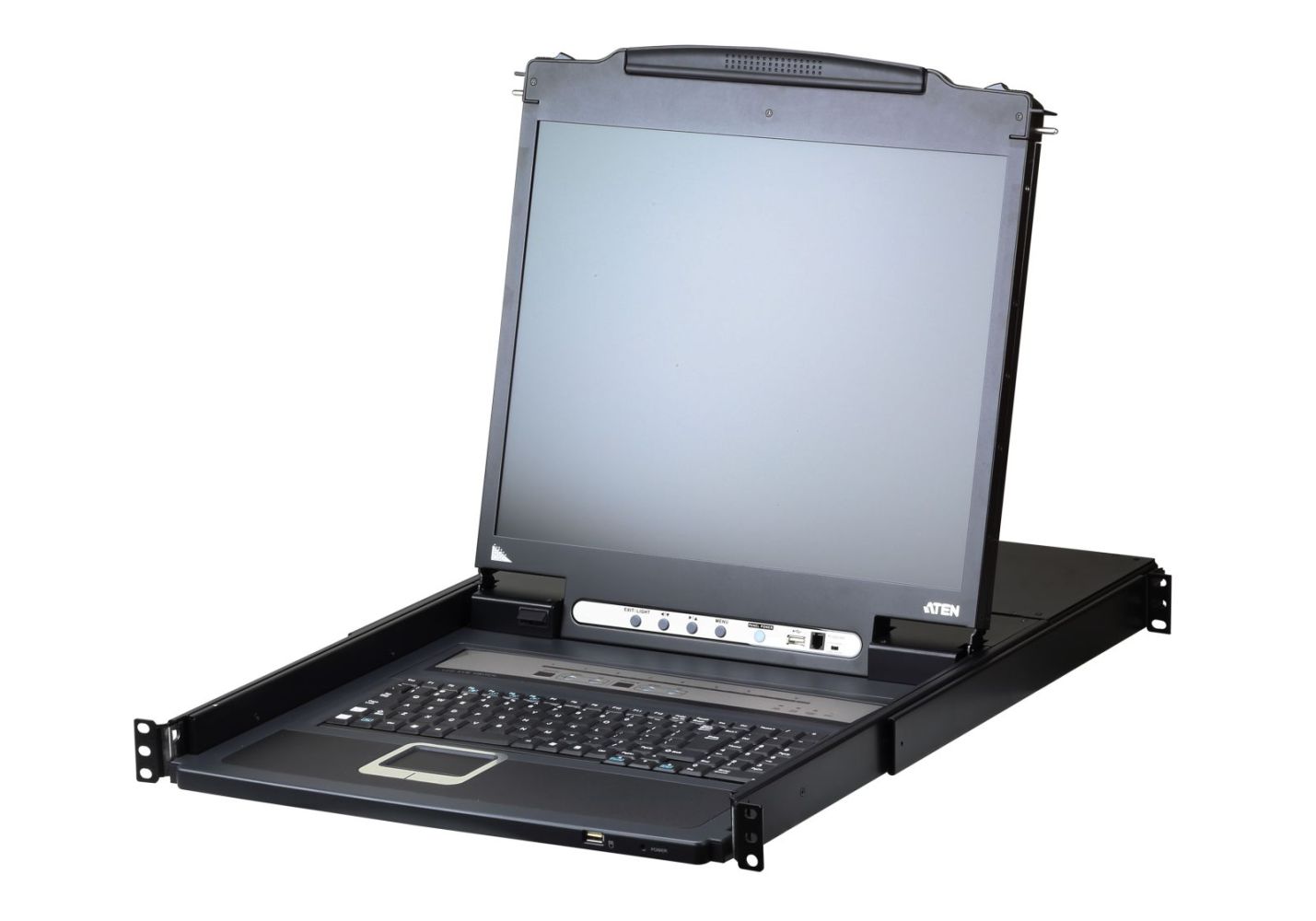

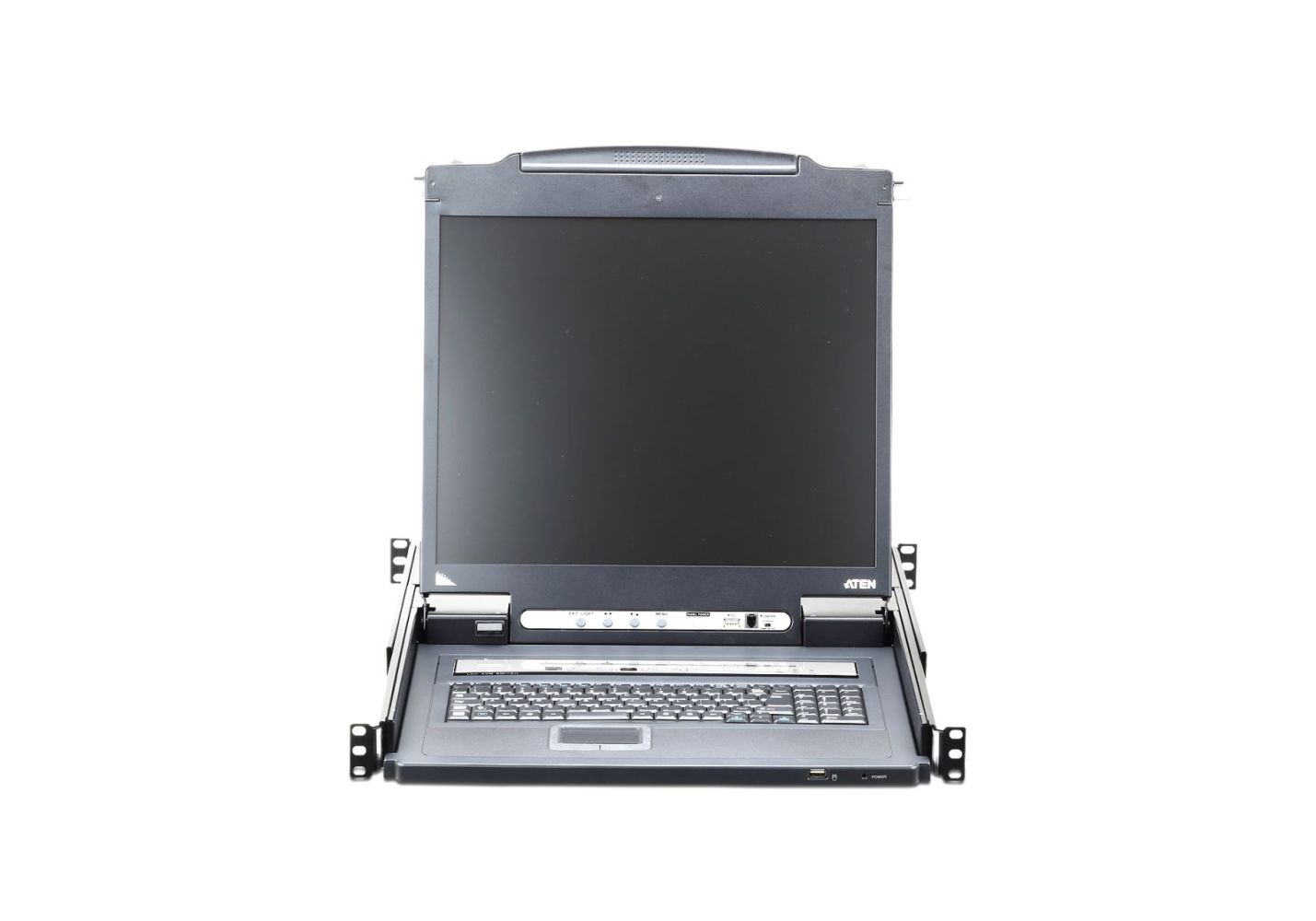

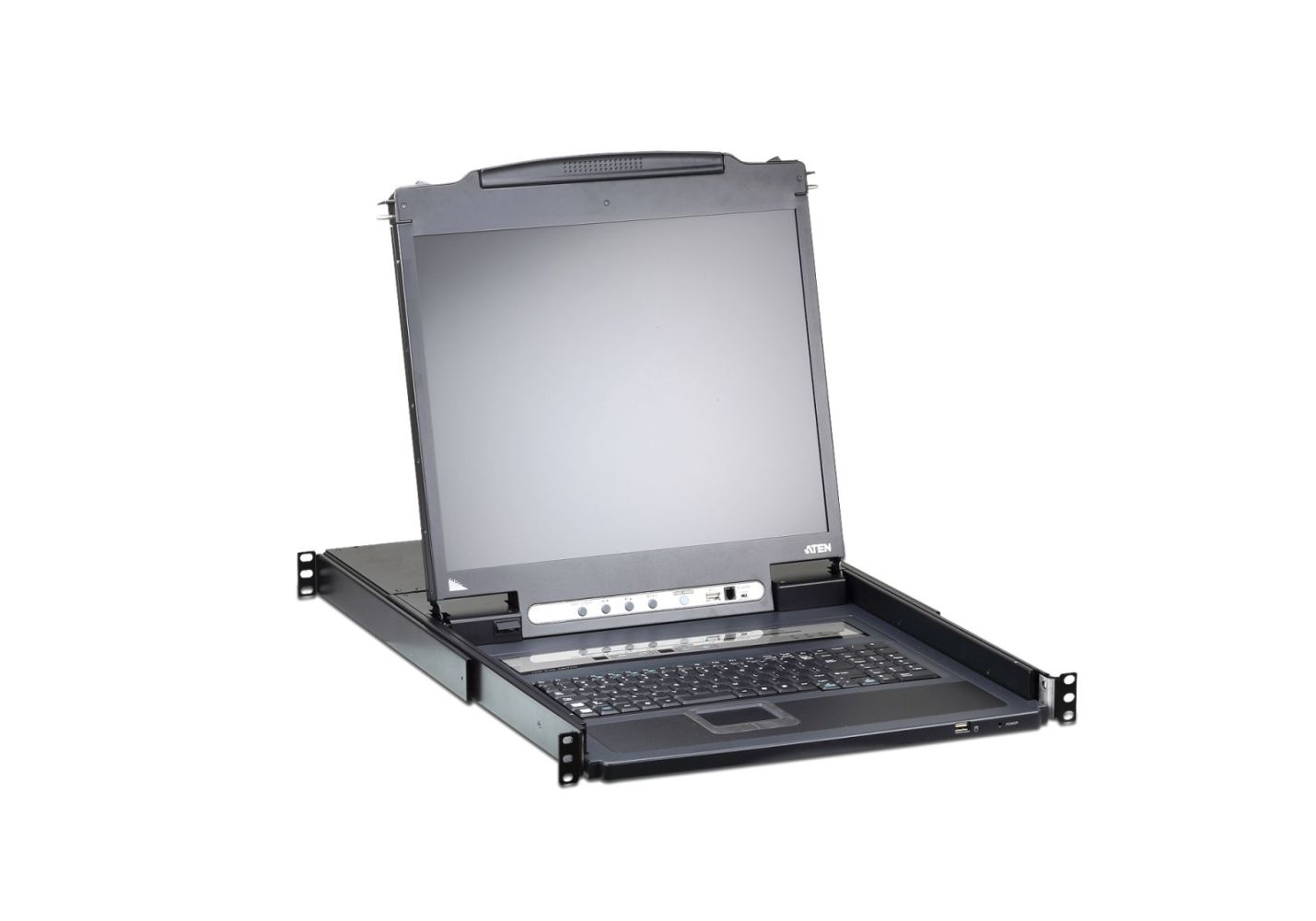

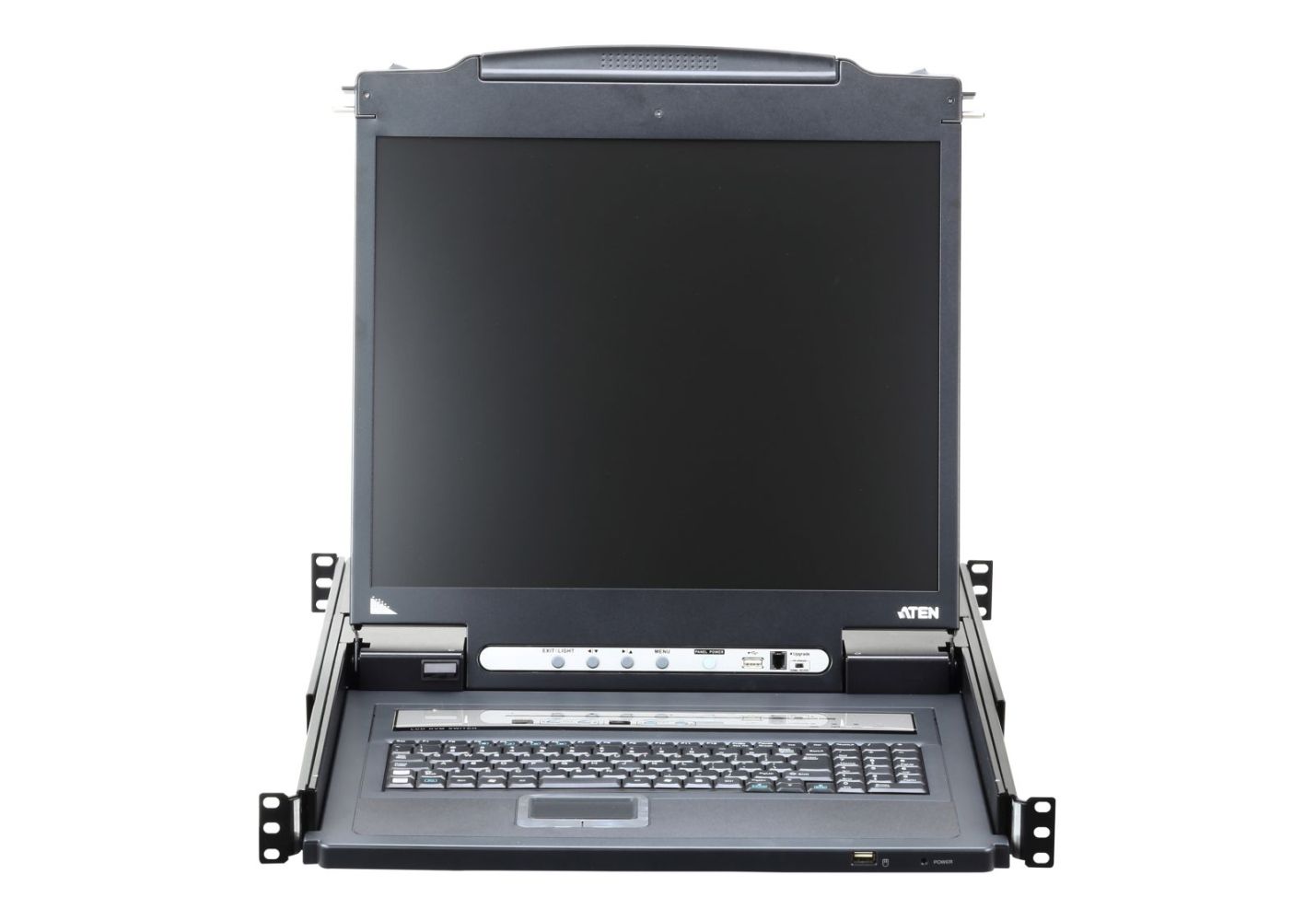

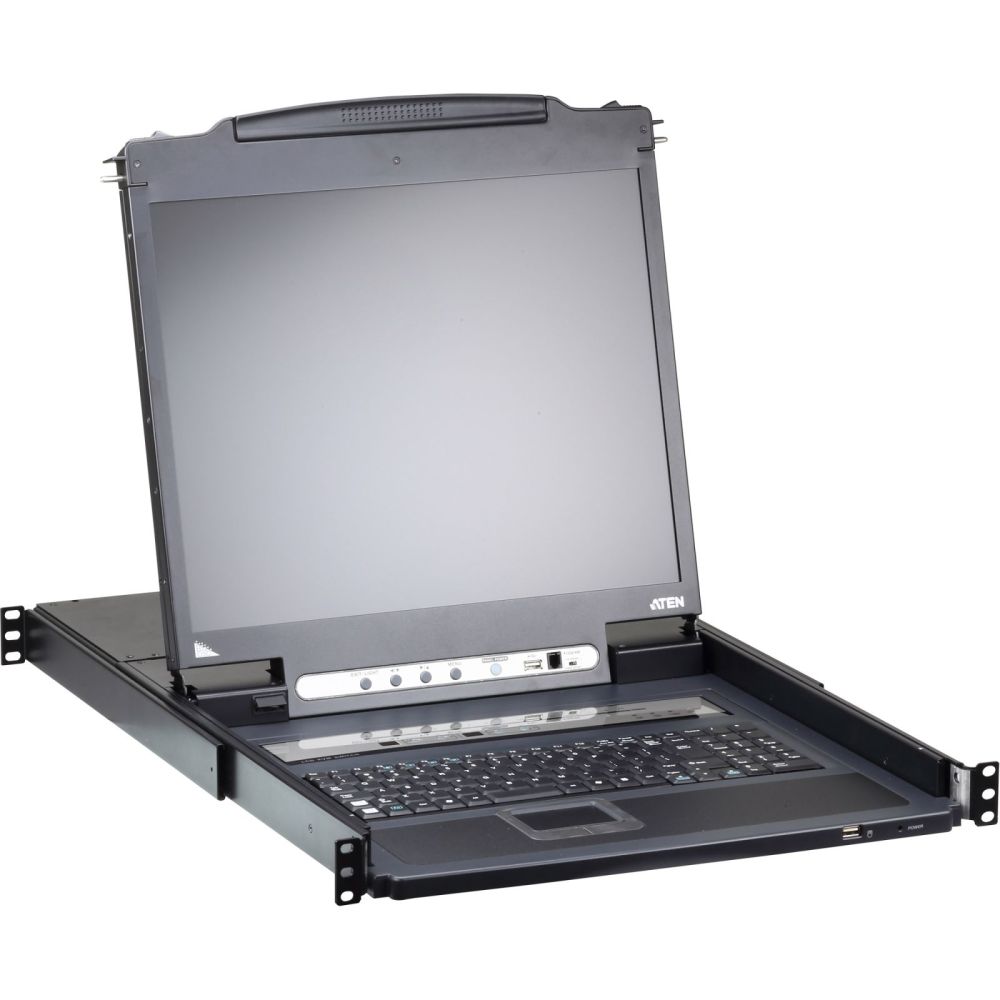

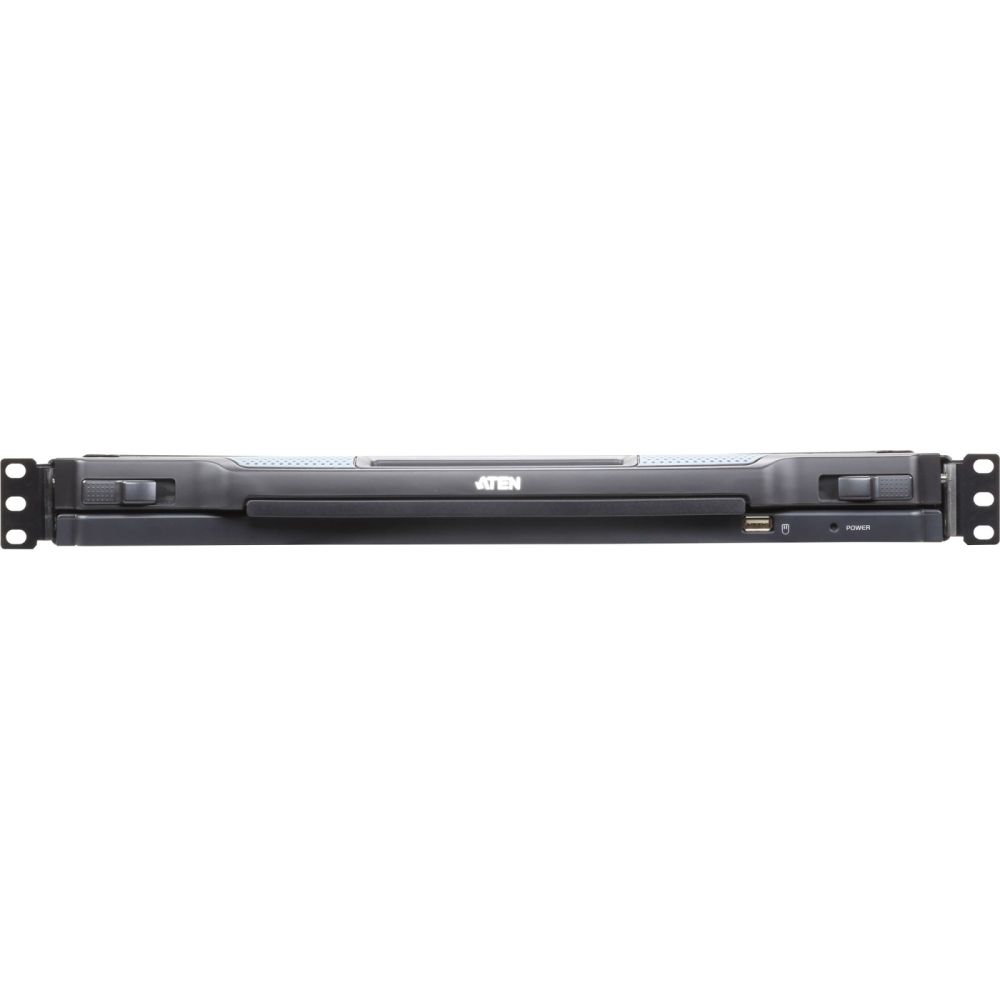

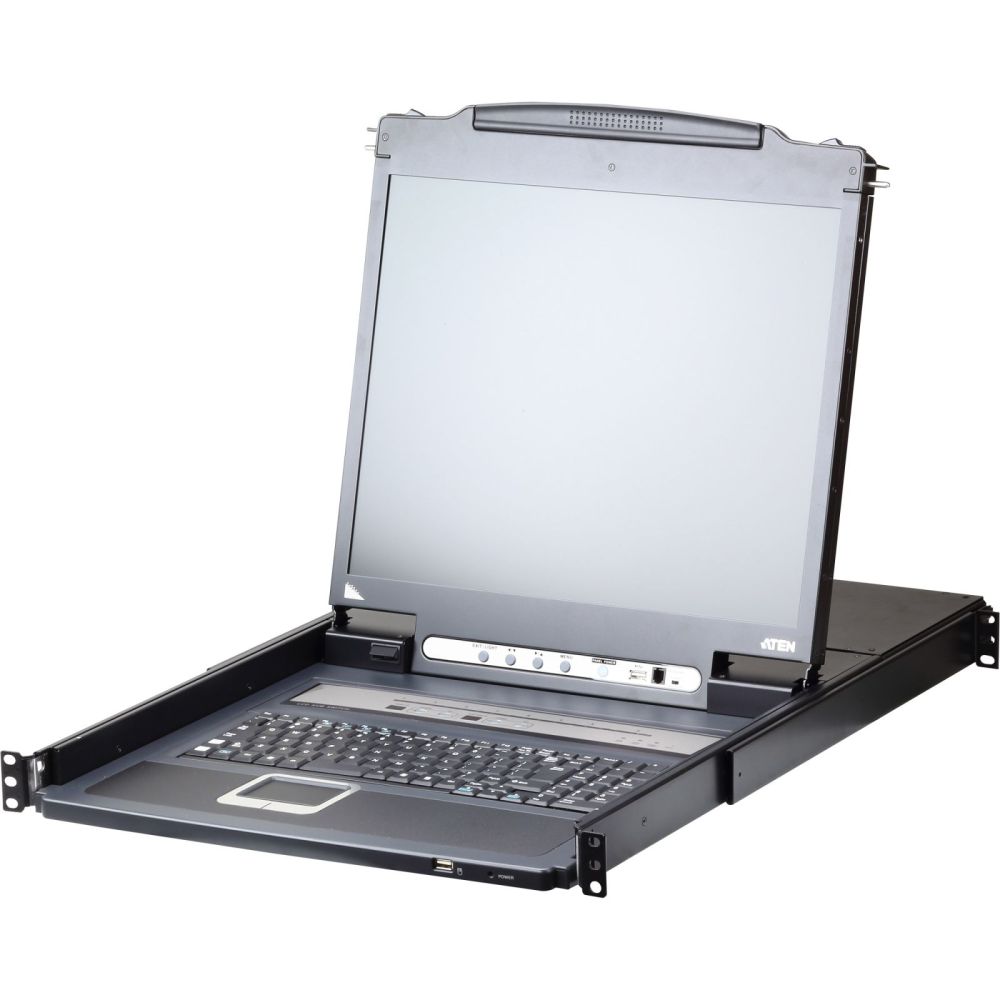

The CL5708I offers a space-saving, no-nonsense approach to KVM switch technology through the integration of a keyboard , 43,2 cm ( 17 inch ) or 48,3 cm ( 19 inch ) LED-backlit LCD monitor and touchpad in a 1U rack-mountable sliding case. Also, since the CL5708I is based on a modular design, the KVM section can be detached from the switch section for convenient maintenance and repair.
Among the other outstanding features of the CL5708I, Panel Array Mode offers the opportunity to monitor the video output of the servers at installation. The Mouse DynaSync? Function automatically synchronizes the local and remote mouse pointer movements for perfect alignment no matter what the mouse acceleration settings are on the server.
The CL5708I supports the highest security protocols such as TLS 1.2 encryption for the browser and RC4 128-bit Encryption for secure keyboard, mouse and video data transmission. For easier and more efficient user management integration, the CL5708I also supports authentication and authorization via authorized third-party servers such as RADIUS, LDAP, LDAPS and MS Active Directory.
CL5708IM: 43,2 cm ( 17 inch ) LCD
CL5708IN: 48,3 cm ( 19 inch ) LCD
HardwareExclusive LED lighting ? developed by ATEN to illuminate the keyboard and touchpad for visibility in low light conditions
Integrated KVM console with 43,2 cm ( 17 inch ) or 48,3 cm ( 19 inch ) LED-backlit LCD monitor in a slideaway? Housing
Space-saving technology ? up to two consoles (one bus) control up to 8 computers
daisy chain up to 15 additional units ? Control up to 128 computers from a single console (with compatible KVM switches: ACS1208A, ACS1216A, CS1708A, CS1716A)
Extra console port ? Management of computers via an external console (VGA monitor, USB or PS/2 keyboard and mouse)
Superior video quality ? up to 1280 x 1024 at 75 Hz; DDC2B for the local console; up to 1920 x 1200 at 60 Hz/24 bit color depth for remote sessions
Dual Interface ? supports computer and console with PS/2 or USB keyboards and mice
LCD module USB port allows connected computers to access USB peripherals (The USB peripheral function only works with USB cable set connections does not work with PS/2 harness connectors.)
Automatic detection of station position on daisy-chain installations. No need for manual dip switch setting. The front panel shows the position of the station
Hot pluggable ? Add or remove computers without shutting down the Switch
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting from multiple computers even when the console focus is elsewhere
Supports multimedia USB keyboards for Windows, Mac and Sun
Supports external USB mouse
Video DynaSync? ? stores the EDID (Extended Display Identification Data) of the console monitor to optimize the screen resolution
Rack mountable in a 1U system rack
The LCD module can be rotated up to 115 degrees for a more comfortable Rotate viewing angle
ManagementConvenient computer selection via front panel pushbuttons, shortcut keys and multilingual OSD menus
Up to 32 simultaneous loginsMulti-language web UI support with a tree-structured local and remote OSD
Adjustable video quality to flexibly adapt to diverse network environments
Auto scan mode enables continuous monitoring of from Users selected computers
Transmission mode: Keyboard operation can be selected simultaneously on allmost computers of the installation (software installation, system-wide shutdown, etc.)
Concurrent firmware upgrades on all daisy-chain KVM switches (CS1708A, CS1716A) via the daisy-chain cable
Integration with CC2000 Centralized Management Software
Backing up and restoring configuration and user account settings
Event logging
IPv6 capable
User-Friendly InterfaceBrowser-based and AP GUIs, along with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multilingual interface to minimize user training time and increase productivityMulti-platform support ? Windows, Linux, Mac and Sun
Multiple Browser Support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
Panel Array Mode allows user to control multiple servers simultaneously from monitor a single screen ? each selected server video output appears in a separate box ? Users can easily select the number of fields to look at
Windows client and Java client software support. The Java client works with all operating systems
Beep on/off via direct key and OSD
Supported keyboard languages: English (US), English (UK), French, German, German (Swiss). ), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
Enhanced SecuritySecure keyboard/mouse/video transmission via RC4 128 bit Encryption
Supports TLS 1.2 data encryption and RSA 2048 bit certificates to secure user login in browser
Two-level password security ? only authorized users can view and control computers. Up to 64 user accounts with separate profiles for each
Supports external (remote) authentication: RADIUS, LDAP, LDAPS, MS Active Directory
Support for IP/MAC filter
Local and remote access logged and authenticated
Virtual remote desktopResizable remote desktop window
The message board allows logged in users to communicate with each other and allows a user to take exclusive control of KVM features
Mouse DynaSync?
On-screen keyboard with multi-language support
Access to BIOS level
Scope of delivery1x CL5708I LCD KVM over IP switch with standard rack mounting kit
1x 2L-5202U custom KVM cable (VGA , USB; 1.8 m/6 ft)
1x LIN5-27X6-U22G Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
1x LIN5 -04A2-J11G firmware upgrade cable
1x LIN2-418K-E12G power cable
1x user manual
FunctionCL5708IMCL5708IN
Console Connections
Local1 (Share Remote Bus)1 (Share Remote Bus)
Remote11
Computer Connections
Direct88
Maximum128 (via Daisy-chain)128 (via Daisy-chain)
Port SelectionOSD, Hotkey, PushbuttonOSD, Hotkey, Pushbutton

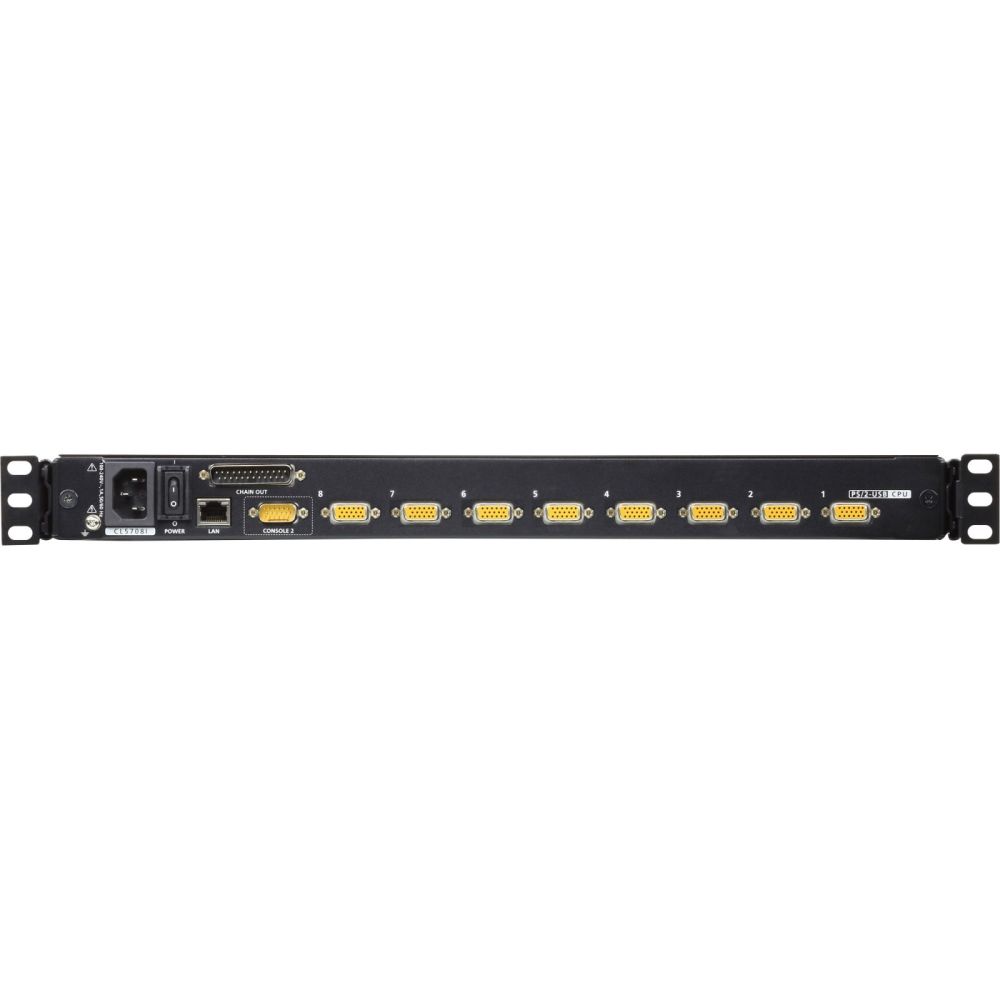

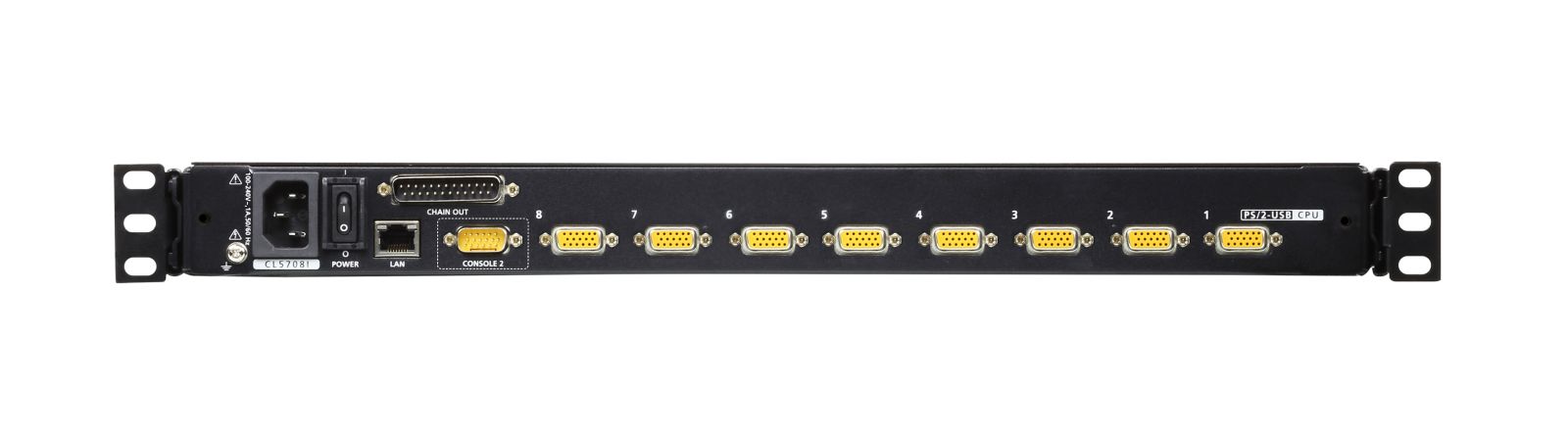

Connectors
External Console Ports1 x SPHD Male (Yellow)1 x SPHD Male (Yellow)
External Mouse Port1 x USB Type-A Female1 x USB Type-A Female
USB Port1 x USB Type-A Female1 x USB Type-A Female
KVM Ports8 x SPHD Female8 x SPHD Female
Daisy Chain Ports1 x DB-25 Male1 x DB-25 Male
Firmware Upgrade1 x RJ-11 Female1 x RJ-11 Female
LAN Ports1 x RJ-45 Female1 x RJ-45 Female
Power1 x IEC 60320/C141 x IEC 60320/C14
Switches
Port Selection2 x Pushbuttons2 x Pushbuttons
Station Selection2 x Pushbuttons2 x Pushbuttons
Reset1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Switch1 x Switch
Power1 x Rocker Switch1 x Rocker Switch
LCD On/Off1 x LED Pushbutton (Orange)1 x LED Pushbutton (Orange)
LCD Adjustment4 x Pushbuttons4 x Pushbuttons
LEDs
Online8 x (Orange)8 x (Orange)
Port ID1 x 2-digit, 7-segment (Yellow)1 x 2-digit, 7-segment (Yellow)
Station ID1 x 2-digit, 7-segment (Yellow)1 x 2-digit, 7-segment (Yellow)
10/100 Mbps1 x (Orange/Green)1 x (Orange/Green)
Power1 x (Dark Green)1 x (Dark Green)
Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
Video
Remote1920 x 1200 @60 Hz1920 x 1200 @60 Hz
Panel Spec
LCD Module43,2 cm ( 17 inch ) TFT-LCD48,3 cm ( 19 inch ) TFT-LCD
Resolution1280 x 1024 @75 Hz1280 x 1024 @75 Hz
Pixel Pitch0.264 mm x 0.264 mm0.294 mm x 0.294 mm
Response time5 ms5 ms
Viewing Angle170° (H), 160° (V)170° (H), 160° (V)
Support Color16.7M colors16.7M colors
Contrast Ratio1000:11000:1
Luminance250 cd/m²250 cd/m²
Emulation
Keyboard / MousePS/2, USBPS/2, USB
Scan Interval1-255 sec.1-255 sec.
Maximum Input Power Rating100-240V AC, 50-60Hz, 1A100-240 VAC, 50-60Hz, 1A
Power ConsumptionAC110V:26.8W:138BTU/h
AC220V:27.7W:143BTU/h
Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.AC110V:29W:149BTU/h
AC220V:29.8W:153BTU/h
Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0-50°C0-50°C
Storage Temperature-20-60°C-20-60°C
Humidity0-80% RH, Non-condensing0-80% RH, Non-condensing
Physical Properties
HousingMetal + PlasticMetal + Plastic
Weight13.49 kg ( 29.71 lb )13.41 kg ( 29.54 lb )
Dimensions (L x W x H)48.00 x 64.27 x 4.40 cm
(18.9 x 25.3 x 1.73 in.)48.00 x 68.92 x 4.40 cm
(18.9 x 27.13 x 1.73 in.)

Display
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Display	LCD
Display brightness	250 cd/m²
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Pixel pitch	0.294 x 0.294 mm
Display type	TFT
Response time	5 ms
Supported resolutions	1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz
On Screen Display (OSD)
Keyboard
Keyboard language	Swiss
Keyboard layout	QWERTZ
Built-in touchpad
Hot keys
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging content
Cables included	AC, KVM
Quick installation guide
Manual
Rack mount kit
Ports & interfaces
Keyboard port type	USB
I/O ports	1x DB-25 1x RJ-11
Mouse port type	USB
Video port type	VGA
Serial ports quantity	1
RJ-45 ports quantity	1
USB 2.0 Type-A ports quantity	2
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
AC (power) in
System requirements
Windows operating systems supported
Mac operating systems supported
Linux operating systems supported
Technical data
Audio outputs per console	Without
TP Network	RJ45 x1
Audio per CPU	Without
Number of CPU	8
Keyboard layout	CH (Swiss)
Data rate	480Mb/s
USB specification	USB 2.0
Resolution integrated display	1280x1024
Type 2	8-port VGA Single Rail
Display diagonal	19"
Screen connectors per console	1
Video outputs per console	SPHD male x1 (to VGA)
Fiber optic network	Without
Video inputs per CPU	SPHD female x1 (to VGA)
Periphery inputs per CPU	SPHD-15 female x1 (on USB, PS/2)
Type 1	KVM over IP switch with display
Peripheral outputs per console	USB for integrated console x2, SPHD connector (to USB or PS/2)
Max. resolution	1920x1200 / 60Hz
Number of consoles	1x remote, 1x external + 1x (integrated)
Audio microphone
Extension (daisy chain or cascading)
USB peripherals
Audio loudspeakers
Technical details
Material	Metal, Plastic
Product colour	Black
Operating relative humidity (H-H)	0 - 80%
KVM switch ports quantity	8
Maximum resolution	1920 x 1200 pixels
Security algorithms	128-bit RC4, RSA, SSL/TLS
Console port	SPHD-18
Number of computers controlled	128
Auto scan delay (min)	1 s
Auto scan delay (max)	255 s
Compliance certificates	RoHS
Rack capacity	1U
Hot-Plug support
Built-in KVM switch
Rack mounting
Daisy chain
On/off switch
LED indicators
Push button
Weight & dimensions
Width	689.2 mm
Height	44 mm
Depth	480 mm
Weight	13.4 kg

---
