ATEN CL5708iM LCD KVM Switch over IP USB-PS/2 VGA 8-port CH layout content_copy

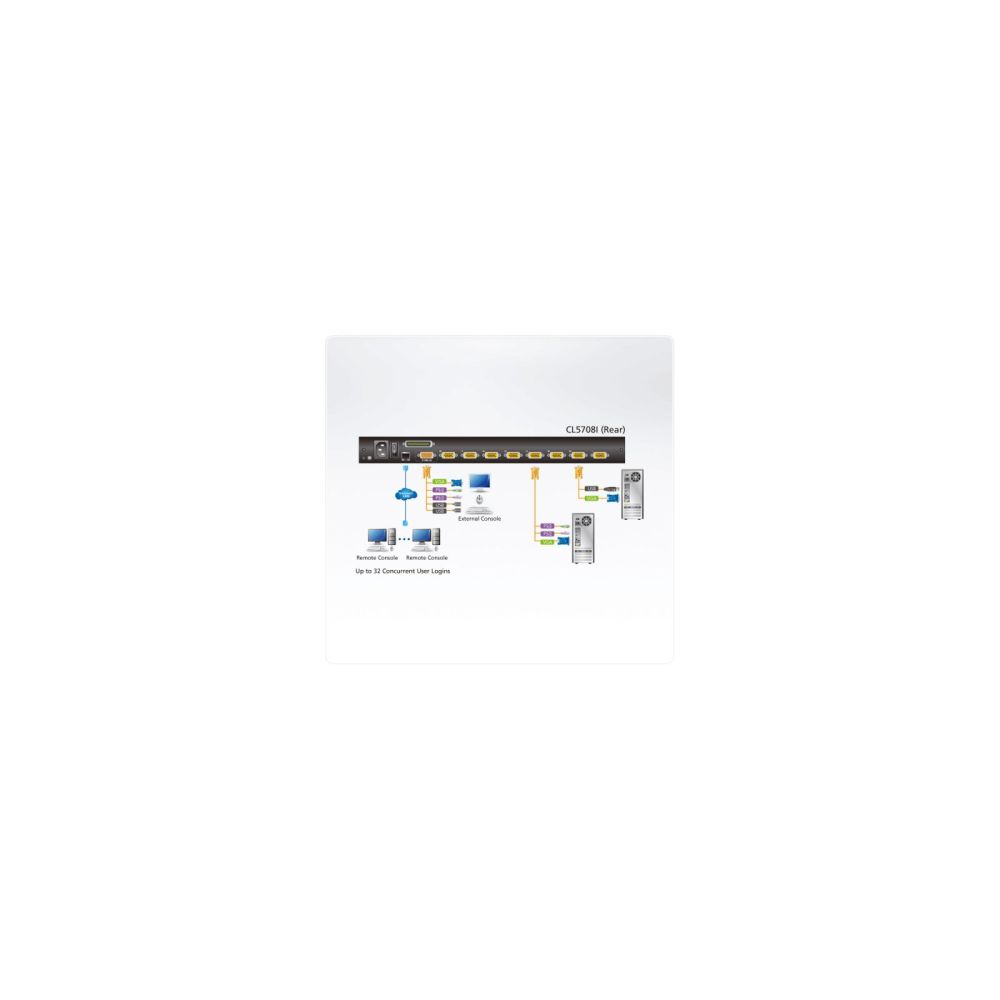

The CL5708I Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708I can control up to 8 computers. Up to 15 additional KVM switches can be daisy-chained to the CL5708I, so that up to 128 computers can all be controlled from a single KVM console.
The CL5708I LCD KVM Switch is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP / IP for its remote communications protocol. The CL5708I supports up to 32 concurrent user logins for a single-bus computer access. A built-in feature that resembles an Internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.

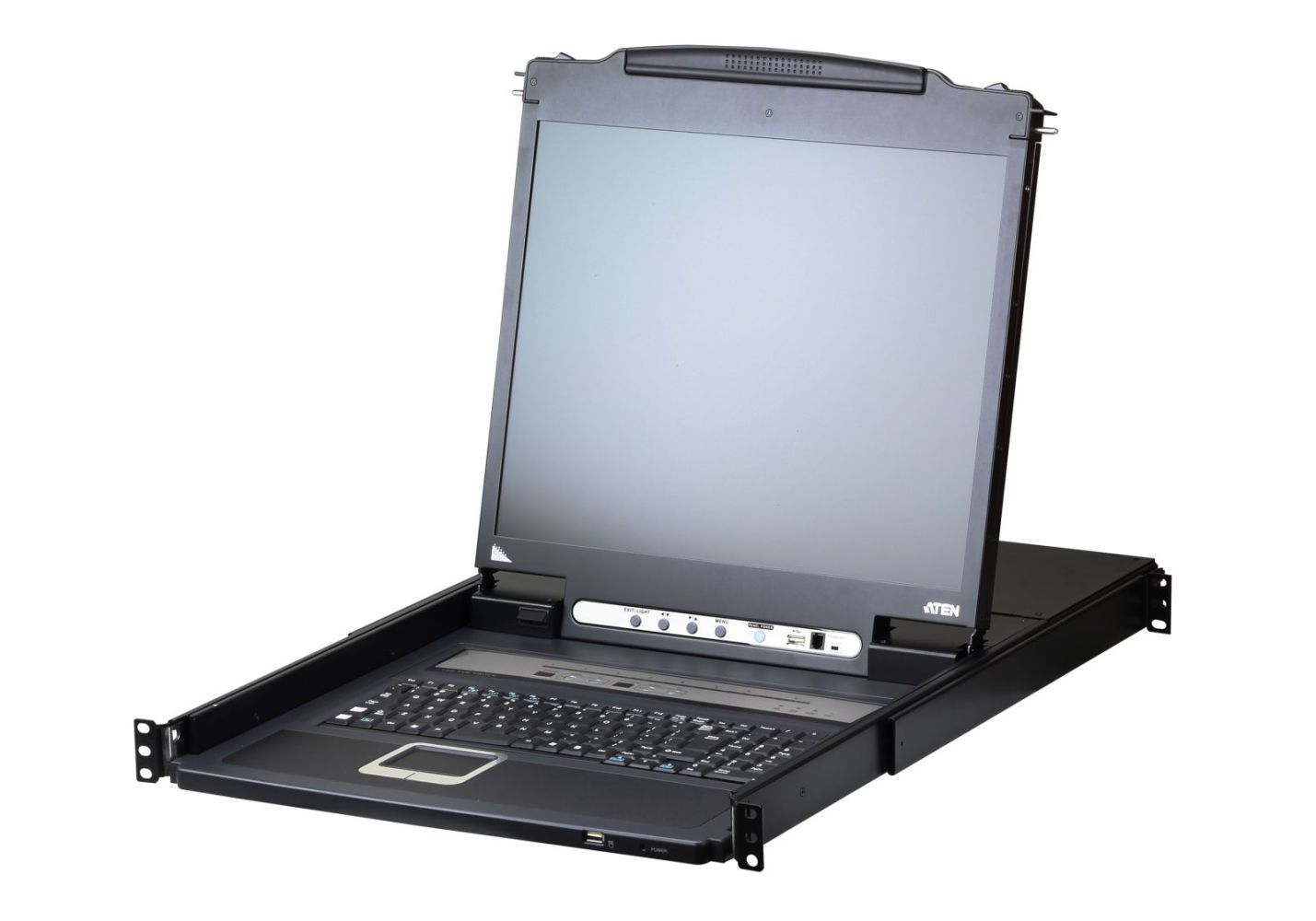

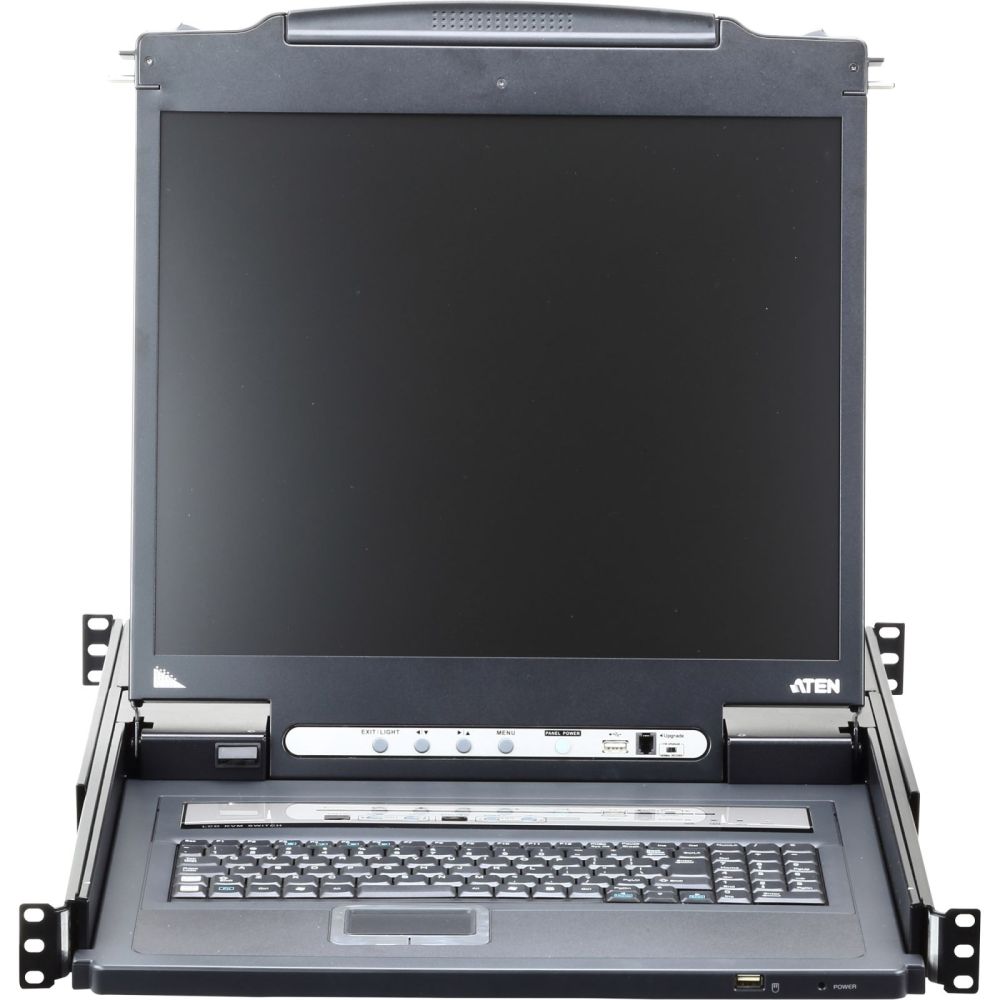

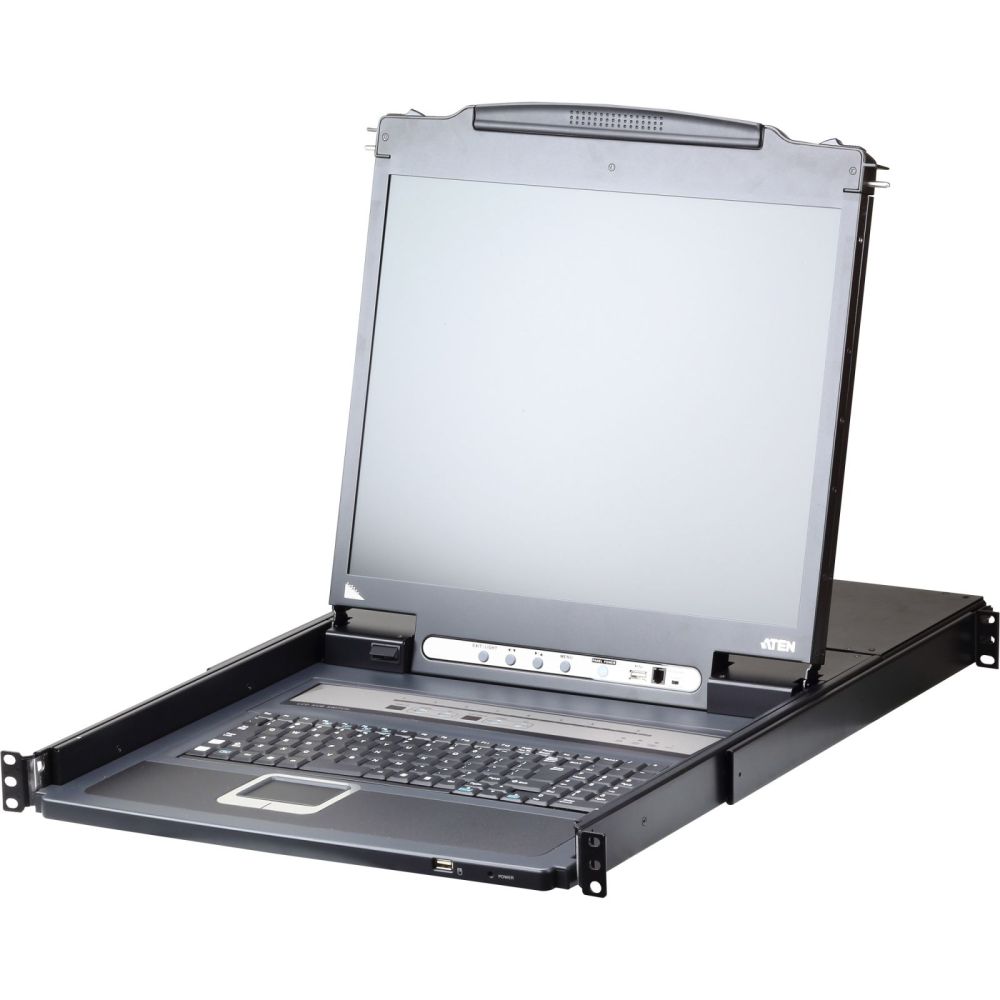

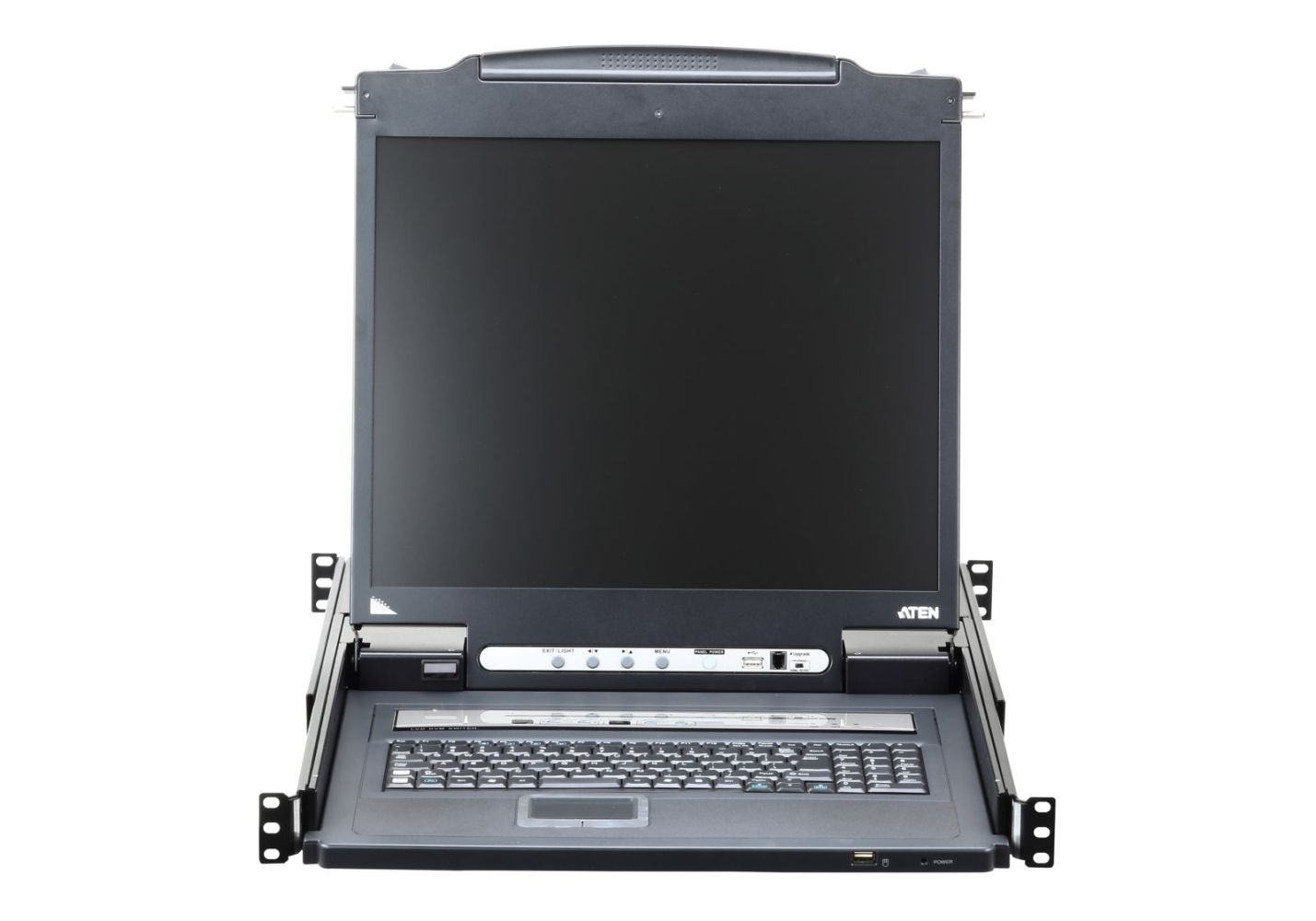

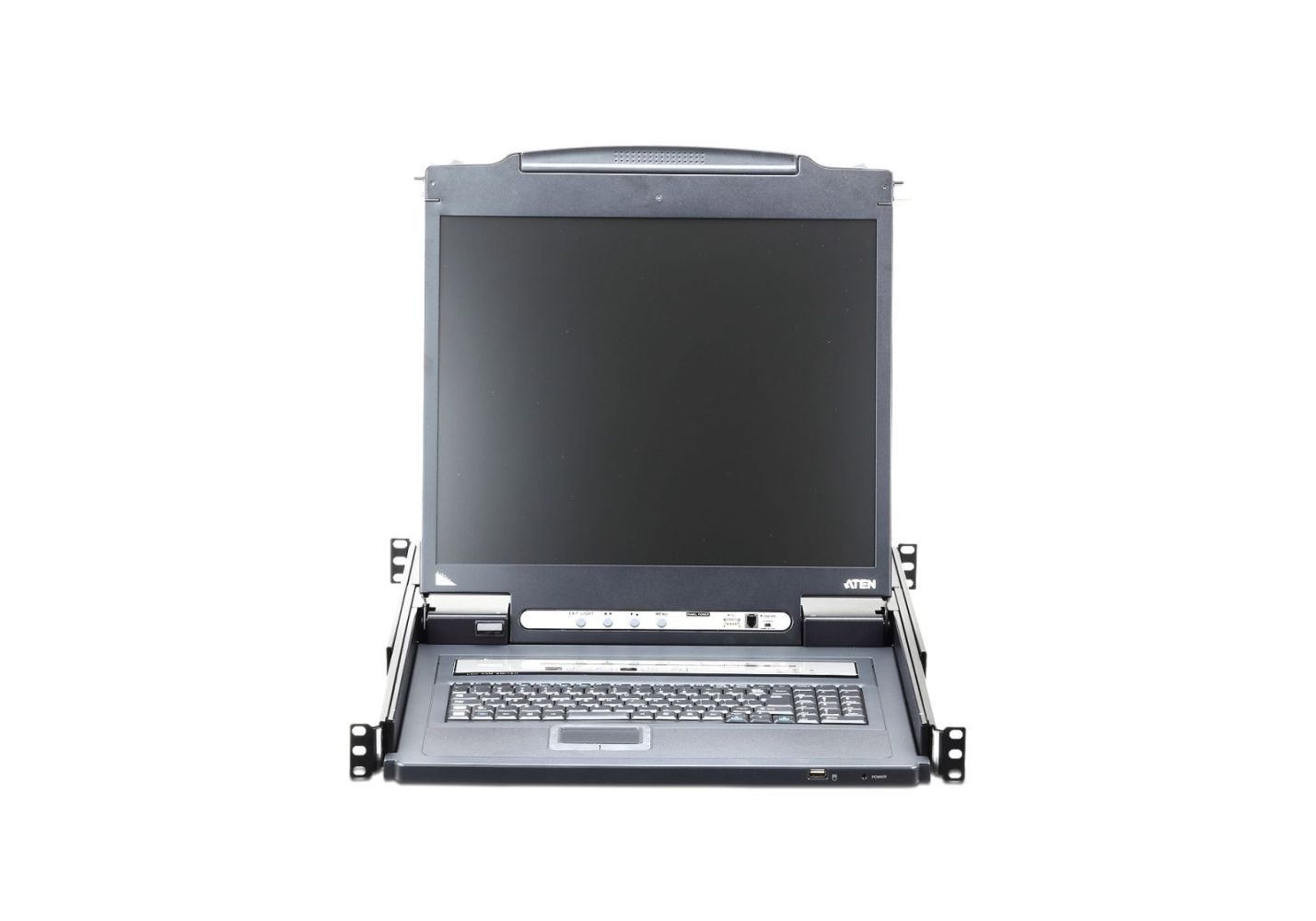

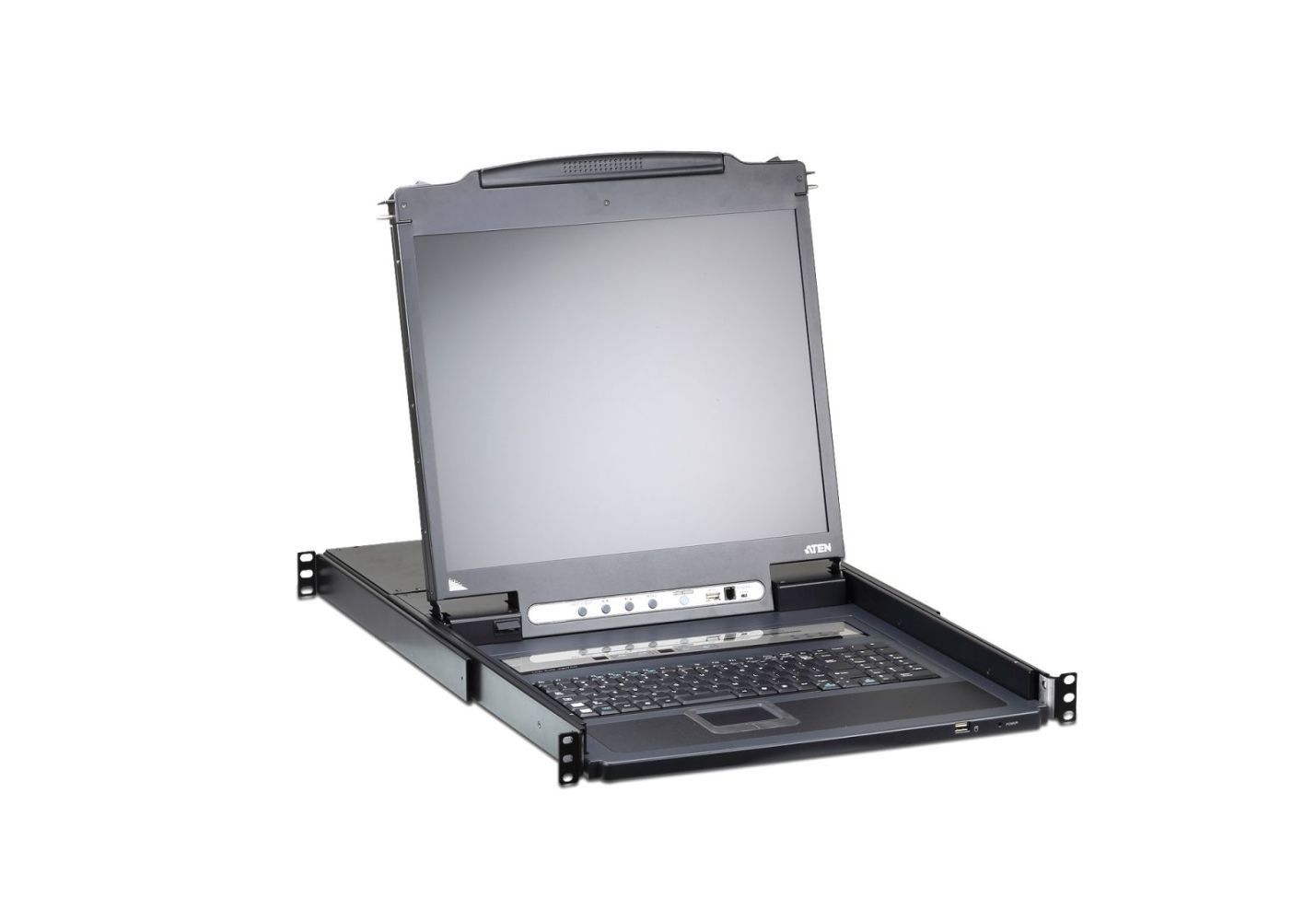

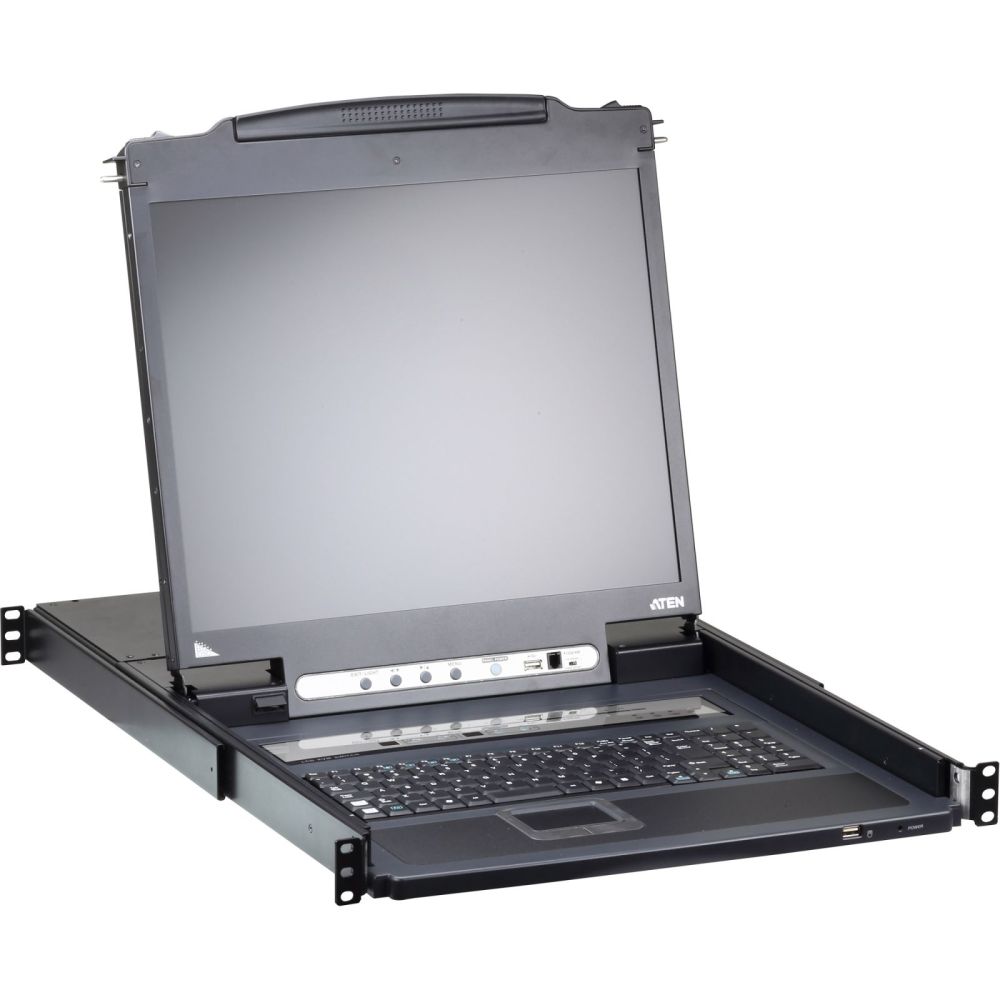

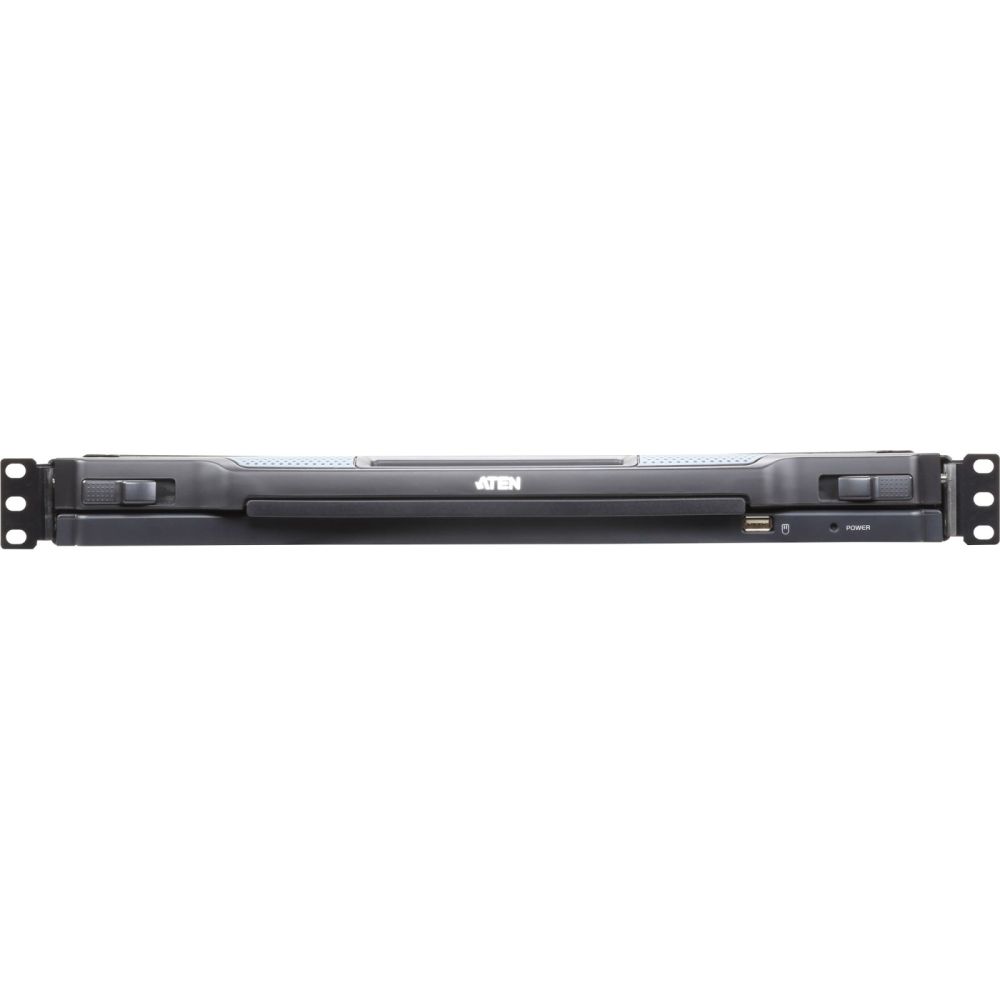

The CL5708I offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 43,2 cm ( 17 inch ) or 48,3 cm ( 19 inch ) LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. In addition, since the CL5708I is built on a modular design, the KVM section can be detached from the switch section for convenient maintenance and repair.
Among CL5708I's other outstanding features, the Panel Array Mode provides the ability to monitor the video output of the servers on the installation; while the Mouse DynaSync™ feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.
The CL5708I supports the highest security protocols, such as TLS 1.2 encryption for the browser, and RC4 encryption for secure keyboard, mouse, and video data transmission. For easier and more efficient user management integration, the CL5708I also supports authentication and authorization via 3rd party authorized servers, such as RADIUS, LDAP, LDAPS, and MS Active Directory.
HardwareExclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 43,2 cm ( 17 inch ) or 48,3 cm ( 19 inch ) LED-backlit LCD monitor in a Slideaway™ housing
Space saving technology - up to two consoles (one bus) control up to 8 computers
Daisy chain up to 15 additional units – control up to 128 computers from a single console (With compatible KVM Switches: ACS1208A, CS1708A,CS1716A)
Extra console port – manage computers from an external console (VGA monitor, USB or PS/2 keyboard and mouse)
Superior video quality - up to 1280 x 1024 @75 Hz; DDC2B for the local console; up to 1920 x 1200 @ 60Hz / 24 bit color depth for remote sessions
Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
LCD module USB port allows connected computers to access USB peripherals*
Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
Hot pluggable - add or remove computers without having to power down the switch
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Supports multimedia USB keyboards for Windows, Mac and Sun
Supports external USB mouse
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Rack mountable in a 1U system rack
Optional rack mount kits available including easy installation options
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Note: The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
ManagementConvenient computer selection via front panel pushbuttons, hotkeys and multi-lingual on-screen display (OSD) menus
Up to 32 concurrent logins
Multi-language web UI support featuring a tree-structured local and remote OSD
Adjustable video quality for flexible adaptation to diverse network environments
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast mode: operations from the keyboard can be simultaneously performed on all selected computers on the installation (software installation, system-wide shutdown, etc.)
Firmware upgrades to all the daisy-chained KVM switches (CS1708A, CS1716A) at the same time via the daisy-chain cable
Integration with CC2000 Centralized Management Software
Backup and restore configuration and user account settings
Event logging
IPv6 capable
Ease-to-Use InterfaceBrowser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multi-language interface to minimize user training time and increase productivity
Multiplatform support - Windows, Linux, Mac, and Sun
Multi-browser support (IE, Firefox, Safari, Opera, Edge)
Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
WinClient and JavaClient software support; JavaClient works with all operating systems
Beeper on / off via hotkey and OSD
Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
Advanced SecurityFlexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent Keyboard / Mouse and video data encryption
Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
Two level password security - only authorized users can view and control computers; up to 64 user accounts with separate profiles for each
External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
Support for IP / MAC Filter
Local and remote access logged and authenticated
Virtual Remote DesktopResizable remote desktop window
Message board allows logged-in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
Mouse DynaSync™
On-screen keyboard with multi-language support
BIOS-level access
Package Contents1x CL5708I LCD KVM over IP Switch with standard Rack Mount Kit
2x Custom KVM Cables (VGA, USB; 1.8 m/6 ft)
1x Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
1x Firmware Upgrade Cable
1x Power Cord
1x User Instructions
FunctionCL5708IM
Console Connections
Local1 (Share Remote Bus)
Remote1
Computer Connections
Direct8
Maximum128 (via Daisy-chain)
Port SelectionOSD, Hotkey, Pushbutton

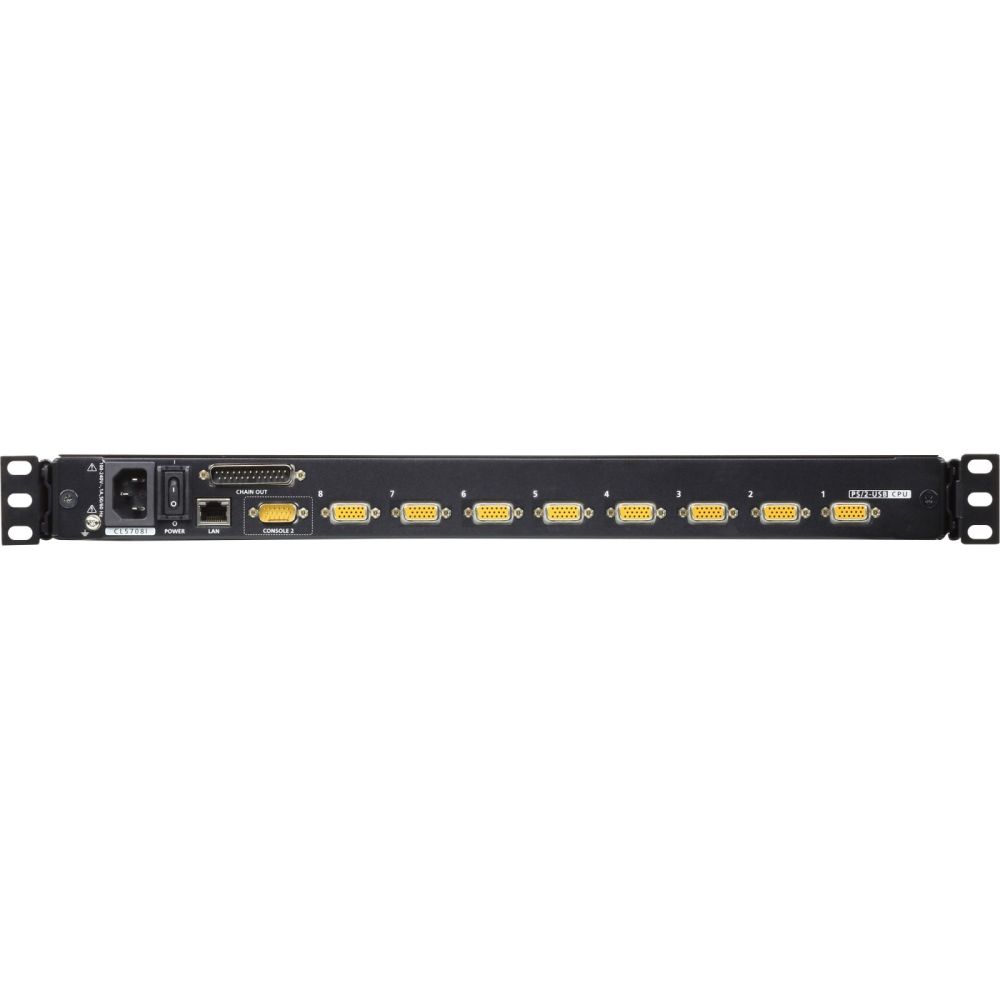

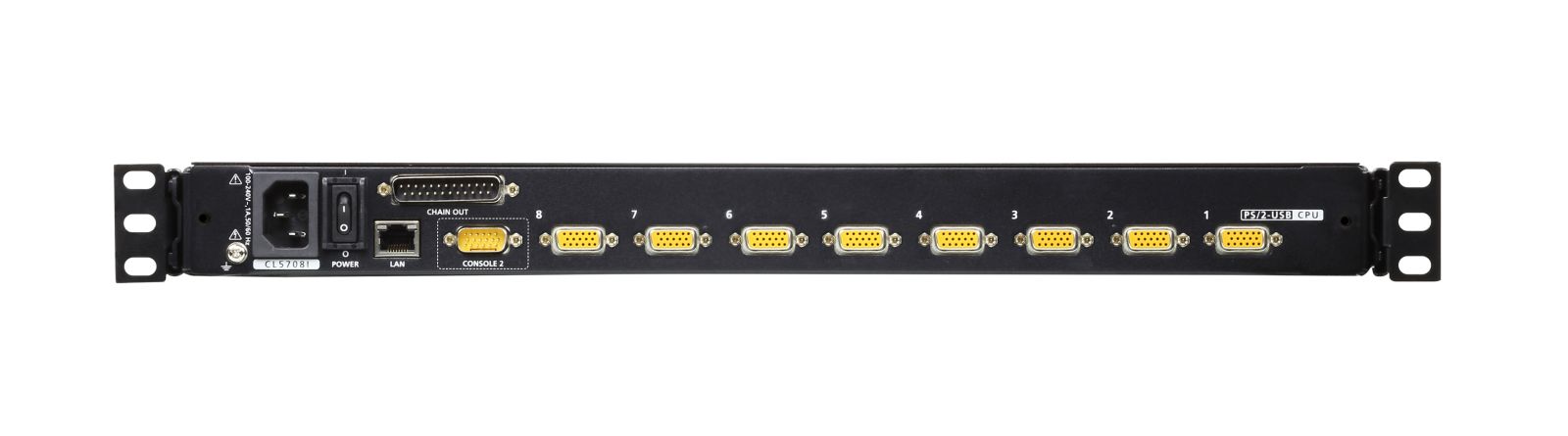

Connectors
External Console Ports1 x SPHD Male (Yellow)
External Mouse Port1 x USB Type-A Female
USB Port1 x USB Type-A Female
KVM Ports8 x SPHD Female
Daisy Chain Ports1 x DB-25 Male
Firmware Upgrade1 x RJ-11 Female
LAN Ports1 x RJ-45 Female
Power1 x IEC 60320/C14
Switches
Port Selection2 x Pushbuttons
Station Selection2 x Pushbuttons
Reset1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Switch
Power1 x Rocker Switch
LCD On/Off1 x LED Pushbutton (Orange)
LCD Adjustment4 x Pushbuttons
LEDs
Online8 x (Orange)
Port ID1 x 2-digit, 7-segment (Yellow)
Station ID1 x 2-digit, 7-segment (Yellow)
10/100 Mbps1 x (Orange/Green)
Power1 x (Dark Green)
Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
Video
Remote1920 x 1200 @60 Hz
Panel Spec
LCD Module43,2 cm ( 17 inch ) TFT-LCD
Resolution1280 x 1024 @75 Hz
Pixel Pitch0.264 mm x 0.264 mm
Response time5 ms
Viewing Angle170° (H), 160° (V)
Support Color16.7M colors
Contrast Ratio1000:1
Luminance250 cd/m²
Emulation
Keyboard / MousePS/2, USB
Scan Interval1-255 sec.
Maximum Input Power Rating100-240V AC, 50-60Hz, 1A
Power ConsumptionAC110V:26.8W:138BTU/h
AC220V:27.7W:143BTU/h
Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0-50°C
Storage Temperature-20-60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal + Plastic
Weight13.49 kg ( 29.71 lb )
Dimensions (L x W x H)48.00 x 64.27 x 4.40 cm
(18.9 x 25.3 x 1.73 in.)

Display
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Display	LCD
Display brightness	250 cd/m²
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Pixel pitch	0.264 x 0.264 mm
Display type	TFT
Response time	5 ms
Supported resolutions	1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz
On Screen Display (OSD)
Keyboard
Keyboard language	Swiss
Keyboard layout	QWERTZ
Built-in touchpad
Hot keys
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging content
Cables included	AC, KVM
Quick installation guide
Manual
Rack mount kit
Ports & interfaces
Keyboard port type	USB
I/O ports	1x DB-25 1x RJ-11
Mouse port type	USB
Video port type	VGA
Serial ports quantity	1
RJ-45 ports quantity	1
USB 2.0 Type-A ports quantity	2
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
AC (power) in
System requirements
Windows operating systems supported
Mac operating systems supported
Linux operating systems supported
Technical data
Display diagonal	17"
Audio per CPU	Without
Resolution integrated display	1280x1024
Type 1	KVM over IP switch with display
Screen connectors per console	1
Video outputs per console	SPHD male x1 (to VGA)
Periphery inputs per CPU	SPHD-15 female x1 (on USB, PS/2)
Fiber optic network	Without
USB specification	USB 2.0
Type 2	8-port VGA Single Rail
Max. resolution	1920x1200 / 60Hz
Number of consoles	1x remote, 1x external + 1x (integrated)
Number of CPU	8
Video inputs per CPU	SPHD female (to VGA) x1
Keyboard layout	CH (Swiss)
Data rate	480Mb/s
Audio outputs per console	Without
TP Network	RJ45 x1
Peripheral outputs per console	USB for integrated console x2, SPHD connector (to USB or PS/2)
Audio loudspeakers
Audio microphone
Extension (daisy chain or cascading)
USB peripherals
Technical details
Material	Metal, Plastic
Product colour	Black
Operating relative humidity (H-H)	0 - 80%
KVM switch ports quantity	8
Maximum resolution	1920 x 1200 pixels
Security algorithms	128-bit RC4, RSA, SSL/TLS
Console port	SPHD-18
Number of computers controlled	128
Auto scan delay (min)	1 s
Auto scan delay (max)	255 s
Compliance certificates	RoHS
Rack capacity	1U
Hot-Plug support
Built-in KVM switch
Rack mounting
Daisy chain
On/off switch
LED indicators
Push button
Weight & dimensions
Width	642.7 mm
Height	44 mm
Depth	480 mm
Weight	13.5 kg

---
