ATEN CL1000M KVM Console 43cm LCD VGA PS/2 Keyboard Layout D content_copy

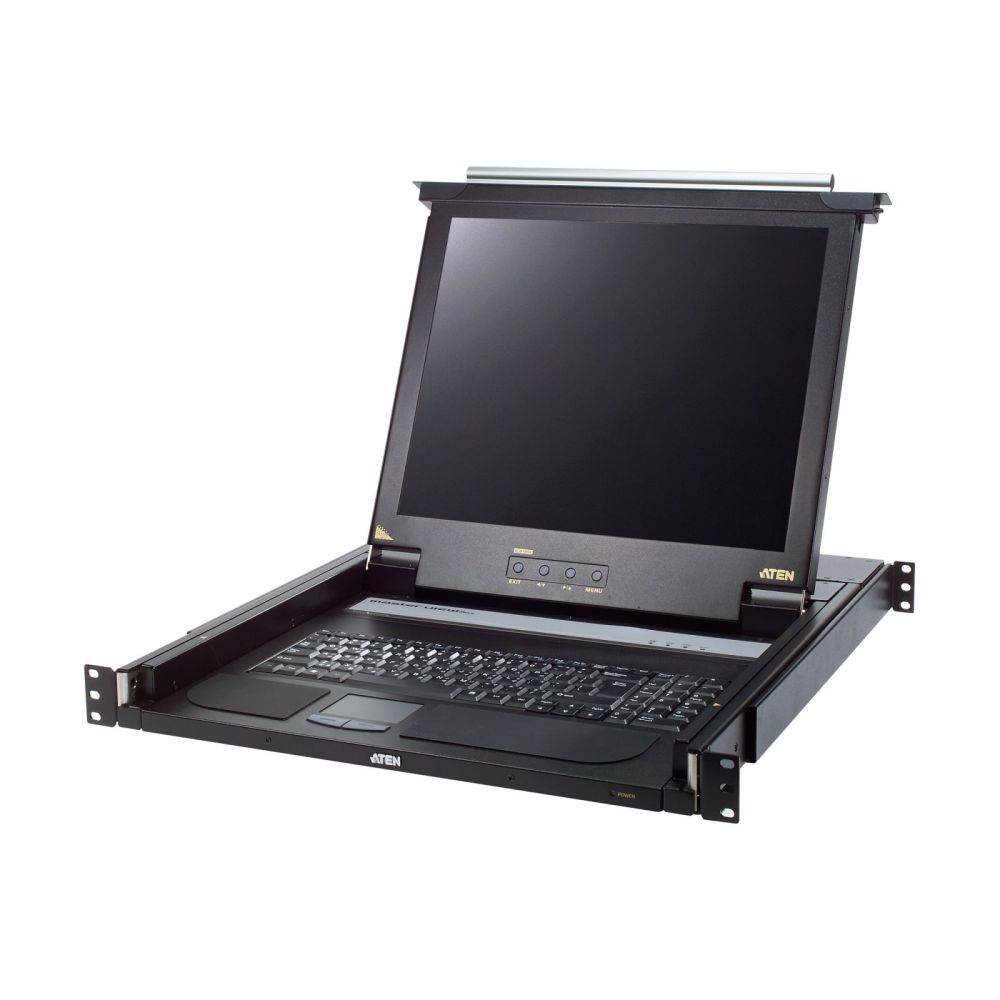

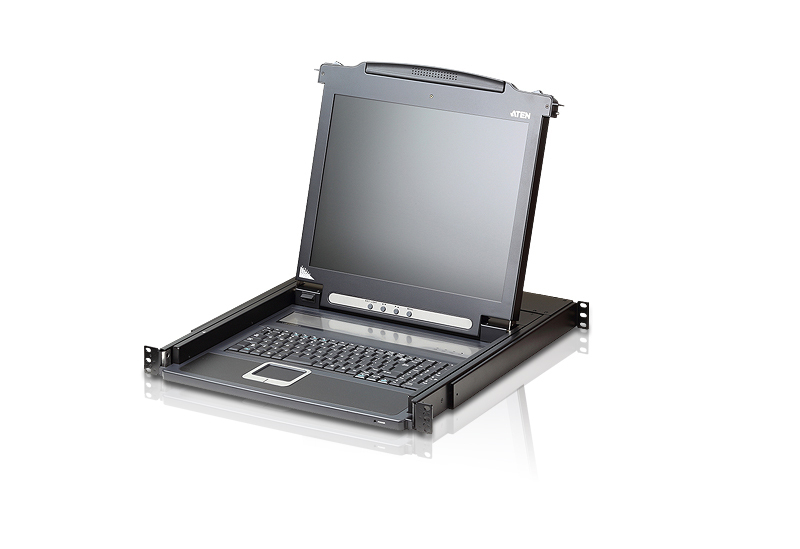

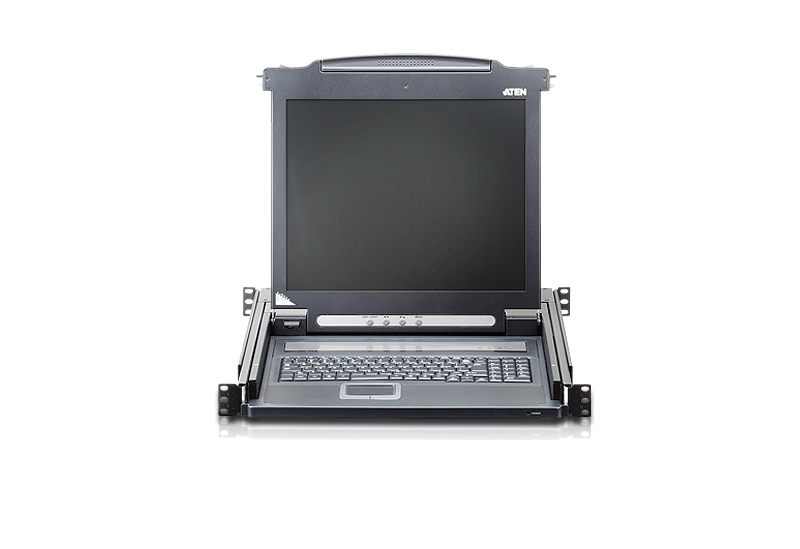

On order * Black, 17 LCD: 1280 x 1024 @ 75Hz, DDC2B, TFT: 1xSPHD-15 Socket Depth adjustable: 42-70cm, incl.1xConsolenkabel to PC or KVM 1.8m {TFT: 1xSPHD-15 connector, KVM: 1xVGA (HDB-15 connector), 2xMaus/Tastatur (PS / 2 connector)} 43,2 cm ( 17 inch )Single Rail LCD Integrated Console ATEN 's new economy LCD KVM console, CL1000M, offers a space-saving, streamlined approach to IT environments by integra ting a keyboard, 17 LCD monitor, and touchpad in a 1U Slide Away ™ housing. The LCD display is built into the cover, the keyboard and touchpad are built into the base. Setup is fast and easy. There is no software to configure, no installation routines, and no incompatibility problems. Slide the console module section out, flip up the cover, and you are ready to go to work. When finished, flip the cover down and slide the console module away back into the rack. There is no better way to save time and money than with a CL1000M installation. By using the CL1000M to manage your installation, you: (1) save all the space Those standard components, keyboard, mouse, and monitor, would take up, (2) eliminate the expense of having to purchase a separate keyboard, monitor, and mouse for each computer if attac go to a KVM switch, (3) take advantage of upgrading your current system, since CL1000M is compatible with all types of KVM switches, (4) save time for installation. Just connect the cable between CL1000M and a KVM or a computer, and the CL 1000M is ready to serve you. Distributor Part No.. : Contact Aten for part number@888.999.2836

Features:
Integrated KVM console featuring a 43,2 cm ( 17 inch )LCD monitor heigh in 1U. Compatible with all ATEN KVM Switches and most of KVM switch in the market Built in internal power 1280 x 1024 resolution Assures crisp video display Less than 1 U high mountable rack Adjustable depth to fit within the different racks

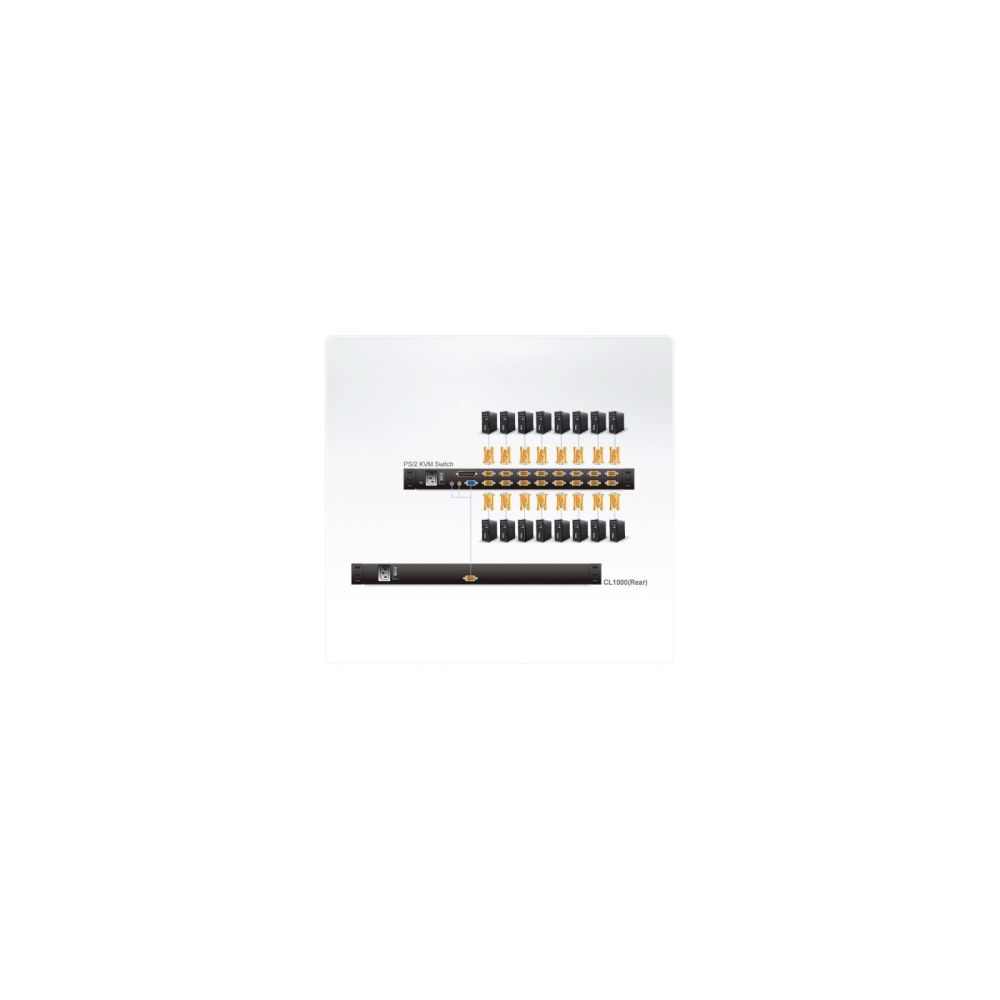

Diagram:
Requirements:
PS / 2 type KVM, or computers with PS / 2 connections
Package Content:
1x CL-1000 Slide Away ™ Console Module with Standard Rack Mounting Kit 1 x Custom KVM Cable 6 ft. (PS2) 1 x Power Cord 1 x User Manual 1 x Quick Start Guide
Specification:
Physical Properties unit dimension 23.6 x 18.9 x 1.8 in. * Metal Housing Unit Package Dimensions 28.3 x 26.8 x 5.6 in. 42.0 lb Unit Weight with package. Unit Weight 30.0 lb Environment Operation Temperature 32F ~ 122F (0C ~ 50C) Storage Temperature-4F ~ 140F (-20C ~ 60C) Humidity 0 ~ 80% RH Power Connector 3 prong AC socket 1 Computer Connections Direct Emulation Mouse PS / 2 Keyboard PS / 2 CPU Connectors Keyboard, Mouse, and Monitor 1 x SPHD 15 Female Power Consumption 22.8W 120V 60Hz / 230V 50Hz 24W
