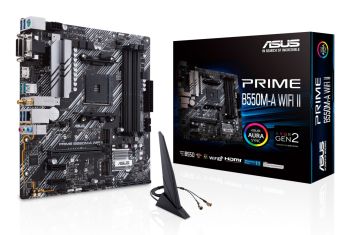

Motherboard ASUS PRIME B550M-A (WI-FI II) (AMD,AM4,DDR4,mATX)
|
110,63 EUR 111,04 EUR |
|
|
( 131,65 EUR incl. VAT ) ≈ £92.60 | ≈ $123.35 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1930978 |
| Mfg Part No: | 90MB19X0-M0EAY0 |
| UPC/EAN: | 4711081309741 |
| Weight: | 1.18 kg |
Product information for ASUS 90MB19X0-M0EAY0:
Sockel LGA AM4, B550, micro-ATX, HDMI, DVI, VGA, DDR4, Gb-LAN, PCIe 4.0 x16, HD Audio, M.2, SATA-6 Gb/s, USB-C, USB 3.2, USB 3.1, USB 3.0, USB 2.0, WiFi 6
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| Features | |
| Motherboard chipset | AMD B550 |
| Audio output channels | 7.1 channels |
| Product colour | Multicolour |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| S/PDIF out connector | |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| RGB LED pin header | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800,4866 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.2 |
| Ethernet LAN | |
| Wake-on-LAN ready | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Weight | 845 g |
| Packaging content | 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package 1 x Support DVD 1 x User manual |
| Packaging content | |
| Cables included | SATA |
| Drivers included | |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| WiFi-AP antenna jack | 1 |
| USB connector type | USB Type-A |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 67 mm |
