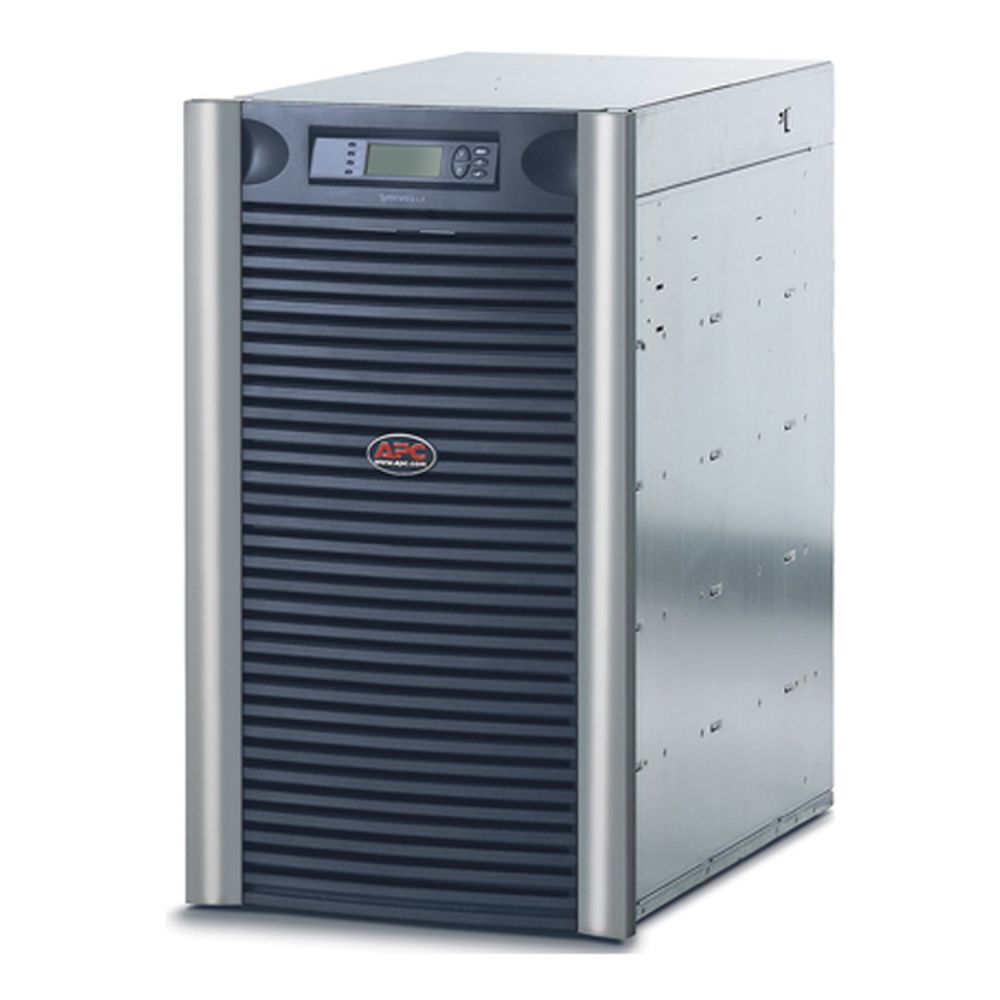

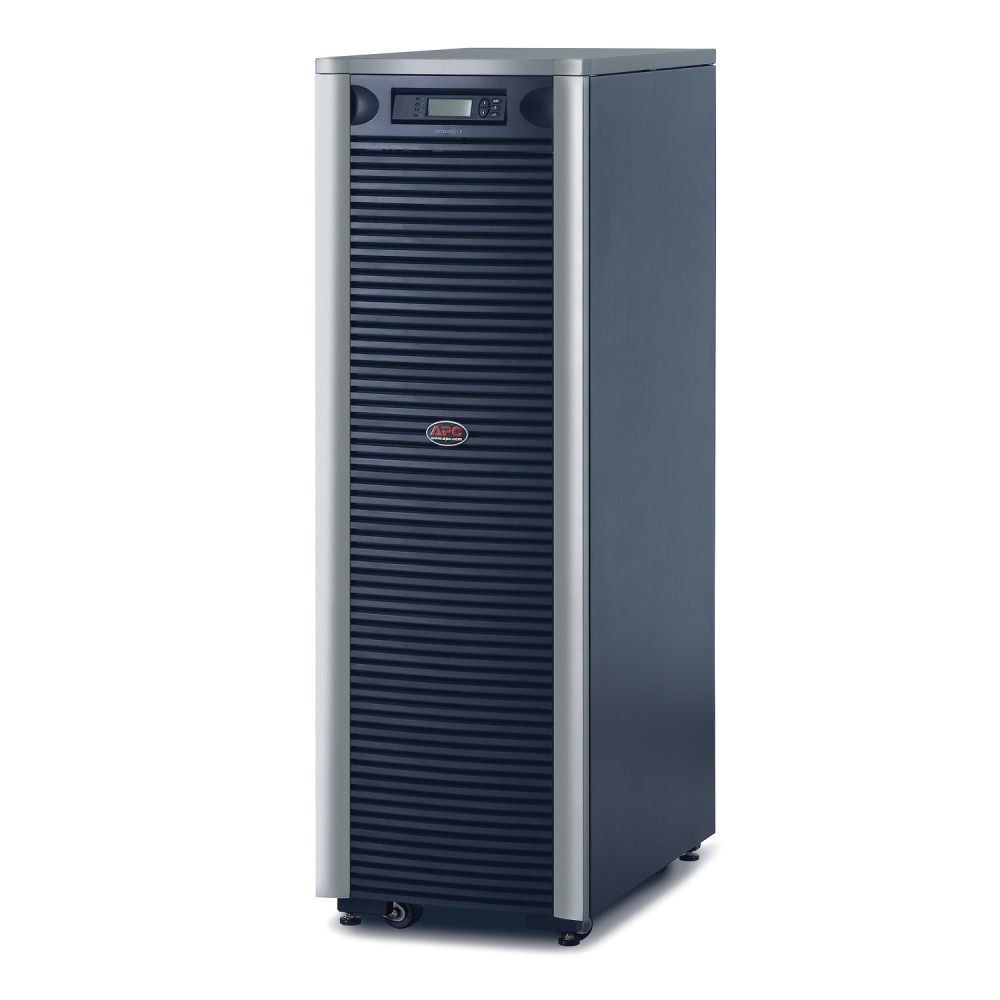

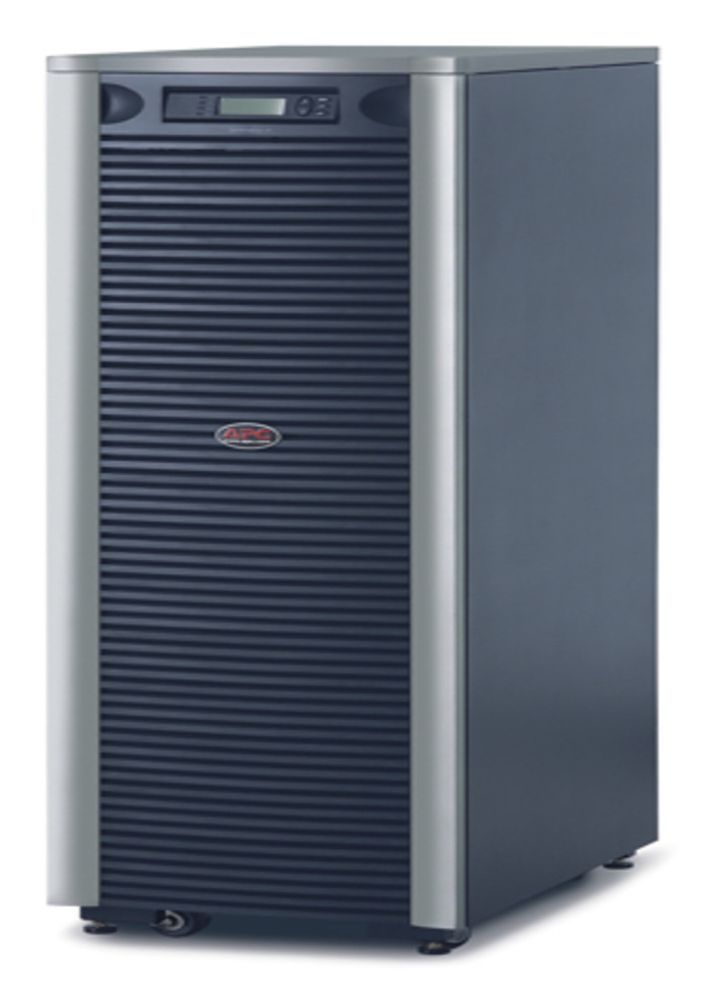

APC SYA16K16IXR SYMMETRA LX 8KVA TO 16KVA
|
29.545,00 EUR |
|
|
( 35.158,55 EUR incl. VAT ) ≈ £25,083.70 | ≈ $33,297.22 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1688675 |
|---|---|
| Mfg Part No: | SYA16K16IXR |
| UPC/EAN: | 5907176130140 |
| Weight: | 543 kg |
| Type: | ACCS |
Product information for APC SYA16K16IXR:
| Battery | |
| Battery replacement accessibility | End-user |
| Typical backup time at full load | 24.7 min |
| Typical backup time at half load | 55.4 min |
| Battery recharge time | 7.5 h |
| Replacement battery cartridge | SYBT5 |
| Certificates | |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | C-Tick; CE; GOST; VDE |
| Waste Electrical and Electronic Equipment (WEEE) compliance | |
| Design | |
| Product colour | Black, Silver |
| Compatibility | C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 55024,EN 60950,GOST,IEC 60950,VDE |
| Features | |
| Output power capacity | 16 kVA |
| Output power | 11200 W |
| Waveform | Sine |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Single-phase input voltage supported | 240,220 V |
| Three-phase input voltage supported | 220,380,400,415 V |
| Emergency Power Off (EPO) | |
| Audible alarm(s) | |
| Logistics data | |
| Customs product code (TARIC) | 8504409590 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 48644.1128599416 |
| Country of origin | Philippines |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Other features | |
| I/O ports | (1) Hard Wire 3-wire (H N + G) Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G) |
| Battery type | Lead-Acid |
| Interface | DB-9 RS-232,Smart-Slot |
| Output connections | (1) Hard Wire 3-wire (H N + G) |
| Input connection type | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) | 483 x 726 x 1516 mm |
| Nominal output voltage | 230 V |
| Output voltage note | 220: 230, 240 |
| Nominal input voltage | 230-400 V |
| Output connection type | hard wire 3-wire (H N + E) for 1 zone(s) |
| Output voltage | 220 V |
| Mounting | front |
| Package dimensions (WxDxH) | 599 x 997 x 1880 mm |
| Packaging data | |
| Package weight | 535.5 kg |
| Ports & interfaces | |
| AC outlet types | Hardwire |
| Power | |
| Input current (max) | 73 A |
| Technical details | |
| Packaging recycled materials | Recycled cardboard |
| Preferred mounting position | no preference |
| Sustainable packaging | |
| Take-back system | |
| Packaging without single use plastic | |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 726 mm |
| Height | 1516 mm |
| Weight | 503.6 kg |
Questions & answers
What is the delivery time of APC SYA16K16IXR SYMMETRA LX 8KVA TO 16KVA?
The article APC SYA16K16IXR SYMMETRA LX 8KVA TO 16KVA is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SYA16K16IXR to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC SYA16K16IXR SYMMETRA LX 8KVA TO 16KVA always at the best possible price. We can give you a discount of 2% on APC SYA16K16IXR SYMMETRA LX 8KVA TO 16KVA if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
