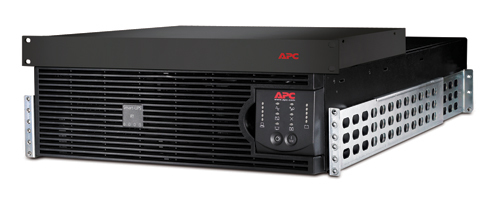

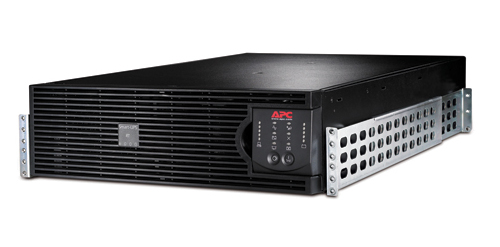

APC Smart-UPS Dual Conversion Online UPS - 6000 VA/4200 W - 3U Rack-mountable content_copy

A versatile UPS developed for the harshest power conditions in the world. Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The entire Smart-UPS On-Line family provides value to customers with demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Battery
Battery recharge time	2.5 h
Certificates
Compliance certificates	RoHS
Certification	CE, REACH
Design
Form factor	Rackmount
Rack capacity	3U
Cooling type	Active
Product colour	Black
LED indicators	Battery replacement
Features
Output power capacity	6 kVA
Output power	4200 W
Input operation voltage (min)	100 V
Input operation voltage (max)	280 V
Input frequency	45/65 Hz
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Output frequency regulation	50/60 Hz
Output voltage regulation	1%
Surge energy rating	480 J
Efficiency	92%
Audible alarm modes	Battery replacement
Emergency Power Off (EPO)
Audible alarm(s)
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Packaging data
Package width	603 mm
Package depth	980 mm
Package height	347 mm
Package weight	63.6 kg

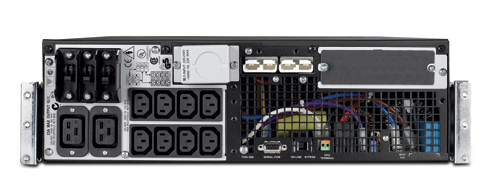

Ports & interfaces
AC outlet types	C13 coupler, C19 coupler
AC outlets quantity	10 AC outlet(s)
Number of output IEC jumpers	4
RS-232 ports	1
Weight & dimensions
Width	130 mm
Depth	660 mm
Height	432 mm
Weight	54.5 kg

---
