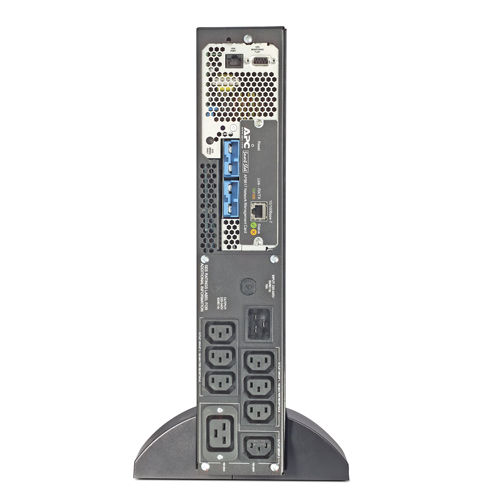

APC Smart-UPS Line-interactive UPS - 3000 VA/2850 W - 2U Tower/Rack Mountable content_copy

APC Smart-UPS XL protects your data by supplying reliable, network-grade power with scalable run-time in tower and rack mount form factors. With optional, matching battery packs, run-time can be easily extended and optimized for the application. APC understands long run-time requirements so; Smart-UPS XL's can be configured with up to 10 additional battery packs - for run-times exceeding 24 hours, if necessary. The convergence of voice and data networks is placing higher demands on availability expectations - and the Smart-UPS XL delivers. Voice over Internet Protocol (VoIP), e-commerce, WiFi (hotspots, WLAN/ WWAN, and mixed wireless), and data enabled PBX's are a few of the applications driving the need for Smart-UPS XL. APC Smart-UPS XL is also the perfect UPS for fileservers (Intel or UNIX based), minicomputers, Network switches and hubs, ATM's, telecommunications systems and other mission-critical applications requiring longer runtime.With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management (All major operating systems supported). Connectivity is through a serial or USB port. Additional manageability is available through the SmartSlot, an internal accessory slot that allows you to install optional accessories to enhance the performance of your UPS. Network connection with Web browser management and/or environmental monitoring, serial port expansion, and out-of-band management options are available. With pure sine-wave output ensuring compatibility with all connected devices, Intelligent Battery Management ensuring a highly available UPS and an advanced 16 segment bar graph display ensuring information and management, the Smart-UPS XL is a UPS you can count on.

Battery
Typical backup time at full load	3.5 min
Typical backup time at half load	11.9 min
Replacement battery cartridge	RBC43
Design
Cable length	3 m
Product colour	Black
Features
Output power capacity	3 kVA
Output power	2850 W
Surge energy rating	490 J
Emergency Power Off (EPO)
Logistics data
Harmonized System (HS) code	85078000
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Other features
I/O ports	Pre-Installed SmartSlot Card - AP9617
Battery type	VRLA
Interface	DB-9 RS-232, RJ-45 10/100 Base-T, USB
Output connections	(7) IEC 320 C13 (1) IEC 320 C19 (4) IEC Jumpers
Input connection type	IEC-320 C20
Dimensions (WxDxH)	430 x 680 x 90 mm
Nominal output voltage	230 V
Filtering description	0.3% IEEE/UL 1449
Nominal input voltage	230 V
Networking features	Y
Packaging data
Bundled software	CD with software
Ports & interfaces
AC outlet types	IEC 60320
Weight & dimensions
Weight	47 kg

---
