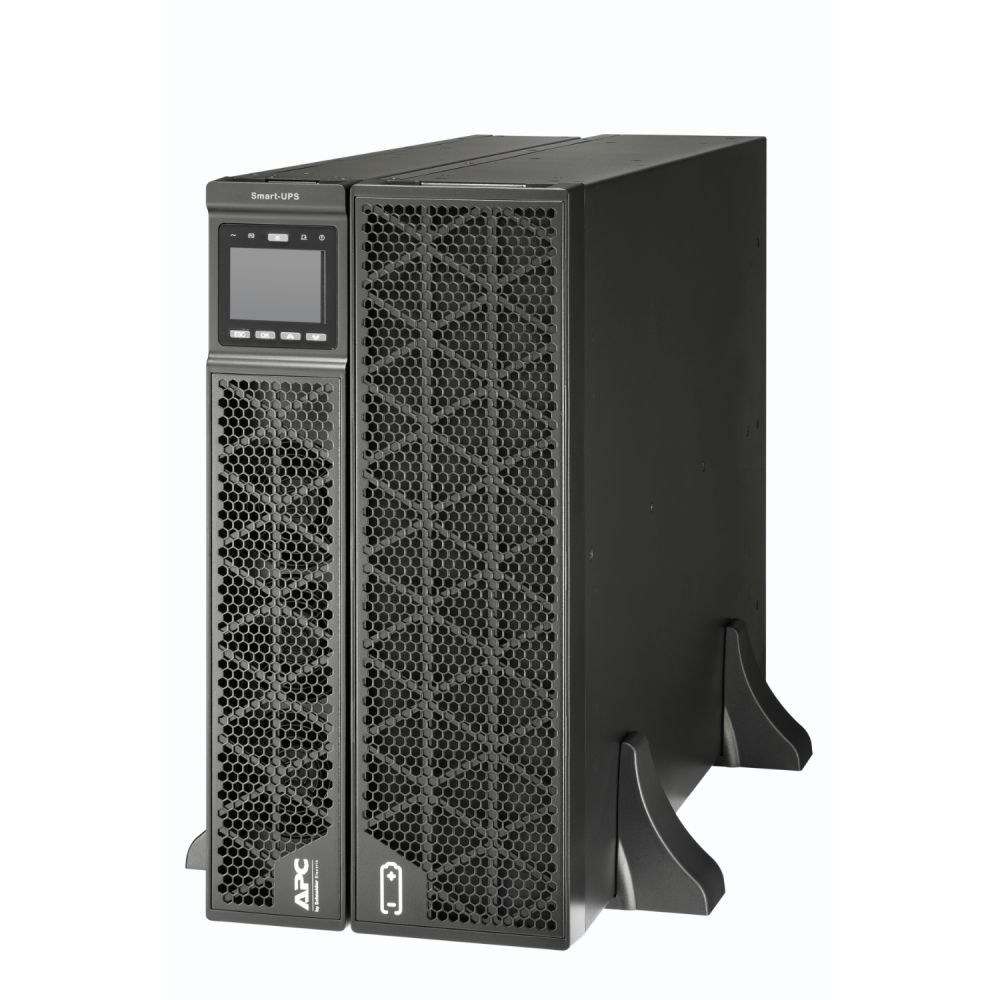

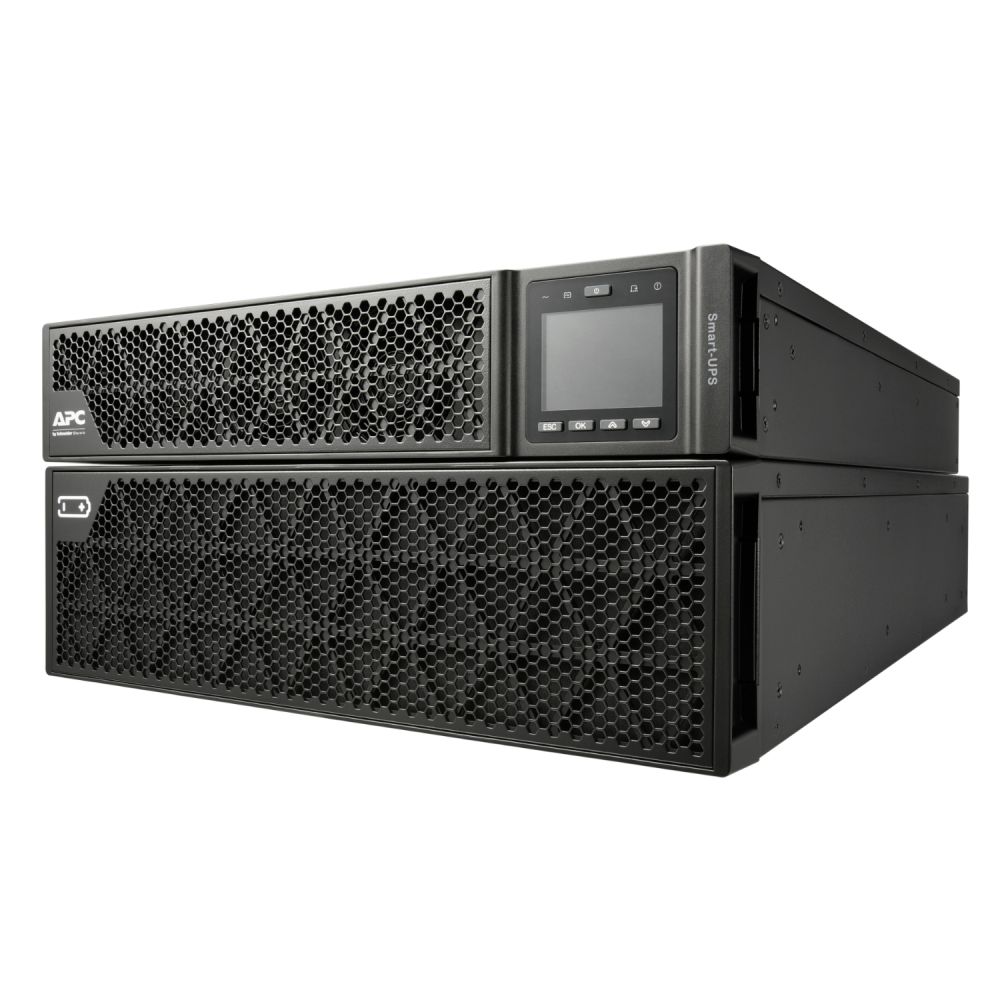

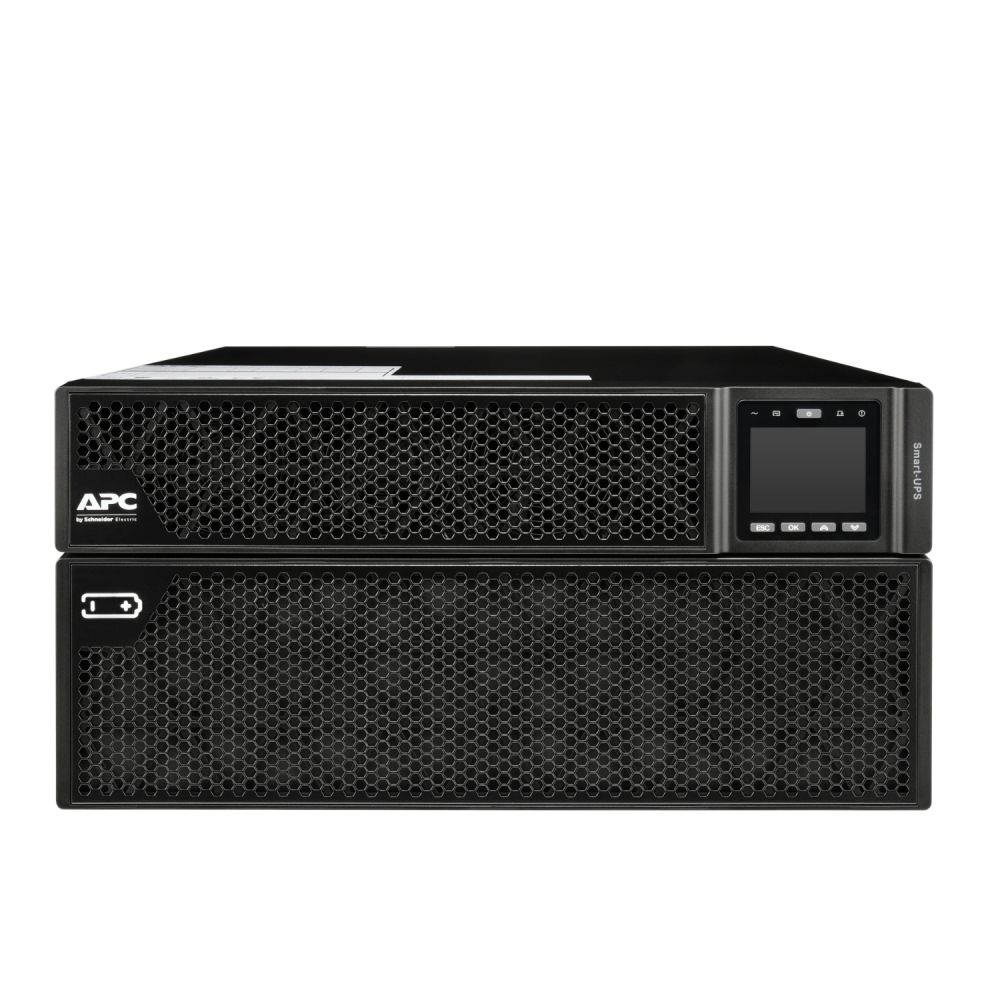

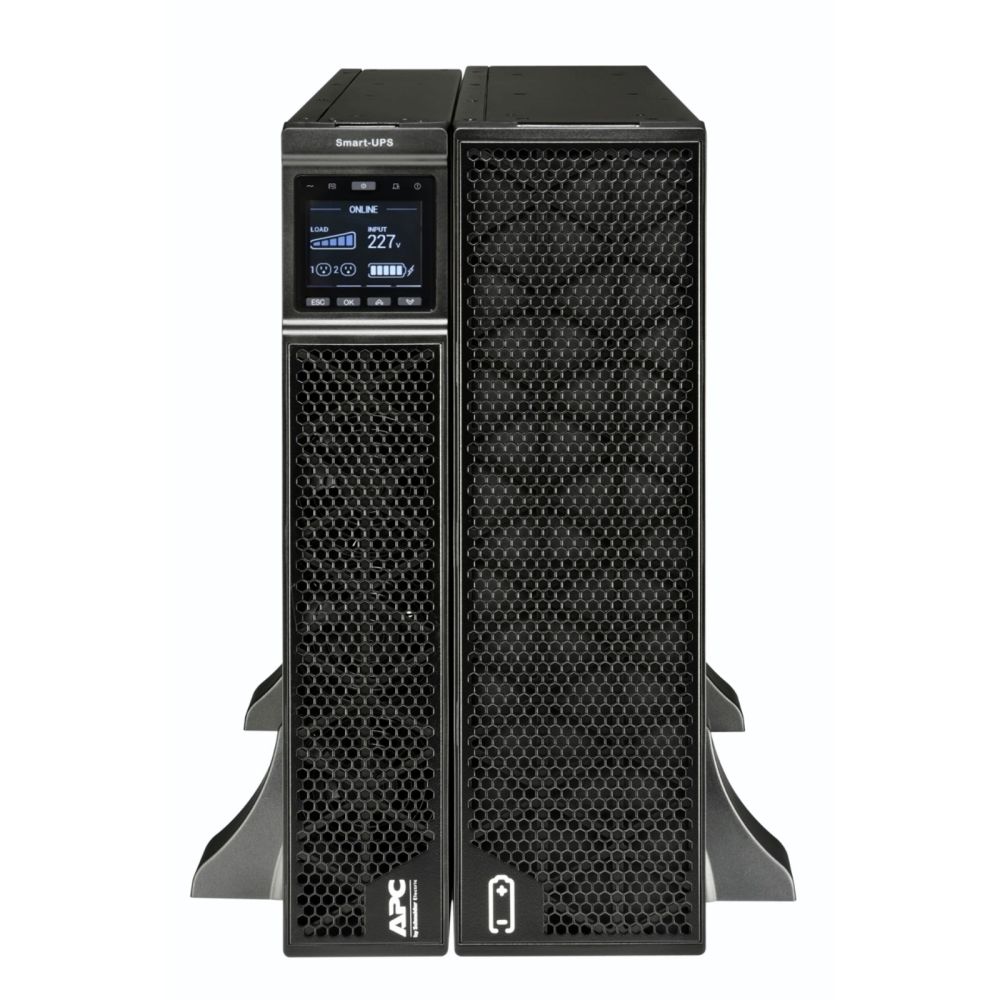

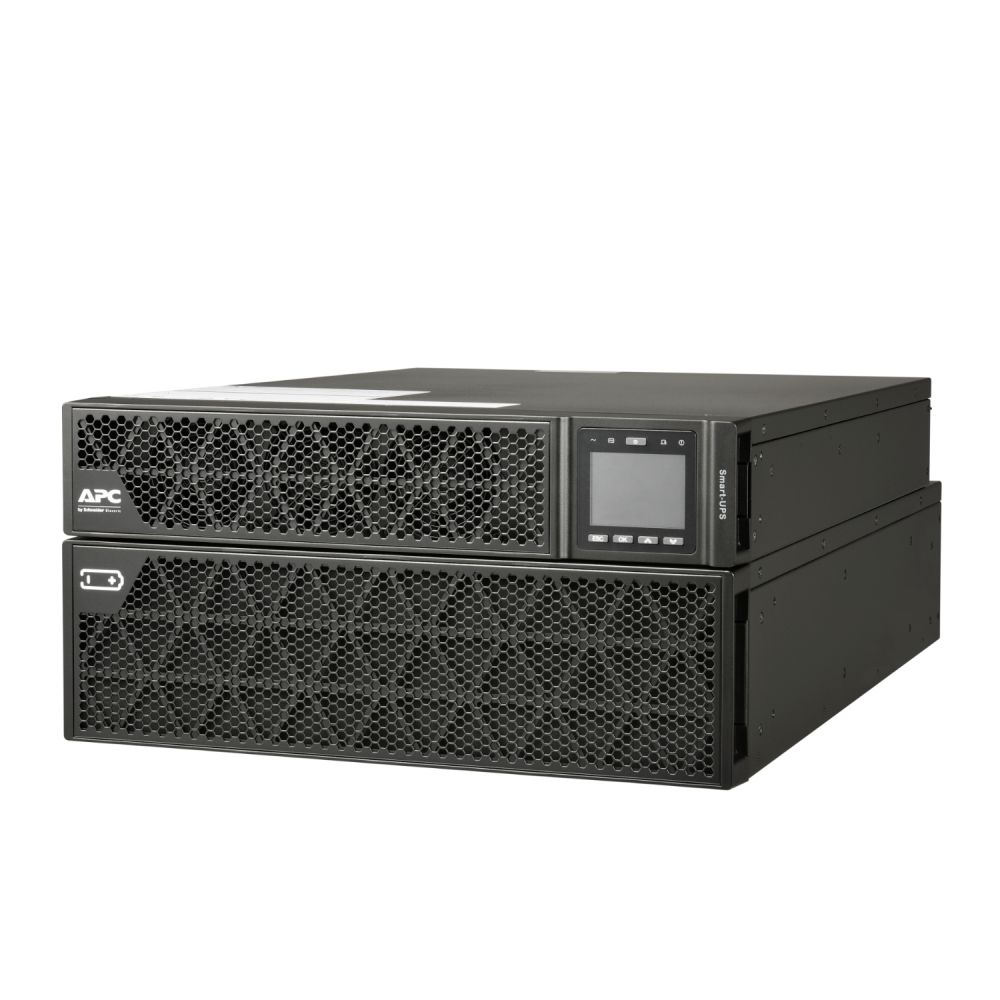

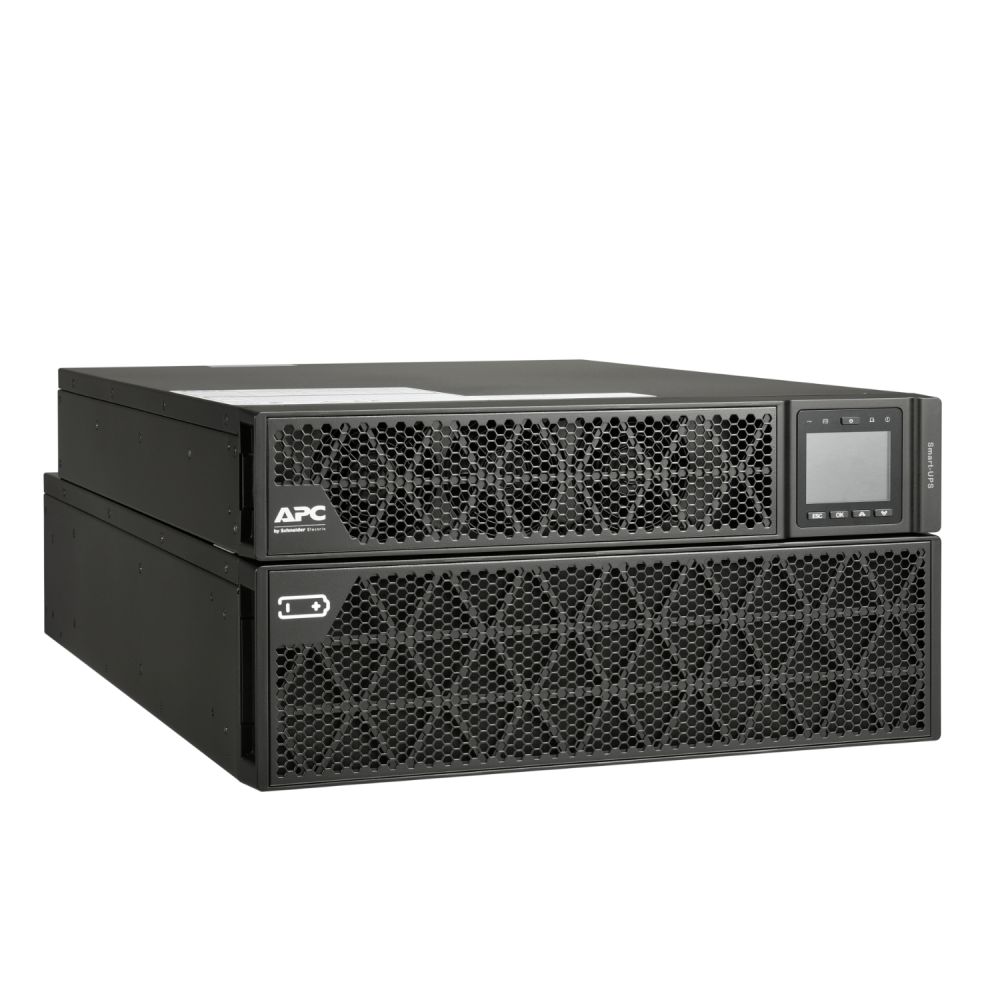

APC Smart-UPS On-Line 10kVA 10kW Tower 230V 2x IEC C13+1x IEC C19+Hard wire 3-wire H+N+E outlets Network Card wo rail kit
|
8.336,25 EUR |
|
|
( 9.920,14 EUR incl. VAT ) ≈ £6,985.78 | ≈ $9,361.61 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2019547 |
| Mfg Part No: | SRTG10KXLI |
| UPC/EAN: | 0731304411864 |
| Weight: | 131.5 kg |
| Type: | ACCS |
Product information for APC SRTG10KXLI:
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 96 V |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 4 h |
| Hot-swap battery | |
| Automatic battery test | |
| Cold start | |
| Design | |
| Form factor | Rackmount/Tower |

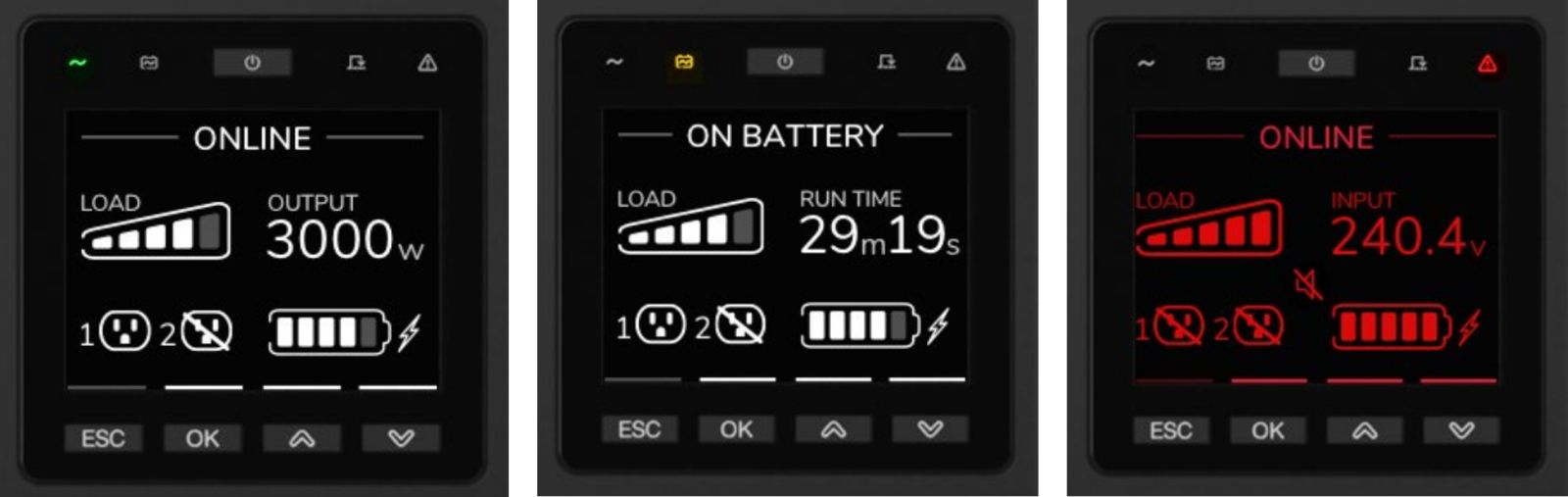

| Display type | LCD |
| International Protection (IP) code | IP20 |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 285 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 600 J |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| ECO mode | |
| Audible alarm(s) | |
| Auto-restart | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2011.68 m |
| Non-operating altitude | 0 - 15240 m |
| Packaging content | |
| Management card included | |
| Packaging data | |
| Package width | 590 mm |
| Package depth | 790 mm |
| Package height | 414 mm |
| Package weight | 83.1 kg |

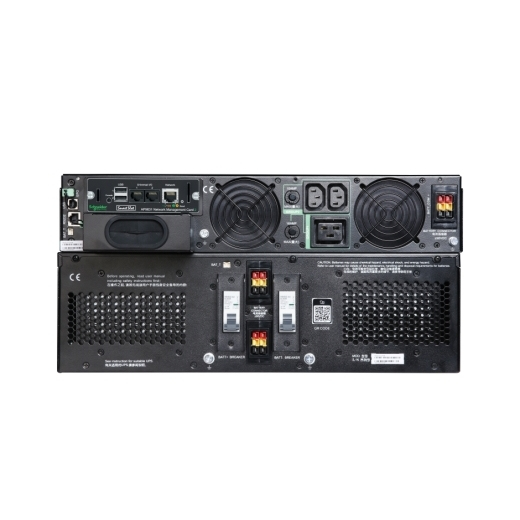

| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Hardwire |
| AC outlets quantity | 3 AC outlet(s) |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | |
| Serial interface | |
| Emergency Power Off (EPO) connector | |
| SmartSlot | |
| SmartConnect port | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 620 mm |
| Height | 217 mm |
| Weight | 81.1 kg |
Questions & answers
What is the delivery time of APC Smart-UPS On-Line 10kVA 10kW Tower 230V 2x IEC C13+1x IEC C19+Hard wire 3-wire H+N+E outlets Network Card wo rail kit?
The article APC Smart-UPS On-Line 10kVA 10kW Tower 230V 2x IEC C13+1x IEC C19+Hard wire 3-wire H+N+E outlets Network Card wo rail kit is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SRTG10KXLI to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Smart-UPS On-Line 10kVA 10kW Tower 230V 2x IEC C13+1x IEC C19+Hard wire 3-wire H+N+E outlets Network Card wo rail kit always at the best possible price. We can give you a discount of 2% on APC Smart-UPS On-Line 10kVA 10kW Tower 230V 2x IEC C13+1x IEC C19+Hard wire 3-wire H+N+E outlets Network Card wo rail kit if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
