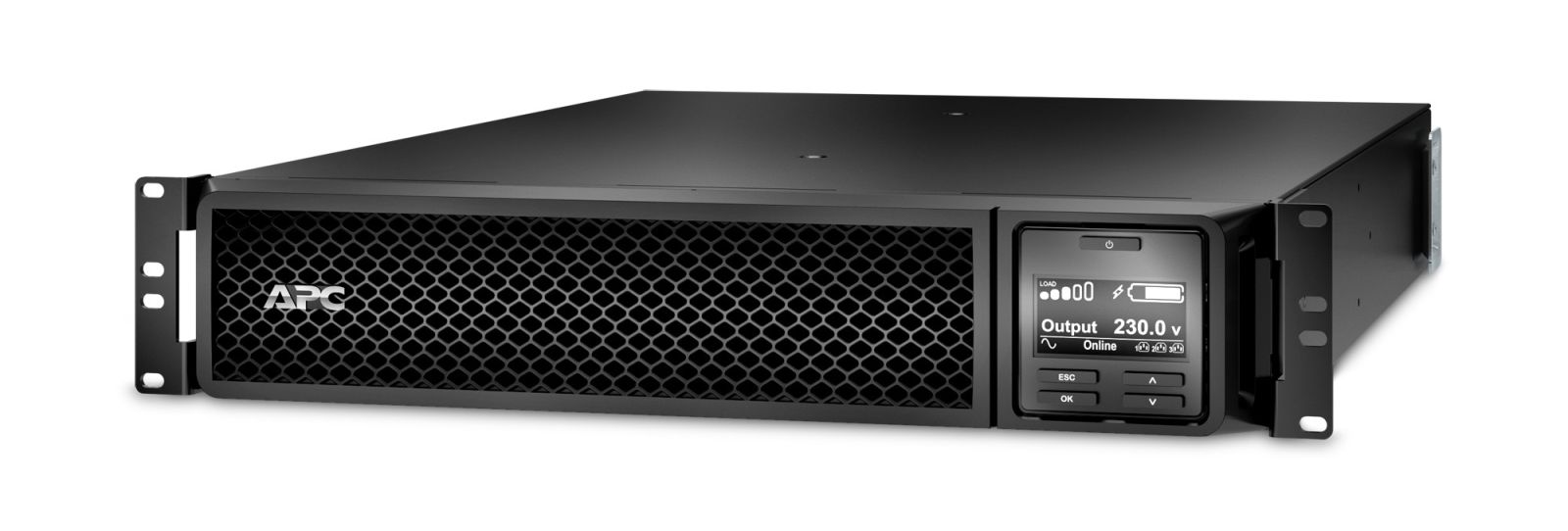

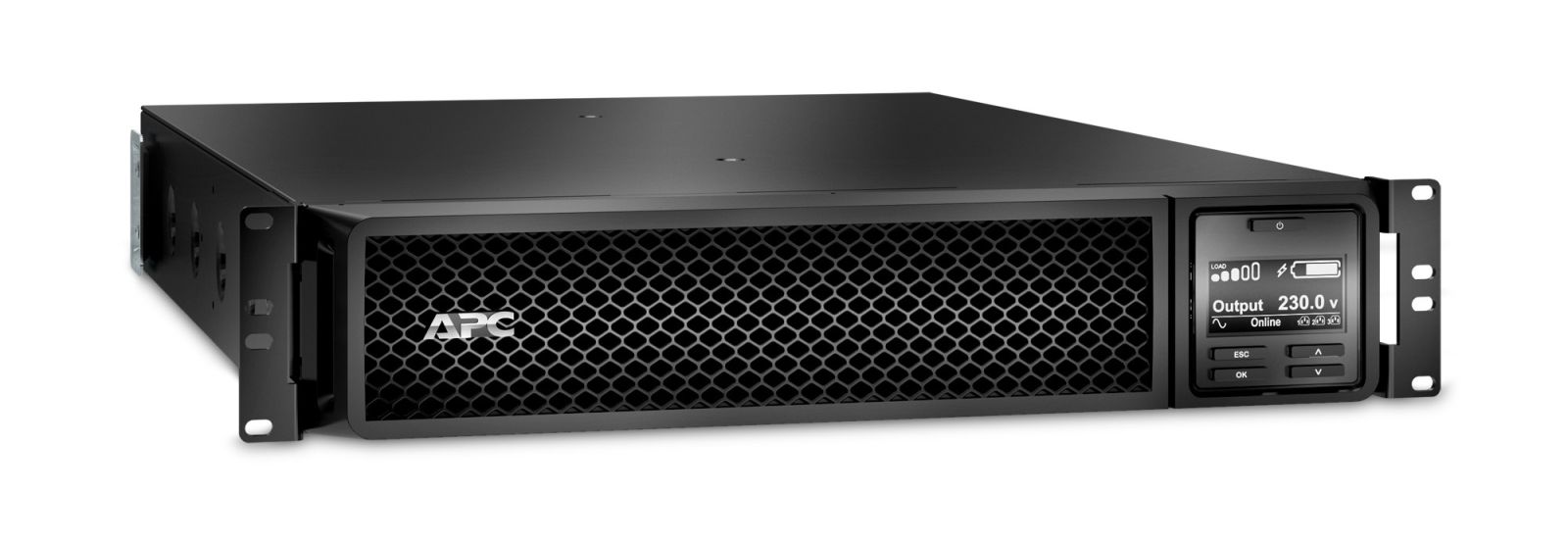

APC SRT2200RMXLI-NC Smart-UPS SRT 2200 VA RM 230 V Network Card content_copy

This product is part of the Smart-UPS On-Line range, which offers high-density online power protection with true double conversion. This 2200VA/1980W pure sine wave online UPS offers scalable runtime and minimises maintenance. The 2U rack mount SRT features a pre-installed Network Management Card in the Smart Slot for network-based monitoring and management of the UPS. PowerChute Network Shutdown enables smooth, unattended shutdown of critical IT equipment, from physical servers and virtual machines to HCI clusters. It features BS1363A British, IEC 60320 C20 and Schuko CEE 7/EU1-16P input cables, 8x IEC 60320 C13 and 2x IEC 60320 C19 outputs. The Smart-UPS has a 3-year warranty and the built-in lead-acid battery has a 2-year warranty. Dimensions: 584 mm (depth) x 85 mm (height) x 432 mm (width), 25 kg. Ideal for servers, voice/data networks, medical laboratories and light industrial applications. It complies with CE, CE mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM and VDE standards. Designed for IT professionals or network administrators, it offers a wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass and input power factor correction. Not suitable for residential use.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	367 VAh
Number of batteries supported	1
Battery life (max)	5 year(s)
Battery recharge time	3 h
Certificates
Compliance certificates	RoHS
Certification	CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Design
Form factor	Rackmount
Rack capacity	2U
Cable length	2.44 m
Product colour	Black

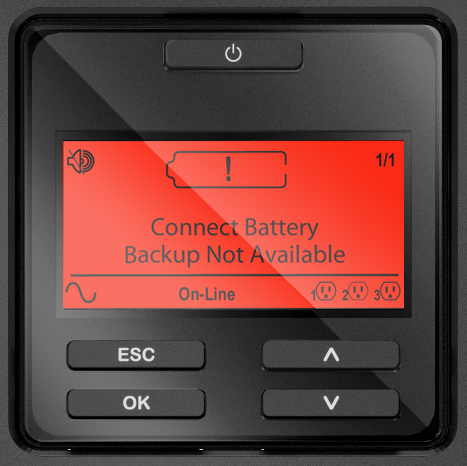

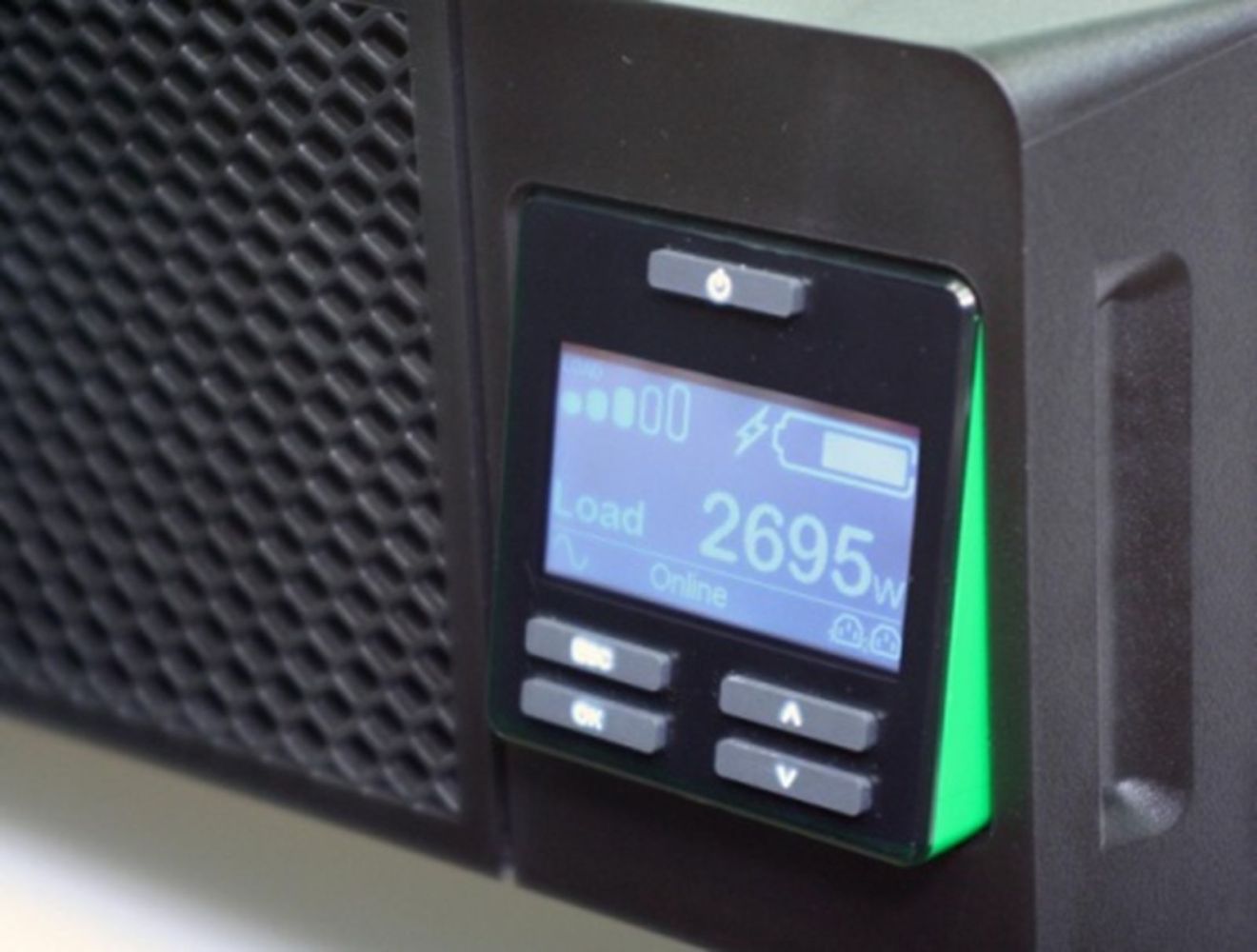

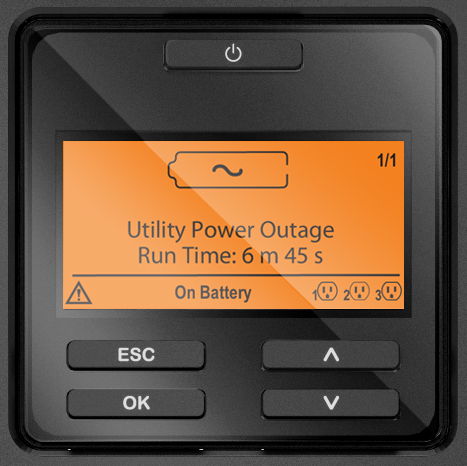

Display type	LCD
International Protection (IP) code	IP20
LED indicators
Features
UPS topology	Double-conversion (Online)
Output power capacity	2.2 kVA
Output power	1980 W
Waveform	Sine
Input operation voltage (min)	160 V
Input operation voltage (max)	275 V
Input frequency	40 - 70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	340 J
Crest factor	3:1
Output voltage Total Harmonic Distortion (THD)	2%
Noise level	55 dB
Emergency Power Off (EPO)
Audible alarm(s)
Logistics data
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	3656.79
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Other features
Output voltage	230 V
Packaging content
Management card included
Packaging data
Package width	599 mm
Package depth	810 mm
Package height	246 mm
Package weight	34 kg

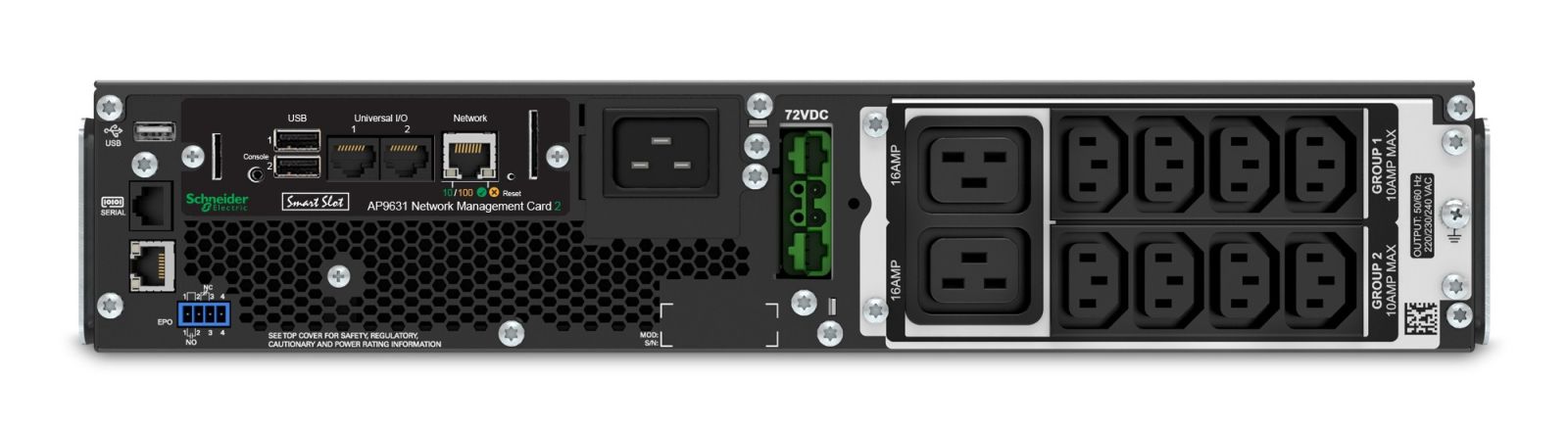

Ports & interfaces
AC outlet types	C13 coupler, C19 coupler
AC outlets quantity	12 AC outlet(s)
Number of output IEC jumpers	2
Serial interface type	RJ-45
Ethernet LAN (RJ-45) ports	1
USB port
Serial interface
SmartSlot
SmartConnect port
Sustainability
Sustainability certificates	ENERGY STAR, Green Premium
Weight & dimensions
Width	432 mm
Depth	584 mm
Height	85 mm
Weight	25 kg

---
