APC Smart-UPS Line-interactive UPS - 3000 VA/2700 W - 4U Tower/Rack Mountable content_copy

The APC Smart-UPS X SMX3000HV is an uninterruptible power supply (UPS) in rackmount/tower design with an output capacity of 3 kVA and an output power of 2700 W. It protects IT and network equipment from power outages, voltage fluctuations, overvoltages, and other power supply disturbances. The UPS operates using line-interactive topology and ensures continuous power supply by automatically switching to the internal battery whenever the mains voltage drops below 140 V or rises above 280 V. The output voltage is regulated within a range of 208 V to 240 V, with a nominal voltage of 230 V. The output AC voltage has a sinusoidal waveform, which is required for sensitive devices such as servers or network switches.

Applications

The SMX3000HV is suitable for use in small and medium-sized enterprises as well as data centers, where reliable power supply for IT infrastructure, networks, and servers is necessary. It protects against short-term voltage sags, surges, and lightning strikes that may be caused by the public power grid or external influences. The UPS is intended for indoor use and must not be operated outdoors.

Functions and Equipment in Detail

The UPS features automatic voltage regulation (AVR), which corrects over- and undervoltages in the mains without activating the battery. This extends the battery's lifespan and reduces stress. The battery is charged via an intelligent precision charging system that adjusts the charging voltage according to the actual battery temperature to optimize lifespan and reliability. An automatic self-test regularly checks the battery to detect wear or defects early. Upon restoration of mains power, the UPS automatically restarts connected devices. The UPS emits audible signals and displays status via LED indicators to allow quick recognition of operating conditions.

Technology Explained Simply

The UPS operates with a sealed lead-acid battery (VRLA) with a capacity of 738 VAh. The typical backup time is 6.25 minutes at full load and 18 minutes at half load. The battery can be replaced using the hot-swap method without shutting down the UPS or connected devices. Battery recharge time is 3 hours. The UPS achieves an efficiency of 98.5 %, indicating high efficiency in power conversion. The hold-up time is between 2 ms and 10 ms, which is sufficient for most IT systems. The noise level is 55 dB, which is acceptable for office or server room environments.

Compatibility and Accessories

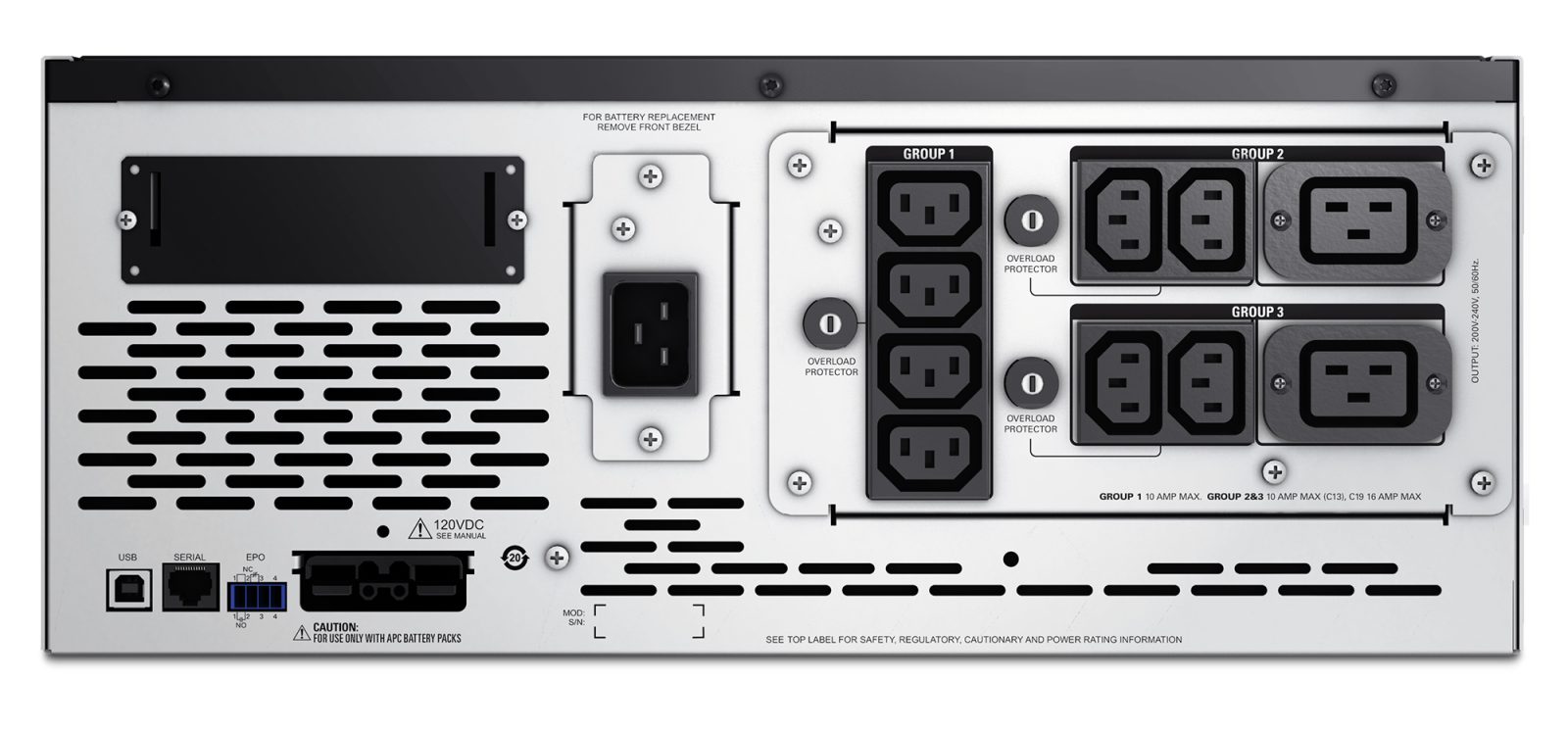

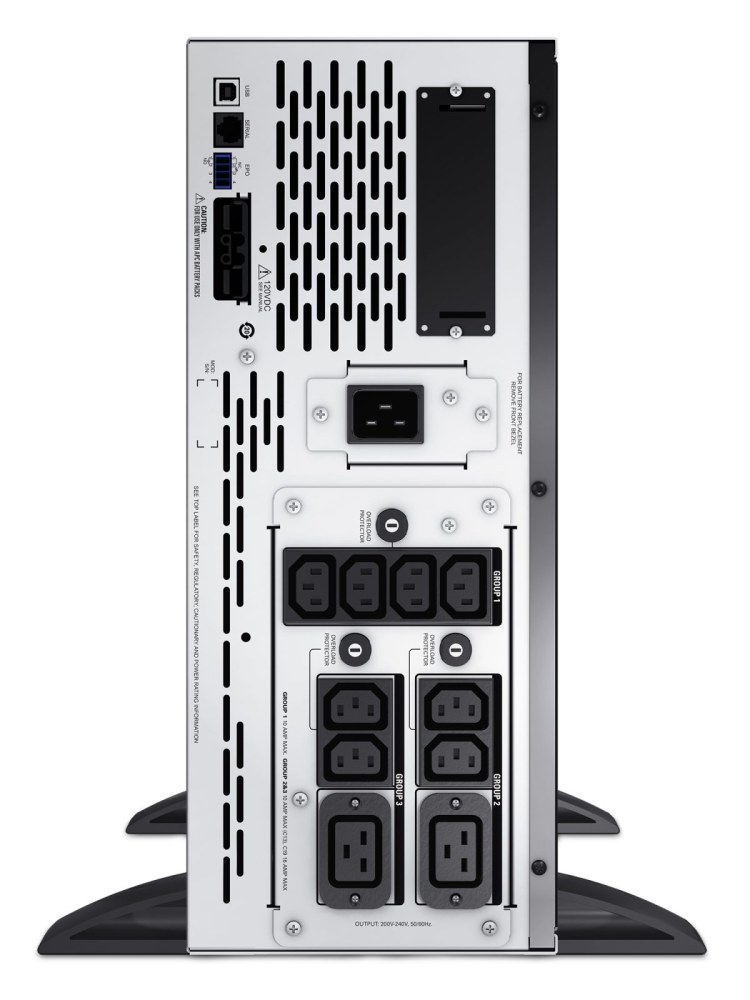

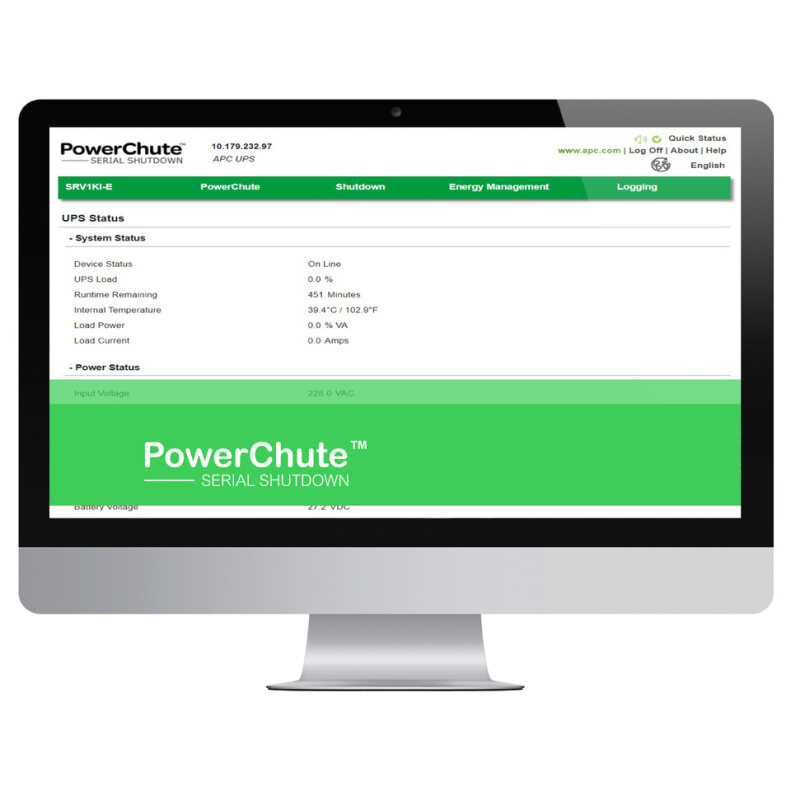

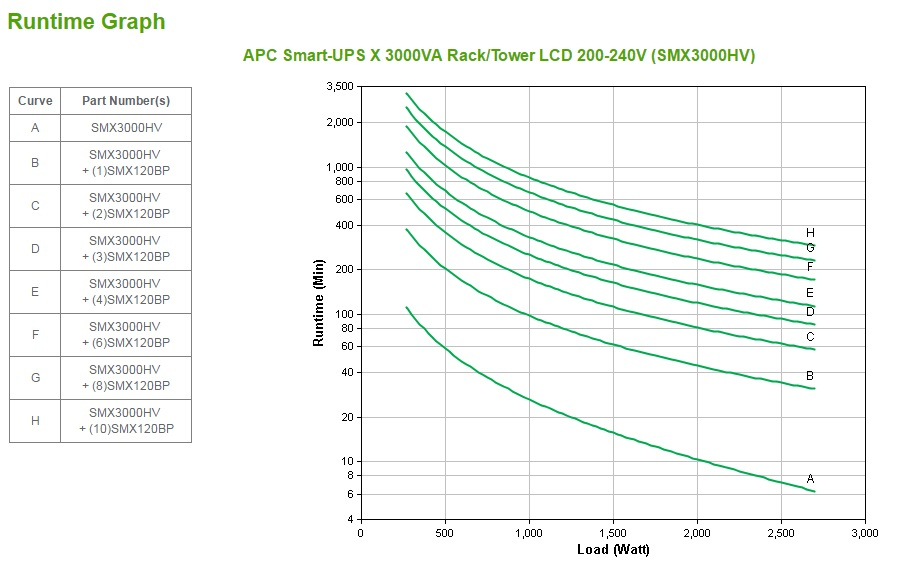

The SMX3000HV is equipped with 10 AC outlets, including 8 C13 and 2 C19 connectors, and features a C20 input plug. These connections allow powering of servers, switches, PCs, and other IT devices. The UPS includes a SmartSlot connector, enabling installation of an optional network management card (e.g., AP9640) to manage the UPS over the network. Remote management via SNMP or APC PowerChute software is possible to monitor UPS status and initiate controlled shutdown of servers during power failure. External battery modules (e.g., SMX120BP) can be connected to extend backup time. The UPS is suitable for use with generators and adapts to the respective power supply environment.

Mounting and Installation

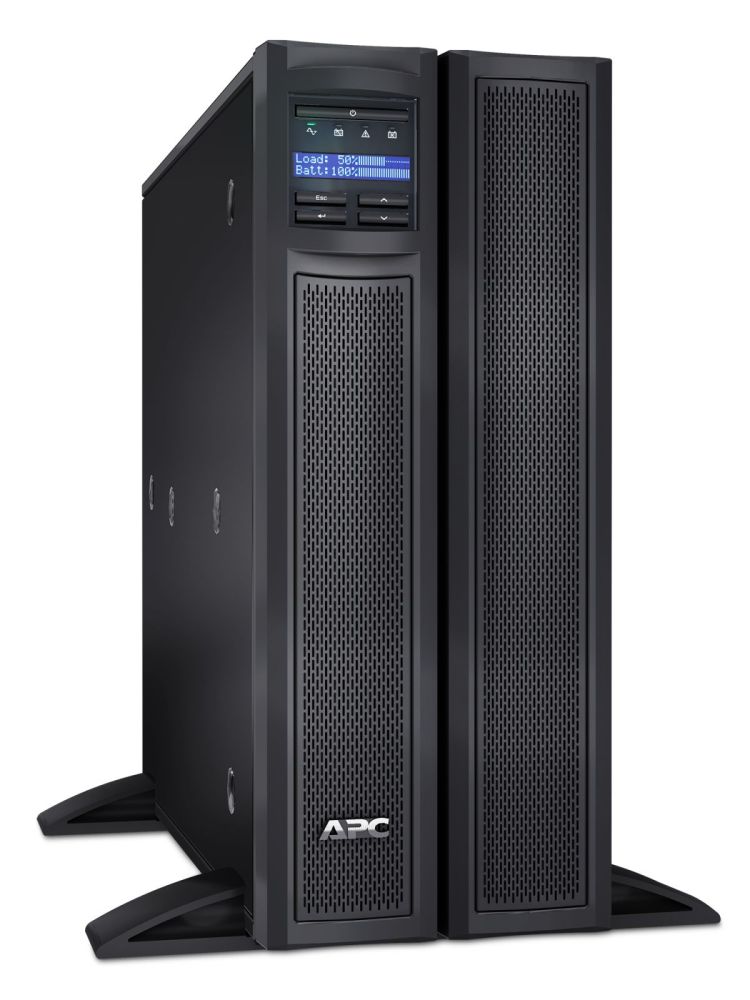

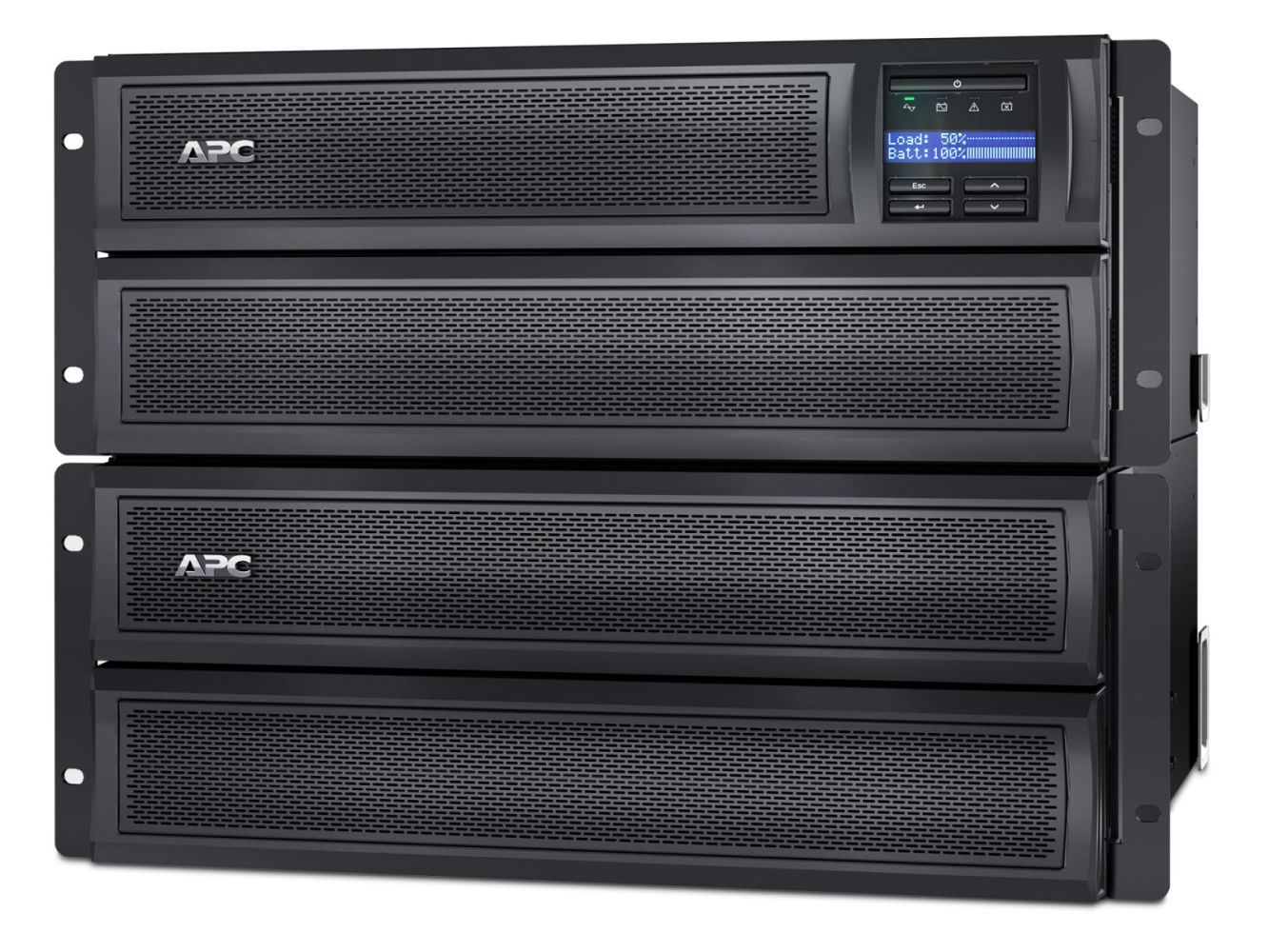

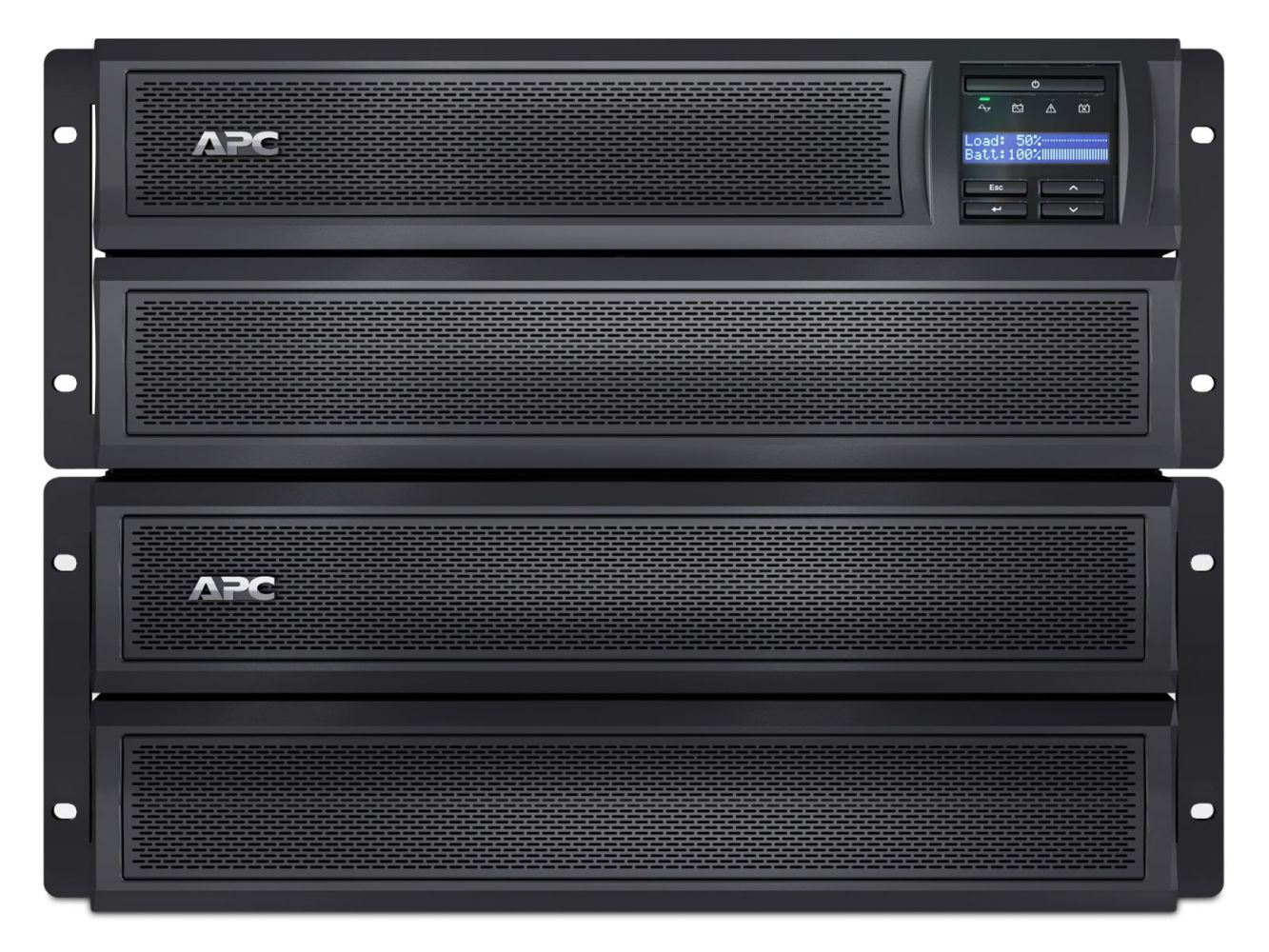

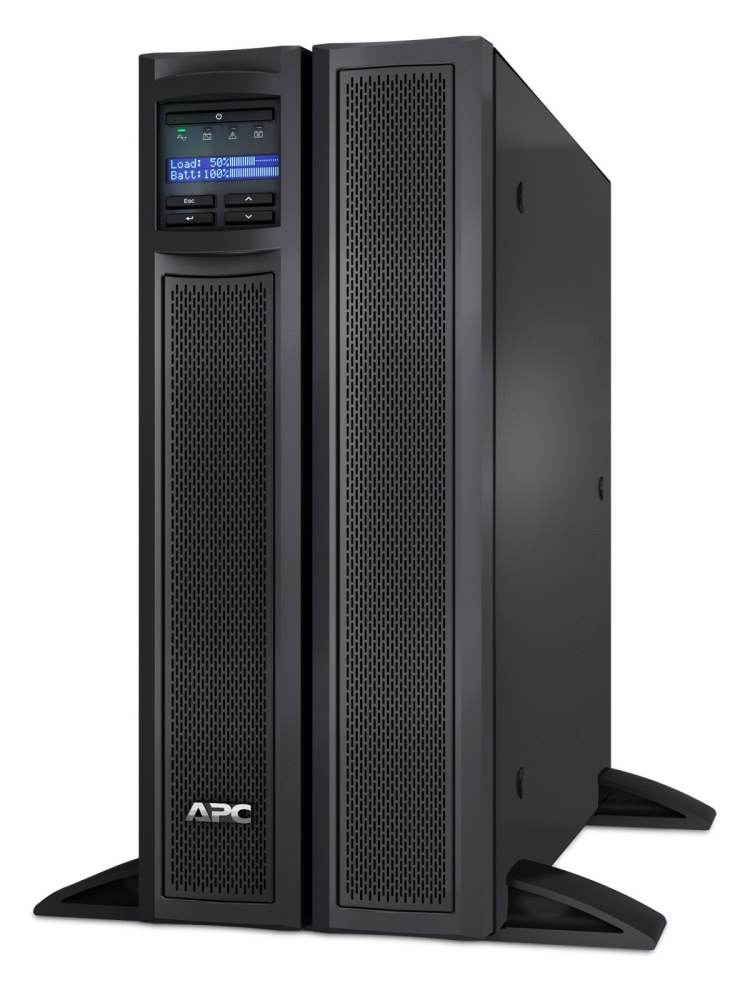

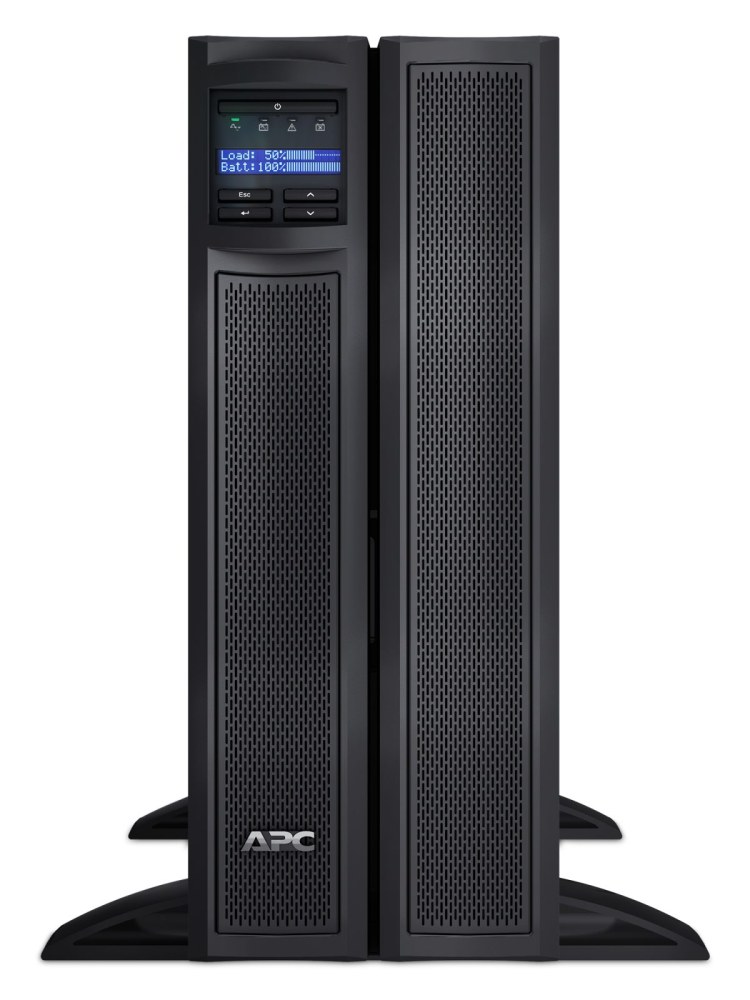

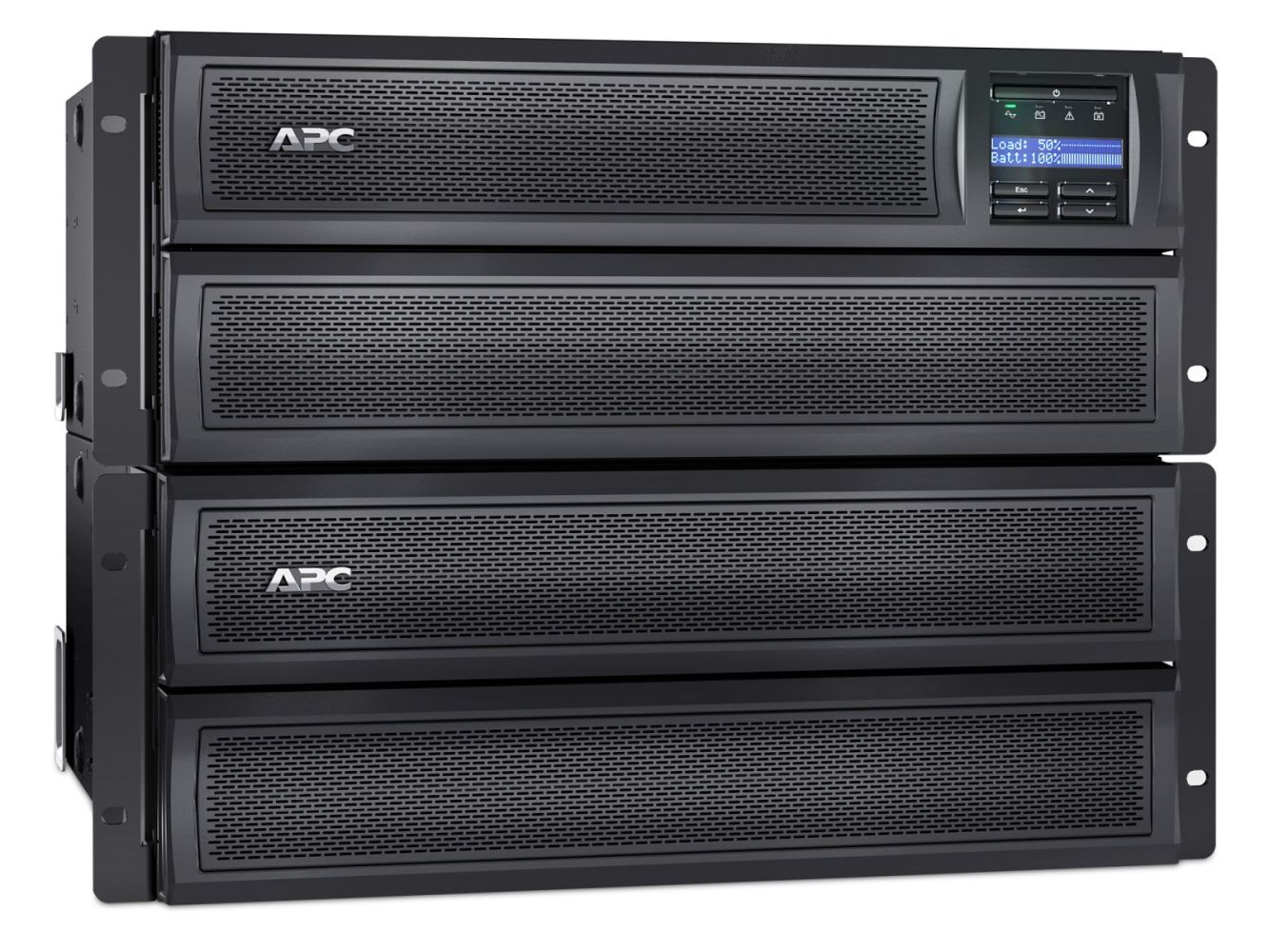

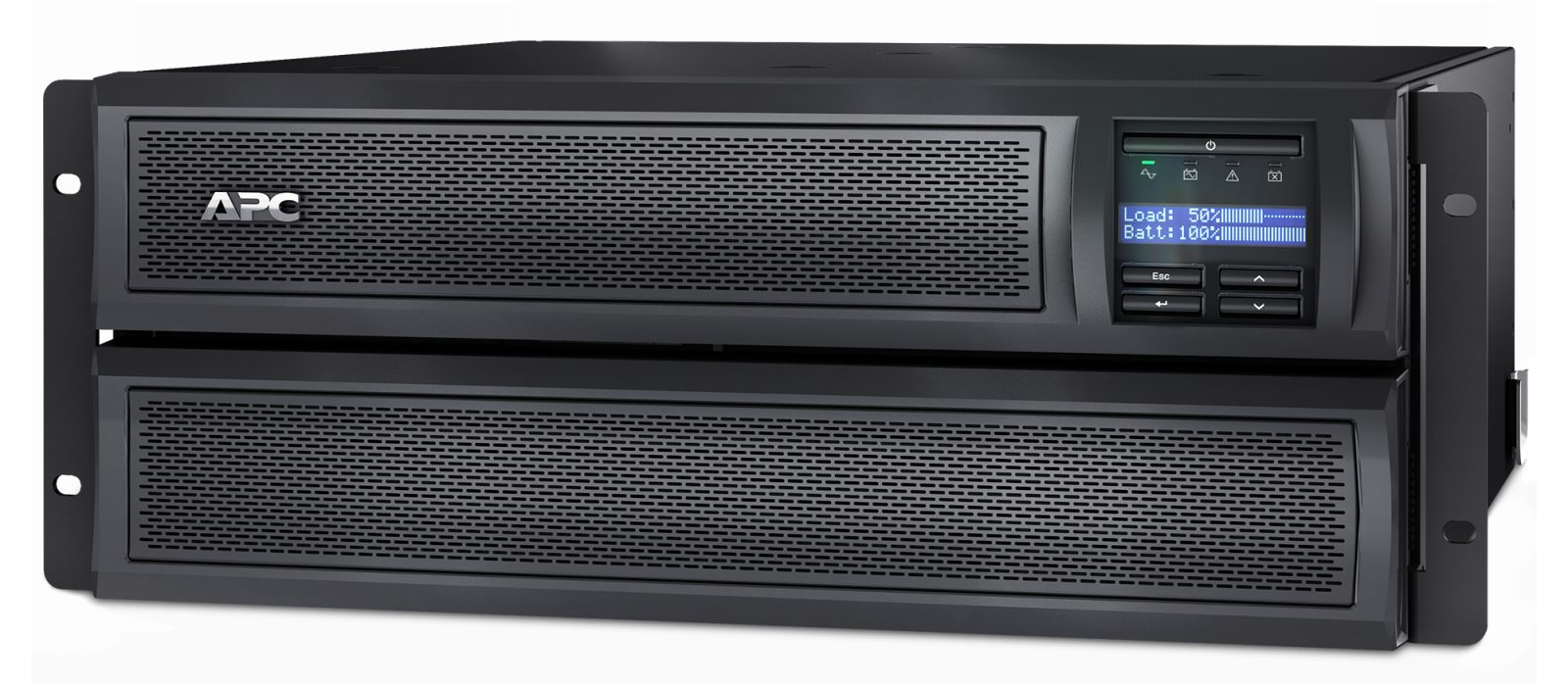

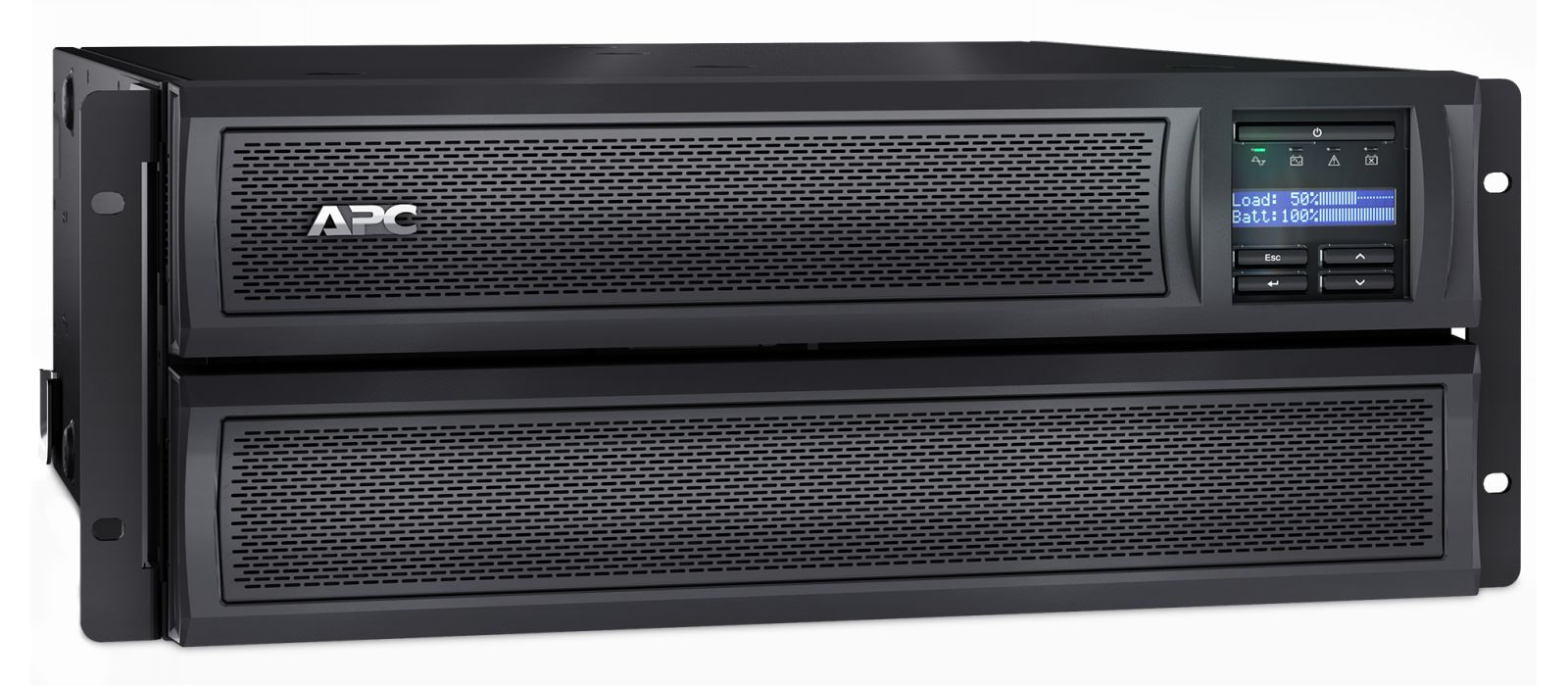

The UPS is designed as a rackmount/tower model and occupies 4U rack height. The delivery includes the rack mounting kit, an RS-232 cable, a USB cable, a software CD, a documentation CD, a user manual, and a quick installation guide. Installation can be performed either in a rack or as a tower unit. Ventilation openings must not be blocked, and sufficient clearance from walls or other equipment must be maintained to ensure proper cooling. The battery is heavy and should be removed before rack mounting.

Operational Advantages

The SMX3000HV offers high availability through the combination of AVR, hot-swap battery, and automatic restart. Precise voltage regulation and the intelligent charging system extend battery life, which typically lasts up to 5 years. Remote management enables proactive monitoring and maintenance, minimizing downtime. The UPS is designed for operation in a temperature range of 0 to 40 °C and relative humidity of 0 to 95 % (non-condensing). The maximum operating altitude is 3000 m above sea level. The UPS complies with standards EN 50091-1, EN 50091-2, EN 60950, UL 1778, CE, CSA, FCC Part 15 Class A, RoHS, and REACH.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	738 VAh
Typical backup time at full load	6.25 min
Typical backup time at half load	18 min
Battery life (max)	5 year(s)
Battery recharge time	3 h
Hot-swap battery
Automatic battery test
Certificates
Compliance certificates	RoHS
Certification	C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH
Design
Form factor	Rackmount/Tower
Rack capacity	4U
Cable length	1.83 m
Product colour	Black, Stainless steel
Display type	LCD
LED indicators	Status
Features
UPS topology	Line-Interactive
Output power capacity	3 kVA
Output power	2700 W
Waveform	Sine
Input operation voltage (min)	140 V
Input operation voltage (max)	280 V
Input frequency	50/60 Hz
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Output frequency regulation	50/60 Hz
Surge energy rating	645 J
Hold time (min)	2 ms
Hold time (max)	10 ms
Efficiency	98.5%
Crest factor	3:1
Noise level	55 dB
Automatic Voltage Regulation (AVR)
Emergency Power Off (EPO)
Surge protection
Audible alarm(s)
Auto-restart
Logistics data
Products per pallet	6 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	2447.6
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Other features
Nominal output voltage	230 V
Packaging content
Cables included	RS-232, USB cable
Rack mount kit
Management card included
Manual
Quick installation guide
Packaging data
Package width	586 mm
Package depth	633 mm
Package height	330 mm
Package weight	47.7 kg
Software CD
Ports & interfaces
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
AC outlets quantity	10 AC outlet(s)
Number of output IEC jumpers	2
SmartSlot
SmartConnect port
Weight & dimensions
Width	178 mm
Depth	483 mm
Height	432 mm
Weight	38.6 kg

---
