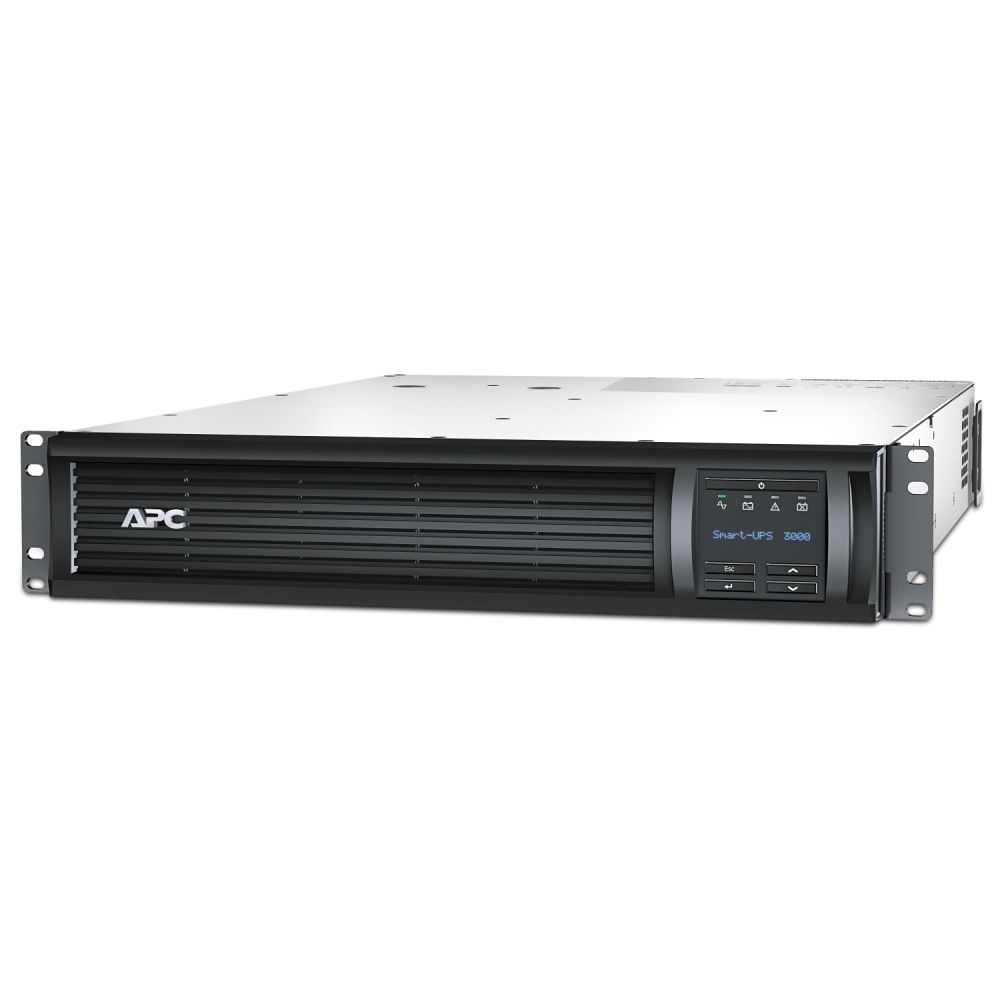

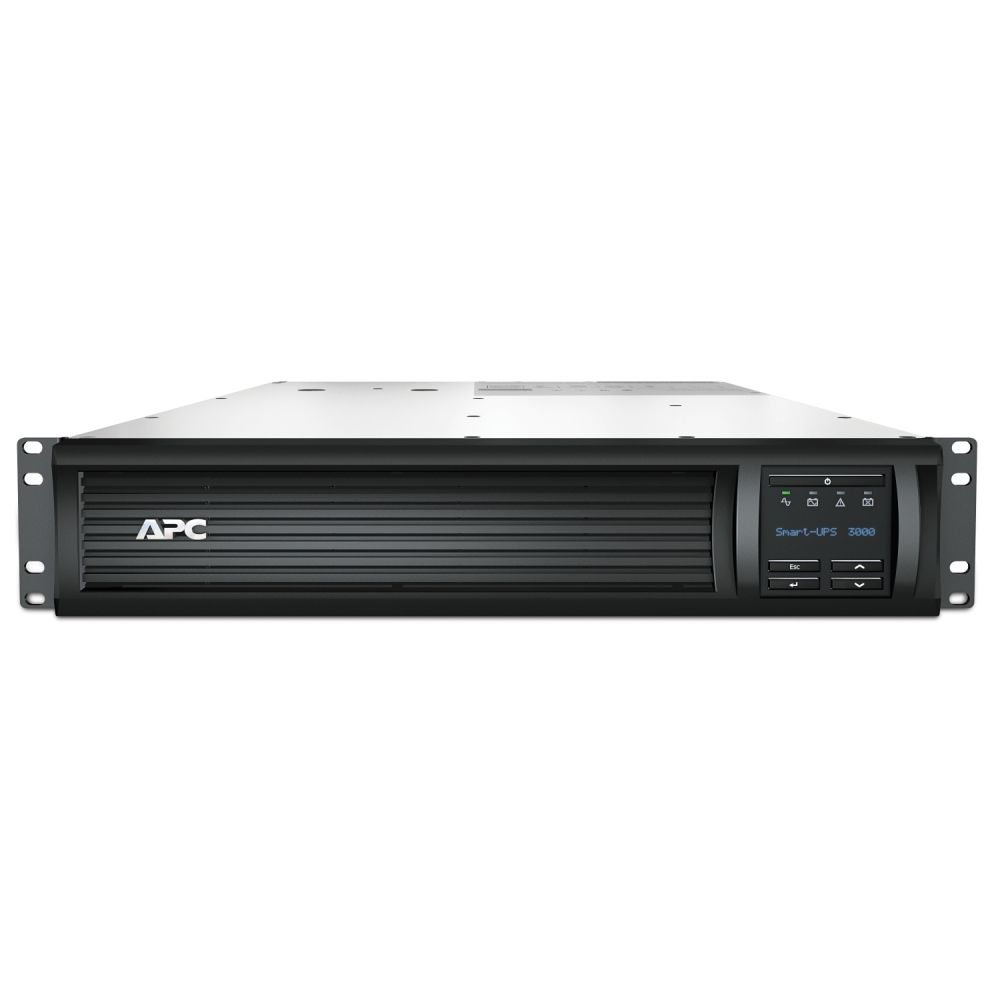

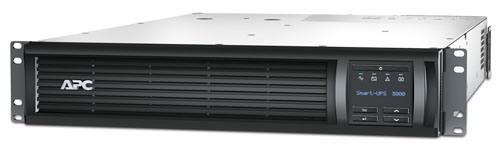

APC SMT3000RMI2UC UPS SMARTUPS 3000 VA LCD RM 2 U 230 V (freight shipping)
|
4.807,00 EUR |
|||||||||||
|
( 5.720,33 EUR incl. VAT ) ≈ £4,018.65 | ≈ $5,282.89 plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 21 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2014239 | ||||||||||
| Mfg Part No: | SMT3000RMI2UC | ||||||||||
| UPC/EAN: | 0731304337348 | ||||||||||
| Weight: | 55 kg | ||||||||||
| Type: | SMT3000RMI2UC | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for APC SMT3000RMI2UC:
Applications
The UPS is designed for use in small and medium-sized enterprises as well as data centres, where continuous power supply for IT systems, network devices, and point-of-sale systems is critical. The rack mounting in 2U format allows for compact integration into standard 19-inch racks. The hot-swap battery enables battery replacement without shutting down the UPS or connected devices, ensuring operational continuity. The automatic battery test function regularly checks the battery condition to detect wear or defects early.
Functions and Equipment in Detail

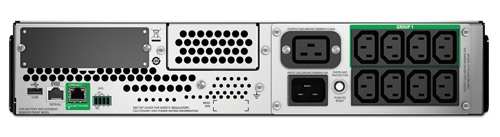

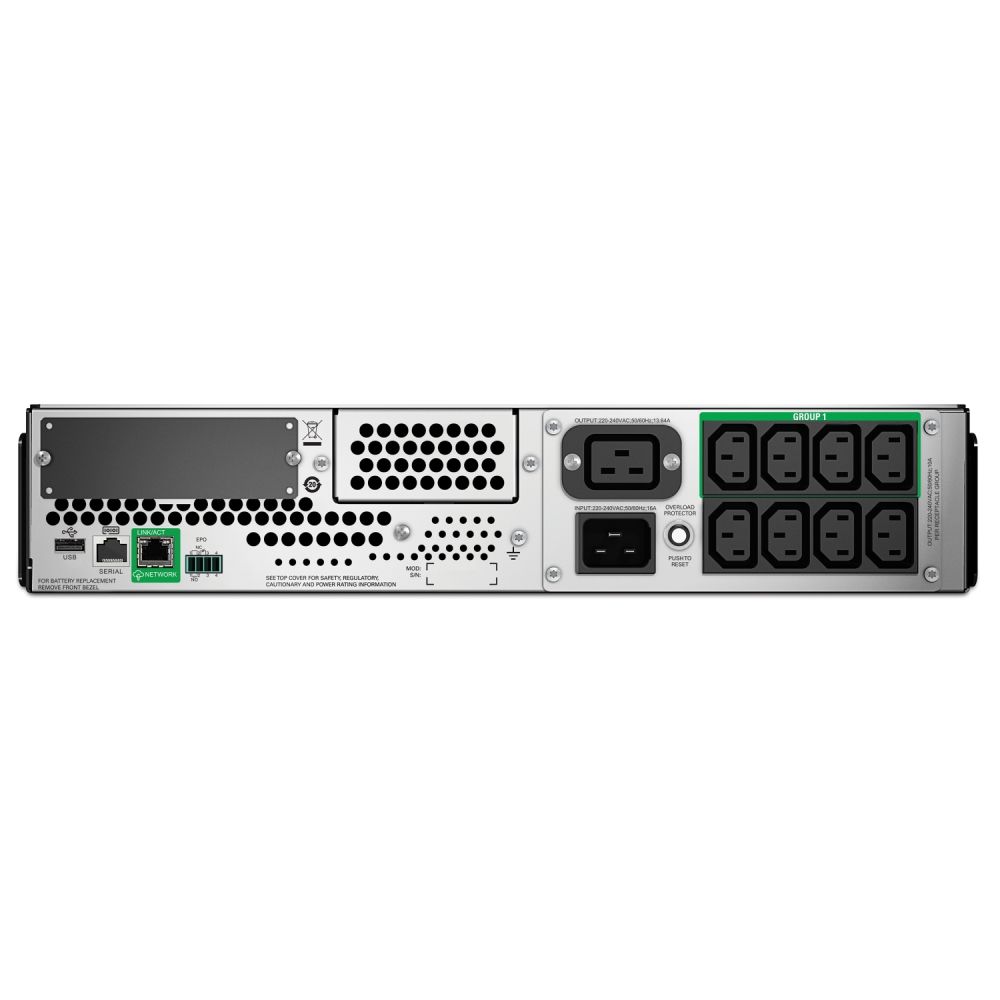

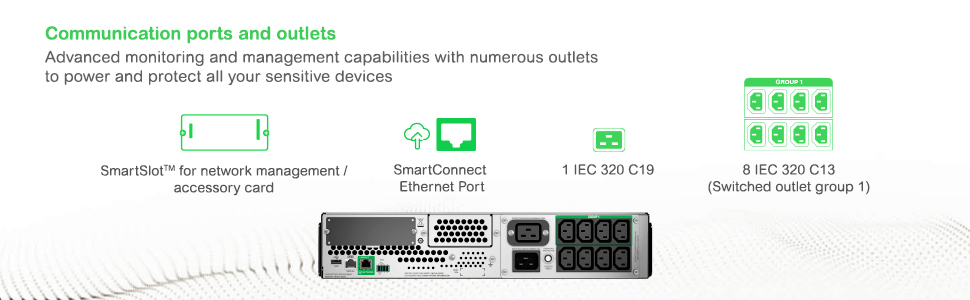

The SMT3000RMI2UC features a total of 9 AC outlets: eight C13 sockets and one C19 socket, suitable for high-power devices. Three IEC bridging cables allow flexible use of the outlets. The power supply is connected via a C20 input coupler, with the supplied input cable having a length of 2 m. The UPS includes a SmartSlot, into which an optional network management card (e.g. AP9640 or AP9641) can be inserted to enable remote monitoring and control via SNMP or EcoStruxure IT Expert. The SmartConnect function allows cloud-based remote monitoring via the APC SmartConnect web portal, supporting firmware updates, remote diagnostics, and proactive email notifications.
Technology Explained Simply

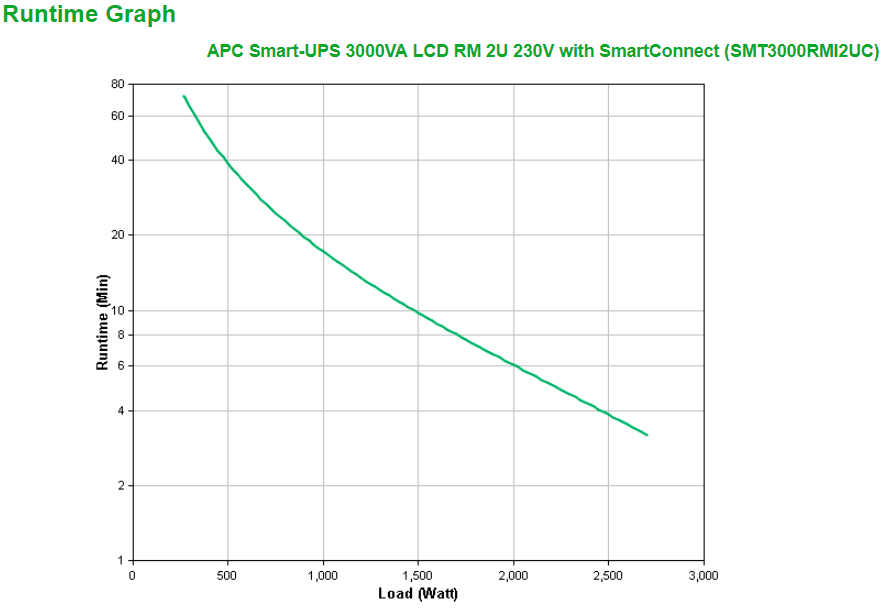

The UPS delivers a pure sine wave within 4 to 8 ms during a power failure, allowing connected devices to continue operating without interruption. The efficiency of 98.9 % minimizes energy losses during mains operation. The battery capacity is 547 VAh, providing a typical backup time of 3.2 minutes at full load and 11.5 minutes at half load. The battery recharge time is 3 hours, and the battery has a maximum lifespan of 5 years. The UPS supports cold start, meaning it can be turned on and operated without mains power. The automatic voltage regulation ensures the output voltage remains within the specified range of 220 V to 240 V, even if the input voltage fluctuates.
Compatibility and Accessories
The UPS is compatible with the APC replacement battery cartridge RBC43, which can be replaced by the user. Additionally, network management cards such as the AP9640 or AP9641 can be installed to extend remote control and monitoring capabilities. The included software PowerChute Business Edition enables controlled shutdown of servers and virtual machines during battery discharge. The UPS is suitable for use with EcoStruxure IT or centralized management platforms from third-party vendors.
Mounting and Installation

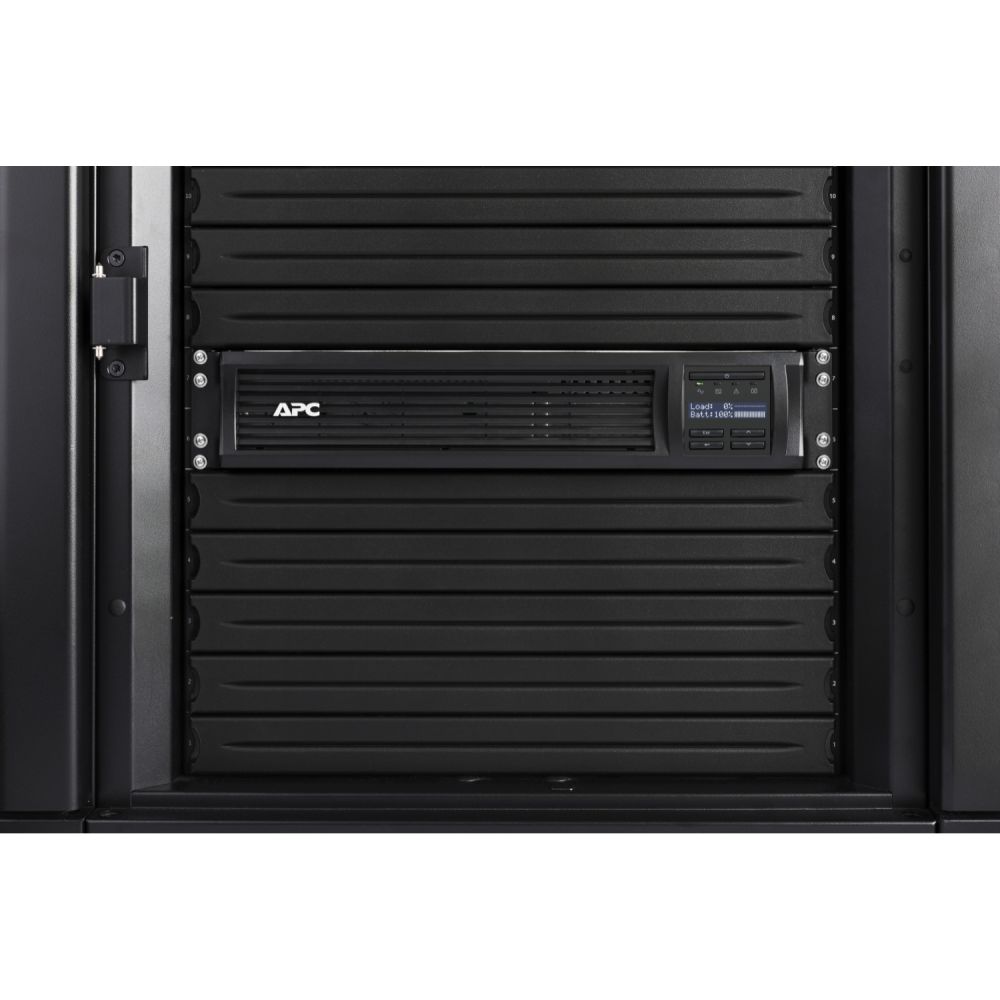

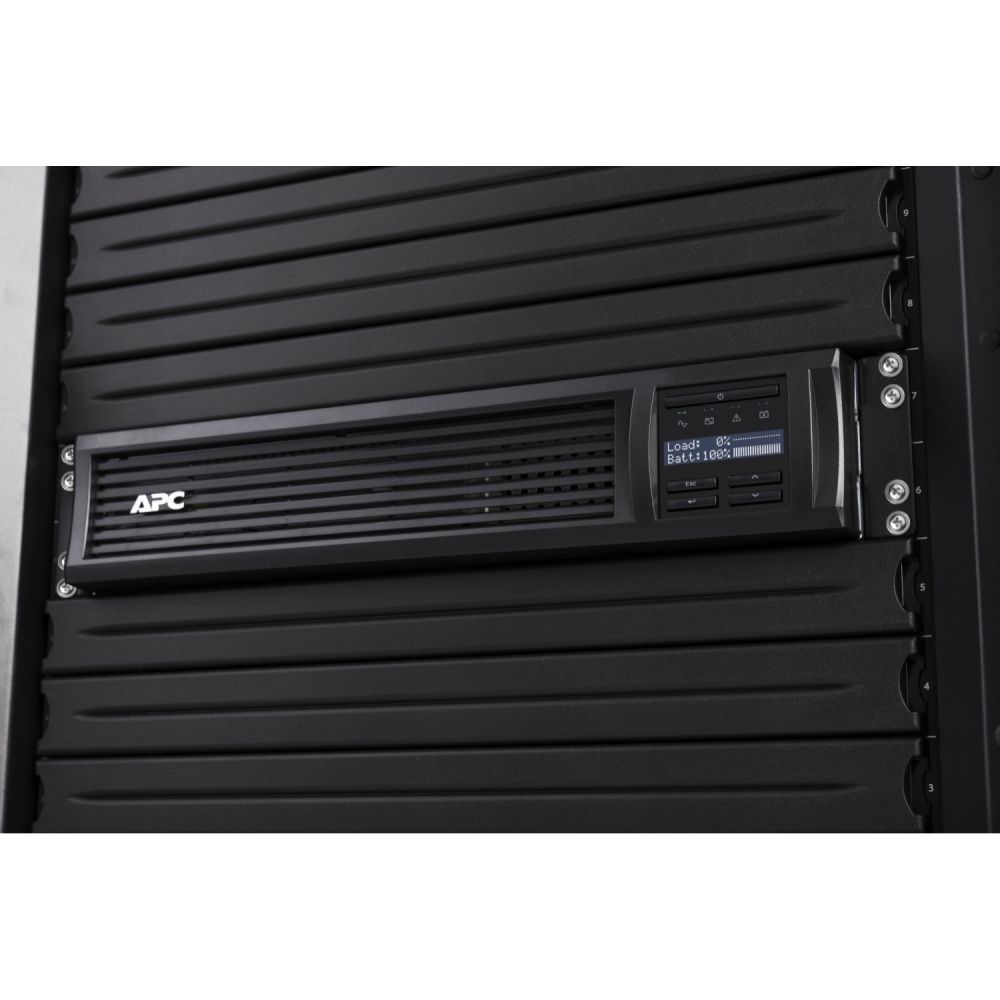

The UPS is delivered with a rack mounting kit, enabling installation in a 19-inch rack. The delivery also includes an RS-232 and a USB cable, a quick installation guide, and a software CD with PowerChute Business Edition. Installation is performed by securing the UPS to the mounting rails in the rack, with power supplied via the included input cable.
Operational Advantages

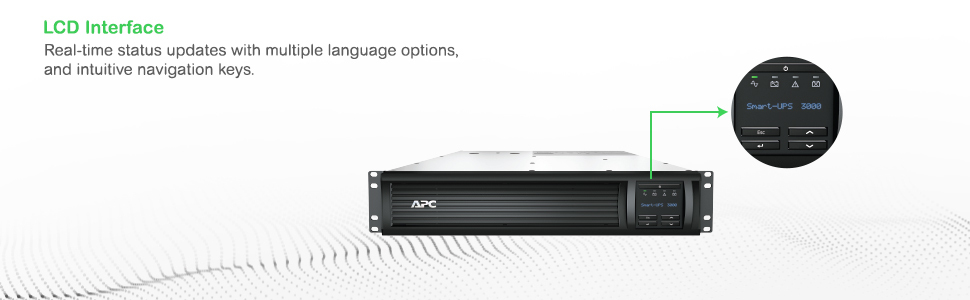

The low noise level of 55 dB ensures a quiet operating environment. The automatic restart function allows the UPS to automatically turn back on after a power failure, as soon as mains voltage is restored. Audible signals inform the user of the operating status. The overvoltage protection function protects connected devices from voltage surges caused by lightning strikes or other disturbances. The LCD display and LED status indicators enable visual monitoring of the operating status. The UPS is designed for operating temperatures from 0 to 40 °C and relative humidity from 0 to 95 %. Storage is possible at -15 to 45 °C and humidity from 0 to 95 %. The maximum operating altitude is 3000 m, and the storage altitude is 15000 m.
The UPS complies with standards EN/IEC 62040-1, EN/IEC 62040-2, EN 60950, CE, EAC, GS Mark, IRAM, RCM, VDE, WEEE, REACH, PEP, EOLI and is RoHS-compliant. The sustainability certificate Green Premium highlights the environmentally conscious development of the product. The warranty is 3 years for electronics and 2 years for the battery.
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 547 VAh |
| Typical backup time at full load | 3.2 min |
| Typical backup time at half load | 11.5 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | |
| Automatic battery test | |
| Cold start | |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE, REACH, PEP, EOLI |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cable length | 2 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Status |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 320 J |
| Hold time (min) | 4 ms |
| Hold time (max) | 8 ms |
| Efficiency | 98.9% |
| Noise level | 55 dB |

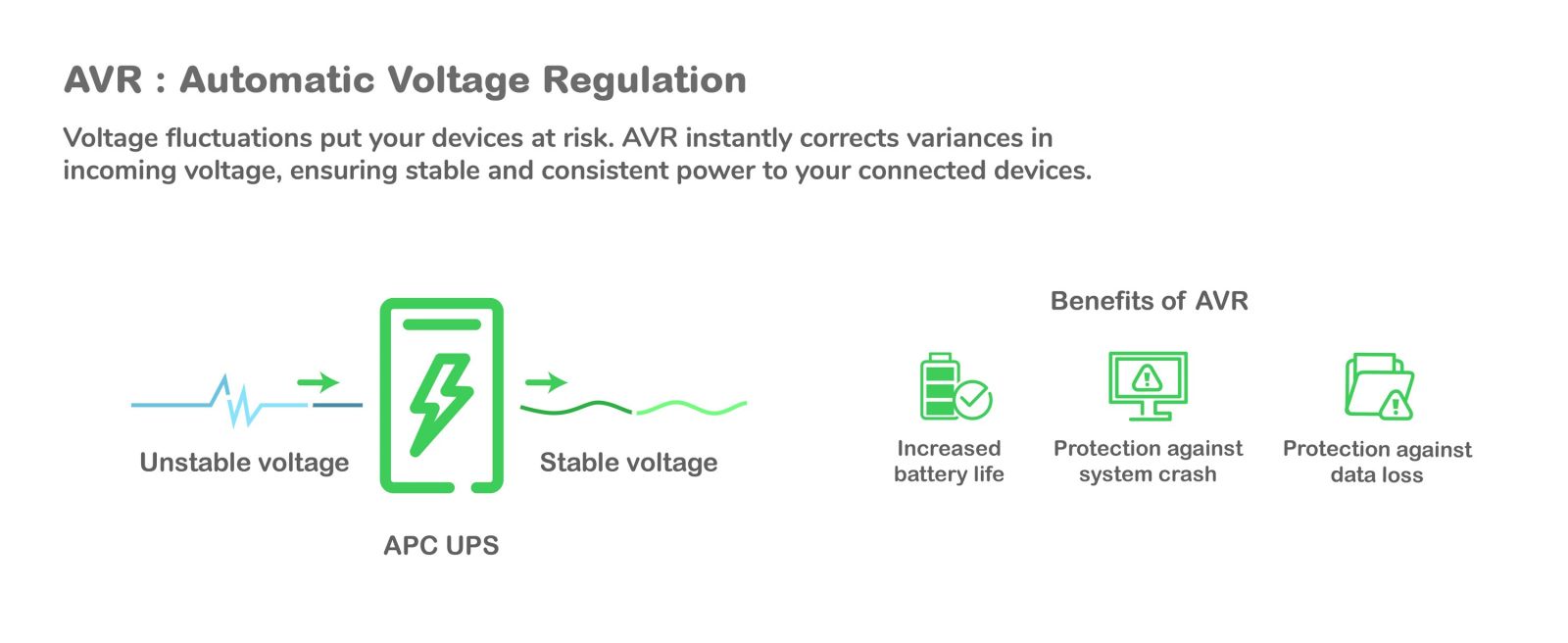

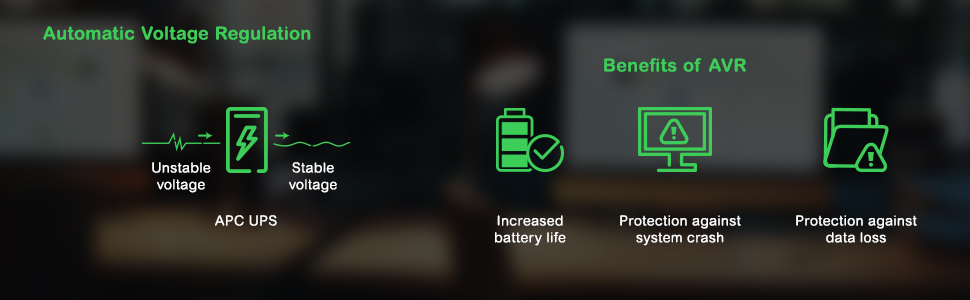

| Automatic Voltage Regulation (AVR) | |
| Audible alarm(s) | |
| Auto-restart | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 2968.55 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Packaging content | |
| Cables included | RS-232, USB cable |
| Rack mount kit | |
| Management card included | |
| Quick installation guide | |
| Packaging data | |
| Bundled software | Powershute Business Edition |
| Package width | 600 mm |
| Package depth | 980 mm |
| Package height | 254 mm |
| Package weight | 51.7 kg |
| Software CD | |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| Number of output IEC jumpers | 3 |

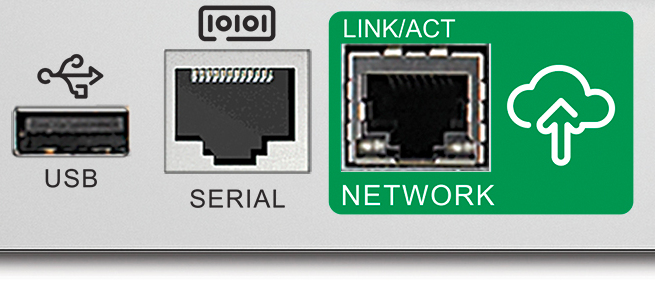

| Serial interface type | RJ-45 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | |
| Serial interface | |
| SmartSlot | |
| SmartConnect port | |
| Sustainability | |
| Sustainability certificates | Green Premium |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 683 mm |
| Height | 86 mm |
| Weight | 44.3 kg |
