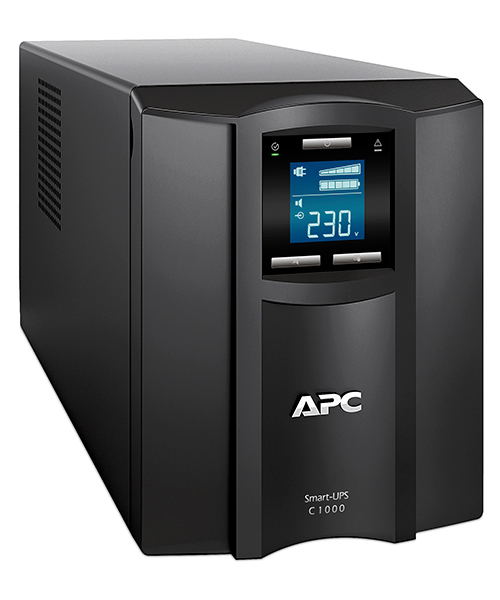

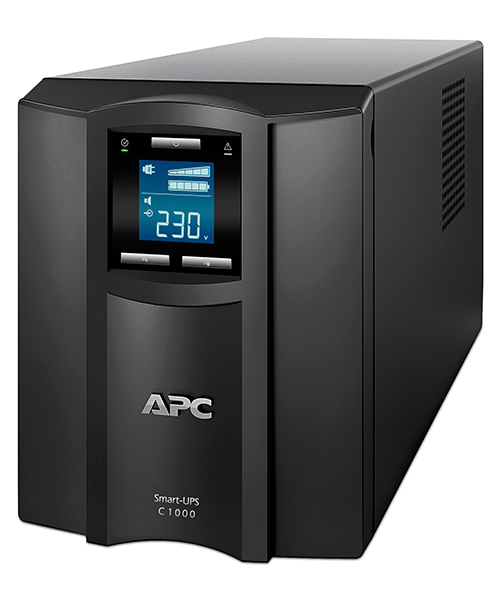

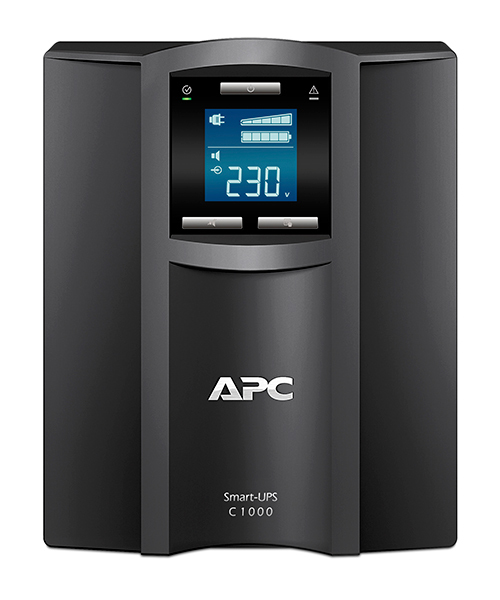

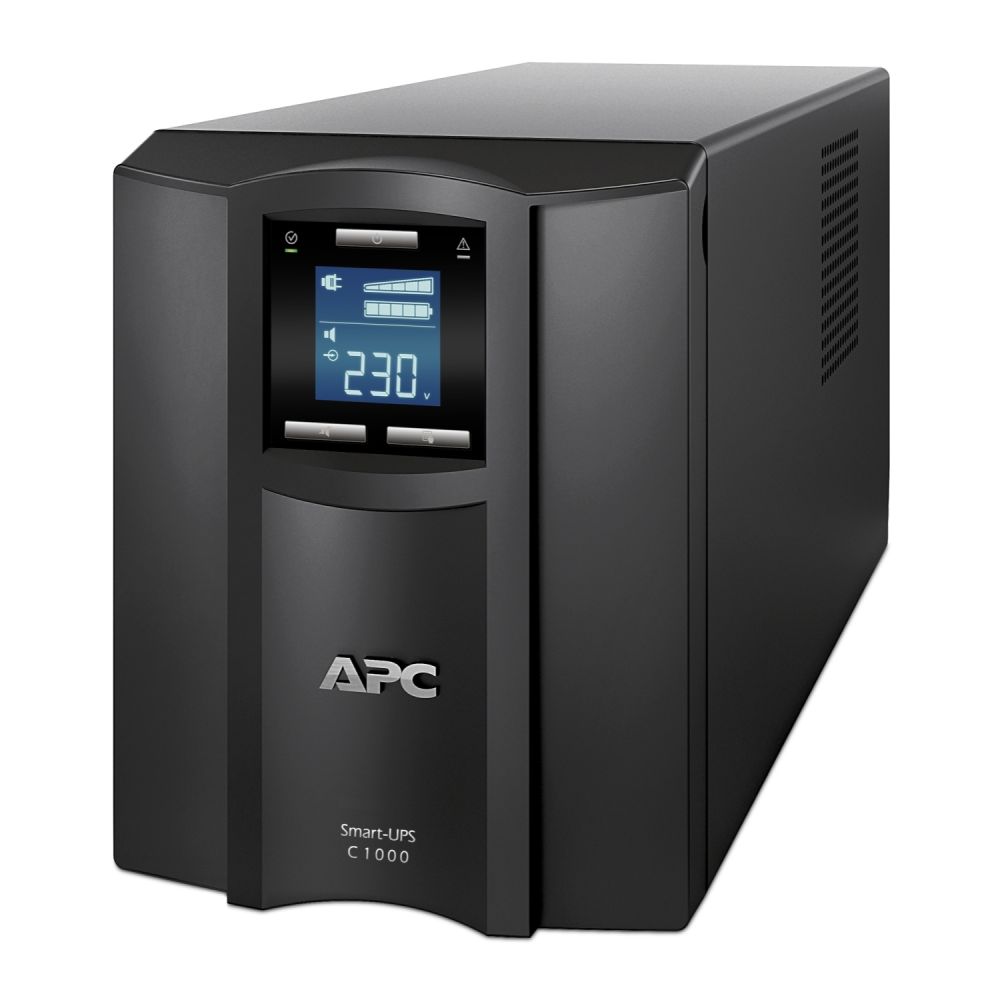

APC Smart-UPS Line-interactive UPS - 1000 VA/600 WTower - 3 Hour Sealed Lead Acid - 7 Minute content_copy

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS< is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS< models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	170 VAh

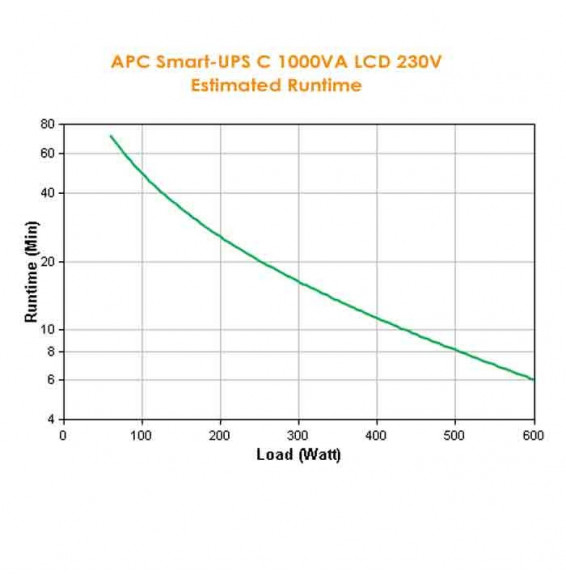

Typical backup time at full load	6 min
Typical backup time at half load	16.3 min
Battery life (max)	5 year(s)
Battery recharge time	3 h
Hot-swap battery
Automatic battery test
Cold start
Certificates
Compliance certificates	RoHS
Certification	CE, CSA, GOST, UL 1778, VDE, REACH, VDE-GS, EAC, C-Tick, IRAM, SABS
Design
Product colour	Black
Display type	LCD
LED indicators	Status
Features
UPS topology	Line-Interactive
Output power capacity	1 kVA
Output power	600 W
Waveform	Sine
Input operation voltage (min)	170 V
Input operation voltage (max)	300 V
Input frequency	50/60 Hz
Output frequency regulation	50/60 Hz
Surge energy rating	455 J
Efficiency	98.3%
Noise level	41 dB
Automatic Voltage Regulation (AVR)
Audible alarm(s)
Auto-restart
Logistics data
Products per pallet	18 pc(s)
Products per master (outer) case	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Other features
Nominal output voltage	230 V
Nominal input voltage	230 V
Packaging content
Cables included	USB cable
Quick installation guide
Packaging data
Package width	328 mm
Package depth	595 mm
Package height	376 mm
Package weight	19.6 kg
Software CD

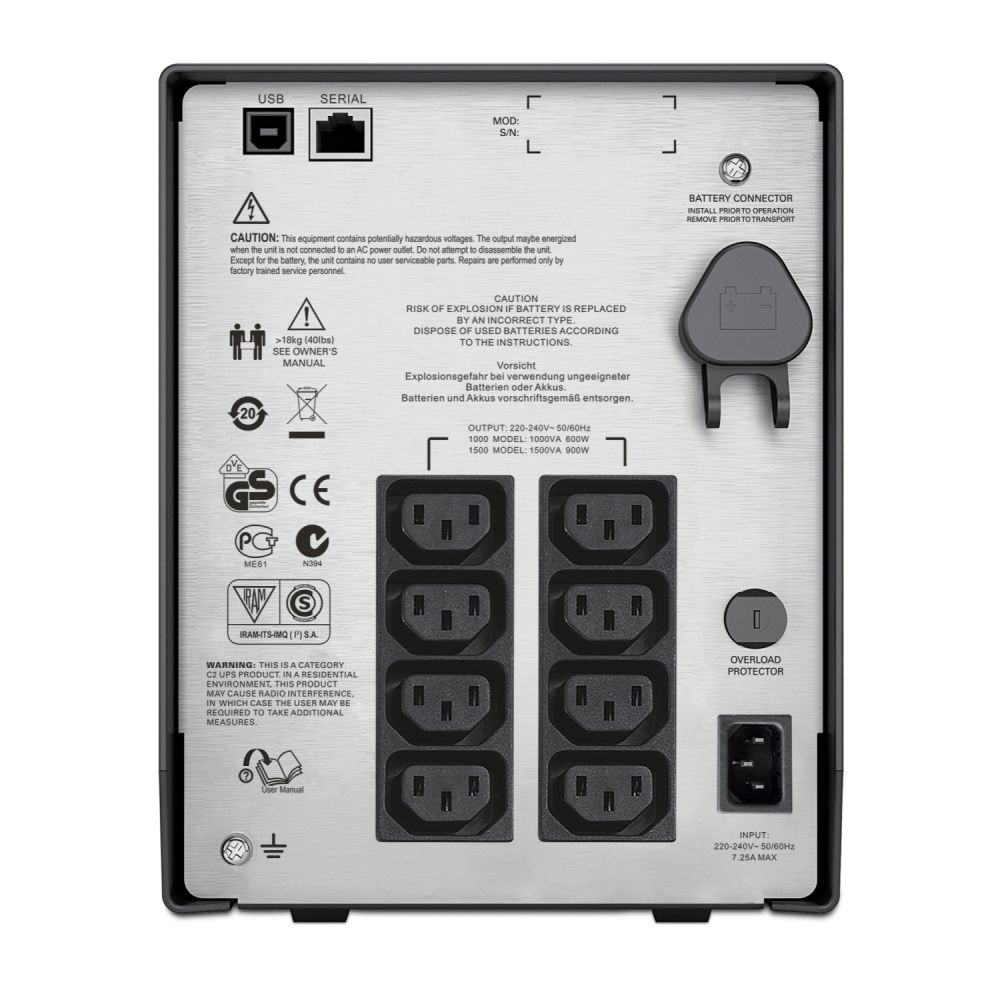

Ports & interfaces
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
Number of output IEC jumpers	2
USB port
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	171 mm
Depth	439 mm
Height	219 mm
Weight	17.3 kg

---
