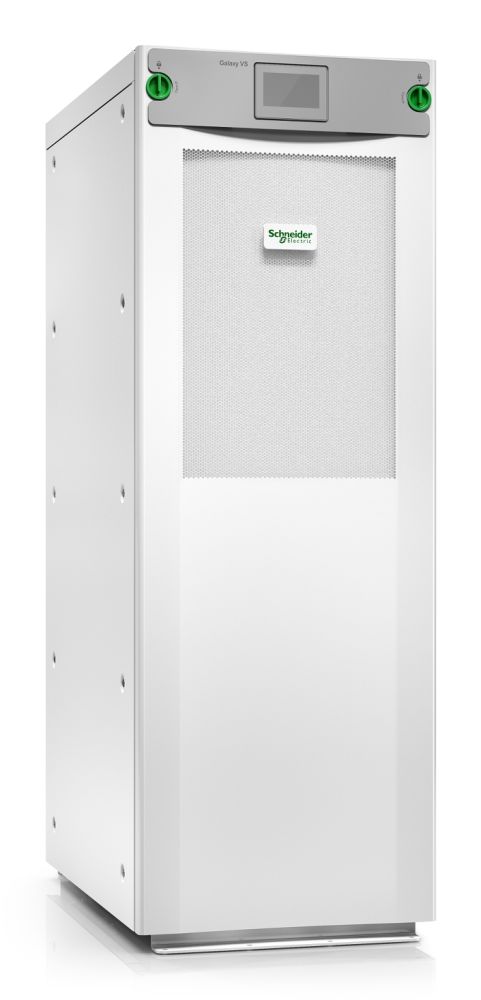

APC Galaxy VS UPS 150kW 400V for External Batteries Start-up 5x8
|
28.025,00 EUR |
|
|
( 33.349,75 EUR incl. VAT ) ≈ £23,456.93 | ≈ $31,359.98 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1528463 |
| Mfg Part No: | GVSUPS150KHS |
| UPC/EAN: | 0731304407911 |
| Weight: | 270 kg |
| Certificates | |
| Certification | FCC Part 15 Class A, IEC 62040-1-1, IEC 62040-2, IEC 60721-4-2 Level 2M2, OSHPD, UL 1778 5th edition, REACH |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP21 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 150 kVA |
| Output power | 150000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 270 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 65 dB |
| Power protection features | Overload, Short circuit |
| ECO mode | |
| Audible alarm(s) | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 3000 m |
| Packaging content | |
| Management card included | |
| Quick installation guide | |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Package weight | 315 kg |
| Ports & interfaces | |
| SmartSlot | |
| SmartConnect port | |
| Weight & dimensions | |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 290 kg |
Questions & answers
What is the delivery time of APC Galaxy VS UPS 150kW 400V for External Batteries Start-up 5x8?
The article APC Galaxy VS UPS 150kW 400V for External Batteries Start-up 5x8 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC GVSUPS150KHS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Galaxy VS UPS 150kW 400V for External Batteries Start-up 5x8 always at the best possible price. We can give you a discount of 2% on APC Galaxy VS UPS 150kW 400V for External Batteries Start-up 5x8 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
