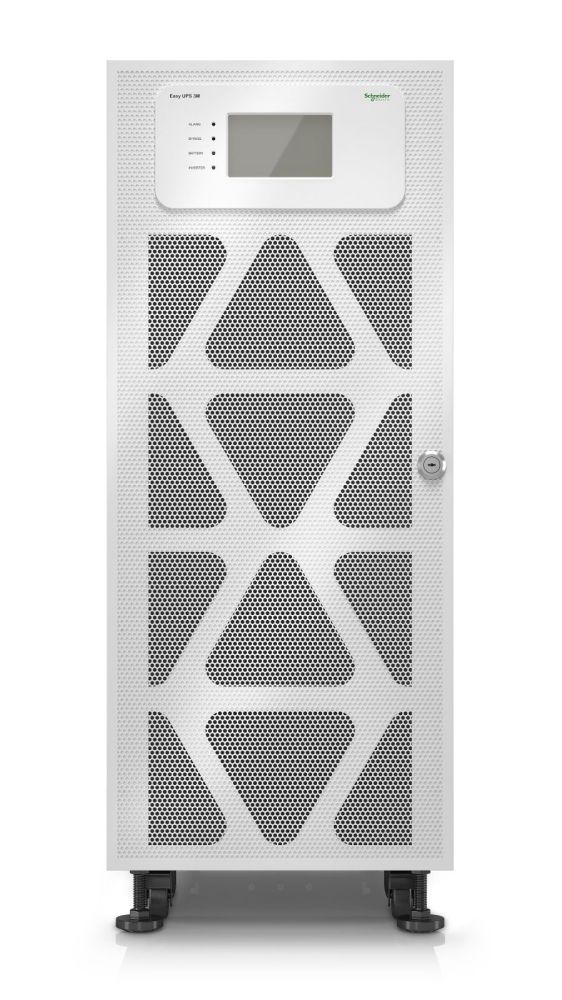

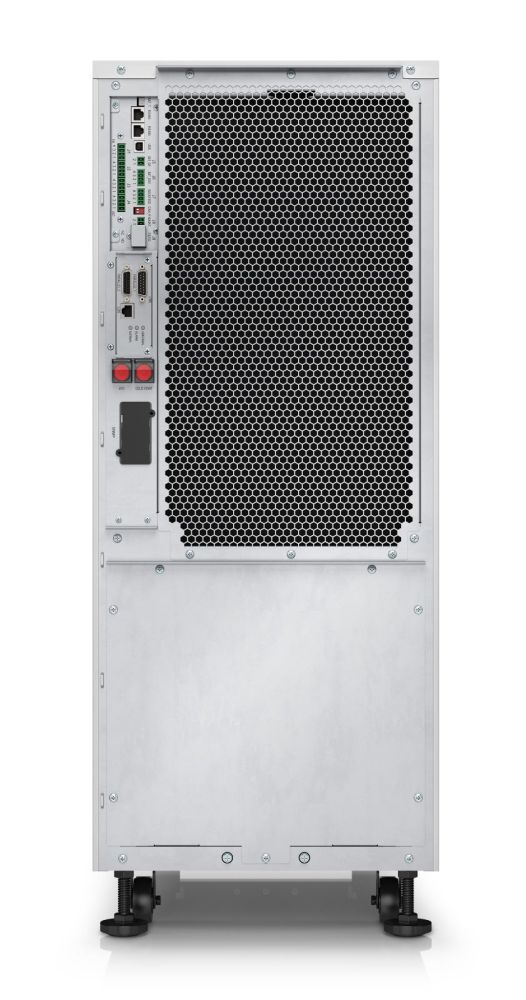

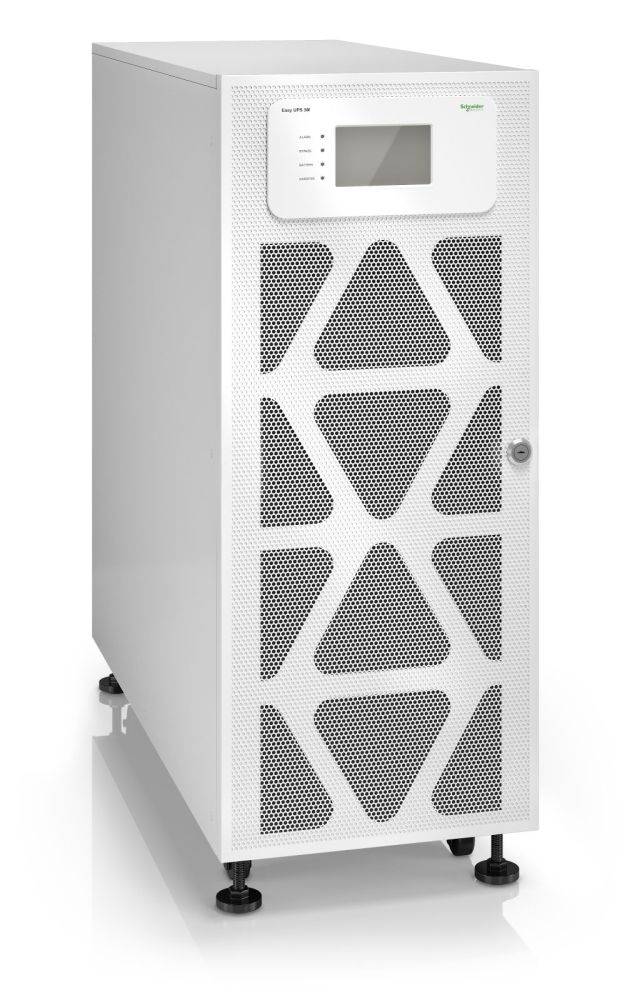

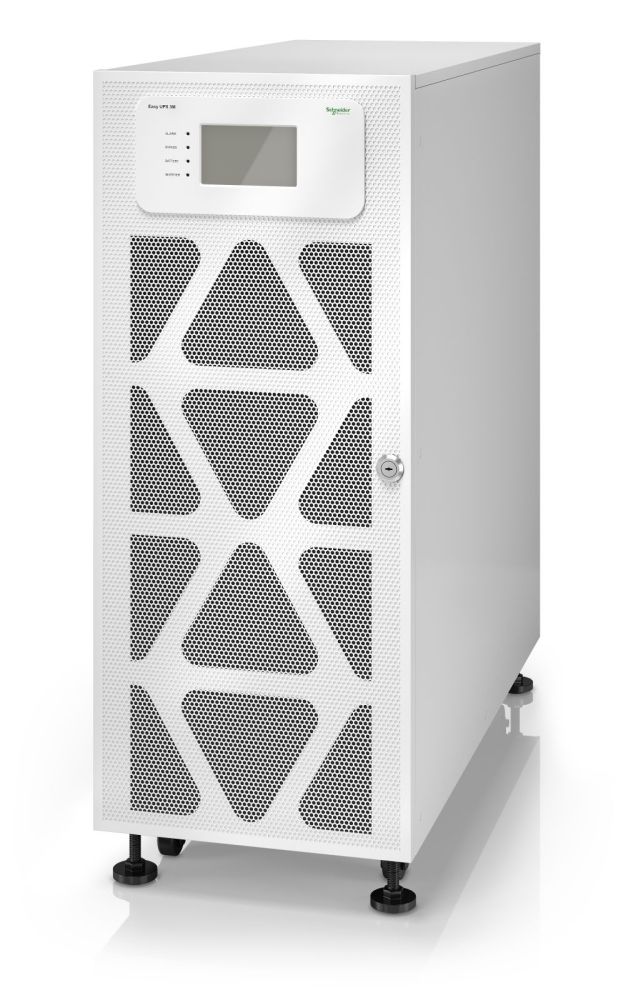

APC Easy UPS 3M 80kVA 400V 3:3 UPS for external batteries Start-up 5x8
|
12.350,00 EUR |
|
|
( 14.696,50 EUR incl. VAT ) ≈ £10,423.40 | ≈ $13,832.00 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1638094 |
| Mfg Part No: | E3MUPS80KHS |
| UPC/EAN: | 0731304363316 |
| Weight: | 164 kg |
| Battery | |
| Battery weight | 164 kg |
| Cold start | |
| Certificates | |
| Certification | EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4 |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 80 kVA |
| Output power | 80000 W |
| Waveform | Sine |
| Input operation voltage (min) | 342 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 146 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 94.9% |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 65 dB |
| ECO mode | |
| Audible alarm(s) | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1476.3 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 360 mm |
| Depth | 850 mm |
| Height | 915 mm |
| Weight | 140 kg |
| Battery width | 47.5 cm |
| Battery depth | 96.5 cm |
| Battery height | 114 cm |
