APC BR650MI UPS BACKUPS Pro BR 650 VA 6 sockets LCD interface

Your rating:
Average rating
product review for APC BR650MI UPS BACKUPS Pro BR 650 VA 6 sockets LCD interface
( 4.5 / 5 ) 24 ratings
APC BR650MI
This image may differ from the desired article.
APC BR650MIAPC BR650MIAPC BR650MIAPC BR650MIAPC BR650MIAPC BR650MIAPC BR650MIAPC BR650MIAPC BR650MIAPC BR650MIAPC BR650MIAPC BR650MIAPC BR650MIAPC BR650MIAPC BR650MIAPC BR650MI
361,00 EUR
( 429,59 EUR incl. VAT )
≈ £300.71  |  ≈ $396.02
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >5 pieces
1x APC BR650MI UPS BACKUPS Pro BR 650 VA 6 sockets LCD interface
Lieske Part No.:1638318
Mfg Part No: BR650MI
UPC/EAN: 0731304346937
Weight:7.4 kg
Type:BR650MI
Graduated prices net
From piecesPrice per pieces
4333,93 EUR
8306,85 EUR
12279,78 EUR
16252,70 EUR

Product information for APC BR650MI:

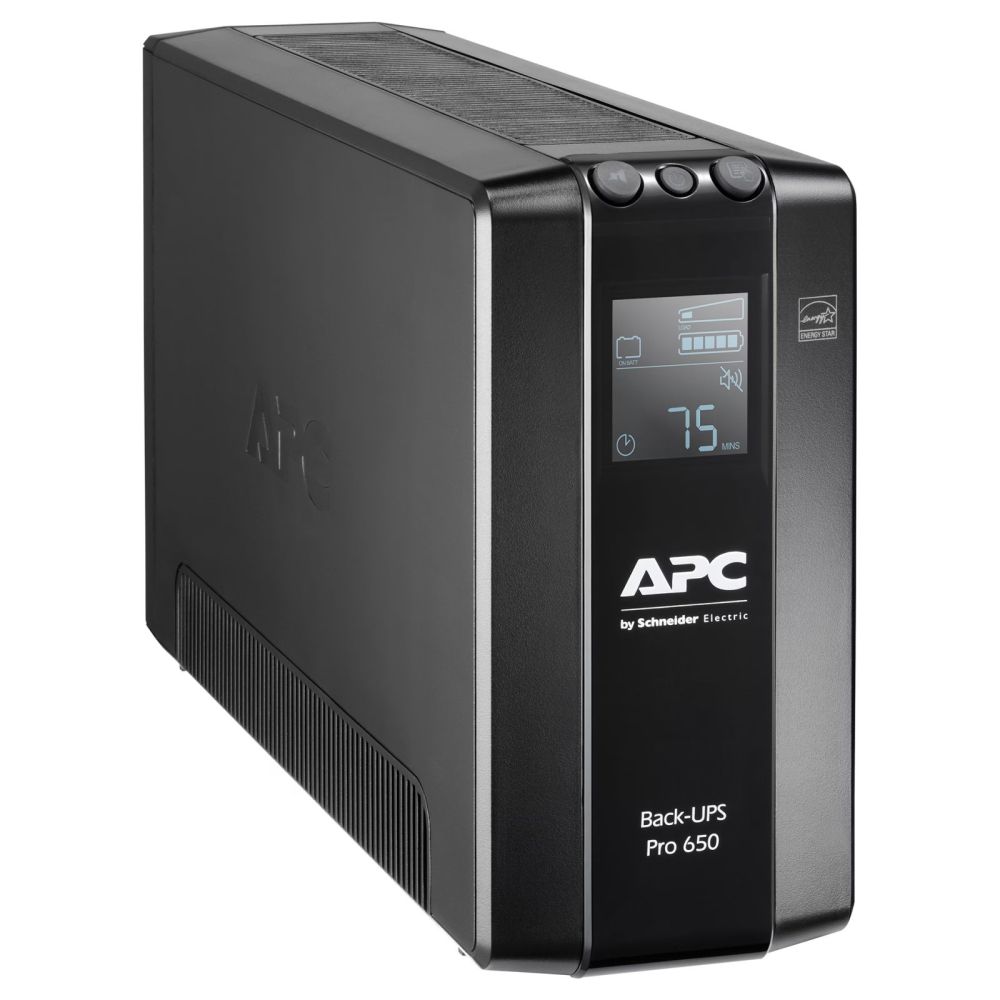

The APC Back-UPS PRO BR650MI is a line-interactive UPS in tower format, designed for protecting computers, network devices, and other sensitive electronic systems in home environments and home offices. With an output capacity of 0.65 kVA and an output power of 390 W, it provides sufficient power supply for typical workstations, including PC, monitor, router, modem, or small NAS systems. The UPS operates with a simulated sine wave (stepped approximation to a sinewave), which is sufficient for most IT devices, and features automatic voltage regulation (AVR) that corrects voltage fluctuations in the grid without discharging the battery. This extends the battery lifespan and maximizes runtime during power outages.

Applications

The BR650MI is particularly suitable for use in offices, home offices, small server rooms, or for private users requiring reliable power supply for sensitive devices. It protects against short-term power outages, voltage surges, and sags caused by lightning strikes or grid disturbances. The integrated overvoltage protection function for network cables (10/100/1000Base-T(X)) also secures data connections via Ethernet ports. Typical application scenarios include operating PC systems, network devices, media boxes, or small storage systems.

Functions and Equipment in Detail

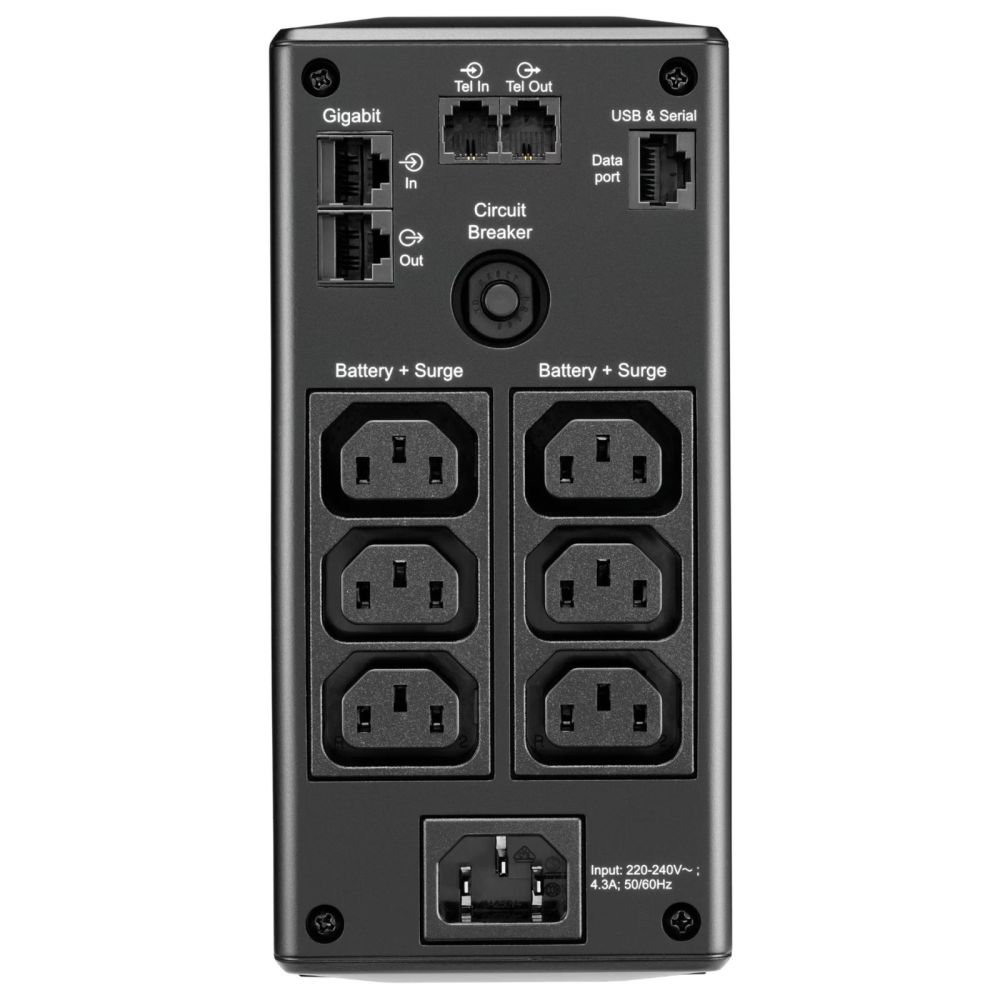

The UPS features 6 AC outlets with C13 connectors, all equipped with battery and overvoltage protection. Power supply is via a C14 plug with a cable length of 1.83 m. An integrated LCD display shows operational status, remaining runtime, and other relevant information. Additionally, LED indicators and acoustic alarms signal battery operation, low battery charge, or overload. The UPS supports ECO mode, which increases energy efficiency by not activating the battery during stable grid voltages.

Technology Explained Simply

The line-interactive topology enables a rapid response to grid disturbances. The response time is up to 12 ms, sufficient for most IT devices to switch to battery operation without data loss. The automatic voltage regulation (AVR) corrects voltages in the range of 176 V to 294 V without discharging the battery. This protects connected devices and extends battery lifespan. The battery technology is based on sealed lead-acid (VRLA), which is maintenance-free and leak-proof. Maximum battery lifespan is 5 years, with a recharge time of 12 hours. A hot-swap battery system allows battery replacement without shutting down the UPS or connected devices.

Compatibility and Accessories

The BR650MI is equipped with a USB port, enabling the PowerChute software (included in delivery) to automatically shut down PC or NAS systems in case of imminent battery failure. Two Ethernet LAN ports (RJ-45) provide overvoltage protection for network cables. As suitable accessories, the UPS ValuePRO VP700ELCD 390 W Line-Interactive is offered. As an alternative, the UPS BR650G2I BackUPS PRO 650 VA/230 V IEC C13 USB Tower is mentioned.

Mounting and Installation

The UPS is designed in tower format and can be placed on a desk or in a shelf. Installation involves connecting to a power outlet and linking devices to the C13 outlets. Software installation via USB requires a connection to the computer. The UPS is designed for indoor operation, with an operating temperature of 0 to 40 °C and relative humidity of 0 to 95 %. Cooling is passive, without fans.

Operational Advantages

The BR650MI provides reliable protection against power outages and voltage fluctuations. The integrated AVR technology ensures stable voltage without stressing the battery. The hot-swap function enables easy battery replacement, extending the UPS lifespan. The combination of LCD display, acoustic alarms, and USB control ensures transparent and user-friendly operation. The UPS is certified according to A-tick, C-tick, CE, EAC, GS Mark, RCM, and TISI. The delivery includes a USB cable and the operating manual. The warranty is 3 years, with a 3-year repair or replacement warranty for EU countries. The UPS is equipped with a device protection insurance coverage of 150,000 euros.

Battery
Battery technologySealed Lead Acid (VRLA)
Battery life (max)5 year(s)
Battery recharge time12 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes
Certificates
CertificationA-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Design
Form factorTower
Cable length1.83 m
Cooling typePassive
Product colourBlack

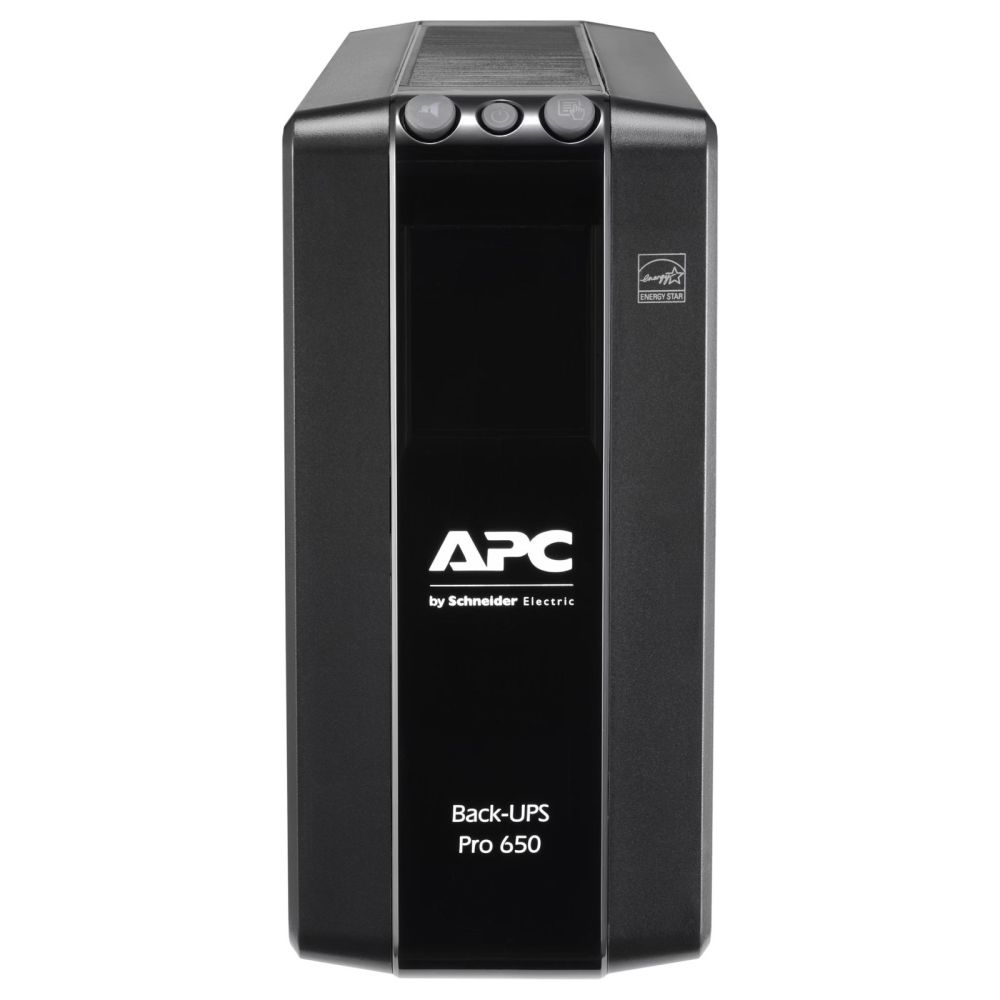

Display typeLCD
LED indicatorsYes
Features
UPS topologyLine-Interactive
Output power capacity0.65 kVA
Output power390 W
WaveformSine
Input operation voltage (min)176 V
Input operation voltage (max)294 V
Input frequency50/60 Hz
Output frequency50/60 Hz
Maximum current10 A
Response time12 ms
Noise level45 dB
Surge protection featuresNetwork
Audible alarm modesAlarm when on battery, Low battery alarm, Overload alarm
Automatic Voltage Regulation (AVR)Yes
ECO modeYes
Surge protectionYes
Audible alarm(s)Yes
Logistics data
Harmonized System (HS) code85078000
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Other features
Nominal output voltage230 V
Nominal input voltage230 V
Packaging content
Cables includedUSB cable
Management card includedNo
ManualYes
Packaging data
Package width440 mm
Package depth143 mm
Package height255 mm
Package weight7.4 kg
Ports & interfaces
AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity6 AC outlet(s)
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports2
Cabling technology10/100/1000Base-T(X)
USB portYes
SmartSlotNo
SmartConnect portNo
Sustainability
Sustainability certificatesGreen Premium
Weight & dimensions
Width91 mm
Depth310 mm
Height190 mm
Weight6.4 kg
