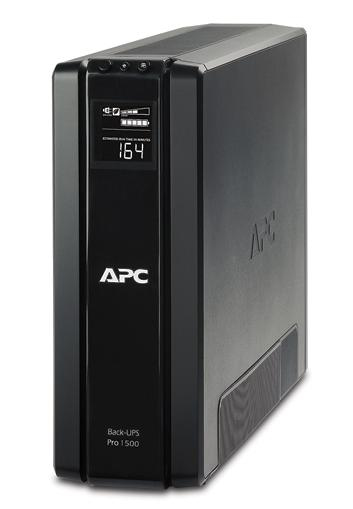

APC Back-UPS 1500VA USV 120V-US Version

Your rating:
Average rating
product review for APC Back-UPS 1500VA USV 120V-US Version
( 4.5 / 5 ) 2 ratings
APC BR1500G
This image may differ from the desired article.
APC BR1500GAPC BR1500G
434,68 EUR 436,40 EUR
( 517,27 EUR incl. VAT )
≈ £363.39  |  ≈ $480.32
plus delivery charges: 148,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x APC Back-UPS 1500VA USV 120V-US Version
Datasheet:file_download Download
Lieske Part No.:920597
Mfg Part No: BR1500G
UPC/EAN: 0731304268772
Weight:13.8 kg
Type:ACCS

Product information for APC BR1500G:

The APC BR1500G is an Uninterruptible Power Supply (UPS) of the ACCS category, designed for use in office environments and IT systems. With an output capacity of 1.5 kVA and an output power of 865 W, it provides sufficient power supply for multiple devices, including PCs, printers, and network equipment. The UPS operates with a nominal output voltage of 120 V and is designed for input frequencies of 50/60 Hz, enabling universal use in various regions. The devices are equipped with a NEMA 5-15P input cable with a cable length of 1.83 m, and feature ten NEMA 5-15R output sockets suitable for powering multiple end devices.

Applications

The APC BR1500G is particularly suitable for use in offices, small server rooms, or home networks, where short-term power interruptions must be prevented. The UPS protects sensitive IT equipment from voltage fluctuations, power outages, and overvoltages. The integrated network function with 10/100/1000 Base-T enables connection to computers or network management systems to monitor and control the UPS operation via software. The devices are designed for indoor use, with an operating temperature range of 0 to 40 °C.

Functions and Equipment in Detail

The UPS features sealed lead-acid (VRLA) battery technology, which is maintenance-free and safe. The battery recharge time is 8 hours, enabling rapid restoration of battery capacity after discharge. The energy absorption capacity is 355 J, describing the UPS’s ability to absorb overvoltages. The devices are equipped with acoustic signals that indicate the operating status (e.g., battery discharge, power failure) visually and audibly. The noise level is 45 dB, ensuring quiet operation acceptable in office environments.

Technology Explained Simply

The APC BR1500G operates as a line-interactive UPS, where the battery is activated only in the event of a power failure. During normal operation, the load is supplied directly from the mains, while the UPS compensates for voltage fluctuations via an integrated regulation. In the event of a power failure, the UPS switches to battery power within milliseconds to avoid any interruption in power supply. The 10/100/1000 Base-T network function enables integration into existing networks and allows the use of management software to monitor battery status, charging states, and operating conditions.

Compatibility and Accessories

The UPS is equipped with standard sockets compatible with common IT and office devices. Suitable accessories include warranty extensions, such as the Service Pack for 1 year or 3 years, which extend the standard warranty. These options provide extended operational security and technical support beyond the standard period.

Mounting and Installation

Installation is performed by connecting the input plug to a mains socket and linking the devices to be protected to the output sockets. The UPS is designed for desktop or desk use, with dimensions (W x D x H) of 112 x 381 x 302 mm. The devices are not intended for rack mounting but for freestanding use.

Advantages in Operation

The APC BR1500G offers reliable power supply with low noise levels and simple operation. The integrated network function enables remote monitoring and control, which is particularly beneficial in IT environments. The maintenance-free battery technology reduces maintenance requirements, and the fast battery recharge time ensures quick readiness after discharge. The certifications FCC 15 B, FCC 68, NOM, TUV, RoHS confirm compliance with international safety and environmental standards.

Battery
Battery technologySealed Lead Acid (VRLA)
Battery recharge time8 h
Certificates
CertificationFCC 15 B, FCC 68, NOM, TUV, RoHS
Design
Cable length1.83 m
Product colourBlack
Features
Output power capacity1.5 kVA
Output power865 W
Input frequency50/60 Hz
Surge energy rating355 J
Noise level45 dB
Audible alarm(s)Yes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-5 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 94%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Other features

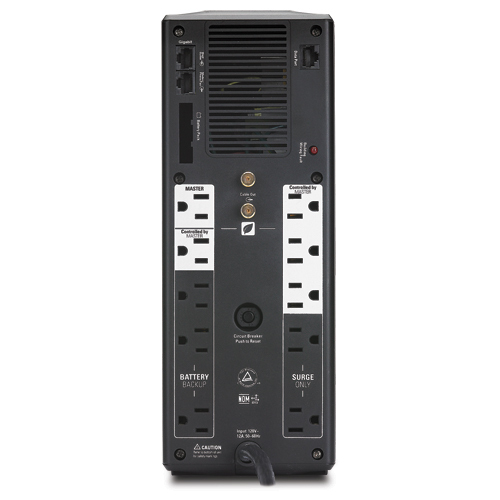

Output connections(10) NEMA 5-15R
Input connection typeNEMA 5-15P
Dimensions (WxDxH)112 x 381 x 302 mm
Nominal output voltage120 V
Networking features10/100/1000 Base-T
Package dimensions (WxDxH)229 x 483 x 381 mm
Packaging data
Package weight13.8 kg
Weight & dimensions
Weight13.4 kg


Product data sheet
Datasheet for APC BR1500G, EAN: 0731304268772

Questions & answers

What is the delivery time of APC Back-UPS 1500VA USV 120V-US Version?

The article APC Back-UPS 1500VA USV 120V-US Version is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC BR1500G to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you APC Back-UPS 1500VA USV 120V-US Version always at the best possible price. We can give you a discount of 2% on APC Back-UPS 1500VA USV 120V-US Version if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
