APC RACK PDU 9000 SWITCHED ZEROU

Your rating:
Average rating
product review for APC RACK PDU 9000 SWITCHED ZEROU
( 4.5 / 5 ) 2 ratings

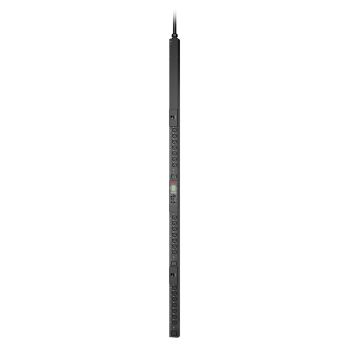

APC APDU9953
This image may differ from the desired article.
APC APDU9953APC APDU9953APC APDU9953APC APDU9953APC APDU9953APC APDU9953APC APDU9953APC APDU9953APC APDU9953APC APDU9953APC APDU9953APC APDU9953
1.496,25 EUR
( 1.780,54 EUR incl. VAT )
≈ £1,246.38  |  ≈ $1,641.39
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >25 pieces
1x APC RACK PDU 9000 SWITCHED ZEROU
Datasheet:file_download Download
Lieske Part No.:1572411
Mfg Part No: APDU9953
UPC/EAN: 0731304356271
Weight:9.58 kg
Type:ACCS

Product information for APC APDU9953:

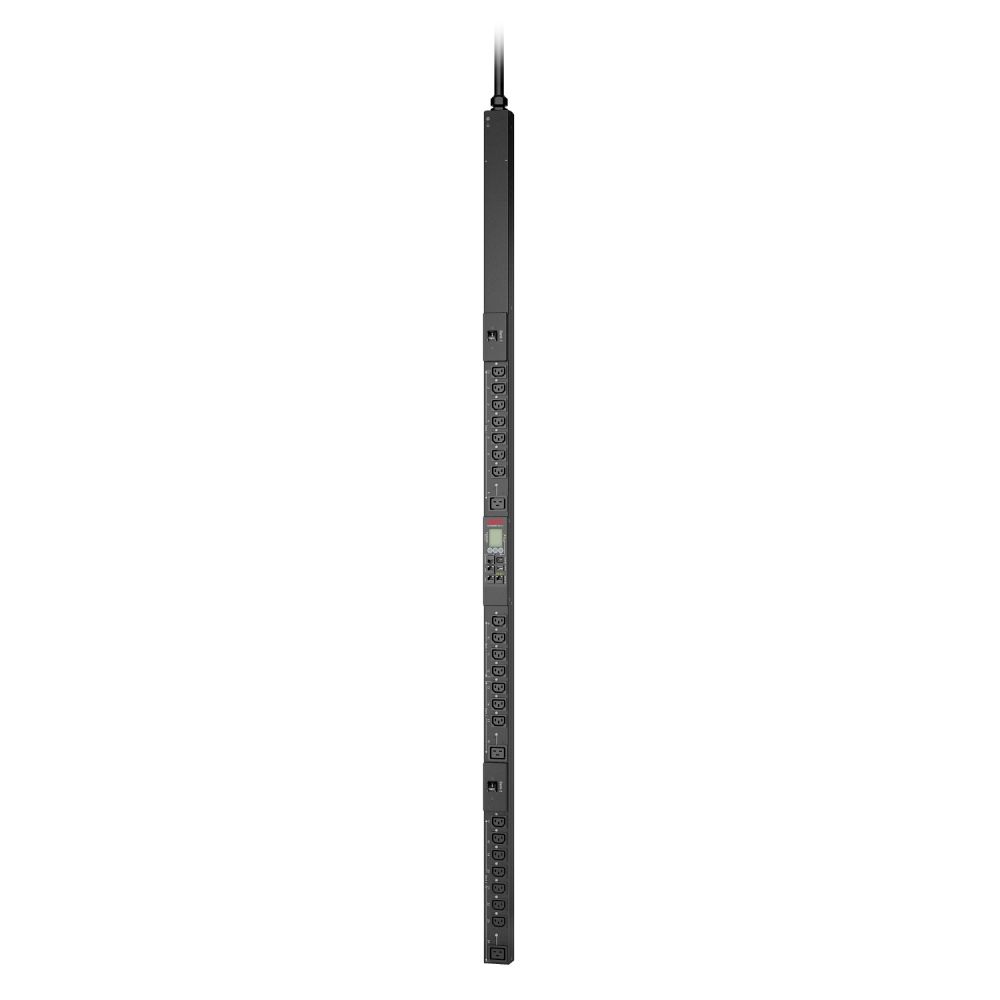

The APC APDU9953 is a modified Rack-PDU (Power Distribution Unit) in 0U format, specifically designed for use in 19-inch racks. It serves for centralized power distribution in server and network environments and is designed for vertical mounting. The device features 24 AC outlets, equipped with C13 and C19 connectors, to supply various IT devices such as servers, switches, or storage systems. The input voltage can range between 200, 208, 230 and 220–240 V, with a maximum current rating of 32 A. The load capacity is 7400 VA, and the maximum power is 7360 W, making the PDU suitable for demanding IT loads. The input frequency ranges from 50 to 60 Hz, ensuring compatibility with various power grids worldwide.

Applications

The APC APDU9953 is intended for use in data centers, server rooms, and network areas where reliable and controlled power supply for multiple devices is required. Due to its vertical mounting and 0U rack capacity, it is particularly suitable for racks where vertical space saving is important, such as in NetShelter™ 9000 Series racks. The black color matches typical server environments visually. The operating temperature ranges from -5 to 45 °C, and the storage temperature from -25 to 65 °C, enabling flexible use in various environments. The relative humidity during operation is 0 to 95 %, non-condensing, and the storage humidity is also between 5 and 95 %. The maximum operating altitude is 3048 m, and the storage altitude is 15240 m, enabling use in high-altitude regions or airport facilities.

Functions and Equipment in Detail

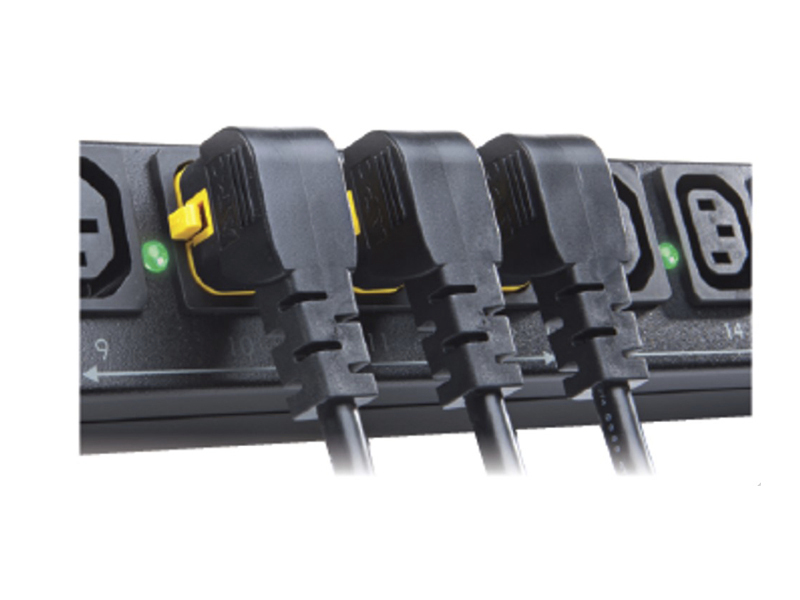

The PDU features 24 AC outlets, equipped with C13 and C19 connectors, to supply both smaller and high-power IT devices. The connector types comply with the IEC 60309 standard, ensuring a safe and standardized connection. There is no on/off switch on the device, indicating that power supply is controlled via network control or external circuits. The certifications include, among others, EAC, EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, RCM and VDE, confirming compliance with European and international safety and emission standards.

Technology Explained Simply

The modified design of the APC APDU9953 enables optimized space utilization in the rack, especially with vertical mounting. The single-phase power supply is suitable for typical IT loads that do not require three-phase supply. The maximum current of 32 A and load capacity of 7400 VA provide sufficient power for multiple servers or network devices. The voltage range of 200 to 240 V covers common mains voltages in Europe and other regions. The frequency of 50 to 60 Hz ensures compatibility with various power grids. The dimensions are 56 mm (width), 46 mm (depth), and 1829 mm (height), enabling vertical mounting in the rack. The weight is 7.34 kg, and the packaging weight is 9.95 kg.

Compatibility and Accessories

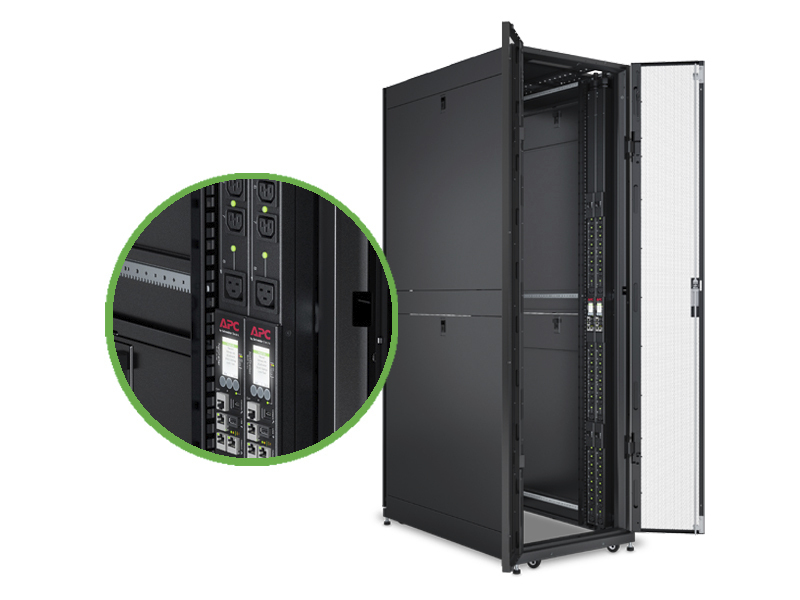

The APC APDU9953 is specifically developed for use in NetShelter™ 9000 Series racks, where vertical mounting and 0U construction enable optimal space utilization. The C13 and C19 connectors are universally applicable and compatible with a wide range of IT devices. The certifications guarantee compliance with international standards, enabling use in various markets.

Mounting and Installation

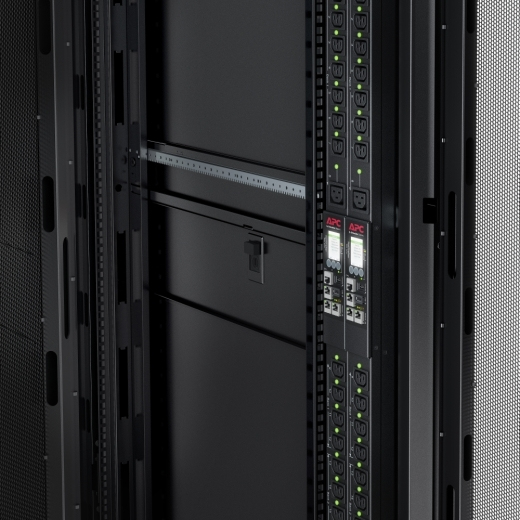

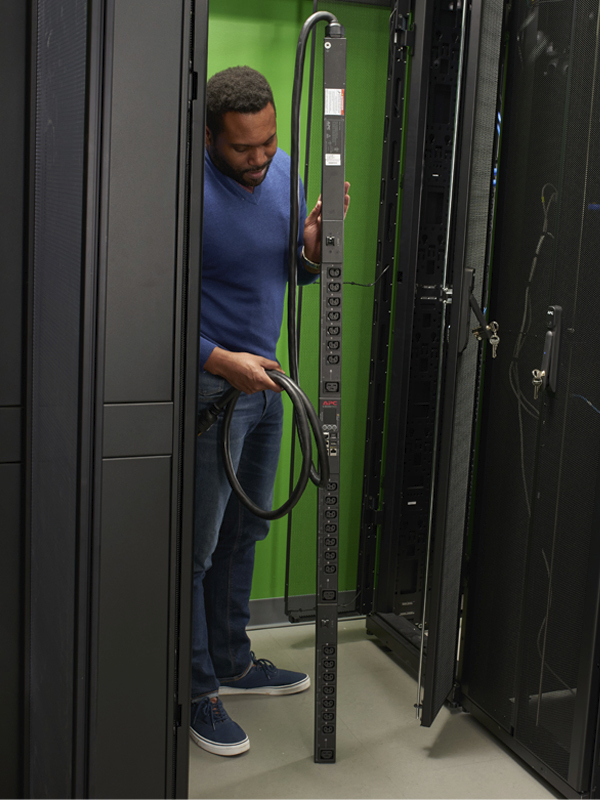

The PDU is designed for vertical mounting in a 19-inch rack. Installation is done without an additional on/off switch, meaning power supply is controlled via external circuits or network control. The dimensions of 56 mm width, 46 mm depth, and 1829 mm height are optimized for vertical placement. Installation requires no special tools or additional mounting materials, as the PDU is designed for standard rack mounting.

Operational Advantages

The centralized power distribution via 24 outlets enables efficient supply of multiple devices from a single point. The 0U construction saves space in the rack, which is particularly beneficial in densely populated server rooms. The vertical mounting optimizes airflow and cooling in the rack. The high certifications ensure the safety and reliability of the device. The wide voltage range of 200 to 240 V allows use in various regions without modification. The operating conditions of -5 to 45 °C and 0 to 95 % humidity make the PDU suitable for a wide range of environments.

Certificates
CertificationEAC, EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, RCM, VDE
Design
PDU typesSwitched
TypeSingle-phase
Rack capacity0U
MountingVertical
Product colourBlack
On/off switchNo
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Non-operating altitude0 - 15240 m
Packaging data
Package weight9.95 kg
Package width165 mm
Package depth124 mm
Package height2040 mm
Ports & interfaces
AC outlets quantity24 AC outlet(s)

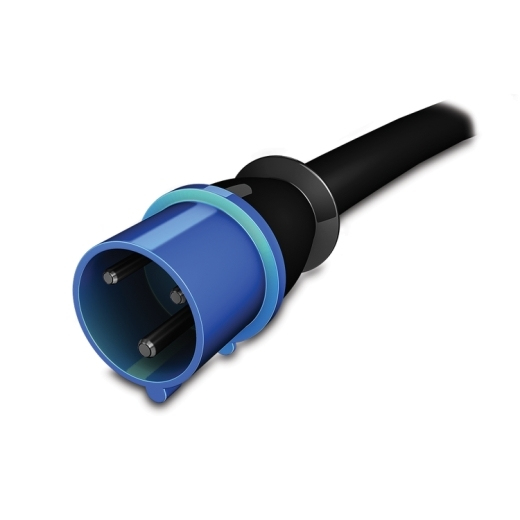

Power plugIEC 60309
AC outlet typesC13 coupler, C19 coupler
Power
Nominal input voltage200, 208, 230, 220-240 V
AC input frequency50 - 60 Hz
Maximum current32 A
Load capacity7400 VA
Maximum power7360 W
Weight & dimensions
Width56 mm
Depth46 mm
Height1829 mm
Weight7.34 kg


Product data sheet
Datasheet for APC APDU9953, EAN: 0731304356271

Questions & answers

What is the delivery time of APC RACK PDU 9000 SWITCHED ZEROU?

The article APC RACK PDU 9000 SWITCHED ZEROU is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC APDU9953 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you APC RACK PDU 9000 SWITCHED ZEROU always at the best possible price. We can give you a discount of 2% on APC RACK PDU 9000 SWITCHED ZEROU if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
