APC Basic Rack AP9565 PDU - 12 x IEC 320-C13 - 120 V AC, 208 V AC, 230 V AC content_copy

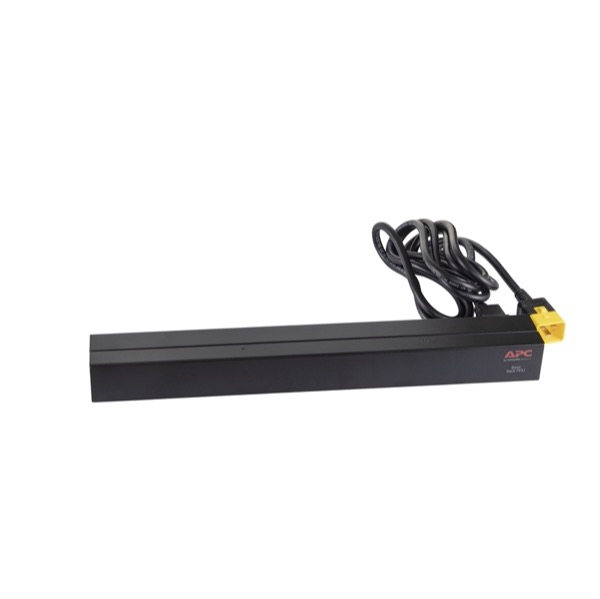

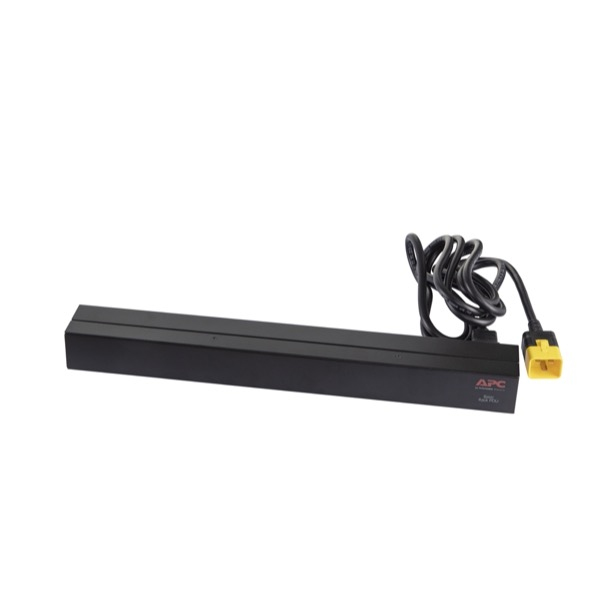

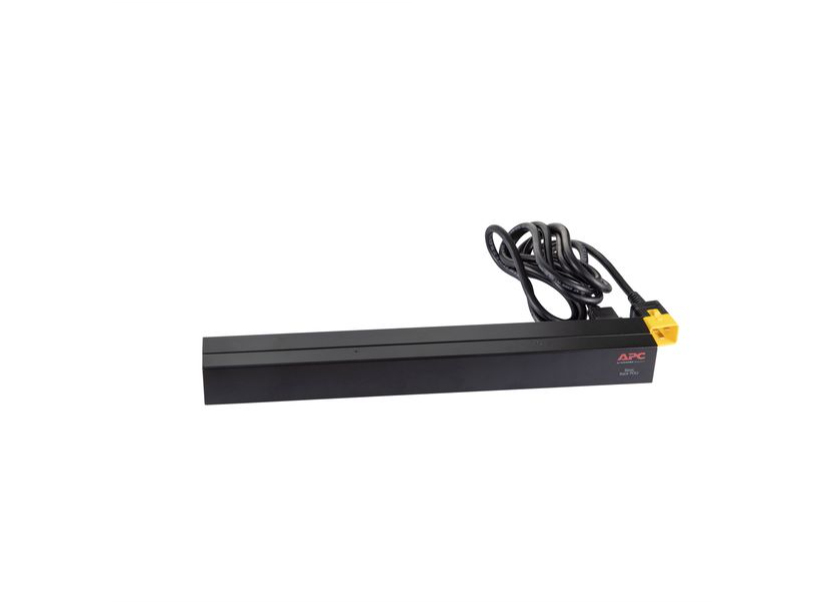

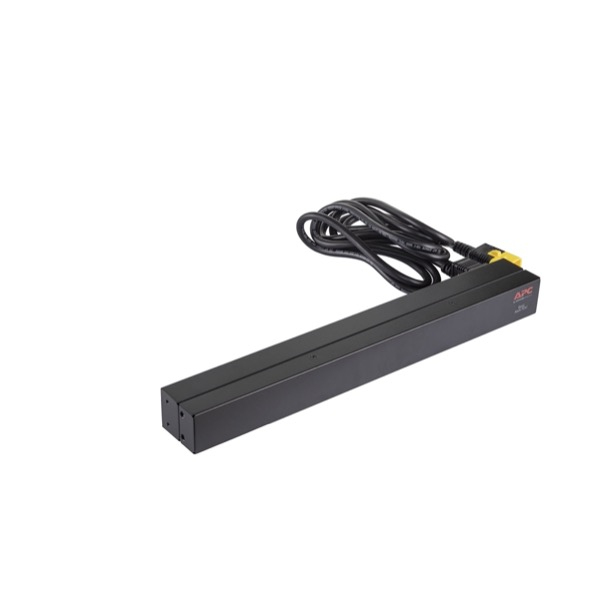

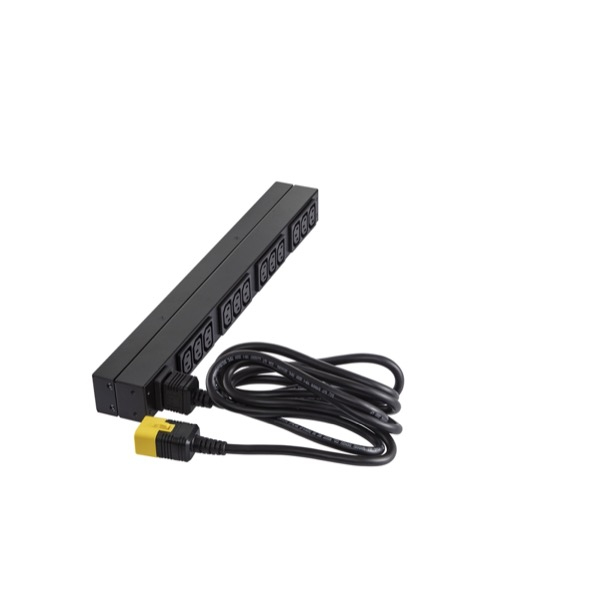

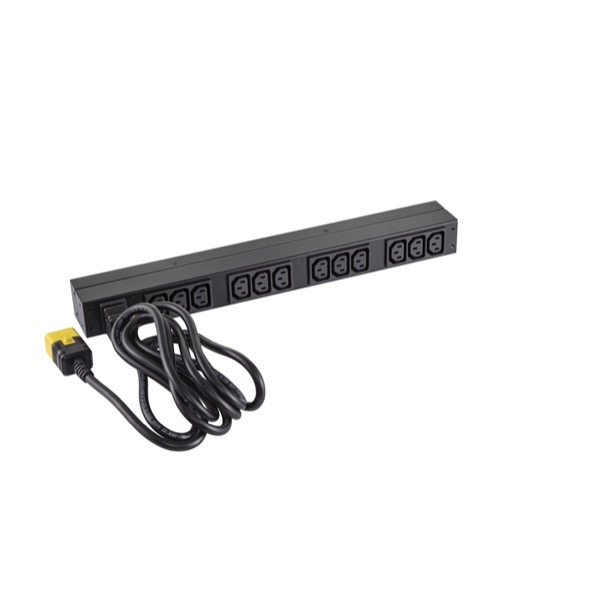

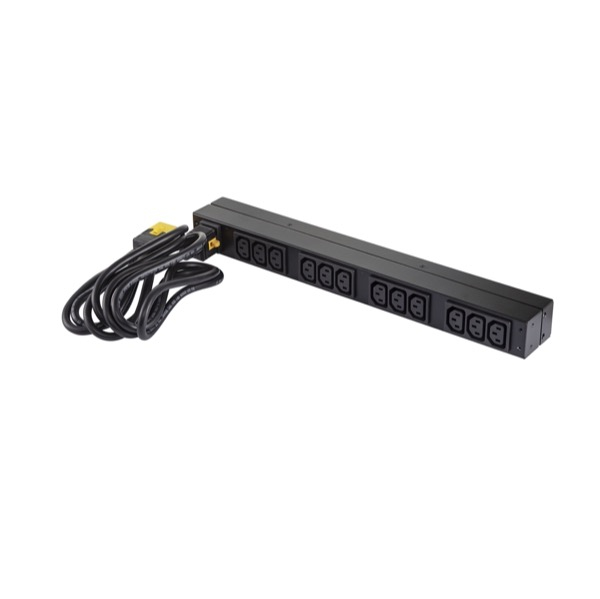

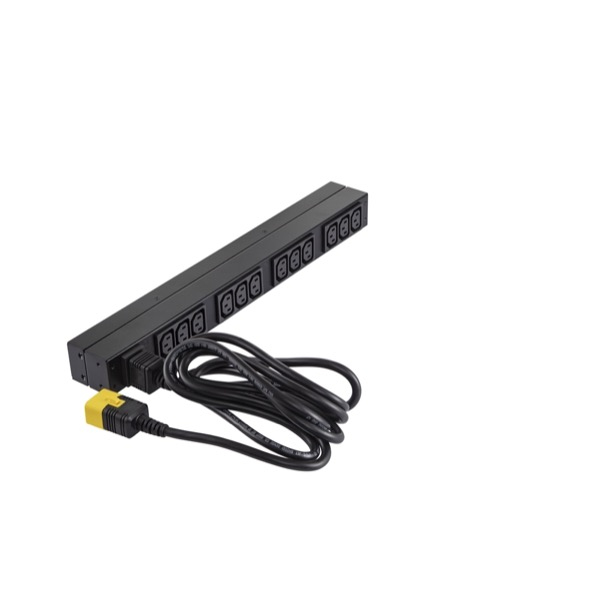

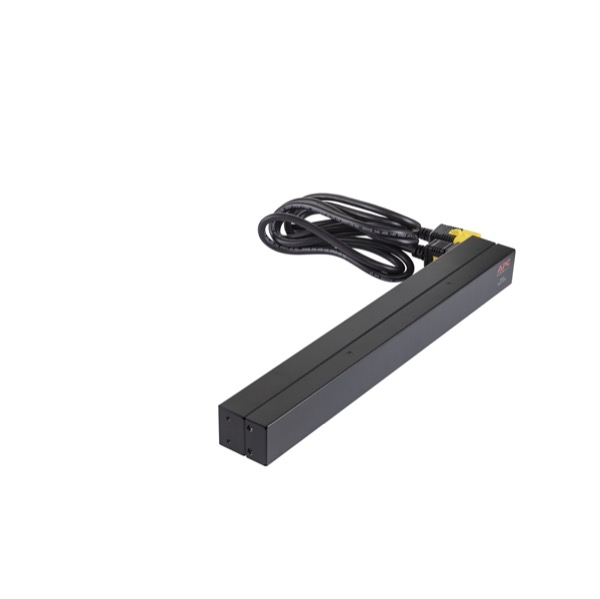

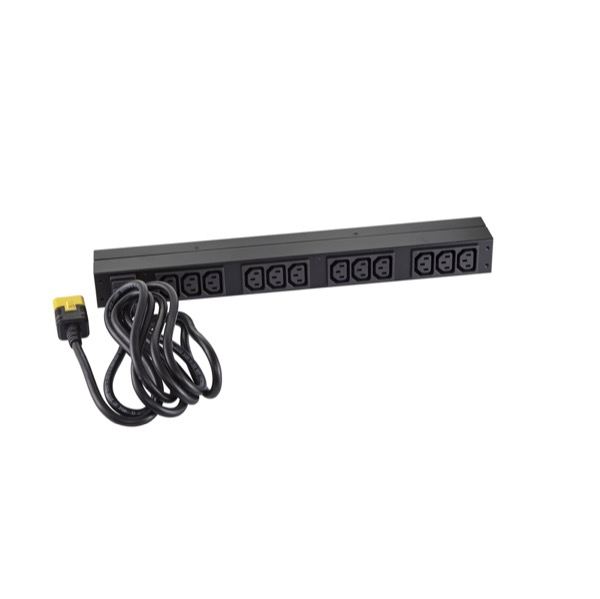

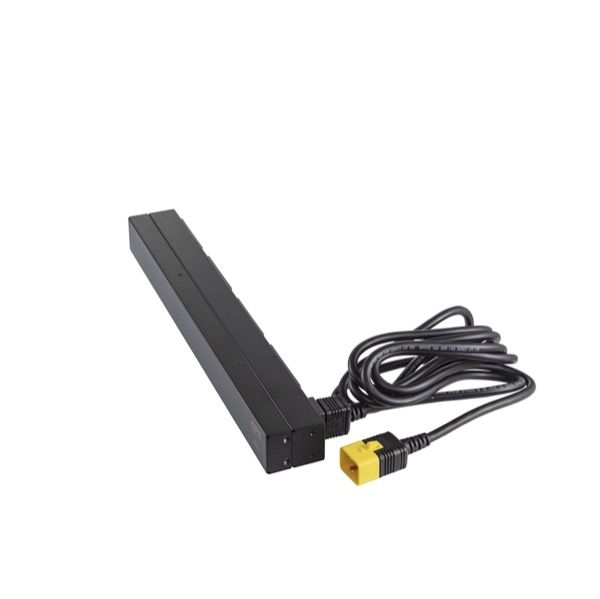

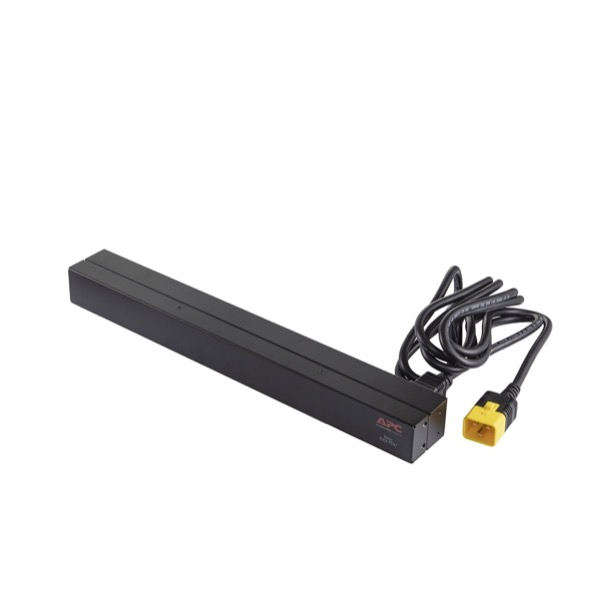

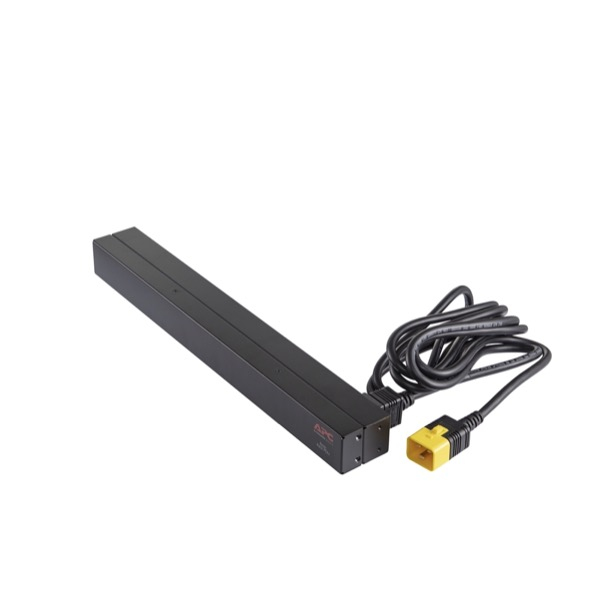

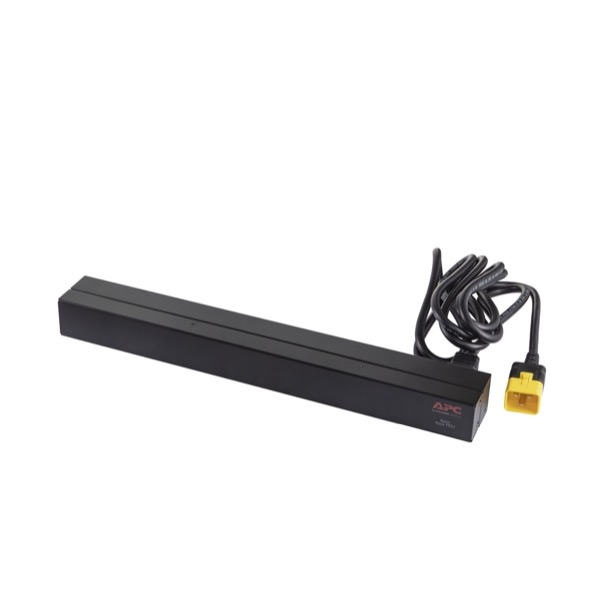

The APC Rack PDU, type AP9565, is a standard power distribution unit (PDU) for use in data centres and server racks. It enables efficient and reliable distribution of alternating current to rack-mounted IT and network devices. The unit is designed as a single-phase PDU and features a rack capacity of 0U/1U, allowing it to be mounted both horizontally and vertically in standard 19-inch racks. The product colour is black, enabling seamless integration into existing infrastructures.

Applications
This PDU is designed for use in professional IT environments, particularly in data centres, server rooms, and computing facilities. It is suitable for powering network devices, servers, storage systems, and other rack-mounted equipment requiring stable and controlled power supply. The real-time remote monitoring of connected loads enables proactive management of power distribution to prevent overloads.

Functions and Features in Detail

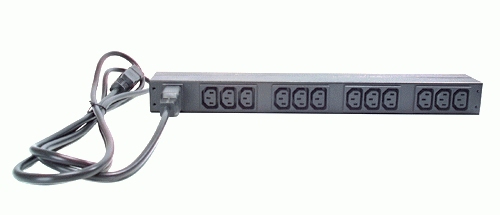

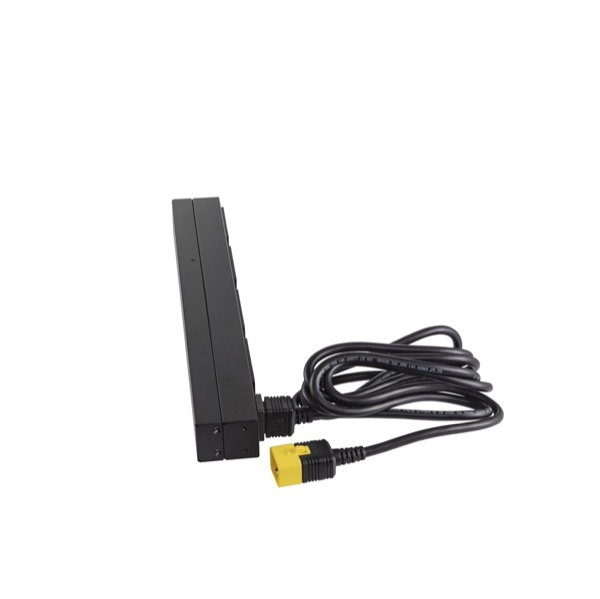

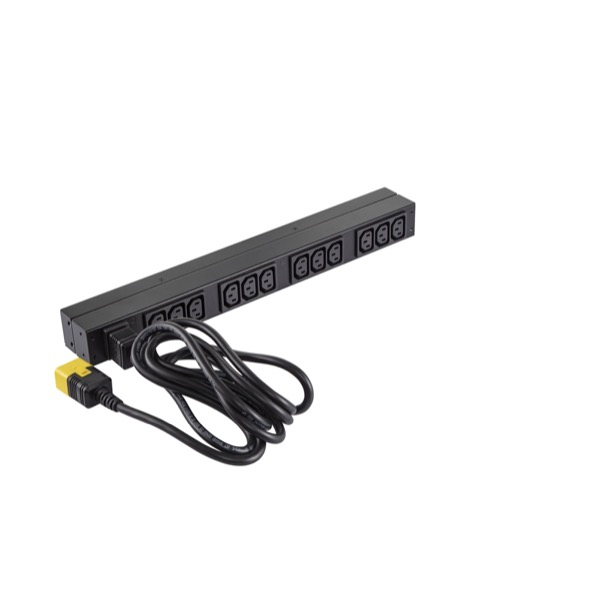

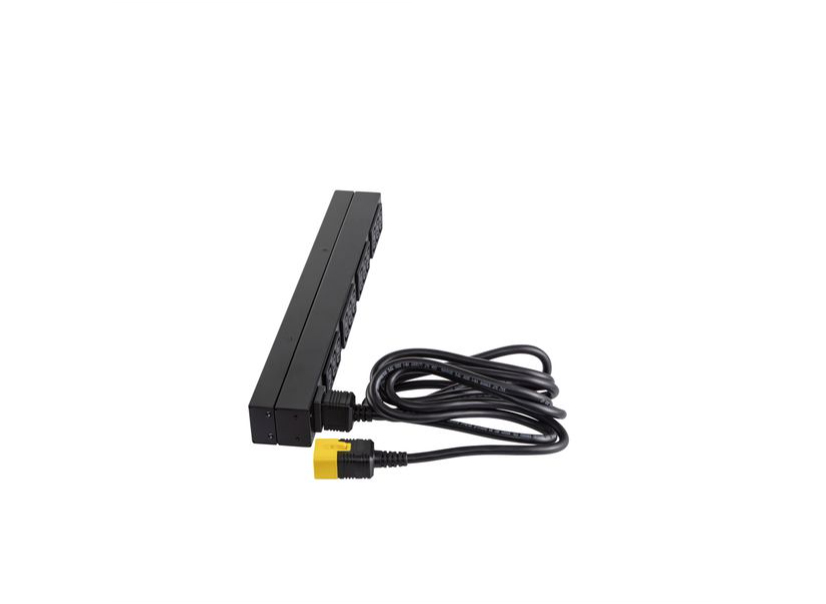

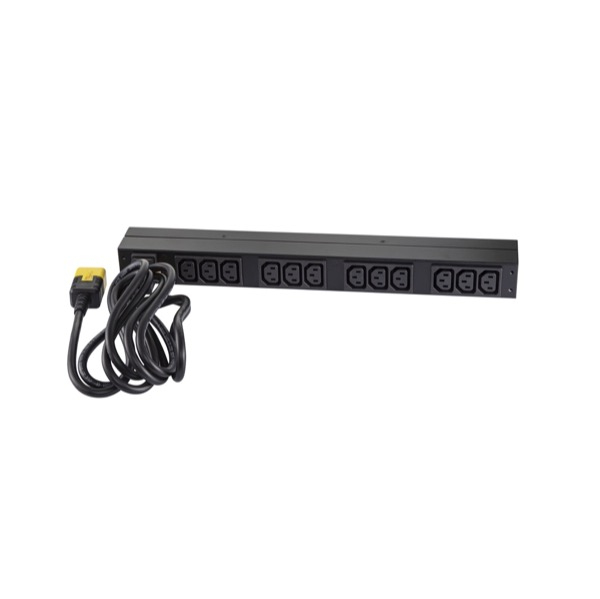

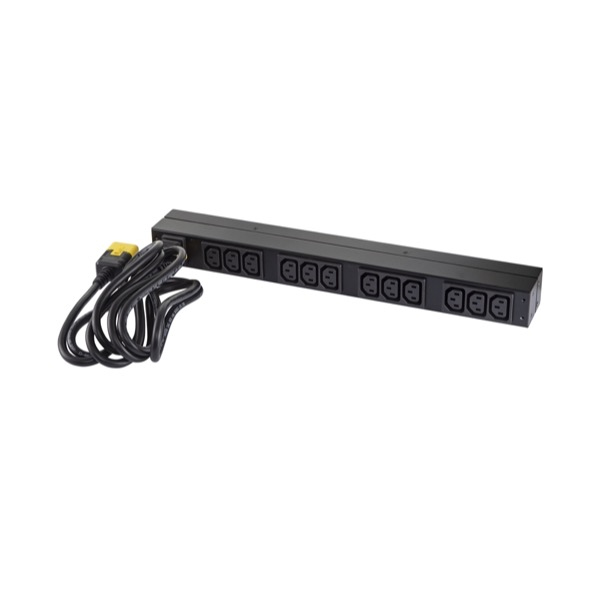

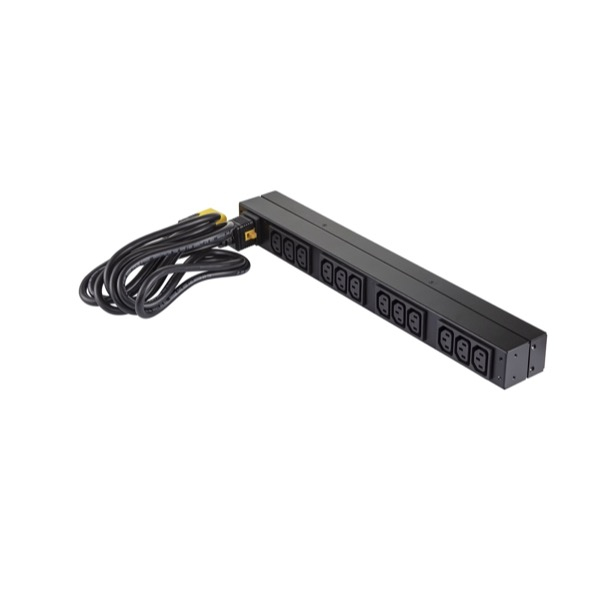

The unit features 12 AC outlets, each equipped with an IEC 320 C13 connector. These sockets are universally compatible and fit most standard IT devices. The input is via an IEC 320 C20 plug, which connects to a suitable power source. The cable length is 2.5 m, allowing flexible positioning within the rack. The maximum power output is 3680 W, with a load capacity of 3680 VA. The maximum input current per phase is 16 A, ensuring reliable power supply for medium to high loads.

Technology Explained Simply
The PDU operates on a single-phase alternating voltage of 208/230 V, which is standard for most European and North American data centres. Power distribution occurs through the 12 C13 outlets, each supporting a load of up to 16 A. The real-time monitoring of connected devices allows continuous tracking of power consumption. User-defined alarms alert to potential overloads, helping to prevent accidental power outages in critical systems. Certification to cUL Listed, CE, CSA, GOST, Queensland Australia, UL 60950, UL Listed, and VDE confirms safety and compliance with international standards.

Compatibility and Accessories
The PDU is designed for use in standard 19-inch racks and can be mounted both horizontally and vertically. It is InfraStruXure Certified, ensuring compatibility with APC infrastructure systems. Installation is tool-free in the rear channel of NetShelter VX racks. The use of C13 and C20 connectors ensures universal compatibility with a wide range of IT devices.

Installation and Mounting
Mounting is tool-free into the rear mounting channel of NetShelter VX racks. The horizontal and vertical mounting options provide flexibility in rack placement. The 2.5 m cable length allows flexible positioning of the power source. The PDU is designed for operation in environments with an operating temperature of 0 to 45 °C and relative humidity of 0 to 95 %. For storage, temperatures from -25 to 65 °C and humidity of 0 to 95 % are permitted.

Operational Advantages
The APC Rack PDU AP9565 provides reliable power distribution with high capacity and integrated monitoring. Real-time load monitoring and the ability to configure user-defined alarms enhance operational safety and prevent unexpected power failures. Certification to international standards ensures the safety and reliability of the device. Universal compatibility with C13 and C20 connectors simplifies integration into existing infrastructures.

Certificates
Certification	cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Design
PDU types	Basic
Type	Single-phase
Rack capacity	0U/1U
Mounting	Horizontal/Vertical
Product colour	Black
Features
Cable length	2.5 m
Logistics data
Total carbon footprint (kg of CO2e)	55.19
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Packaging data
Package weight	3.64 kg
Package width	464 mm
Package depth	229 mm
Package height	70 mm
Ports & interfaces
AC outlets quantity	12 AC outlet(s)
Power plug	C20 coupler
AC outlet types	C13 coupler
Input connection type	IEC-320 C20
Output connections	(12) IEC 320 C13
Power
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum power	3680 W
Weight & dimensions
Width	447 mm
Depth	57.2 mm
Height	44.5 mm
Weight	2.05 kg

---
