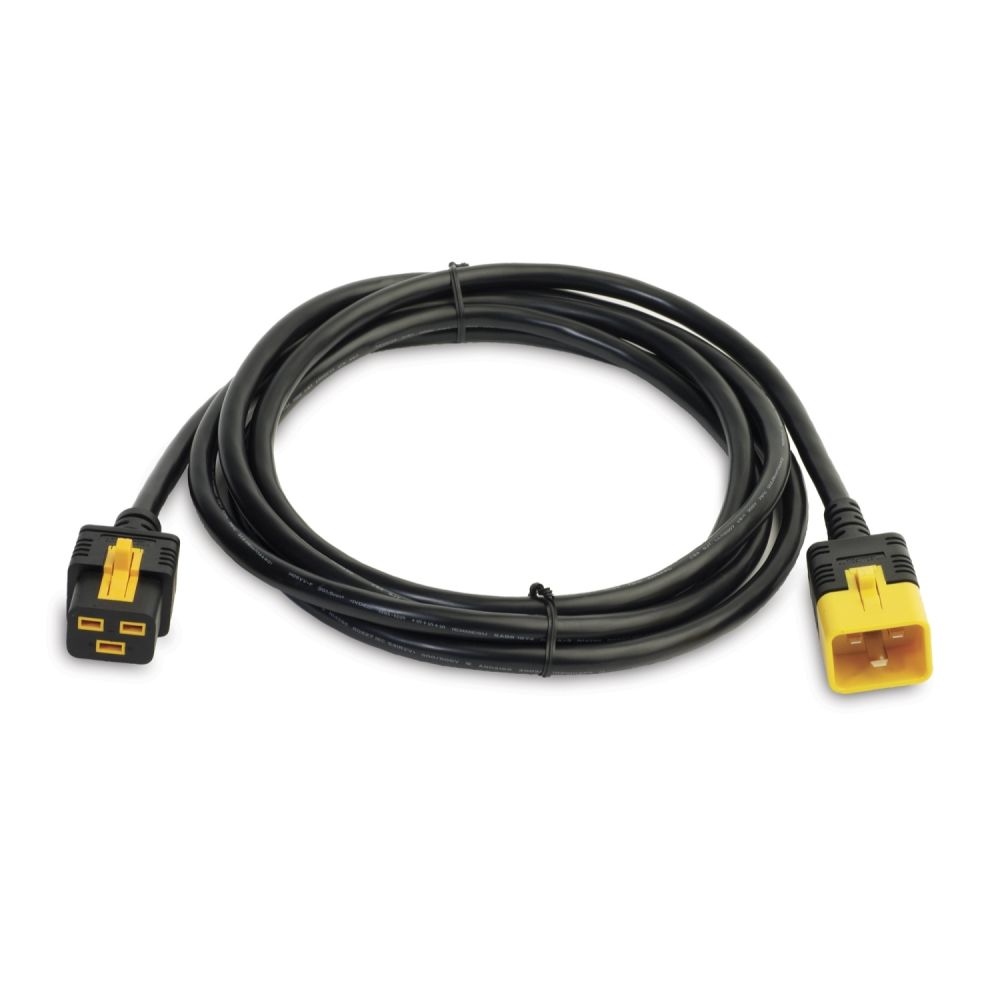

APC AP8760 Power cable C19→C20 socket/plug 3.10 m black

Your rating:
Average rating
product review for APC AP8760 Power cable C19→C20 socket/plug 3.10 m black
( 4 / 5 ) 1 ratings
APC AP8760
This image may differ from the desired article.
153,90 EUR 160,38 EUR
( 183,14 EUR incl. VAT )
≈ £128.20  |  ≈ $168.83
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >50 pieces
1x APC AP8760 Power cable C19→C20 socket/plug 3.10 m black
Datasheet:file_download Download
Lieske Part No.:2014503
Mfg Part No: AP8760
UPC/EAN: 0731304288145
Weight:0.541 kg
Type:AP8760
Graduated prices net
From piecesPrice per pieces
5142,36 EUR
10130,82 EUR
15119,27 EUR
20107,73 EUR

Product information for APC AP8760:

The APC power cable with locking mechanism, type AP8760, is a power cable specifically developed for use in IT infrastructures to ensure a secure connection between rack-mounted PDUs (Power Distribution Units) and IT devices. The cable features a C19 plug on one end and a C20 coupler on the other, enabling connection to both standard IEC sockets and integrated power inputs on IT devices. The cable length is 3.05 m, providing sufficient reach for typical rack configurations. The cable is black and complies with industry standards for power supply cables in the IT sector.

Applications
This cable is primarily designed for use in data centers, server rooms, and other environments where reliable and uninterrupted power supply for IT systems is required. It is particularly used for connecting APC rack PDUs from the AP8000 series to IT devices, with the locking function only activated when the corresponding sockets are equipped with a locking mechanism. The locking feature prevents accidental disconnection of the cable, which is especially beneficial in environments with high operational activity or frequent maintenance work.

Functions and Equipment in Detail
The integrated locking mechanism ensures a secure fit of the cable in the connector. This prevents unintended disconnection of the power supply, which could lead to IT system outages. The cable is rated for a maximum current draw of 16 A and supports an input voltage of 230 V. The use of IEC connectors ensures universal compatibility with a wide range of devices that support this standard.

Technology Explained Simply
The locking function only operates when both connection points — the socket on the device and the plug on the cable — are equipped with a corresponding latching mechanism. When used with non-locking sockets, the locking feature remains inactive, but the cable can still be securely connected. The cable length of 3.05 m provides sufficient slack for device placement within the rack without excessive tension or bending. The cable construction is designed for use in environments where the operating temperature ranges from 0 to 75 °C, and it can be operated up to an altitude of 3000 m above sea level.

Compatibility and Accessories
The cable is compatible with all standardized IEC sockets and power outlets. It is particularly suitable for connecting to APC rack PDUs from the AP8000 series, where the locking function is activated. It can also be used with IT devices featuring integrated C20 sockets that include a locking mechanism. Use with other manufacturers is possible, provided the connectors comply with IEC standards.

Installation and Mounting
Installation is performed by simply inserting the C19 plug into the corresponding socket on the PDU and the C20 coupler into the power input socket of the IT device. On devices with a locking function, the latching mechanism is automatically activated once the cable is correctly inserted. There is no specific mounting orientation; the cable can be installed in any position. Installation requires no additional tools or special preparations.

Operational Advantages
The locking function enhances operational safety by preventing the cable from being accidentally disconnected. This is particularly important in environments with high device density, where cables could easily be dislodged by movement or mechanical stress. The cable length of 3.05 m allows flexible device placement within the rack without excessive tension. The use of IEC connectors ensures universal applicability and simplifies maintenance and replacement.

Certification and Environment
The product complies with the requirements of the RoHS and REACH directives, as well as the WEEE directive. It is certified with CCC, CSA, PSE, UL listed, and VDE, confirming safety and conformity with international standards. The CO₂ footprint over the entire life cycle is 59 kg CO2e. The product contains no halogens above the threshold limits and is designed for recycling. The packaging consists of recycled cardboard and does not contain single-use plastics.

Certificates
Compliance certificatesRoHS, REACH, WEEE
CertificationCCC; CSA; PSE; UL listed; VDE
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Features
Product colourBlack
Connector 1 genderMale
Connector 2 genderFemale
Cable length3 m
Connector 1IEC C20
Connector 2C20 coupler
Logistics data
Customs product code (TARIC)8544429090
Harmonized System (HS) code84733080
Total carbon footprint (kg of CO2e)59.27608845625331
Operational conditions
Operating temperature (T-T)0 - 75 °C
Storage temperature (T-T)-25 - 75 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Other features
Input connection typeIEC 60320 C20
Dimensions (WxDxH)230 x 45 x 230 mm
Weight (imperial)0.51 kg (1.12 lbs)
Country of originIndia
Packaging data
Package width230 mm
Package depth45 mm
Package height230 mm
Package weight510 g
Power
Input voltage230 V
Input current16 A
Technical details
SCIP number1cdb2fed-a06f-4574-913d-8df8e70936b2
Preferred mounting positionno preference
Sustainable packagingNo
Proposition 65Yes
Halogen freeNo
Take-back systemNo
Packaging without single use plasticNo
Weight & dimensions
Width230 mm
Depth45 mm
Height230 mm
Weight510 g


Product data sheet
Datasheet for APC AP8760, EAN: 0731304288145

Questions & answers

What is the delivery time of APC AP8760 Power cable C19→C20 socket/plug 3.10 m black?

The article APC AP8760 Power cable C19→C20 socket/plug 3.10 m black is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC AP8760 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you APC AP8760 Power cable C19→C20 socket/plug 3.10 m black always at the best possible price. We can give you a discount of 2% on APC AP8760 Power cable C19→C20 socket/plug 3.10 m black if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of APC AP8760 Power cable C19→C20 socket/plug 3.10 m black we can offer you a price of 142,36 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
