APC Rack PDU 2G, Metered by Outlet with switching function, ZeroU, 16

Your rating:
Average rating
product review for APC Rack PDU 2G, Metered by Outlet with switching function, ZeroU, 16
( 4.7 / 5 ) 3 ratings
APC AP8659
This image may differ from the desired article.
APC AP8659APC AP8659APC AP8659APC AP8659
3.082,75 EUR
( 3.668,47 EUR incl. VAT )
≈ £2,580.26  |  ≈ $3,387.94
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x APC Rack PDU 2G, Metered by Outlet with switching function, ZeroU, 16
Datasheet:file_download Download
Lieske Part No.:370252
Mfg Part No: AP8659
UPC/EAN: 0731304299509
Weight:8.342 kg
Type:AP8659
Graduated prices net
From piecesPrice per pieces
22.874,66 EUR
42.666,58 EUR
62.458,49 EUR
82.250,41 EUR

Product information for APC AP8659:

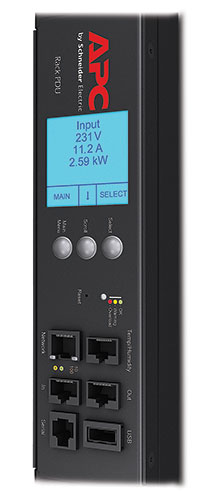

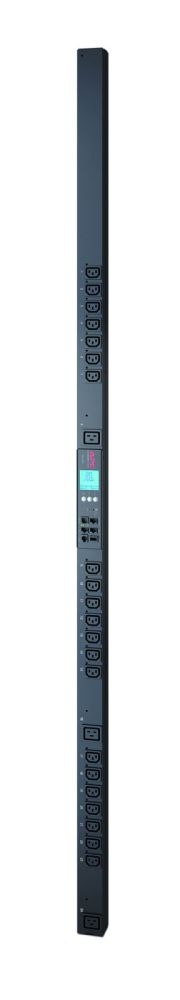

The APC Rack PDU 2G, type AP8659, is a power distributor with integrated metering function per outlet (Metered by Outlet) and switching function, specifically designed for use in data centers and IT infrastructures. The device enables precise energy management by measuring current, power, and voltage at each individual outlet. This allows operators to monitor the energy consumption of individual devices in real time, optimize load distribution, and prevent overloads in power circuits. The vertical mounting is performed in a 0U rack, enabling the PDU to be space-saving integrated into existing server racks. The product color is black, which visually blends into typical server environments.

Applications include central power supply and monitoring in data centers, server rooms, and other IT environments where detailed energy accounting and remote control are required. The metering function per outlet supports planning and optimization of IT infrastructure by providing detailed data on the energy consumption of individual devices. This enables more efficient load distribution and helps reduce overall operating costs. The switching function allows remote control of individual outlets, for example, to restart devices in a fault state or to shut off unauthorized consumers.

Functions and equipment in detail include 24 AC outlets, consisting of 21 C13 connectors and 3 C19 connectors, suitable for powering various IT devices. The IEC sockets are equipped with locking mechanisms to ensure a secure and stable connection. The ultra-flat disconnect switches enable compact mounting and facilitate operation. An integrated connection for temperature and humidity sensors extends the system's monitoring capabilities, allowing environmental conditions in the server room to be recorded.

Technology explained simply is based on a nominal input voltage of 200–230 V and an input frequency of 50–60 Hz. The maximum current is 16 A per phase, corresponding to a maximum power of 3680 W and a load capacity of 3680 VA. The outputs also deliver 200–230 V. Remote monitoring is performed via a secure web connection, SNMP, or Telnet interface, enabling the PDU to be controlled and configured over network protocols. Outlet control includes functions such as lockout, recycle, turn off, and turn on, used for remote control of individual sockets.

Compatibility and accessories include integration into central management solutions from APC, such as InfraStruxure Central, Operations, Capacity, and Energy Efficiency. These platforms enable centralized control and monitoring of multiple PDUs and IT systems. The certification includes standards such as EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, and VDE, confirming compliance with international standards for electromagnetic compatibility, safety, and energy efficiency. The RoHS compliance certificate indicates the use of environmentally friendly materials.

Mounting and installation are performed vertically in the rack, with the device having a height of 1829 mm, a width of 56 mm, and a depth of 51 mm. Mounting is done without additional fastening elements, as the device is designed for direct installation in standard racks. Operating conditions include a temperature range of -5 to 45 °C and relative humidity of 5 to 95 %, with storage possible at -25 to 65 °C and humidity of 5 to 95 %. The maximum operating altitude is 3000 m above sea level.

Operational advantages lie in precise energy monitoring, remote control of individual outlets, and integration into central management platforms. The detailed measurement values enable proactive load distribution and help reduce electricity costs. The switching functions support maintenance and troubleshooting by allowing devices to be restarted without physical access. The use of locking sockets and ultra-flat switches ensures a safe and compact installation in confined racks.

Certificates
Compliance certificatesRoHS
CertificationEN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE
Design
PDU typesMetered, Metered-by-outlet, Switched
Rack capacity0U
MountingVertical
Product colourBlack
Logistics data
Total carbon footprint (kg of CO2e)537.26
Management features
MonitoringCurrent, Power, Voltage
Outlet controlLock-out, Recycle, Turn off, Turn on
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Packaging data
Package weight8.36 kg
Package width162 mm
Package depth117 mm
Package height2038 mm
Ports & interfaces
AC outlets quantity24 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power
Nominal input voltage200-230 V
AC input frequency50 - 60 Hz
Maximum current16 A
Nominal output voltage200-230 V
Load capacity3680 VA
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Maximum power3680 W
Weight & dimensions
Width56 mm
Depth51 mm
Height1829 mm
Weight6.09 kg


Product data sheet
Datasheet for APC AP8659, EAN: 0731304299509

Questions & answers

What is the delivery time of APC Rack PDU 2G, Metered by Outlet with switching function, ZeroU, 16?

The article APC Rack PDU 2G, Metered by Outlet with switching function, ZeroU, 16 is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC AP8659 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you APC Rack PDU 2G, Metered by Outlet with switching function, ZeroU, 16 always at the best possible price. We can give you a discount of 2% on APC Rack PDU 2G, Metered by Outlet with switching function, ZeroU, 16 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of APC Rack PDU 2G, Metered by Outlet with switching function, ZeroU, 16 we can offer you a price of 2.874,66 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
