APC RACK PDU SWITCHED ZEROU 12.5KW 208V 21 C13 3 C19 10 CORD content_copy

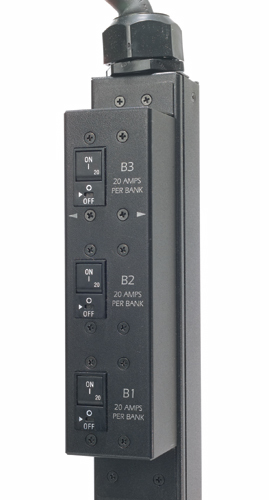

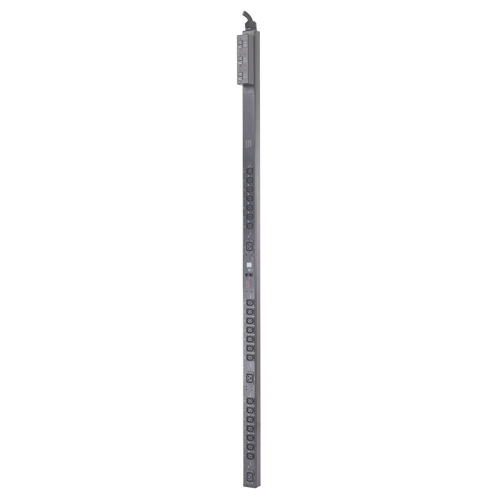

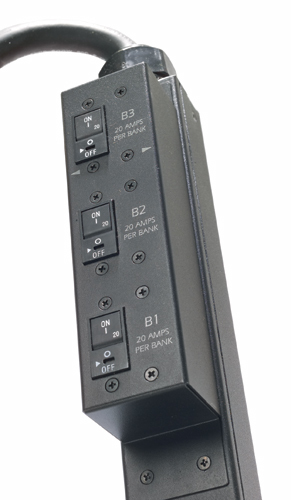

The APC AP7998B is a switched rack PDU in Zero-U format, specifically designed for use in server and network environments. With a power capacity of 12.5 kW at a nominal voltage of 208 V, it provides reliable power supply for demanding IT infrastructures. The device features a total of 24 AC outlets – 21 x IEC C13 and 3 x IEC C19 – enabling flexible connection of various devices, from network switches to high-performance servers. The integrated power monitoring and output control with functions such as Recycle and Power Off allow precise control of connected devices, enhancing efficiency and security in the data center. The PDU is equipped with a CS8365 input connector and includes a 3.05 m power cord, allowing flexible placement within the rack. Its robust black construction and compact 0U installation make it ideal for use in tight rack environments. The LED alarm indicator supports quick fault detection and resolution. The PDU is designed for operating temperatures from -5 to 45 °C, making it suitable for standard data center conditions.

Technical Specifications

• PDU Type: Switched
• Rack Capacity: 0U
• Product Color: Black
• Number of AC Outlets: 24 AC outlets
• AC Connector Types: C13 Coupler, C19 Coupler
• Input Connection Type: CS8365
• LED Indicators: Alarm
• Cable Length: 3.05 m
• Monitoring: Power
• Output Control: Recycle, Power Off
• Nominal Input Voltage: 208 V
• Current (max): 50 A
• AC Input Frequency: 50 - 60 Hz
• Nominal Output Voltage: 208 V
• Load Capacity: 12500 VA
• Maximum Total Current per Phase: 50 A
• Energy Protection Features: Overload Protection
• Certifications: RoHS, cUL Listed, CSA, FCC Part 15 Class A, ICES-003, Industry Canada, UL 60950, UL Listed
• Operating Temperature: -5 - 45 °C
• Storage Temperature Range: -25 - 65 °C
• Relative Humidity in Operation: 5 - 95%
• Humidity in Storage: 5 - 95%
• Operating Altitude: 0 - 3000 m
• Width: 56 mm
• Depth: 89 mm
• Height: 1778 mm
• Weight: 9.67 kg
• Packaging Contents: Cord Retention Bracket(s), Documentation CD, Installation Guide, Rack Mounting Brackets, RS-232 configuration cable, Toolless Mounting Kit
• Package Weight: 12.9 kg
• Packaging Width: 152 mm
• Packaging Depth: 127 mm
• Packaging Height: 2108 mm

Note (internal)
Inconsistent information regarding maximum current: Source 2 (Icecat) lists 50 A, while Source 5 (web search) states 35 A. The value of 50 A is used here as it is specified in the official manufacturer's data source (Icecat). The 35 A value in Source 5 is inconsistent with official specifications and is therefore not considered.
