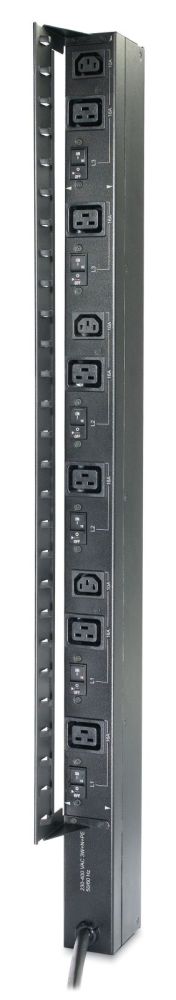

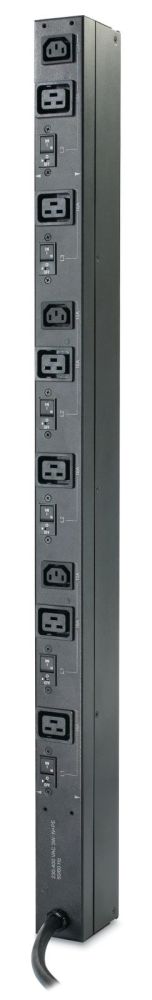

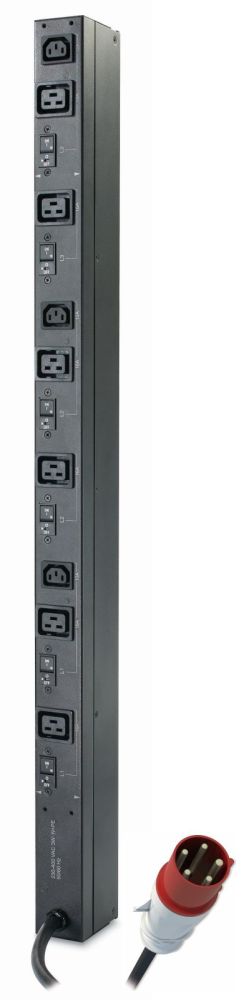

APC AP7555A Rack PDU, Basic, Zero U, 22 kW, 230 V, (6) C19 & (3) C13

Your rating:
Average rating
product review for APC AP7555A Rack PDU, Basic, Zero U, 22 kW, 230 V, (6) C19 & (3) C13
( 5 / 5 ) 1 ratings
APC AP7555AAPC AP7555AAPC AP7555AAPC AP7555AAPC AP7555AAPC AP7555AAPC AP7555AAPC AP7555AAPC AP7555A
APC AP7555A
This image may differ from the desired article.
2.005,45 EUR
( 2.386,49 EUR incl. VAT )
≈ £1,678.56  |  ≈ $2,244.10
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x APC AP7555A Rack PDU, Basic, Zero U, 22 kW, 230 V, (6) C19 & (3) C13
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:919270
Mfg Part No: AP7555A
UPC/EAN: 0731304251255
Weight:7.16 kg
Type:AP7555A
Graduated prices net
From piecesPrice per pieces
21.870,08 EUR
41.734,71 EUR
61.599,35 EUR
81.463,98 EUR
Further Modules / extensions from APCFurther products in category Modules / extensions All products of APC

Product information for APC AP7555A:

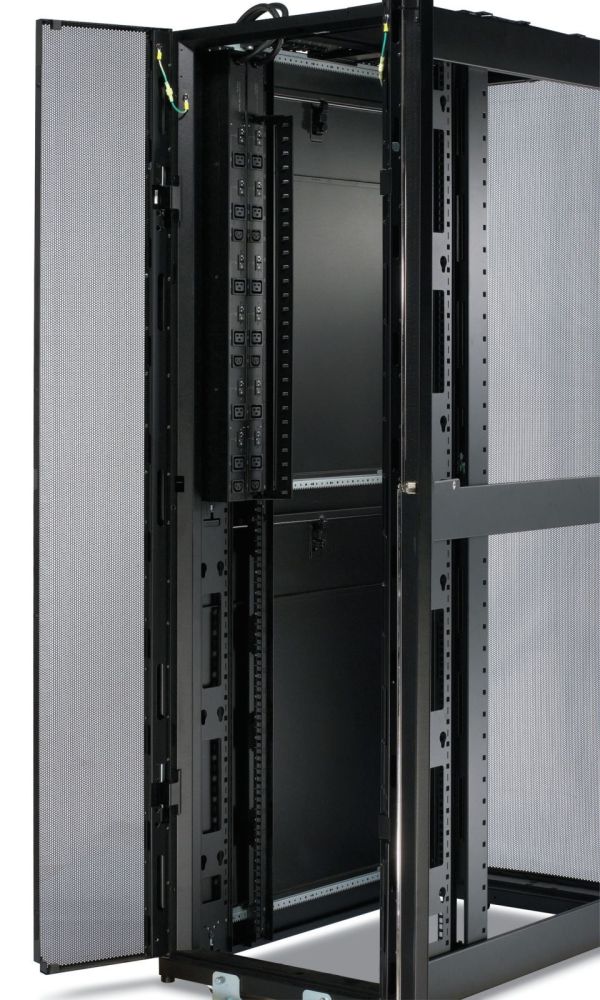

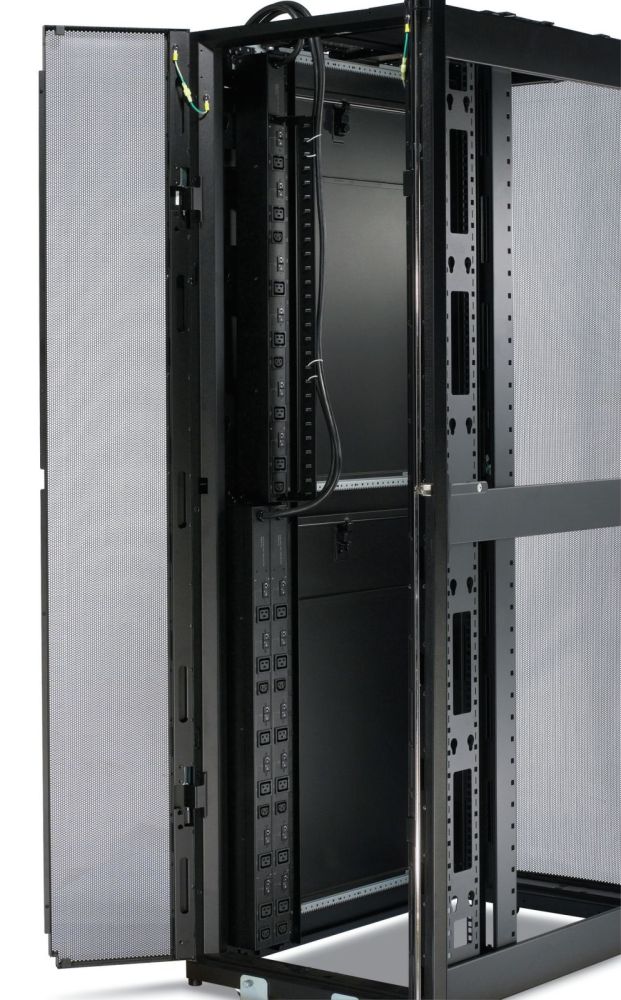

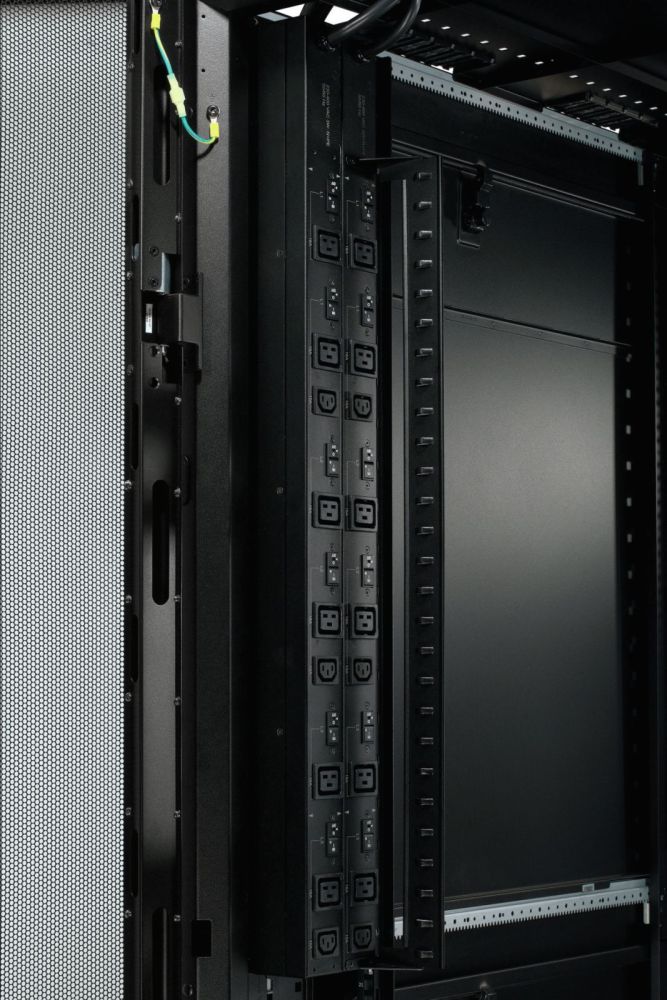

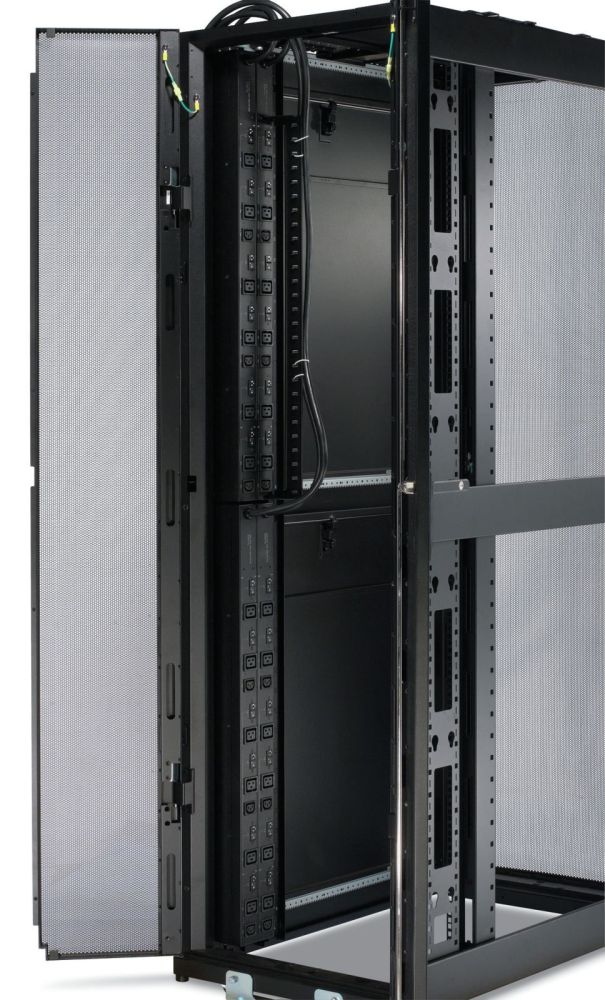

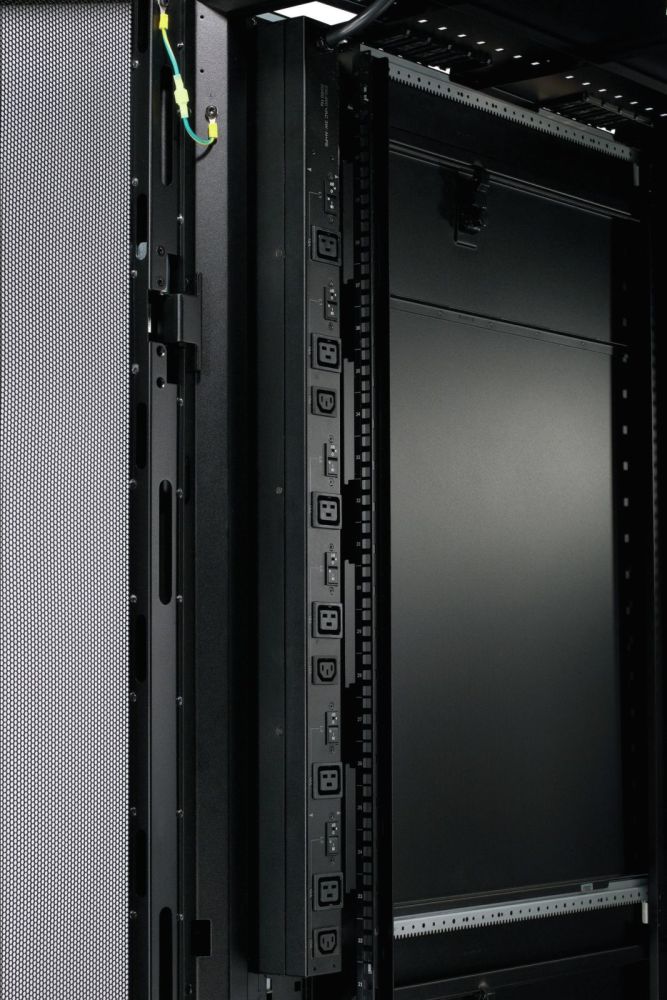

APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount veritcally, without tools in the rear channel of a NetShelter VX.



Design
PDU typesBasic
Rack capacity0U
MountingVertical
Product colourBlack
Features
Cable length1.83 m
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Packaging data
Package weight6.25 kg
Package width286 mm
Package depth70 mm
Package height1054 mm
Ports & interfaces
AC outlets quantity9 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Input connection typeIEC 309 32A 3P+N+PE

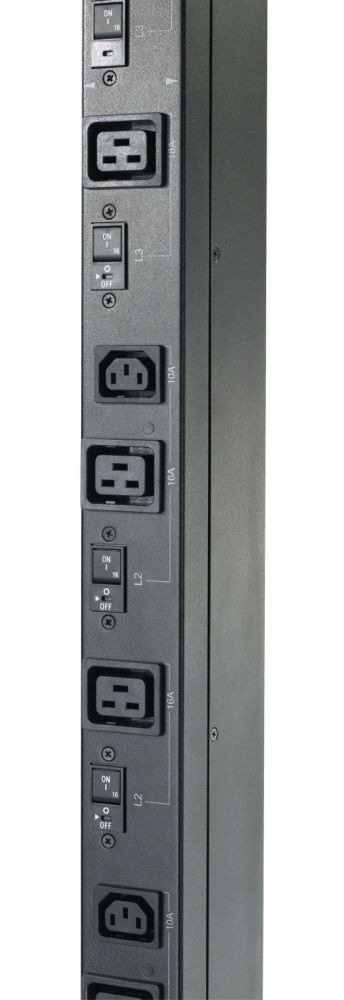

Output connections- (3) IEC 320 C13 - (6) IEC 320 C19
Power
Nominal input voltage400 V
AC input frequency47/63 Hz
Nominal output voltage230 V
Load capacity22080 VA
Maximum input current per phase32 A
Maximum total current draw per phase32 A
Maximum power22000 W
Weight & dimensions
Width55 mm
Depth88 mm
Height927 mm
Weight4.75 kg

Questions & answers

What is the delivery time of APC AP7555A Rack PDU, Basic, Zero U, 22 kW, 230 V, (6) C19 & (3) C13?

The article APC AP7555A Rack PDU, Basic, Zero U, 22 kW, 230 V, (6) C19 & (3) C13 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC AP7555A to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you APC AP7555A Rack PDU, Basic, Zero U, 22 kW, 230 V, (6) C19 & (3) C13 always at the best possible price. We can give you a discount of 2% on APC AP7555A Rack PDU, Basic, Zero U, 22 kW, 230 V, (6) C19 & (3) C13 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of APC AP7555A Rack PDU, Basic, Zero U, 22 kW, 230 V, (6) C19 & (3) C13 we can offer you a price of 1.870,08 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
