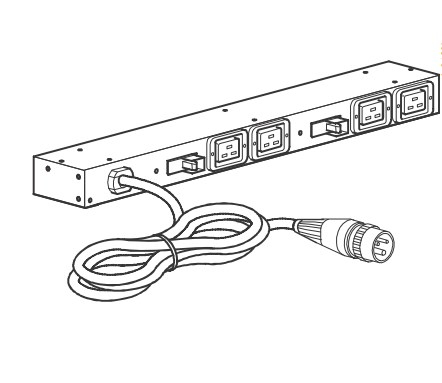

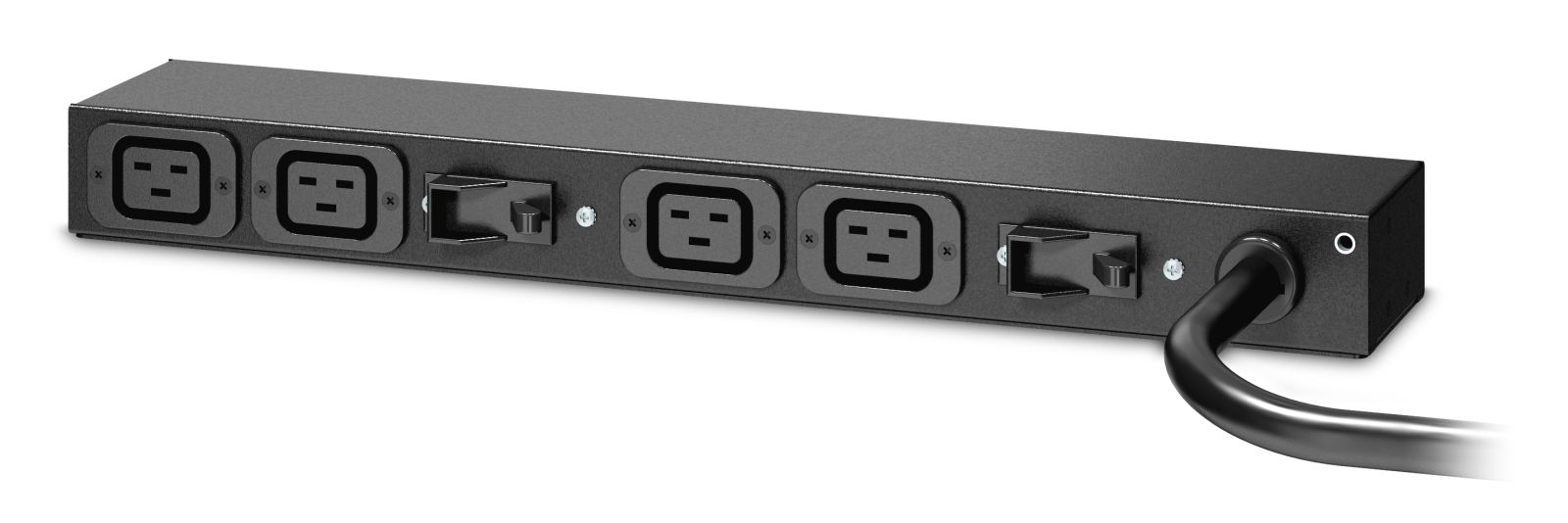

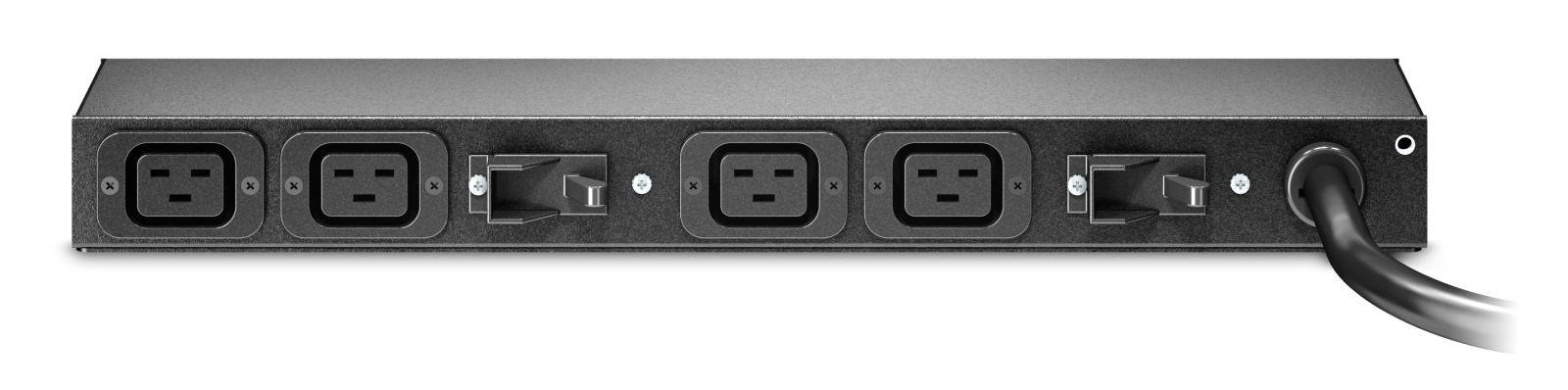

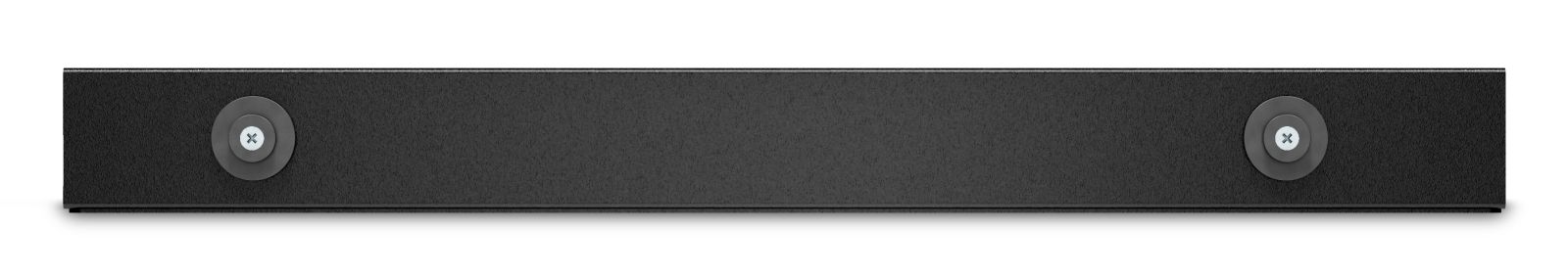

The APC AP6032A is a basic power distribution unit (PDU) for use in server racks, distributing power to multiple devices within the rack. The device is designed as a standard PDU, with a rack capacity of 0U/1U and supports both horizontal and vertical mounting. It is designed for use in single-phase networks and features a black housing. The PDU is equipped with four
C19 outlets, suitable for powering IT and network devices. The integrated power cable has a length of 3.65 m and terminates in an IEC 60309 plug with a rated current of 32 A. Power supply is provided via an input voltage of 200 to 240 V at a frequency of 50 to 60 Hz. The maximum power is 7680 W, with the maximum output voltage also within the range of 200 to 240 V. The PDU is designed for operation in environments with temperatures from 0 to 50 °C and relative humidity from 5 to 95 % (non-condensing). For storage, temperatures from -15 to 60 °C and humidity from 5 to 95 % (non-condensing) are permitted. The maximum operating altitude is 3048 m above sea level. The internal overcurrent protection consists of two 20 A, 1-pole overload switches that protect the outlets. The PDU complies with VDE and CE certifications as well as the RoHS directive 2011/65/EU. Dimensions are 43.8 cm (H) × 4.36 cm (W) × 9.29 cm (D), and the weight is 2.78 kg. The PDU is designed for use in Europe, the Middle East, Africa, and Asia (EMEA/ASIA). Power supply is via the integrated power cable, which is connected directly to a suitable power source. Installation is carried out using the designated mounting options in the rack, supporting both horizontal and vertical installation variants. The PDU is suitable for use in data centres, server rooms, and other IT infrastructures where reliable power distribution to multiple devices is required. The outlets are rated for a maximum current of 16 A per
C19 socket, with a total current per phase of 32 A. The PDU is therefore suitable for powering devices with high power demands, with the internal protection circuit providing overload protection. The design allows for easy integration into existing rack systems, with the cable length of 3.65 m enabling flexible positioning of the power source. The PDU is designed for use in environments with industrial and commercial requirements, with VDE and CE certifications confirming compliance with safety and quality standards. Power supply is via the integrated power cable, which is connected directly to a suitable power source. Installation is carried out using the designated mounting options in the rack, supporting both horizontal and vertical installation variants. The PDU is suitable for use in data centres, server rooms, and other IT infrastructures where reliable power distribution to multiple devices is required. The outlets are rated for a maximum current of 16 A per
C19 socket, with a total current per phase of 32 A. The PDU is therefore suitable for powering devices with high power demands, with the internal protection circuit providing overload protection. The design allows for easy integration into existing rack systems, with the cable length of 3.65 m enabling flexible positioning of the power source. The PDU is designed for use in environments with industrial and commercial requirements, with VDE and CE certifications confirming compliance with safety and quality standards. Power supply is via the integrated power cable, which is connected directly to a suitable power source. Installation is carried out using the designated mounting options in the rack, supporting both horizontal and vertical installation variants. The PDU is suitable for use in data centres, server rooms, and other IT infrastructures where reliable power distribution to multiple devices is required. The outlets are rated for a maximum current of 16 A per
C19 socket, with a total current per phase of 32 A. The PDU is therefore suitable for powering devices with high power demands, with the internal protection circuit providing overload protection. The design allows for easy integration into existing rack systems, with the cable length of 3.65 m enabling flexible positioning of the power source. The PDU is designed for use in environments with industrial and commercial requirements, with VDE and CE certifications confirming compliance with safety and quality standards.
| Certificates |
| Compliance certificates | RoHS |
| Certification | VDE, CE |
| Design |
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Features |
| Cable length | 3.65 m |
| Operational conditions |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Ports & interfaces |
| AC outlets quantity | 4 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C19 coupler |
| Power |
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 200-240 V |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum power | 7680 W |
| Weight & dimensions |
| Width | 4.36 mm |
| Depth | 9.29 mm |
| Height | 43.8 mm |
| Weight | 2.78 kg |
